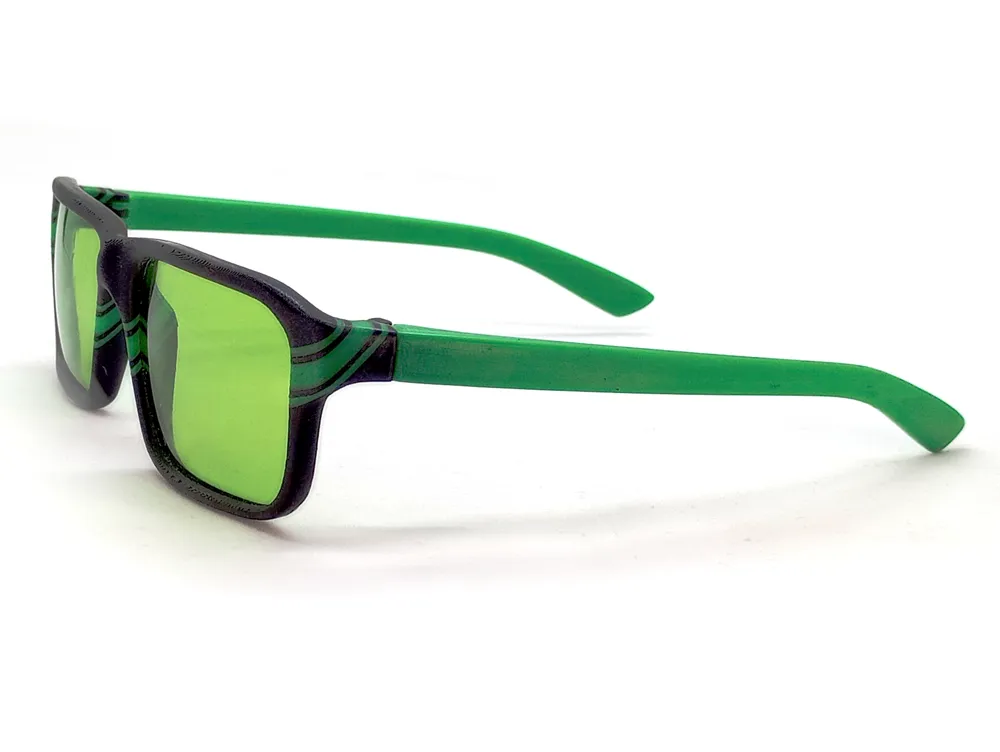

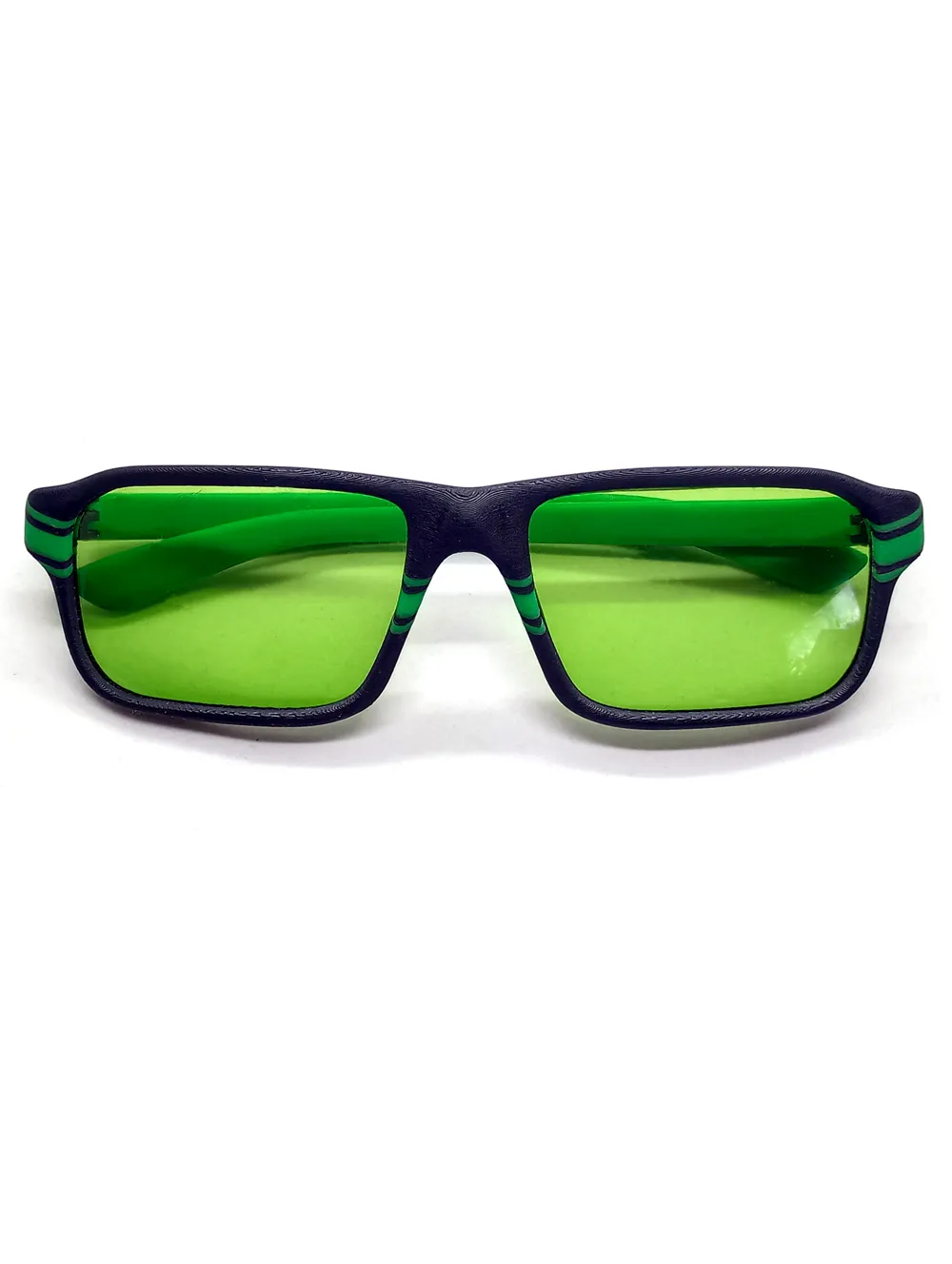

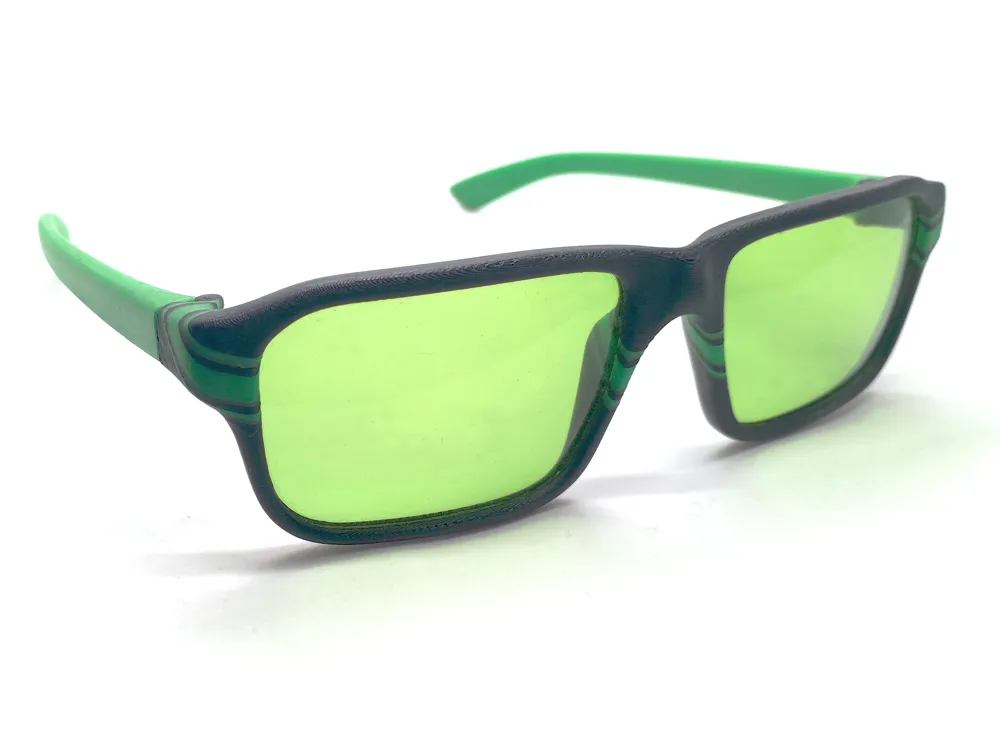

Sunglasses black-green

IP Report

Print Profile(1)

All
P2S
X1E
X1
P1P
H2D Pro
H2D
H2C
A1
P1S
X1 Carbon
H2S
X2D
A2L

0.12mm layer, 2 walls, 15% infill
0.12mm layer, 2 walls, 15% infill
Designer
3.6 h
2 plates
5.0(1)

Open in Bambu Studio
Boost
15
34
3
1
36
9
Released

Bill of Materials

Bambu Filaments
Select all
ABS Black (40101) / Refill / 1kg
ABS
x1
ABS Bambu Green (40500) / Refill / 1kg
ABS
x1
List other parts

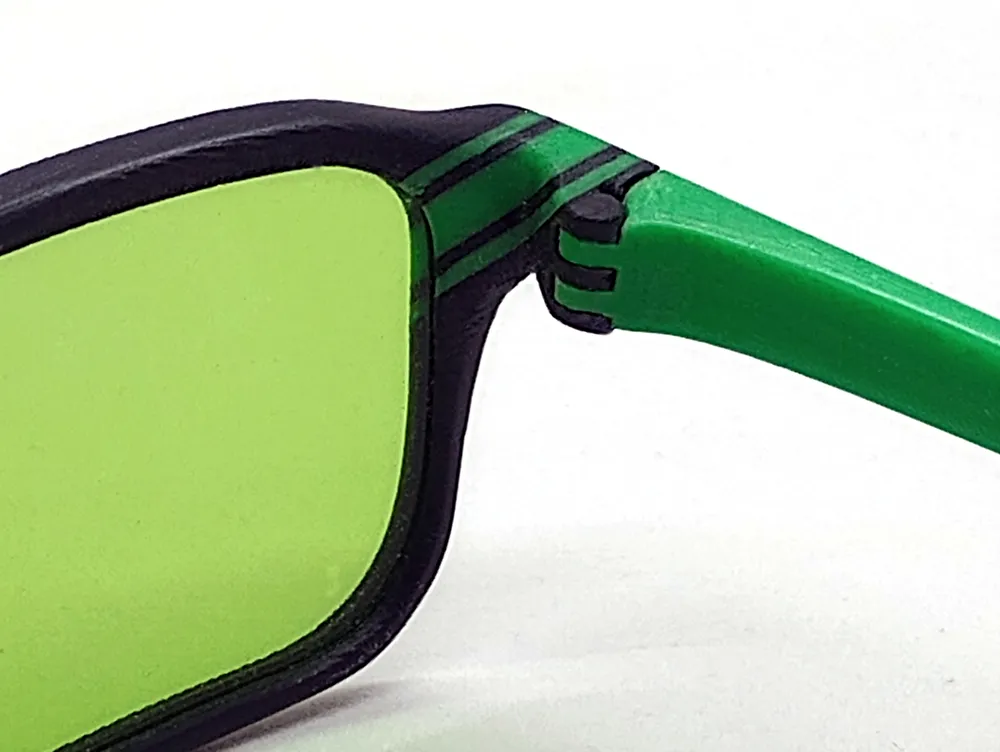

  • Metalldraht x 2: Zwei kleine Stücke Metalldraht mit einem Durchmesser von 1 mm und 9mm länge als Achse für die angeformten Scharniere
  • Brillengläser x 2: Suche im Internet nach Sonnenbrillengläsern! Alle großen Versandhändler bieten eine große Auswahl an Kunststoff Sonnenbrillengläsern die du selbst zusägen und schleifen kannst oder gehe mit dem fertig ausgedruckten Brillenrahmen zu dem Optiker deines Vertrauens und lasse dir auch Gläser mit optischer Wirkung in deiner Stärke einsetzen.

Description

Content has been automatically translated.
Show original

If you like my designs, I would appreciate a cup of coffee from you! You can buy me one here → https://buymeacoffee.com/wolframjaensch

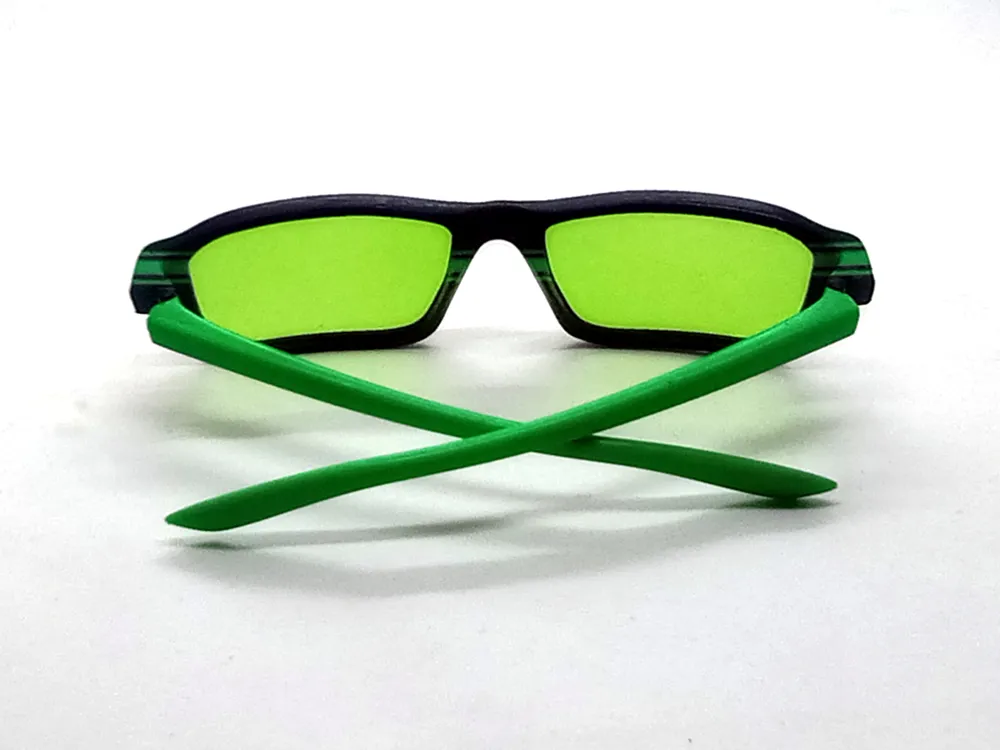

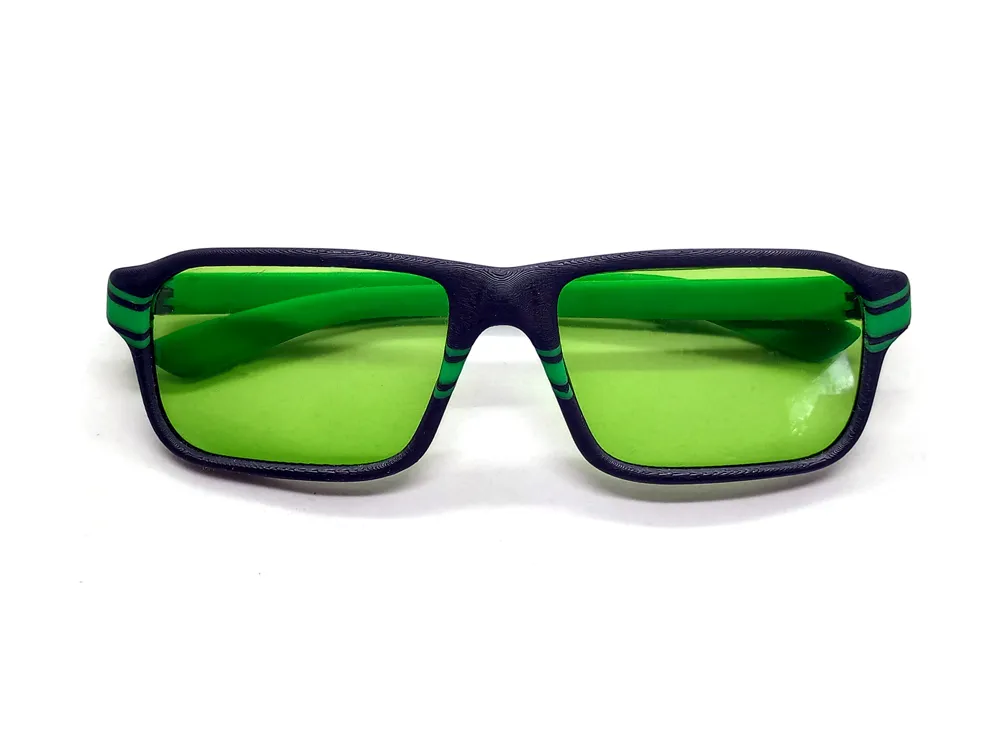

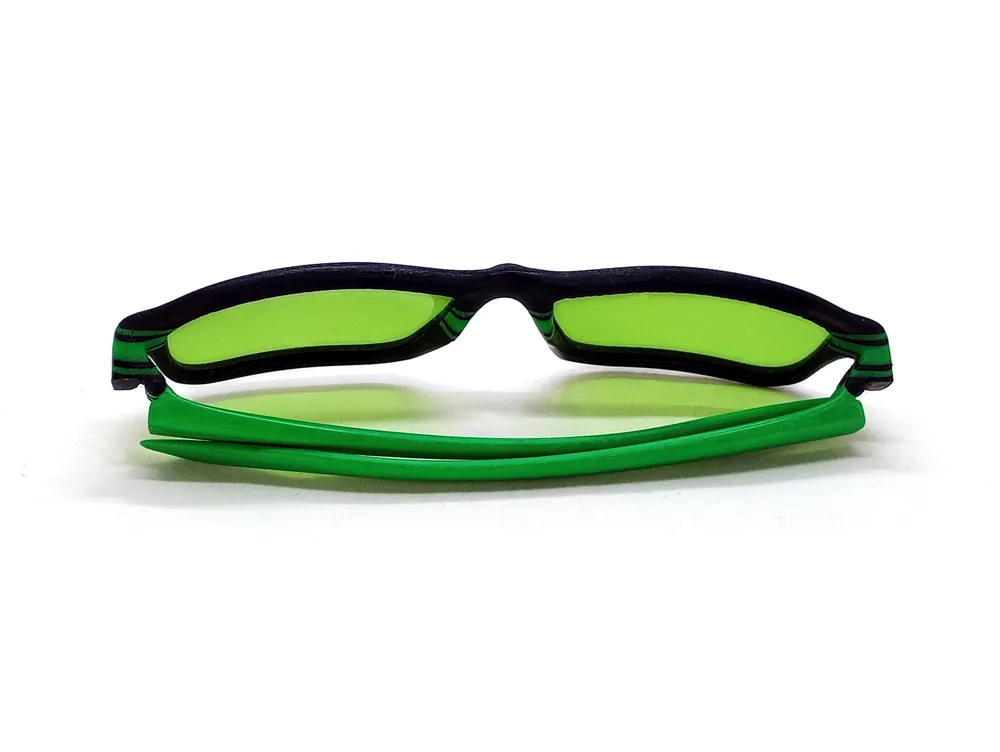

Textiles, clothes, and shoes - so why not 3D print your own glasses and then have an optician fit the lenses Try it out - these glasses were designed by me, a professional in glasses design, and are very easy to print with my Bambu printer I recommend ABS or PETG as the printing material You can also fit them yourself with non-prescription sunglass lenses Simply search online for plastic sunglass lenses You can cut them to size with a fine saw and accurately file them to the required shape and size A paper template that you can adhere to the sunglass lenses for easier cutting is included in the downloadable files as assembly instructions Please remember to create a “V” groove along the contour edges of the sunglass lenses so they fit securely in the frame If you do not wish to fit the lenses yourself, or if you need prescription lenses for the glasses, then entrust this task to your preferred optician The glasses are designed so that an optician can easily fit them with your specific lenses For assembling the two temples, you will need a piece of wire approximately 9 mm long with a 1 mm diameter to serve as an axis On the underside, you can secure the wire in the frame with adhesive The great thing is, once you have a pair of lenses, you can print an infinite number of glasses in various colors and with your graphic design ideas, and reuse the lenses repeatedly Happy printing - next summer is coming, and you will have your own 3D printed glasses with your lenses for the beach, the ice cream parlor, and so much more With that, you'll steal the show from everyone else with their “sun-ray-banner”

Boost Me (for free)

... I'd be delighted if you support my work - it would inspire many new glasses designs for you to 3D print yourself!





To the imprint of Wolfram Jänsch →→→ https://itrk.legal/kQH.0.fKg-de.html?impressum






Documentation (2)

Assembly Guide (2)

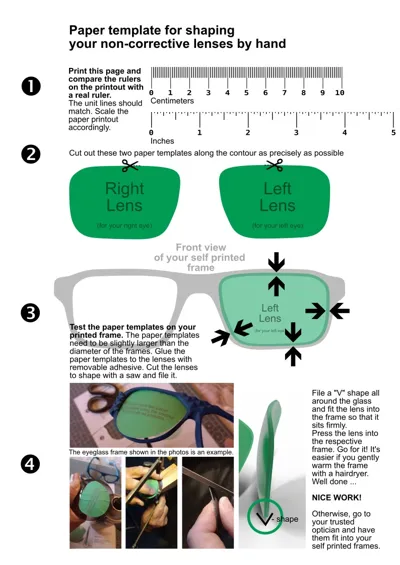

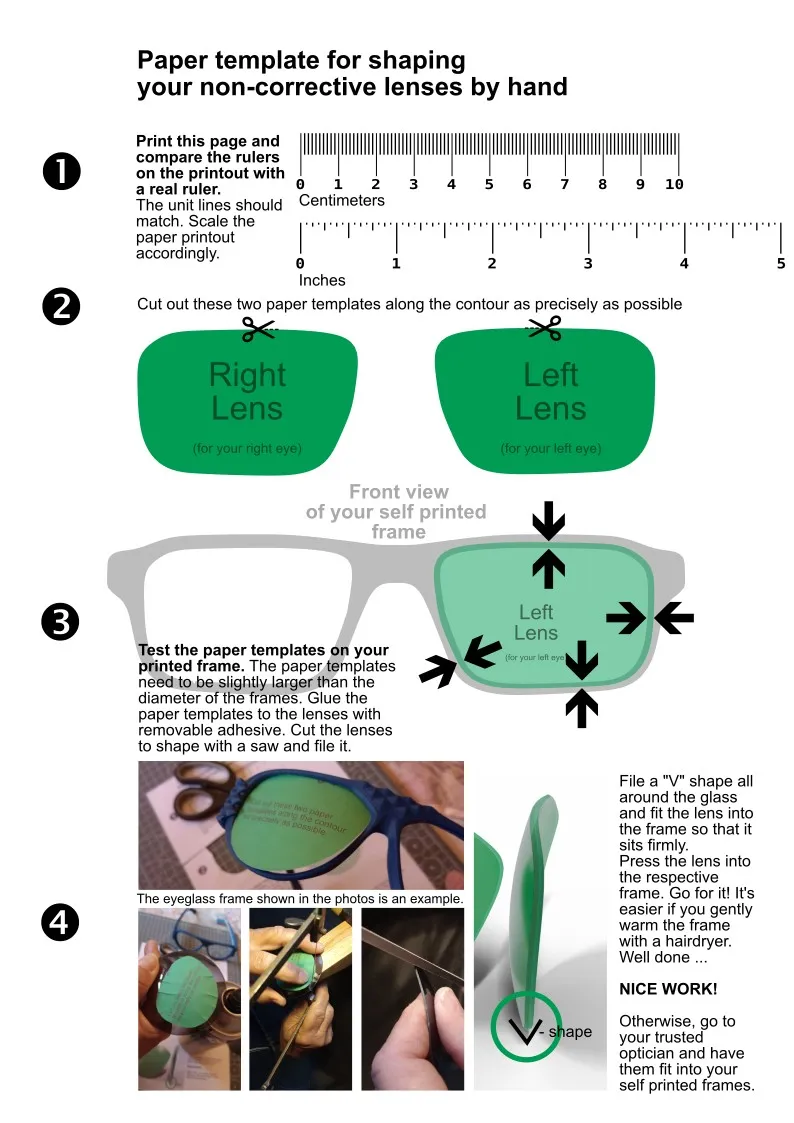

Template for shape of lenses.jpg
Template for shape of lenses_(1).pdf
