Photography Gridfinity Bins (Fuji, Peak Design)
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 5% infill
Designer
18.8 h
9 plates
Open in Bambu Studio
Boost
79
368
1
4
131
35
Released
Description
Hello! I'm happy to share a major milestone on my ongoing Gridfinity organization project, I didn't find bins that suited my liking and need so I decided to create my own. Hope you find them useful!
Note: Labels are only on the bambu studio model, Fusion 360 files does not contain the labels.
Note2: For multicolor printing I used a pause and manual filament change.
Standard Gridfinity specs were used:
- Base width unit (mm): 42mm
- Base length unit (mm): 42mm
- Bin height unit (mm): 7mm
- Bin xy clearance (mm): 0.25mm

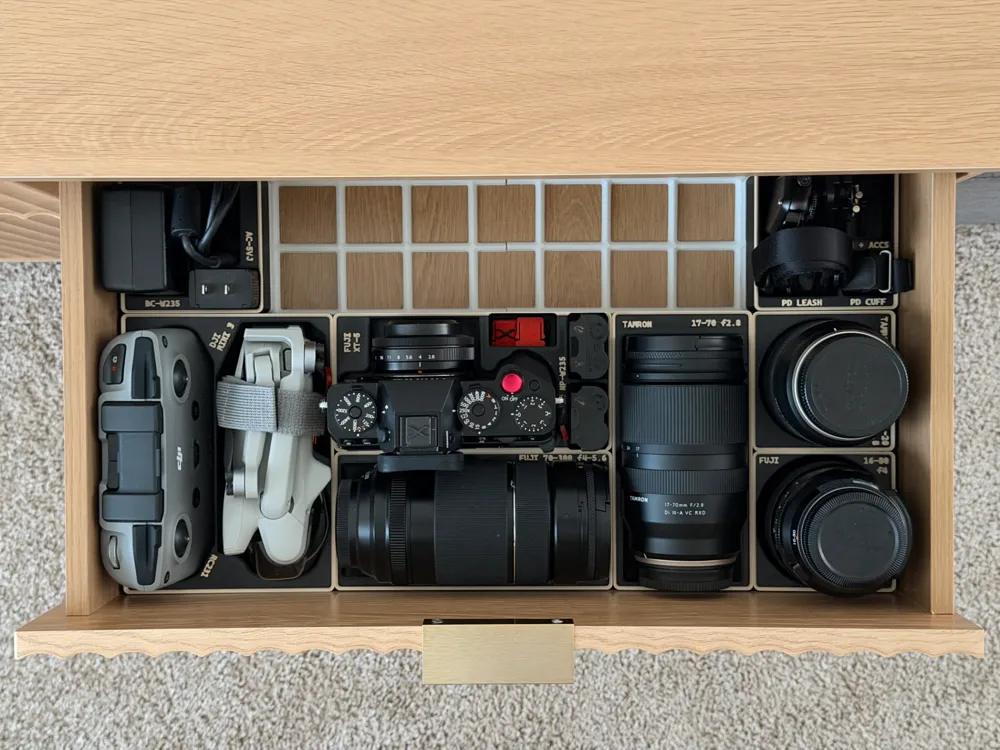

Bin models as of Feb 2026:

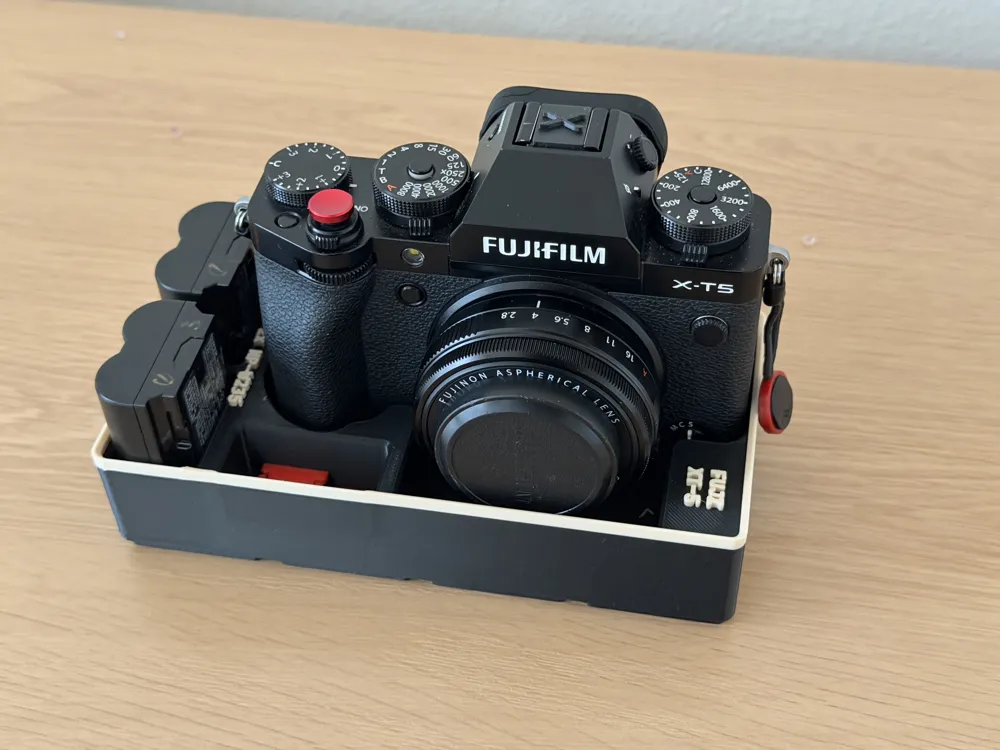

- Fuji XT-5 with Fuji 27mm f2.8 WR attached and 2xNP-W235 batteries with peak design plate

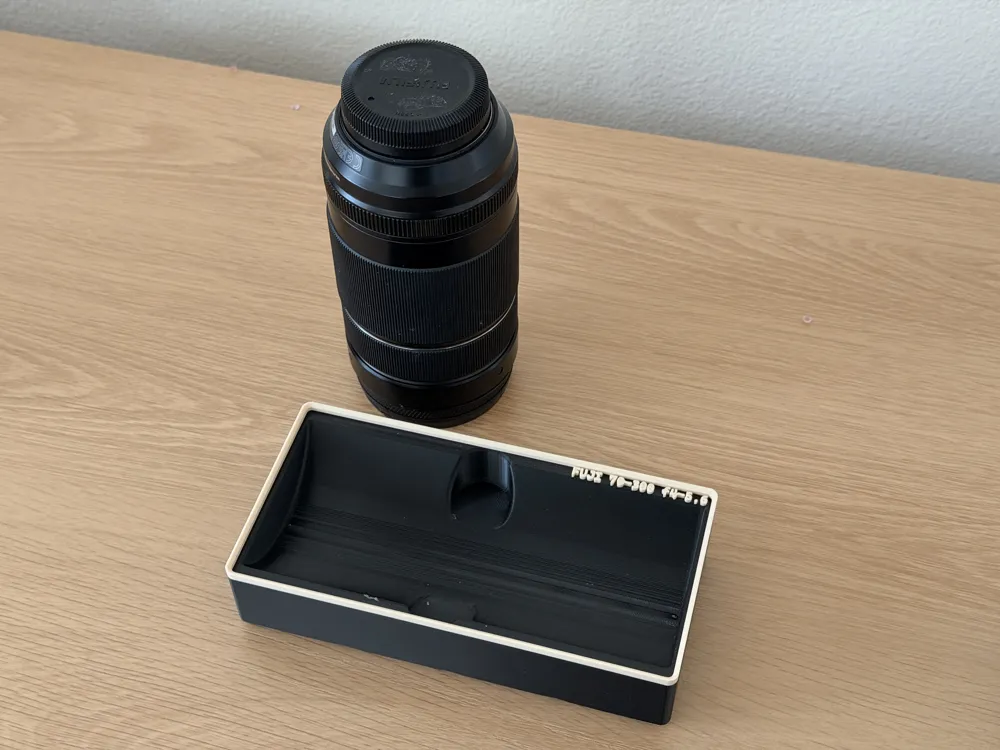

- Fuji 70-300 f4-5.6
- Fuji 16-80 f4

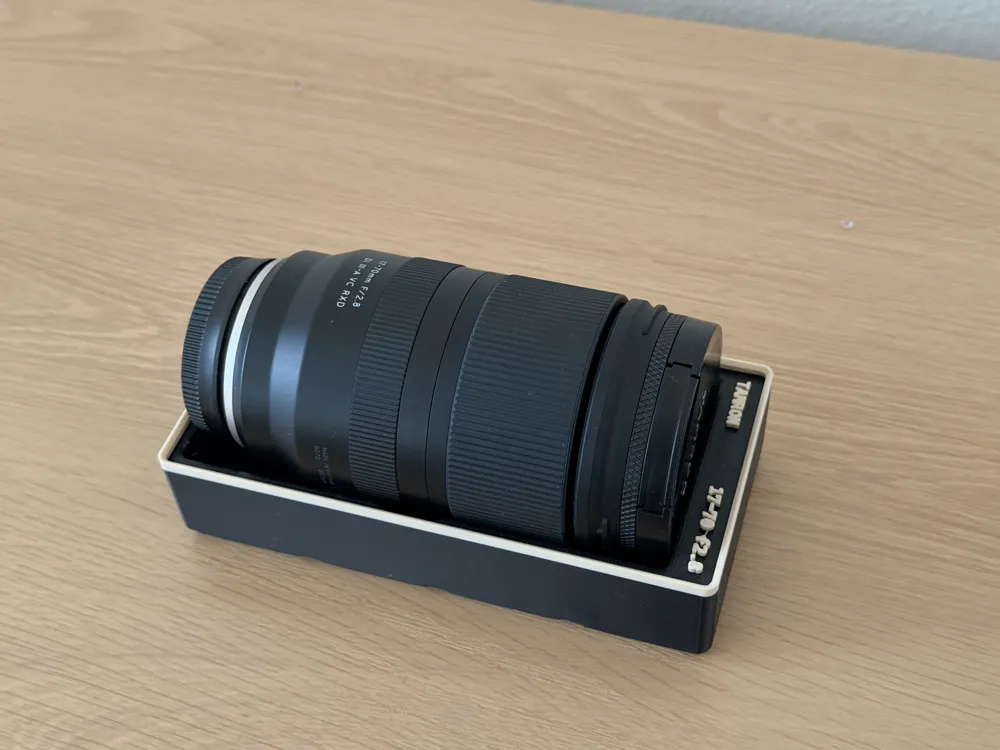

- Tamron 17-70 f2.8

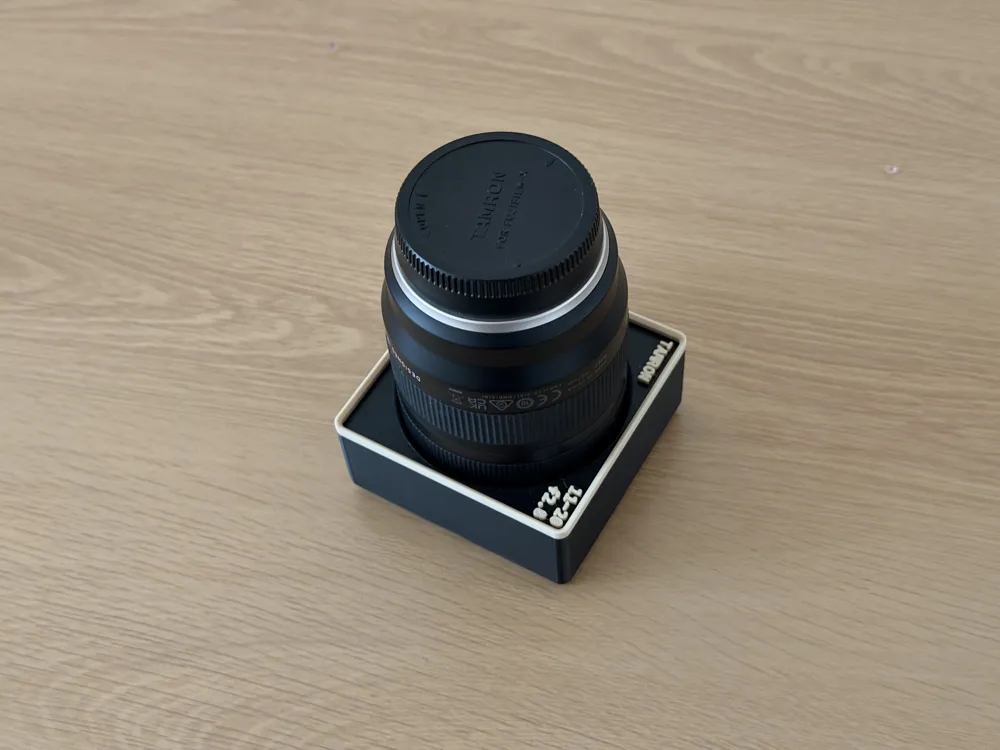

- Tamron 11-20 f2.8

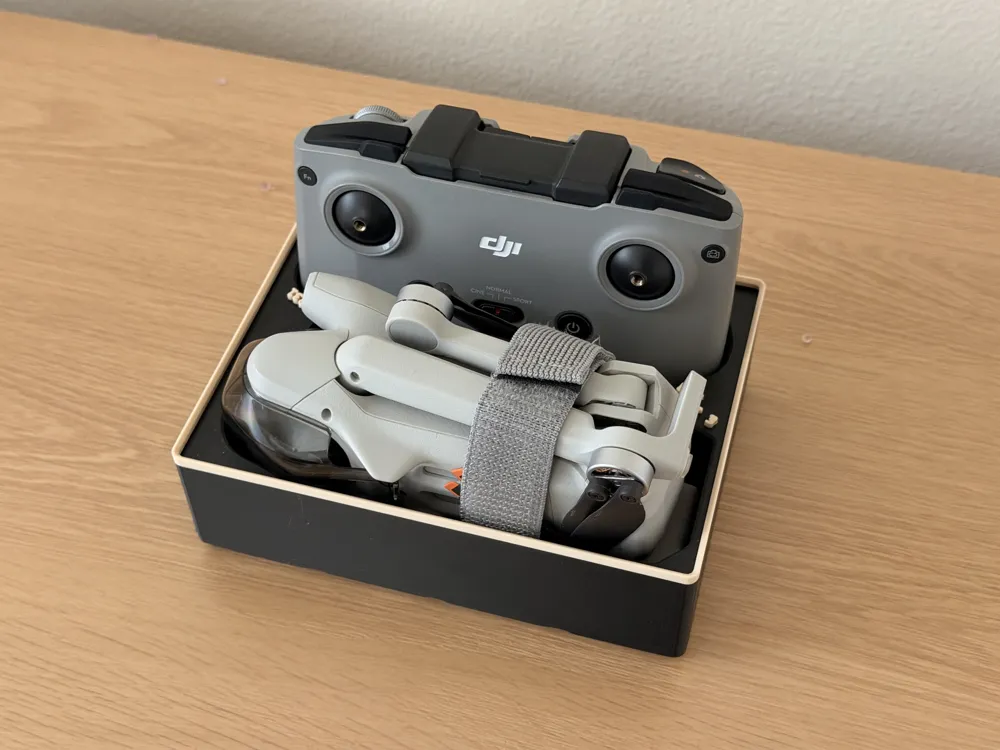

- DJI Mini 3 and RC231 Controller

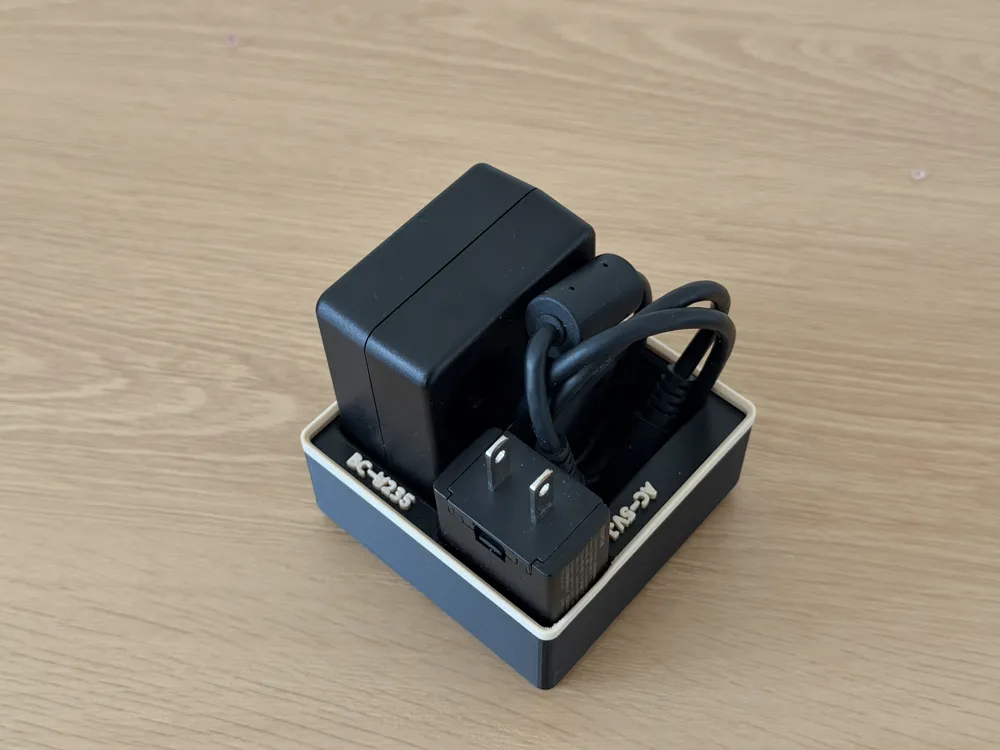

- Fuji NP-W235 Dual battery charger

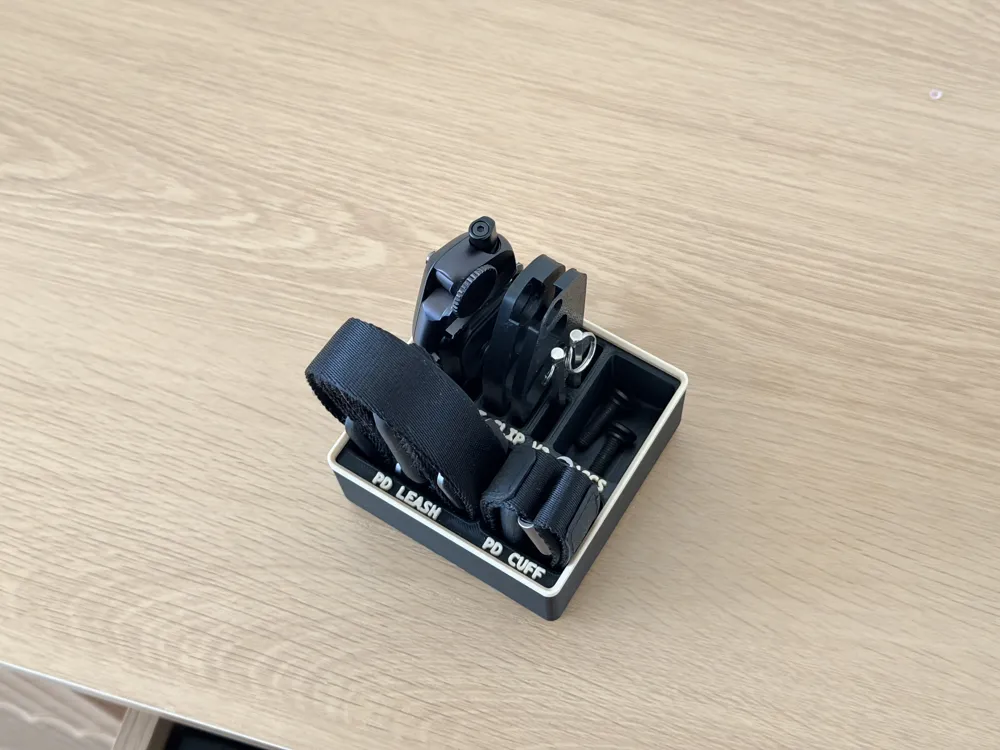

- Peak Design Capture Clip v3 + spacers from ken830 https://makerworld.com/es/models/1763171-anchor-adapter-for-peak-design-capture-v3#profileId-1875939 + peak design leash and peak design cuff
Happy to hear any feedback and fell free to request any models I have limited time but I'll try my best!
