SCX24 - Land Rover Series 3 D90 Body

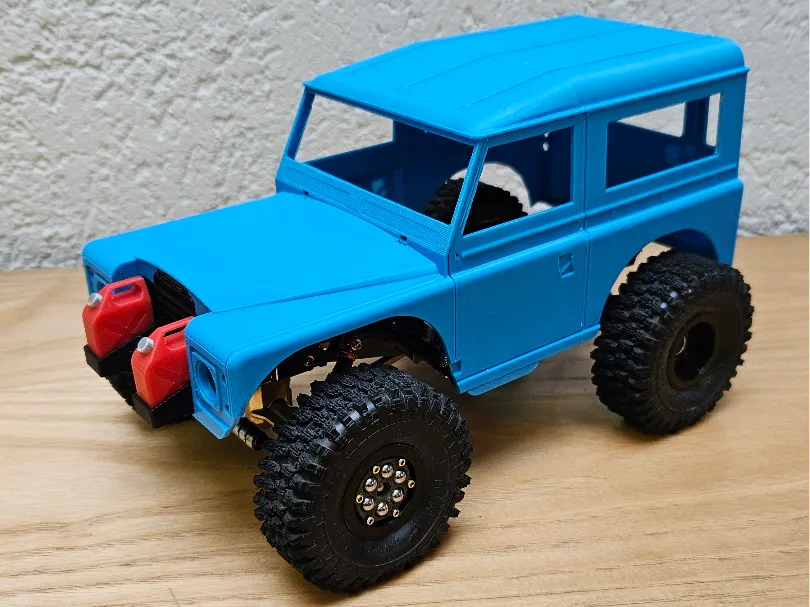

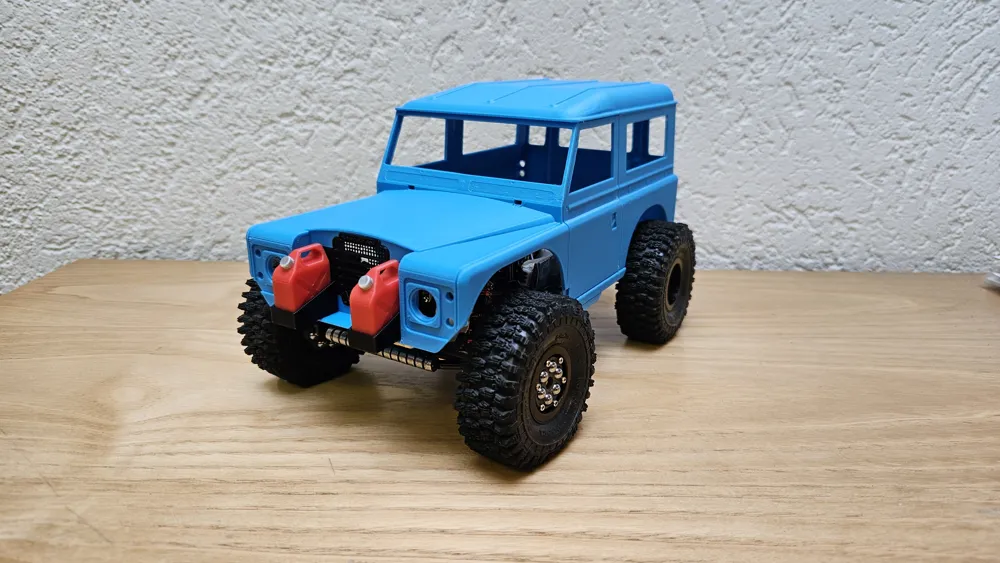

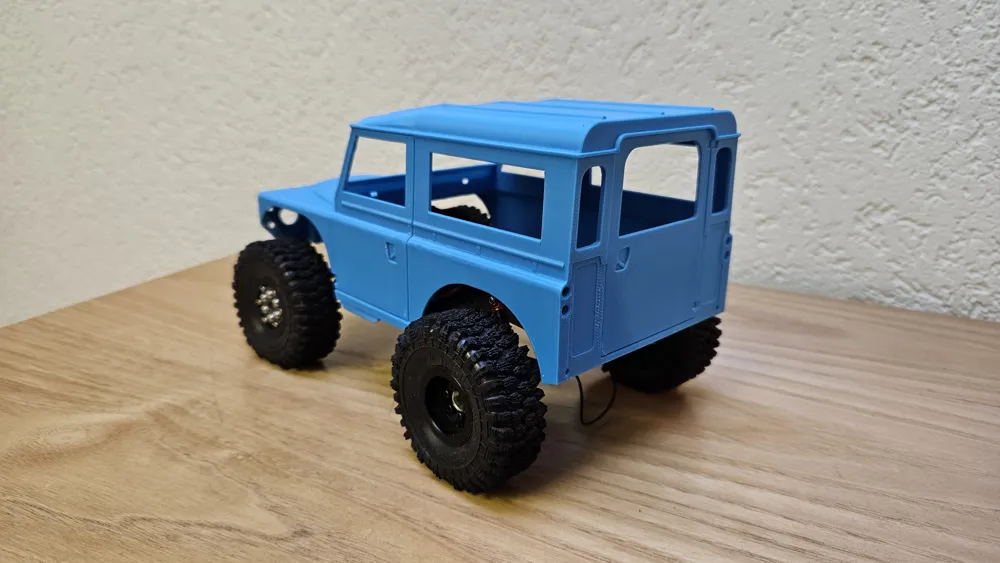

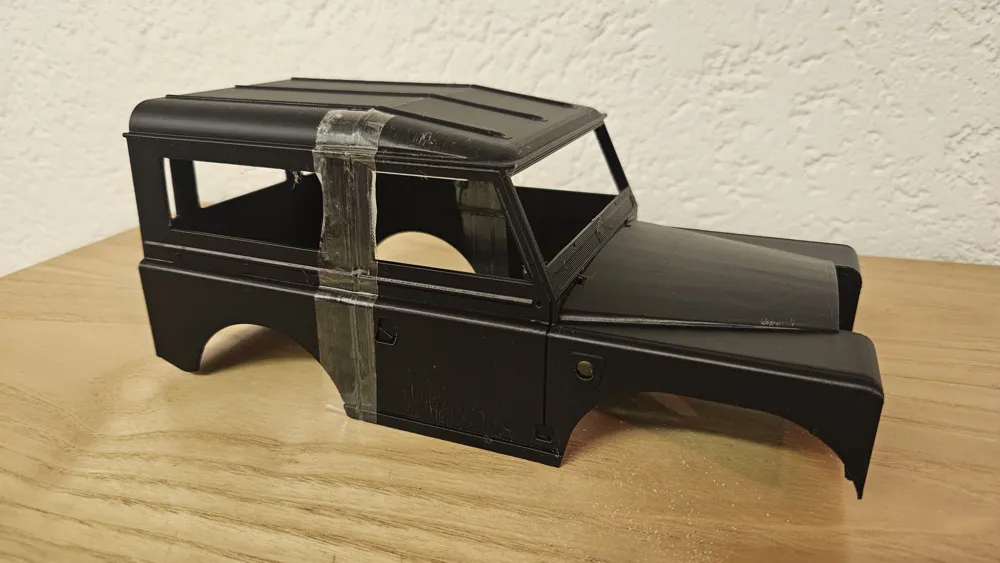

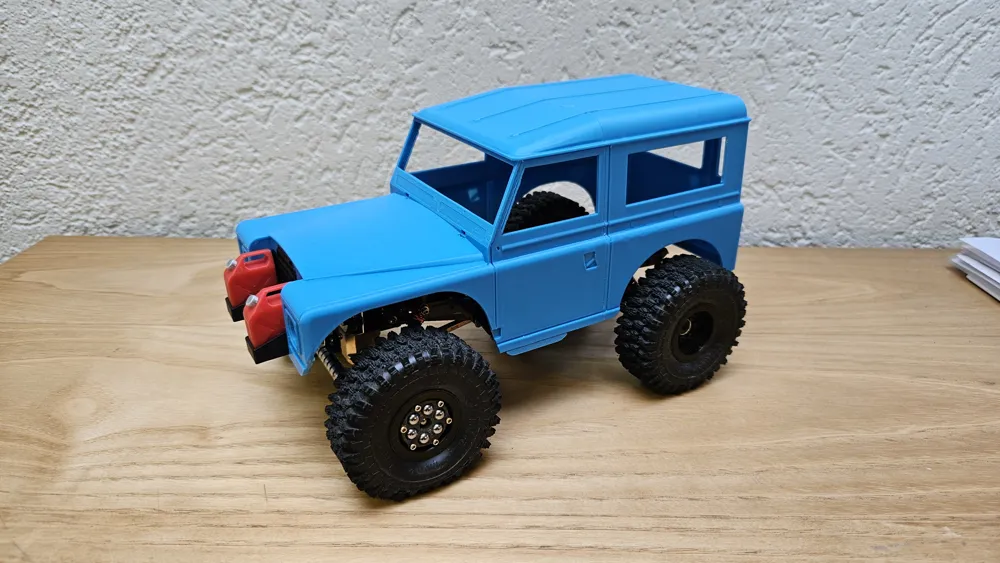

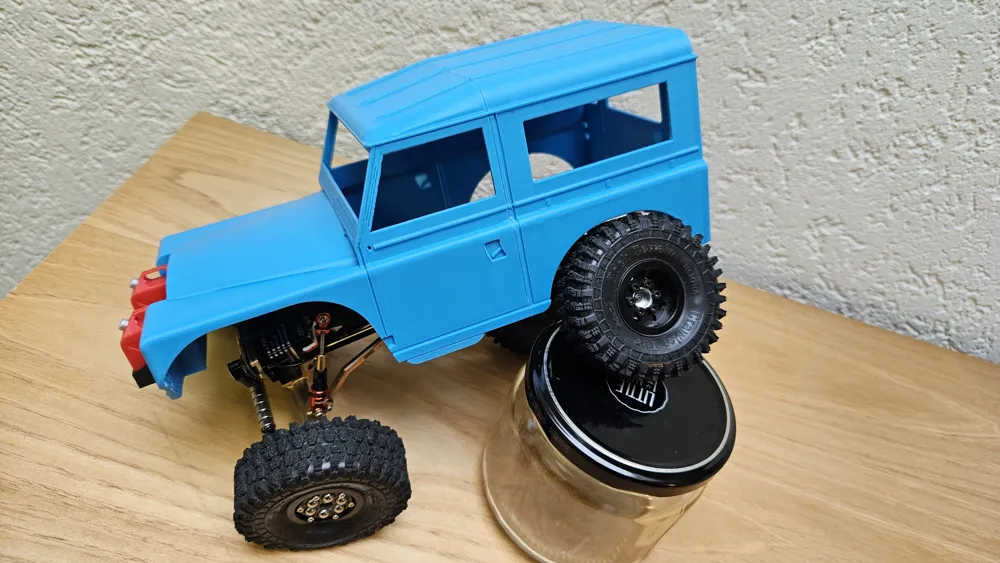

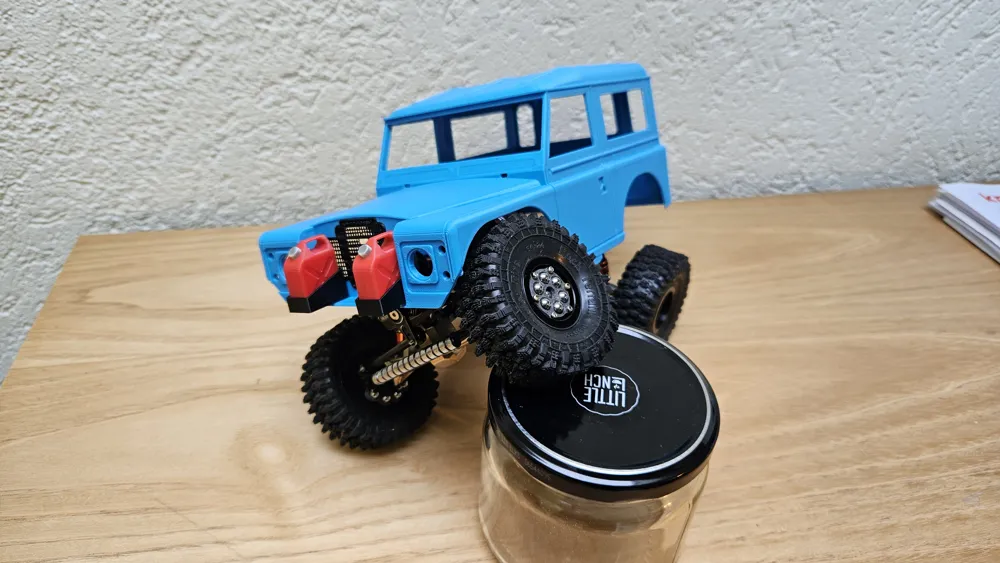

This is a Land Rover Series 3 D90 body with some additional jerrycans. The body is printed in 2 parts and has to be glued together (using 2 adhesive strips to wrap around each sideskirt can make alignment a lot easier, see 2. last picture).

The original body came in many small parts as it was made for 1/10 scale. I've cleaned up all the parts, organized them in 3d space, connected them to make it printable, added wheel cutouts and designed my own jerrycans and mounts.

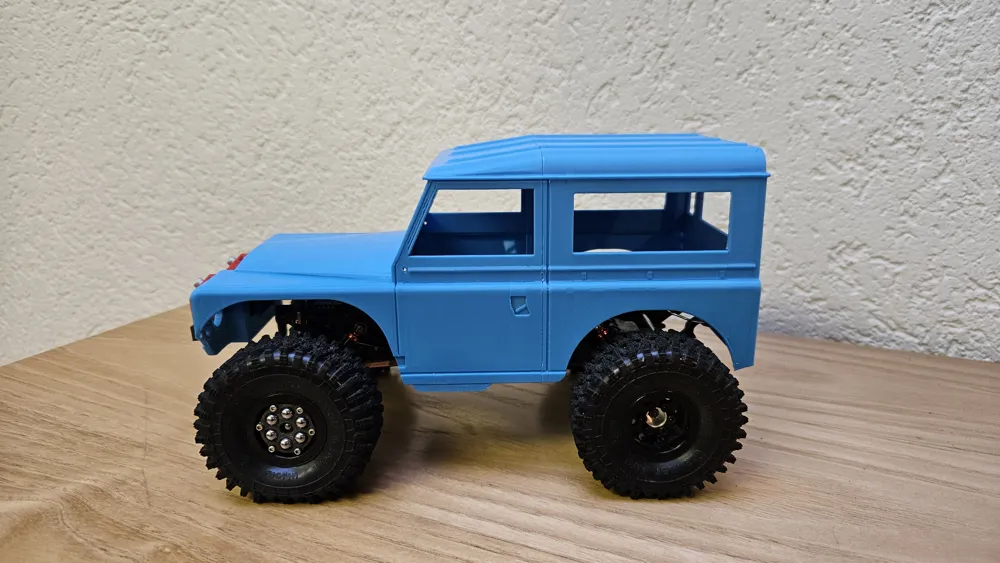

Body dimensions are 210mm * 102.8mm * 87.2mm and scaled to 59.78%. There are unscaled and uncut versions in stl and step (warning - very heavy file) added. Weight of the body alone is 87g and the body is made for a 133mm wheelbase.

No mounting solutions provided  as every build requires a custom solution anyway depending on how your chassis is build, i've used a hinge mount in the rear and a little custom spacer for glueing magnets to the body for the front.

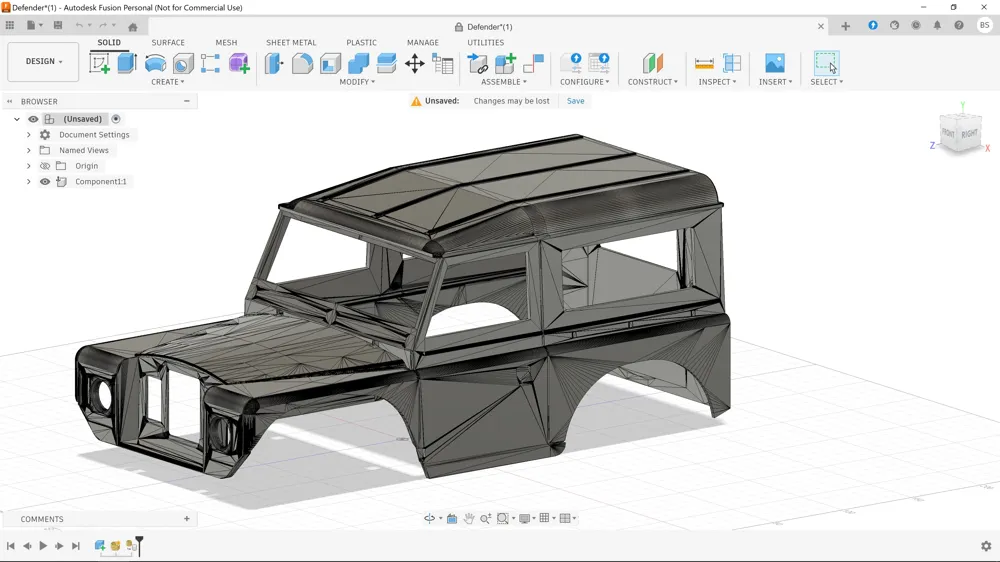

Added Fusion 360 files in case anyone wants to change something.

This is a remix of “przemo_m” and his “Land Rover Series 3 scaled 1/10 D90” found here: https://www.printables.com/model/793349-land-rover-series-3-scaled-110-d90

Print Settings

• Material: Bambulab PLA Tough+
• Nozzle Size: 0.4mm
• Layer Height: 0.2mm
• Walls: 3
• Top Layers: 5
• Bottom Layers: 5
• Infill: Gyroid, 3%
• Seam Position: Aligned
• Wall Generator: Arachne

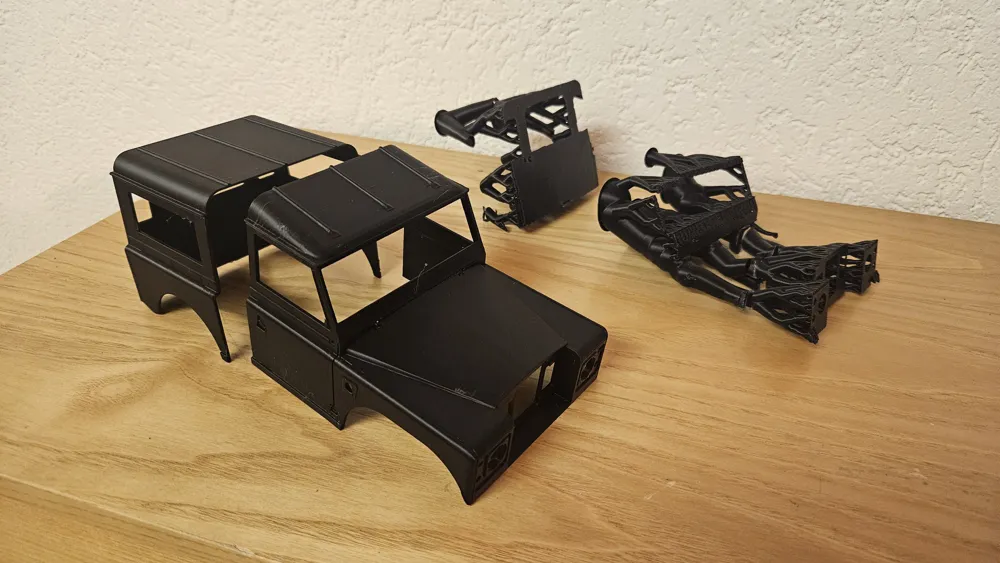

• Supports: Yes, Tree
• Raft: Auto/No
