Modular Window Vent for 120mm to 4in Exhaust
Print Profile(1)
Description
Modular Window Vent System for 3D Printer Fume Management
This modular window vent system is designed to help manage fumes when printing indoors with enclosed 3D printers.

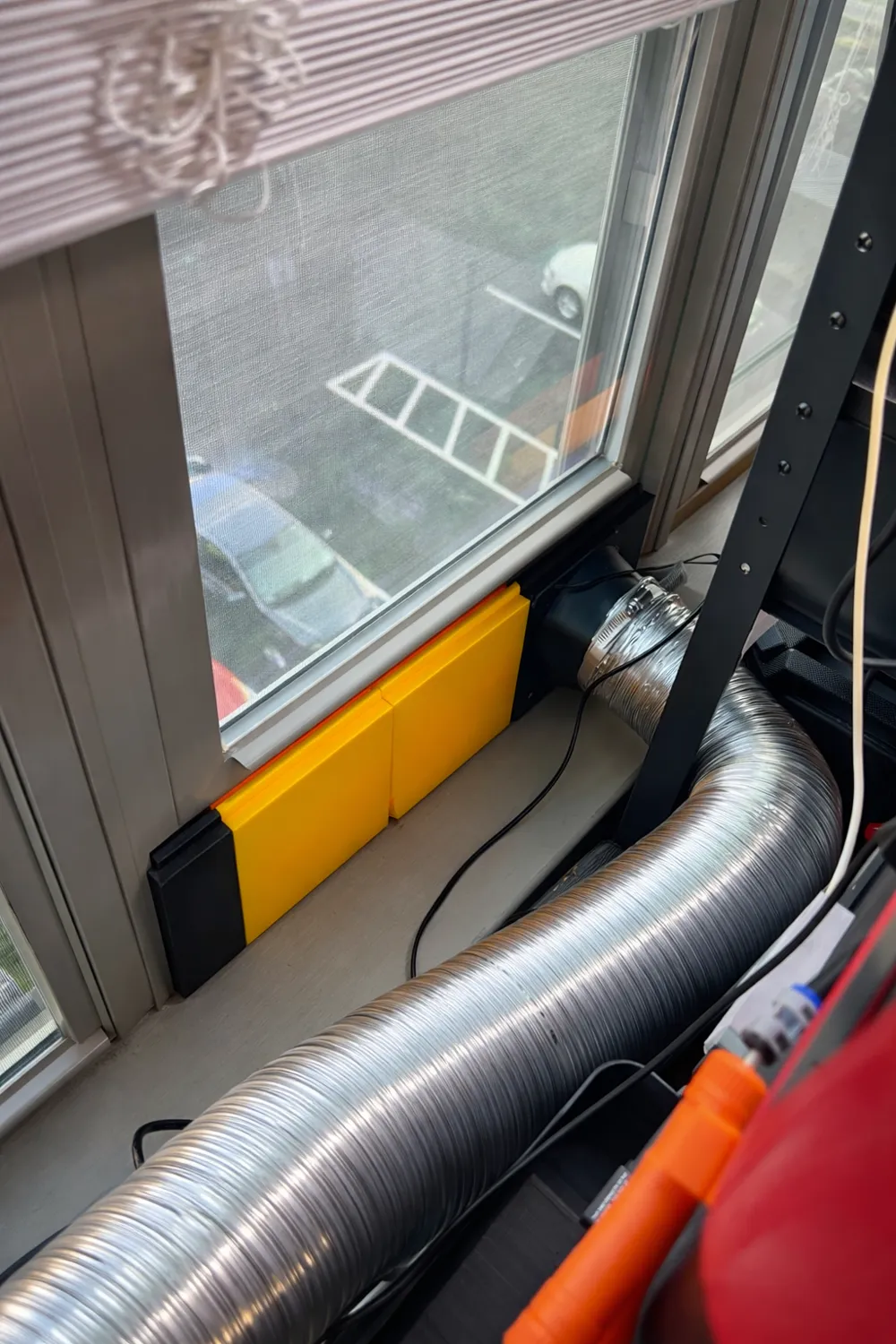

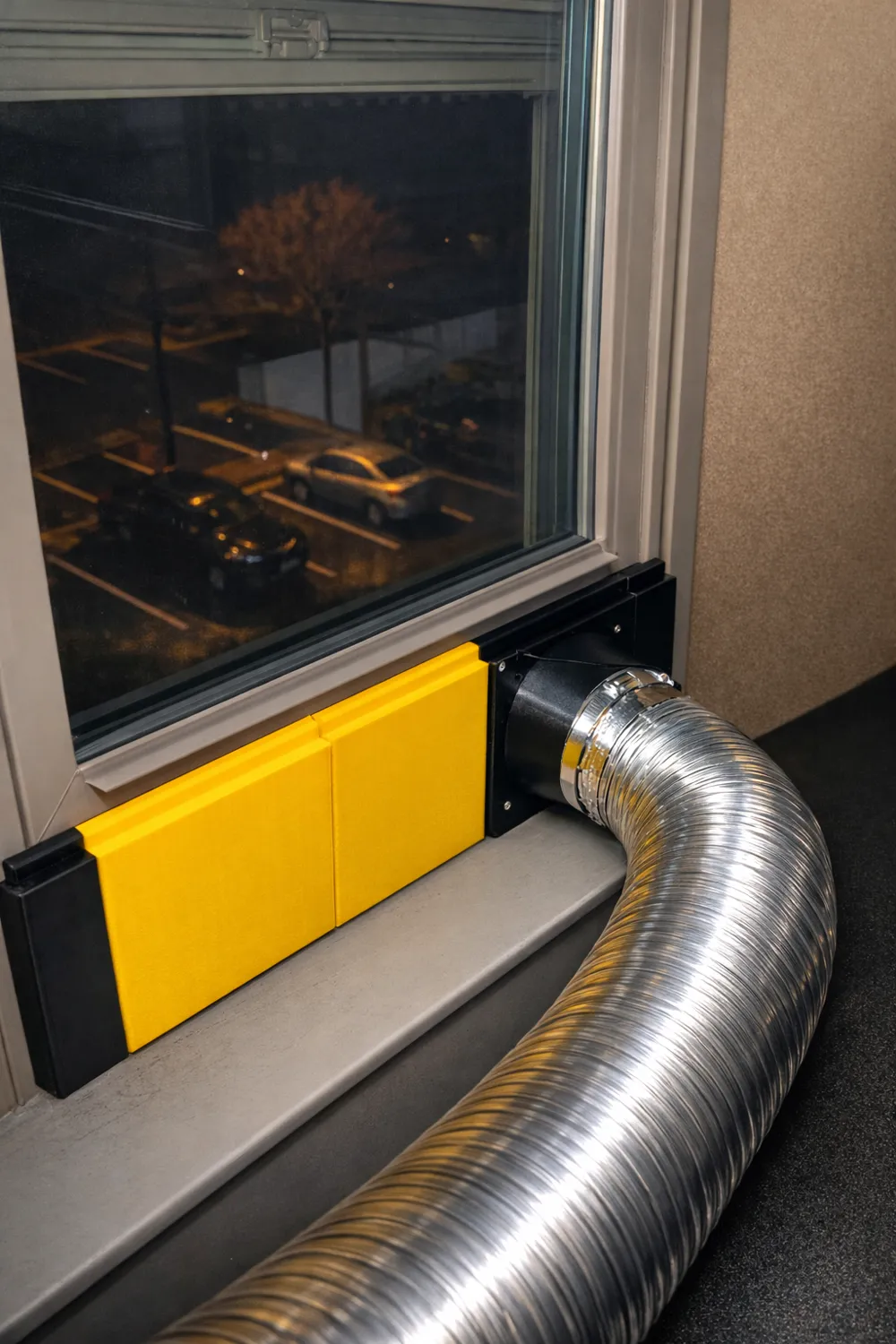

The system allows you to mount a standard 120mm PC fan and exhaust air through a 4 inch duct hose directly outside through a window opening. Unlike foam board inserts or temporary cardboard solutions, this design uses rigid, mix and match extension modules to create a clean, secure, and adjustable fit.
Built for makers running enclosed printers and higher temperature materials.
System Overview

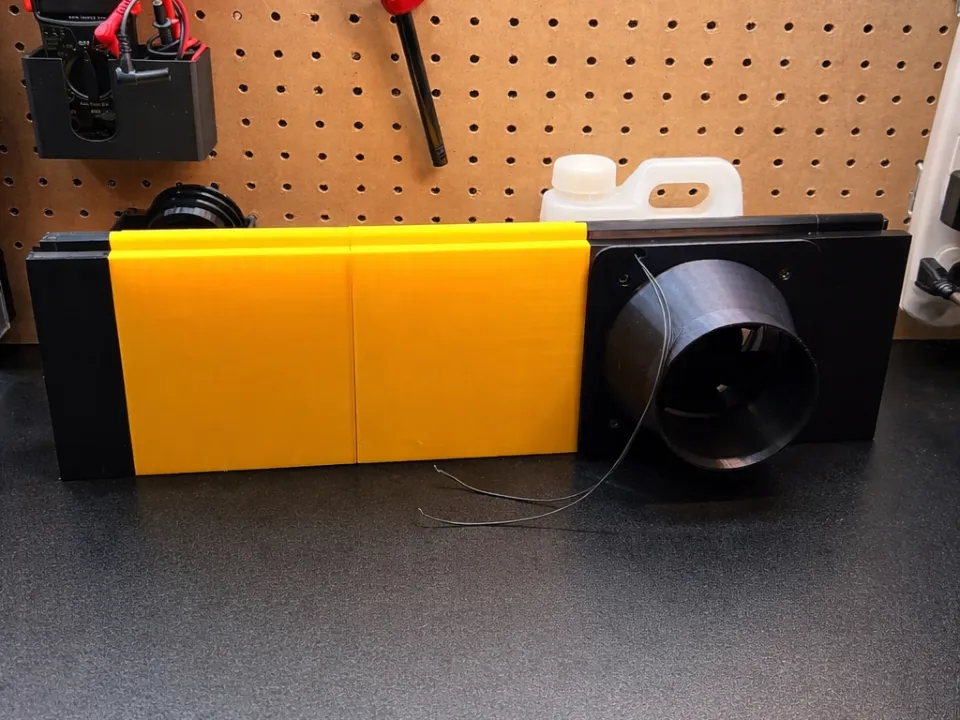

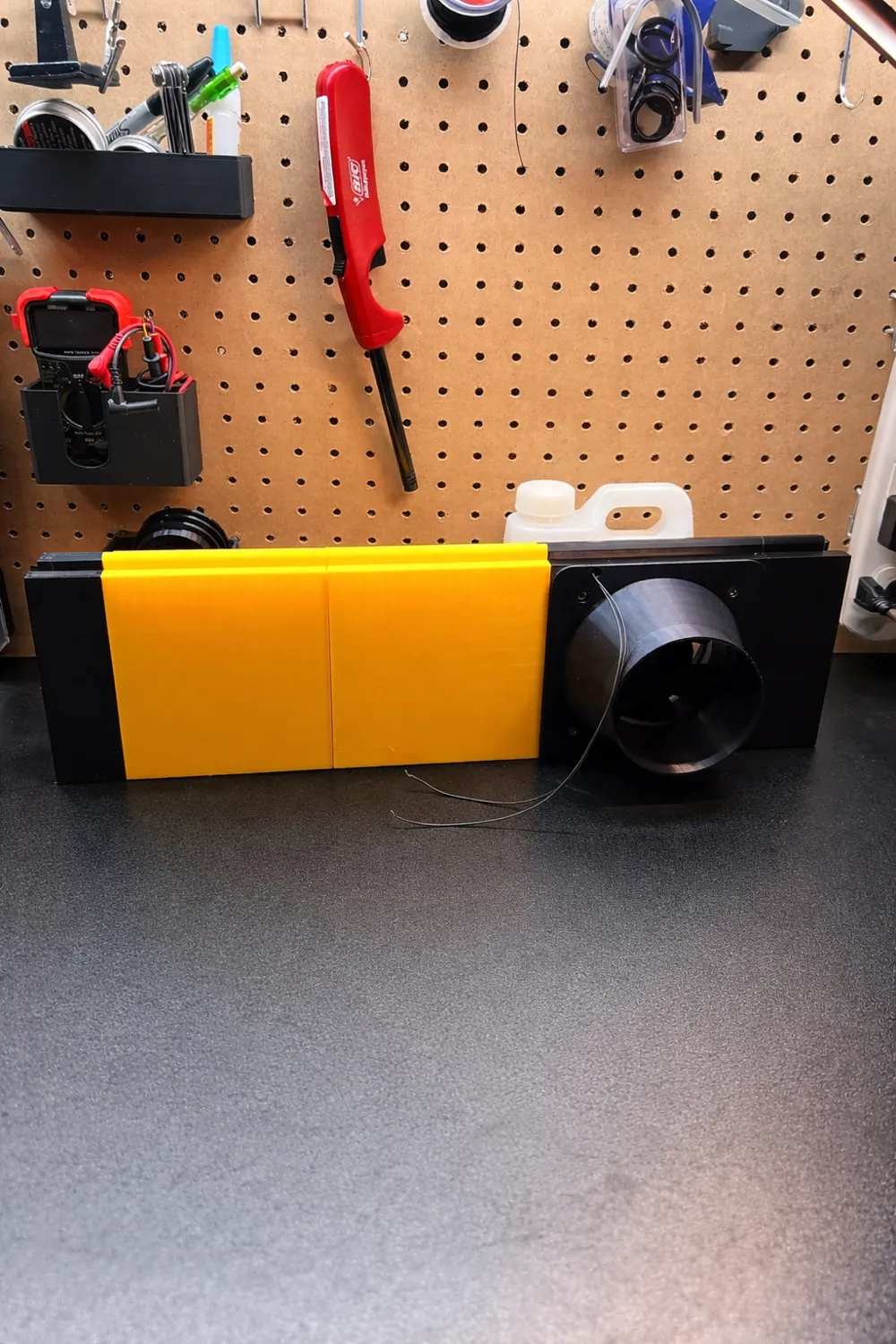

The design consists of:
• 120mm fan module with integrated 4 inch duct outlet
• Modular extension pieces to adjust overall width
• Window edge interface pieces supporting up to 18mm frame thickness
Available extension module sizes:
- 10mm
- 25mm
- 100mm
- 150mm
Window edge interface options:
- 50mm
- 55mm
Combine modules to match your exact window opening width!
Features
• Compatible with standard 120mm PC fans
• Integrated 4 inch duct connection
• Modular width system for flexible sizing
• Rigid, printable components
• Designed for enclosed 3D printer ventilation setups
• Clean alternative to temporary window block methods
Hardware Required
• 120mm PC fan
• 4 inch duct hose
• Mounting screws for the fan
Notes
This system is intended as a DIY ventilation solution to help direct air outside and reduce indoor odor buildup during printing. It is not a certified filtration or air purification device.
