Aetheroscope – The Kinetic Moiré Instrument 🔭

📜 Origin

In the late 16th century, a group of scholars set out to develop a method for recording and replaying memories. They believed that every thought, dream, and experience left a geometric trace in the ether — a subtle disturbance within an invisible medium where light and perception intertwined.

After years of experimentation, they succeeded in capturing these traces and imprinting them onto thin, semi-transparent discs.

The results were disappointing.

Each recorded disc was covered only with chaotic arrangements of lines — complex, yet seemingly meaningless. No image, no recognizable symbol emerged. The experiment was deemed a failure, and the discs were stored away in an archive.

The breakthrough came by accident.

While reorganizing the collection, a stack of discs fell. Two of them landed on top of one another and shifted slightly off axis. As one disc rotated just a fraction, the chaotic lines began to align. In superposition, chaos gave way to structure. A clear image appeared — a scene that existed in neither disc alone. This discovery led to the creation of an instrument designed for precise alignment and controlled rotation of the discs.

Thus, the Aetheroscope — The Kinetic Moiré Instrument was born.

Further study revealed that no memory is singular. Every memory consists of two layers:

• Form
  What was seen — the structure of the event, light, shape, and motion.

• Impression
  What was felt — the emotional resonance of the moment and the subtle distortion of perception.

A single disc records only one of these layers. Only through their superposition — at the correct angle and under proper illumination — does the complete memory emerge. The Aetheroscope does not create images. It reveals what exists between them.

🌐 The Moiré Phenomenon

The instrument utilizes moiré patterns — an interference effect that occurs when two repetitive geometric structures (grids) are overlaid.

A slight shift or rotation of one layer relative to the other produces a new, ordered image that is invisible in either pattern alone.

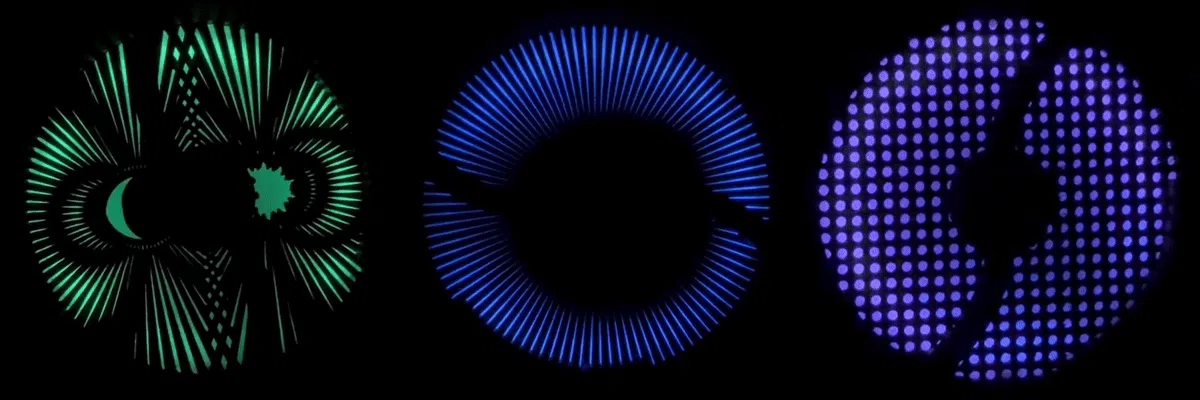

Moiré patterns in motion – three sets, glow stick illumination

💡 The Role of Light

Light plays a fundamental role in the operation of the instrument. The translucent back panel is designed to transmit and gently diffuse light, enhancing the visibility of the interference patterns.

The effect can be observed in several ways:

• Natural Light

  The simplest method is to direct the instrument toward a bright background — such as a window or lamp.

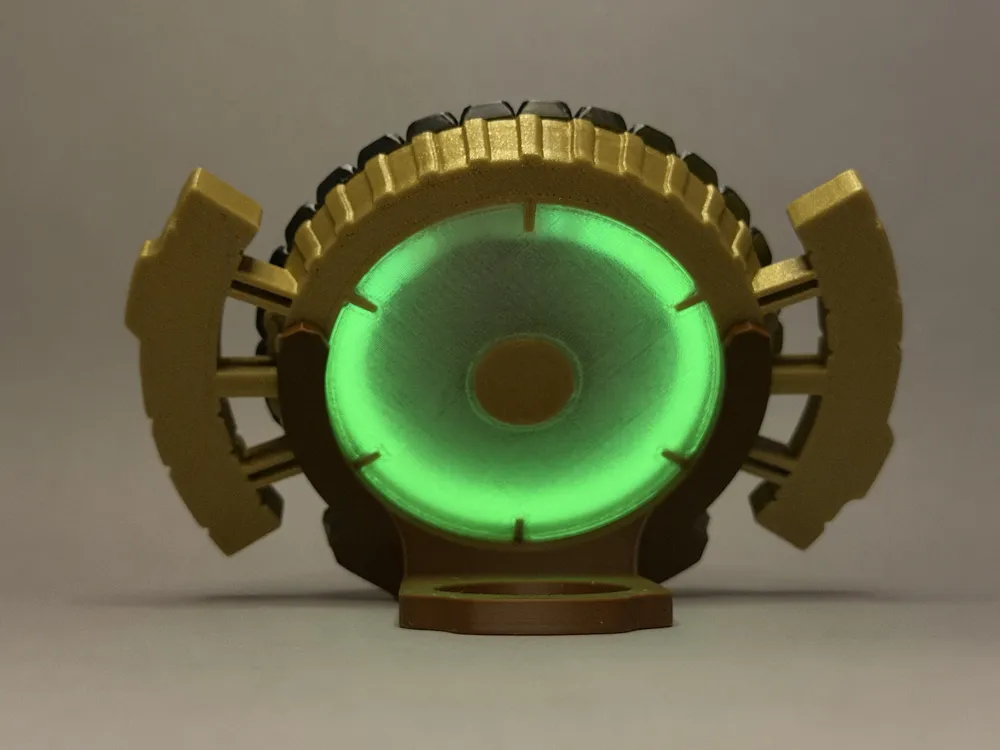

• Glow Stick Illumination

  The instrument includes a socket for a glow stick measuring 205 mm in length and 6 mm in diameter. To form a ring, connect both ends of the glow stick using the small plastic connector typically supplied with glow bracelets. This connector is not part of the printed components. The completed ring should be placed into the designated socket. For a softer and more evenly distributed glow, an optional transparent disc may be installed to act as a light diffuser.

• Electric Tealight

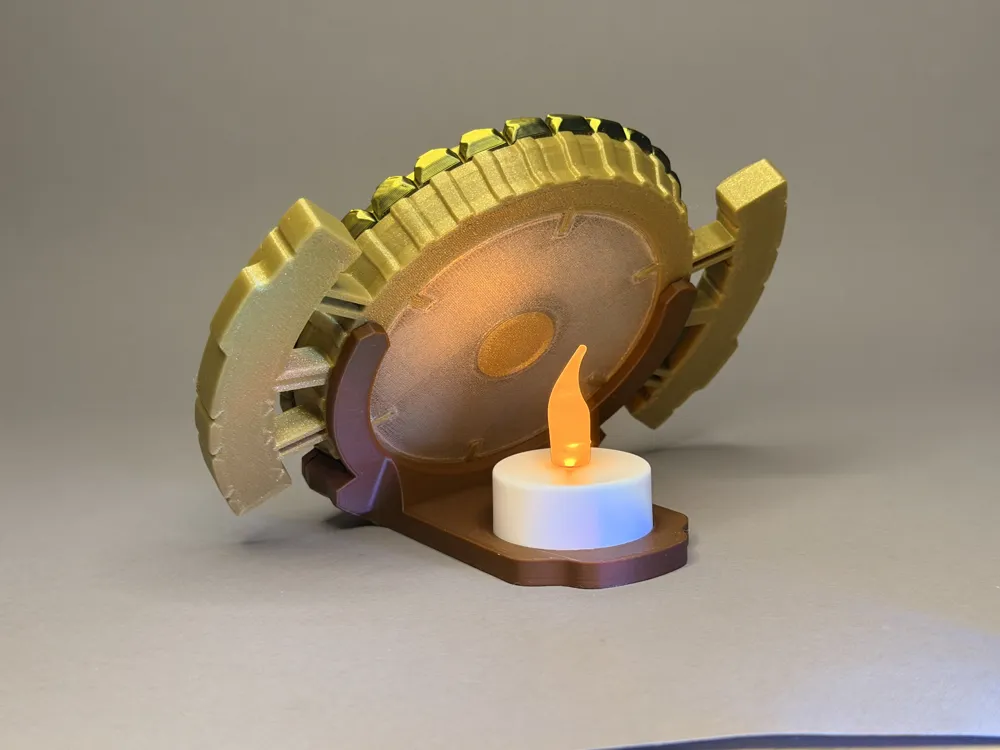

  The Base includes a compartment designed to hold a small electric tealight candle, producing warm, gently flickering illumination.

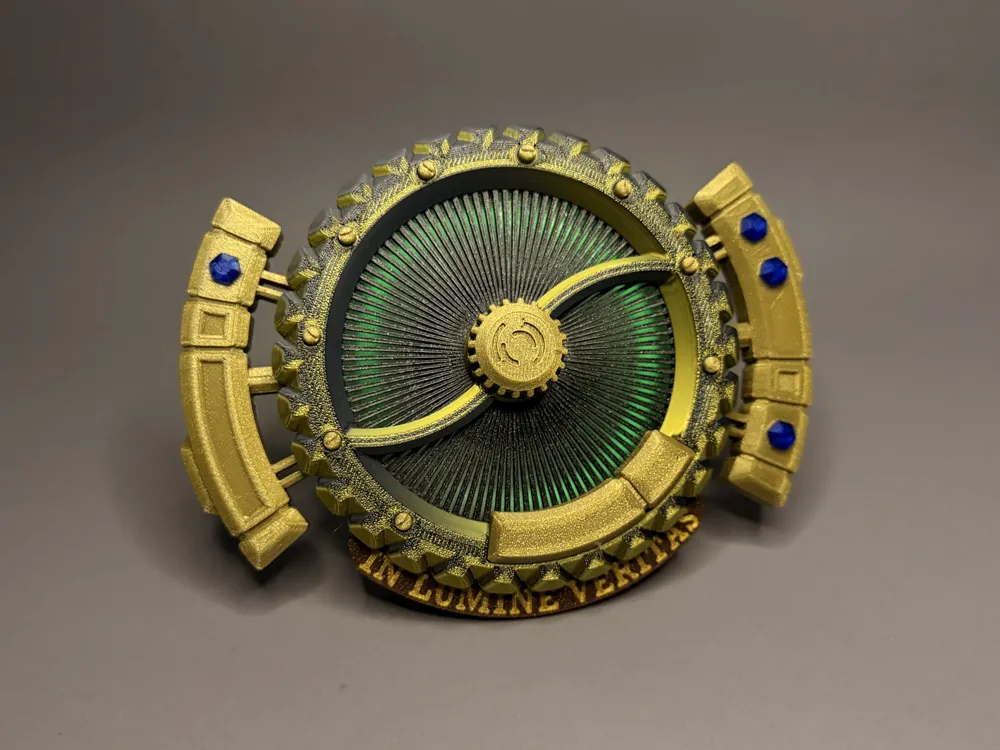

🌀 The Discs

The instrument includes four sets of moiré discs, each designed as an independent interference pattern system. Each set consists of two layers intended for placement within the two main sections of the instrument. Once assembled, the discs remain coaxial and can rotate smoothly relative to one another. The discs are not permanently paired. They may be freely mixed between sets, allowing the exploration of new interference combinations and the discovery of images not present in the original configurations. In this way, the Aetheroscope becomes an experimental device — enabling the study of alignment, rotation, and superposition in the emergence of visual structure.

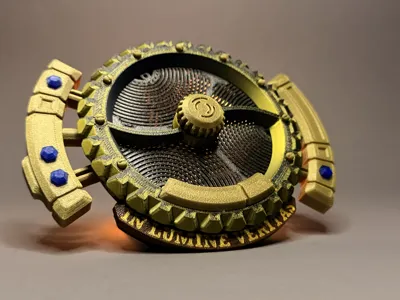

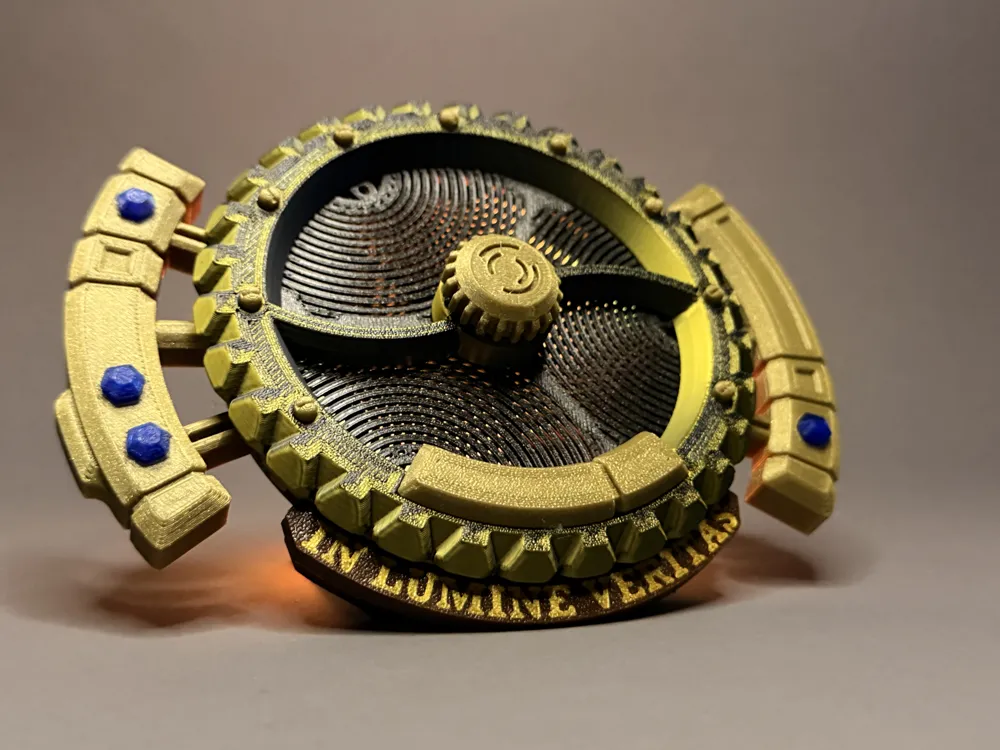

Aetheroscope in motion – demonstration under tealight illumination

✨ Worth discovering

If you enjoy projects with a sense of mystery and magic, I highly recommend checking out Cryptatrope — a unique maker adventure by Mike from Prime Tower Designs, where light, motion, and hidden patterns become part of a larger interactive experience. It combines physical models with puzzles and progressive discovery, creating something more than just a print.

⬇️ Click the image below and step into a world of magic ⬇️

🔧Assembly

A complete documentation package is included, containing the filament color list, model dimensions, parts list, and assembly instructions.

I. Disassemble the Aetheroscope.
II. Main Body: optionally install the glow stick and Transparent Disc, then mount the first Moiré Disc.
III. Rotation Ring: install the second Moiré Disc.
IV. Join both components and secure them with the Lock Nut.

IN LUMINE VERITAS 🕯️
