M5 Super Bolt & Nut -High Strength, High Precision
Print Profile(13)
Description
Boost Me (for free)
Help me get a better printer :D I hate my ender 3

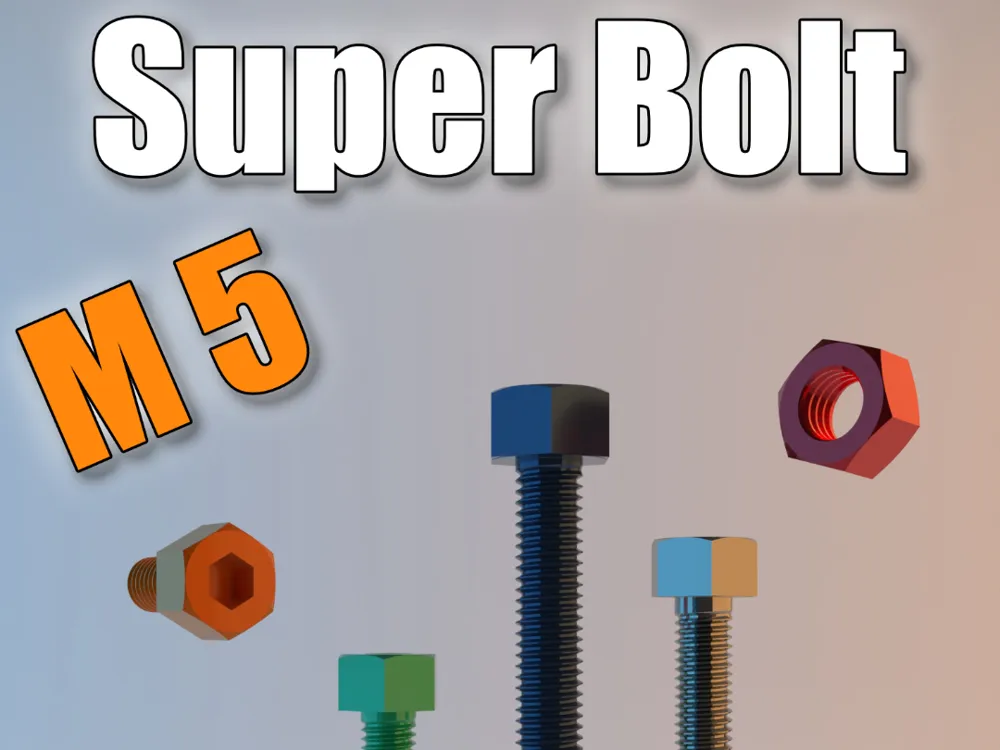

This project features a high-precision M5 bolt with a hex socket head (H4 / 4 mm Allen drive), designed for strong mechanical connections and clean installation.
The internal hex drive (H4) is compatible with standard 4 mm Allen keys, making it ideal for mechanical assemblies, structural prints, and functional prototypes.
The bolt is available in the following lengths:
10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 125, and 150 mm, all with a consistent M5 diameter.
A perfectly matching M5 nut is included and optimized for smooth threading and secure fastening.
Print Settings & Strength
- 100% infill for maximum durability and load resistance
→ Significantly stronger than typical 15–20% infill prints - 0.1 mm layer height for extremely fine detail
→ Clean threads and excellent nut fit - Optimized tolerances for reliable assembly
Highlights
- M5 bolt with H4 hex socket (4 mm internal hex)
- Same length options as the other versions
- Matching nut included
- Maximum strength with 100% infill
- High dimensional accuracy with 0.1 mm layer height
- Ideal for functional mechanical use
Perfect for makers w
ho need strong, precise, and printable fasteners for real-world applications.
