Overview:

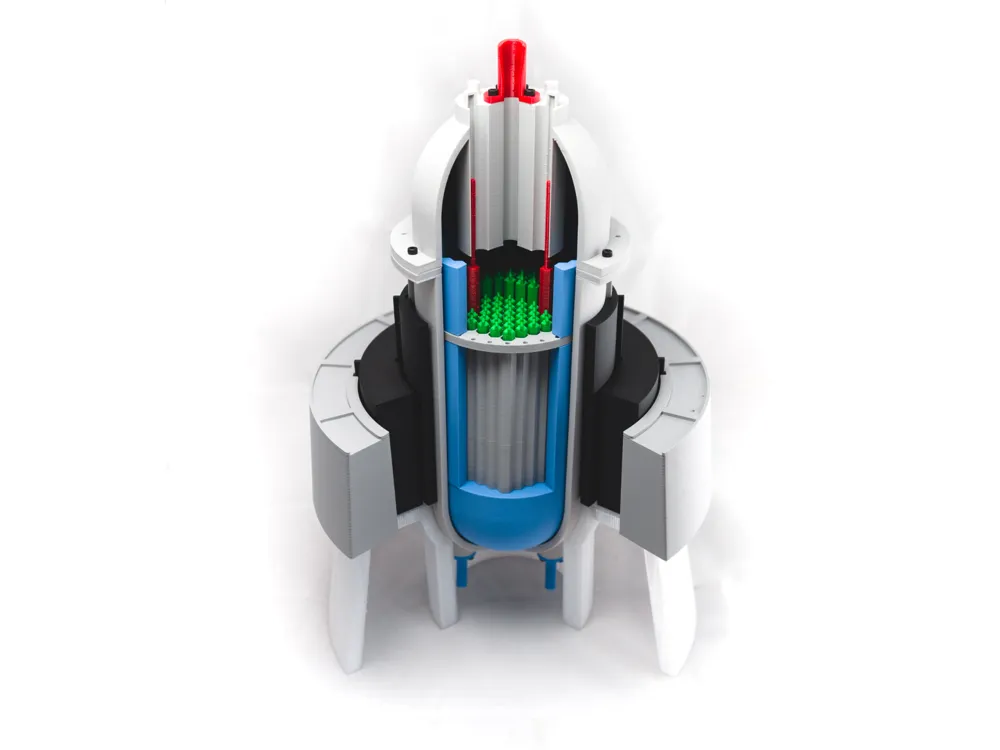

This is a cutaway model of a nuclear reactor vessel with surrouning shielding. I designed entire model from scratch. The model is a combination of online diagrams and my personal knowledge about nuclear reactors. I am from field from engineering but not an expert in nuclear power, so mistakes are expected.
Required hardware:
- 7x M3x12mm screw
- 7x M3 nut
- 10x M3x6mm screw
- 10x M3x4mm threaded heat insert
Majority of the parts are easy to print with exception of control rods, that need some post cutting in order to print sucessfully.
Happy printing :)
