Gridfinity Coin Battery Holder (11+ battery types)
Print Profile(1)
Description

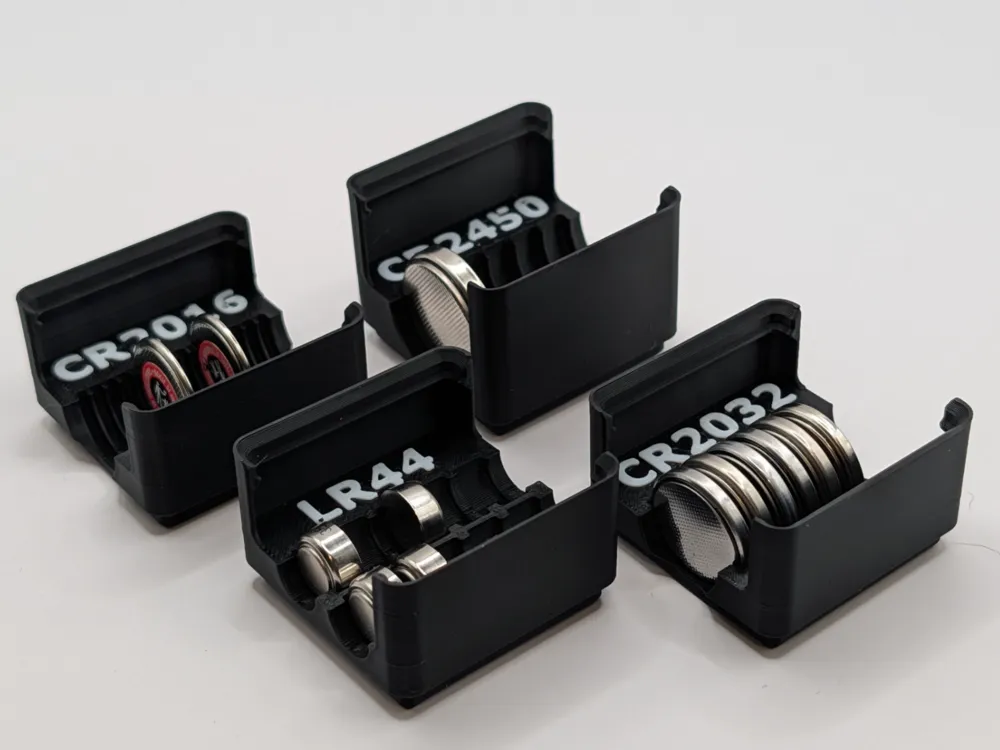

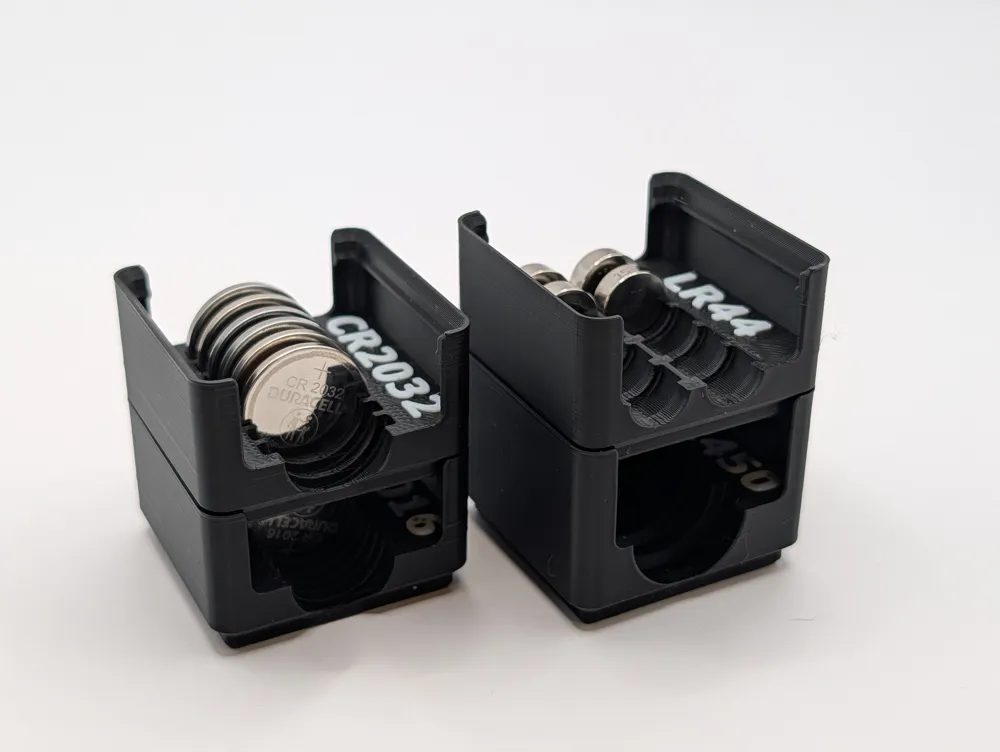

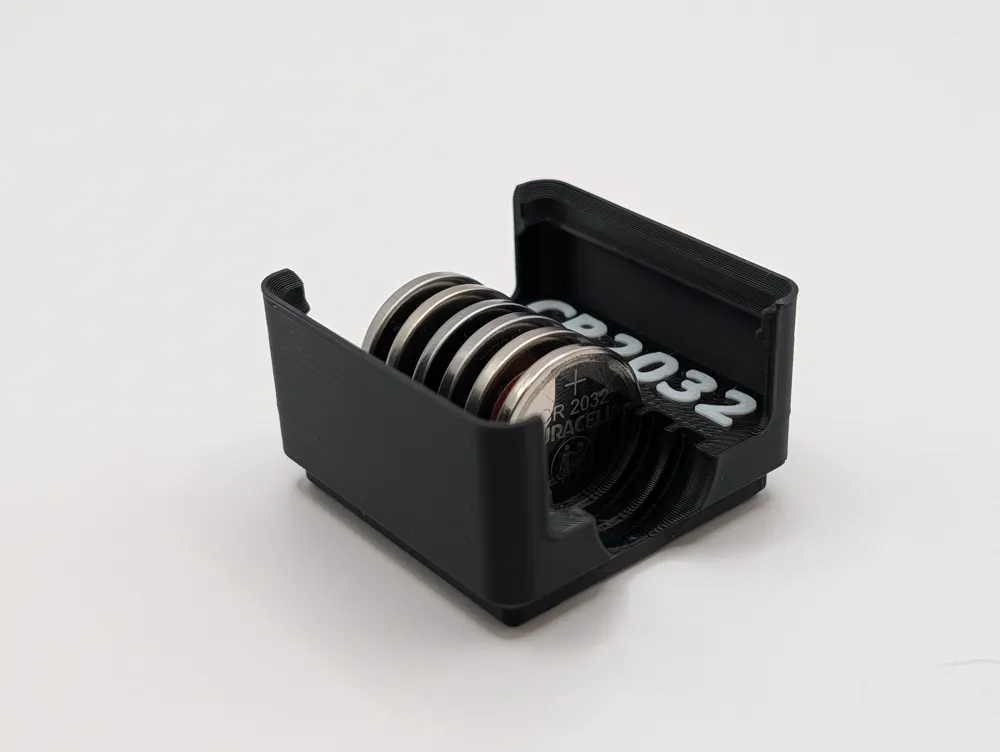

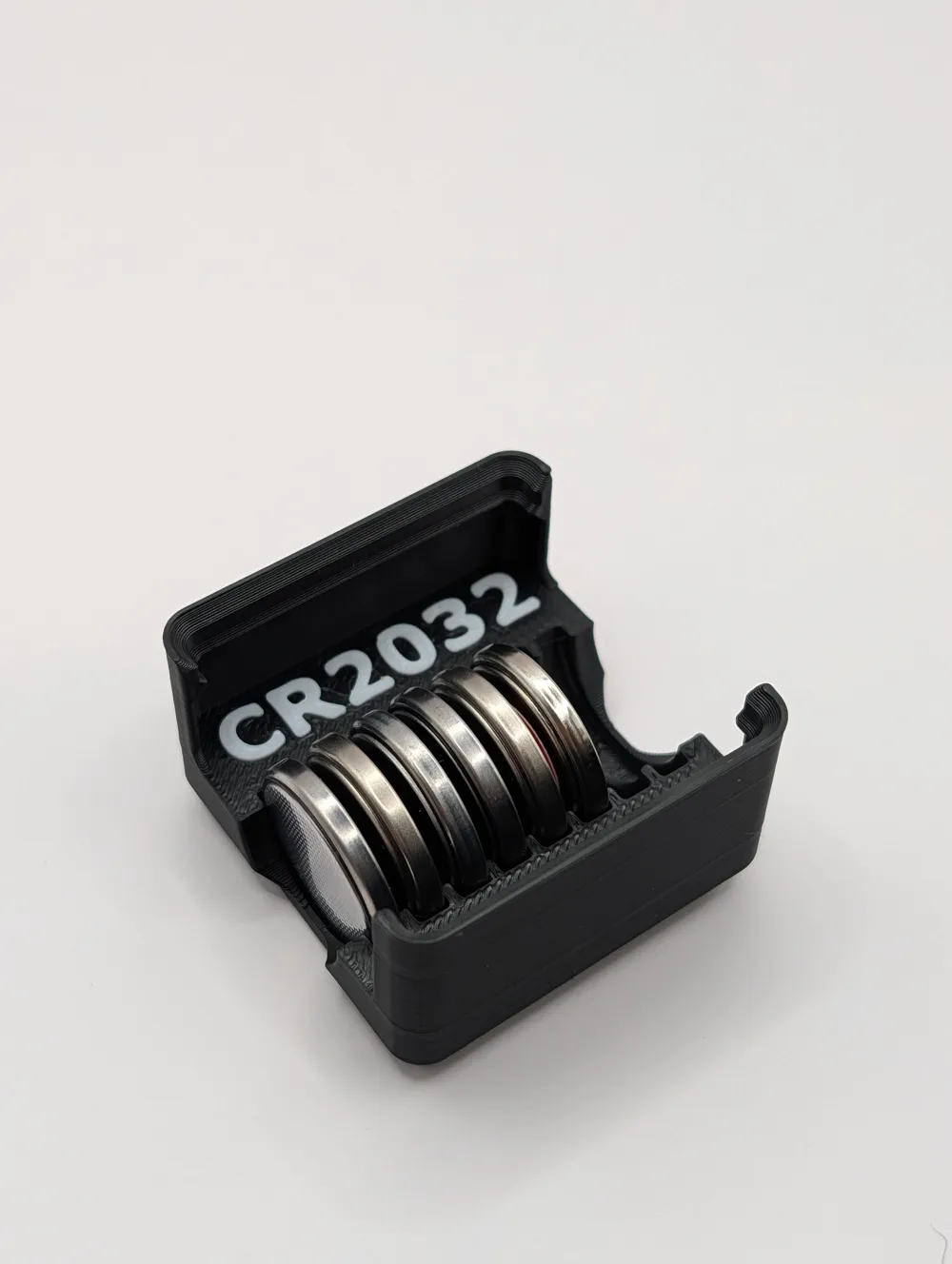

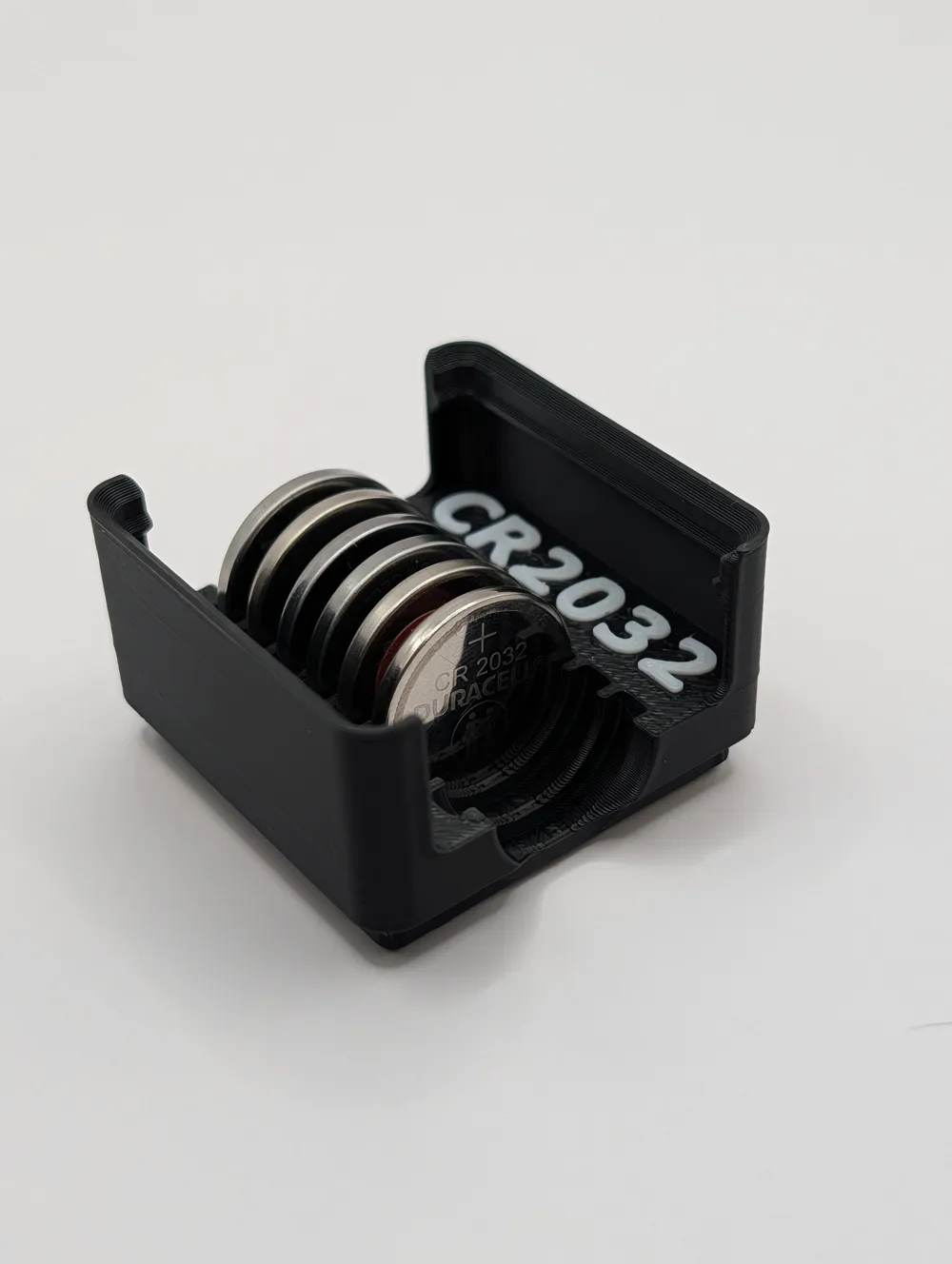

This is a set of 1x1 Gridfinity modules for storing coin cell batteries. Each module features a large cut-out to allow for ease when inserting and removing batteries while also maintaining the Gridfinity stacking ability. Each module can also be stacked while fully populated.
Currently available modules are listed below. If there is a coin battery type that you would wish to be added then please give me a message or comment. The print profile contains one plate which all modules and a plate with a each module on its own.
Please note: This model should only be printed with a 0.2 or 0.4mm nozzle as it has some very thin walls in places.
| Battery Name | Other Names | Size | Capacity |
|---|---|---|---|
| CR1616 | 1x1x3u | 14 | |
| CR1620 | 5009LC | 1x1x3u | 12 |
| CR1632 | 1x1x3u | 8 | |
| CR2016 | 5000LC | 1x1x3u | 14 |
| CR2025 | 5003LC | 1x1x3u | 10 |
| CR2032 | 5004LC | 1x1x3u | 8 |
| CR2430 | 5011LC | 1x1x4u | 8 |
| CR2450 | 5029LC | 1x1x4u | 6 |
| CR2477 | 1x1x4u | 4 | |
| LR44 | LR1154, 1166A , 76A, AG13 | 1x1x3u | 10 |
| LR54 | LR1130, 1138SO, SR54, AG10 | 1x1x3u | 16 |
Changelog
17 Feb 2026: Initial Release
19 Feb 2026: Added CR1620, CR2025, CR2430. Increased tolerances on all modules slightly to match IEC standards for button cells.
21 Feb 2026: Added LR1130
22 Feb 2026: Added CR1632. Renamed LR1130 to LR54.
24 Mar 2026: Added CR1616
14 Apr 2026: Added CR2477
