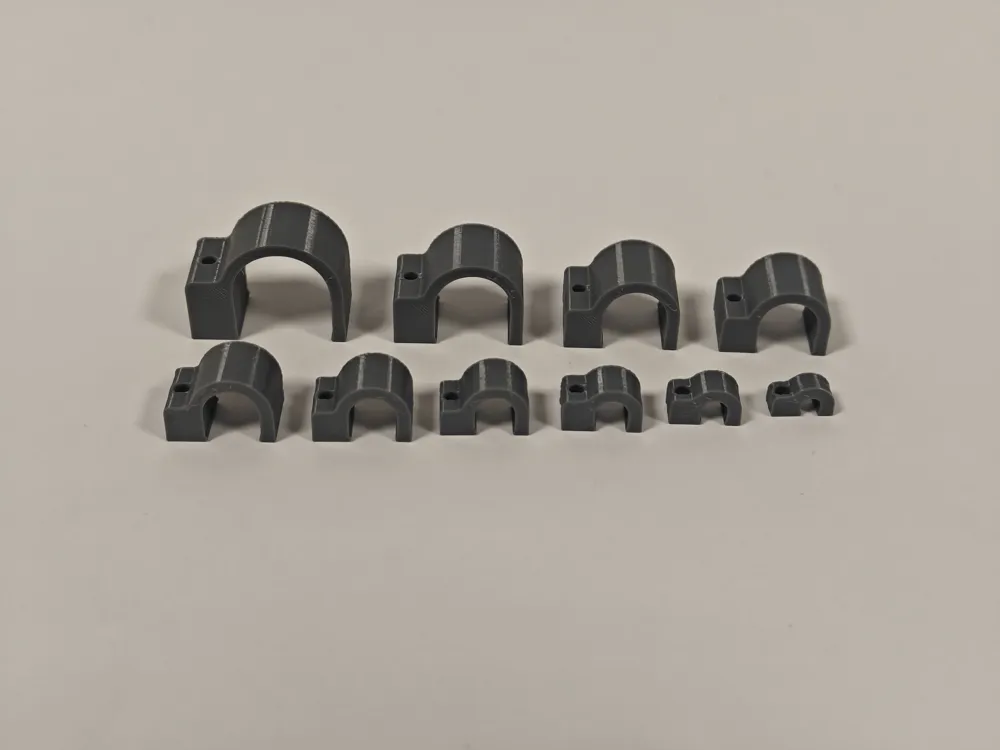

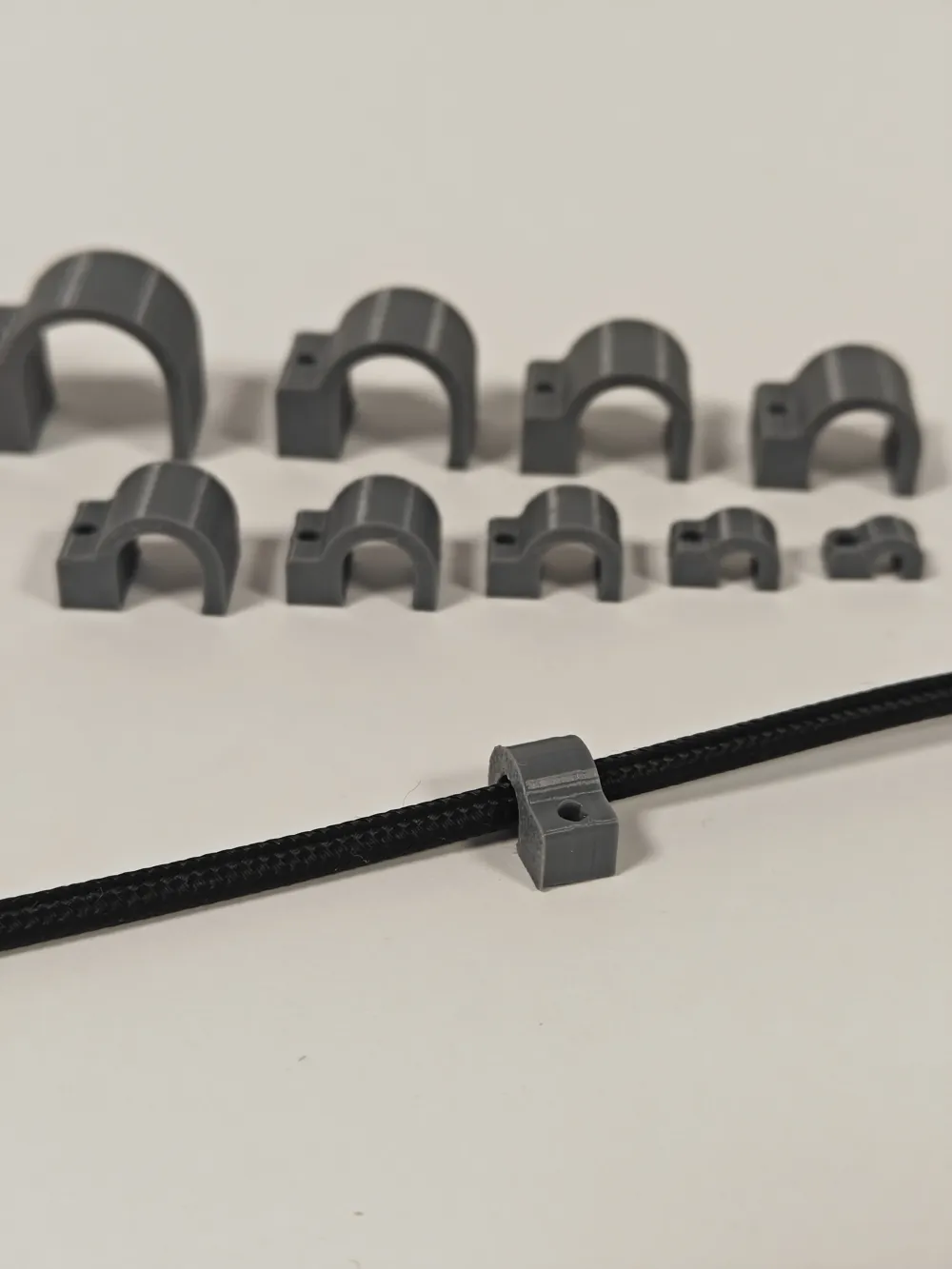

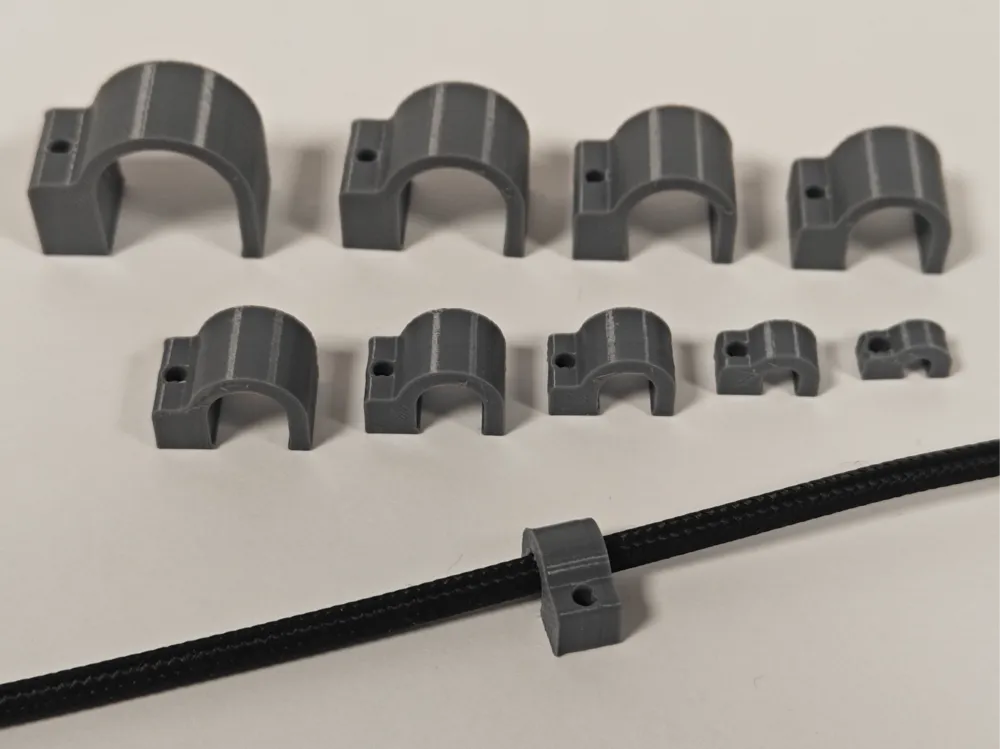

Save yourself a trip to the hardware store! This is a complete set of classic, nail-in cable clips for routing wires along baseboards, walls, or door frames.

Key Features:

  • Nail Compatibility: Designed to be used with standard, thin wire nails (up to 2mm in diameter). The guide hole keeps the nail straight while you hammer it in.
  • 10 Precise Sizes: The set includes clips specifically sized for different cable diameters to ensure a snug fit without crushing the wire.
    • Sizes included: 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 15mm.
  • Cost-Effective: Print exactly as many as you need, whenever you need them.

Perfect for:

  • Speaker wires (3-4mm)
  • Ethernet / CAT6 cables (5-6mm)
  • Coaxial TV cables (7-8mm)
  • Heavy power cords (10-15mm)

Printing Instructions:

  • Orientation: Print them laying flat on their side. This orientation makes the "hook" part significantly stronger and prevents it from snapping when pressure is applied.
  • Supports: NONE.
  • Material: PETG or ABS is highly recommended. You will be hitting these (or near them) with a hammer, and PLA can be too brittle and shatter.
  • Infill: 100% (Solid). They are small, so printing them solid takes almost no extra time or filament but makes them much more durable.
