Filter holder Karcher FC3/FC5/EWM2 (4.055-110.0)
Print Profile(1)

Description
Many time ago I lost a little thing from my electric floor cleaner Karcher FC3. It was filter with plastic holder 4.055-110.0 by original partnumber. Without it valve in clear water tank doesn't work and water doesn't dispense on rollers.
Everything would be fine if it weren’t for the price of a new spare part or its availability in my region.

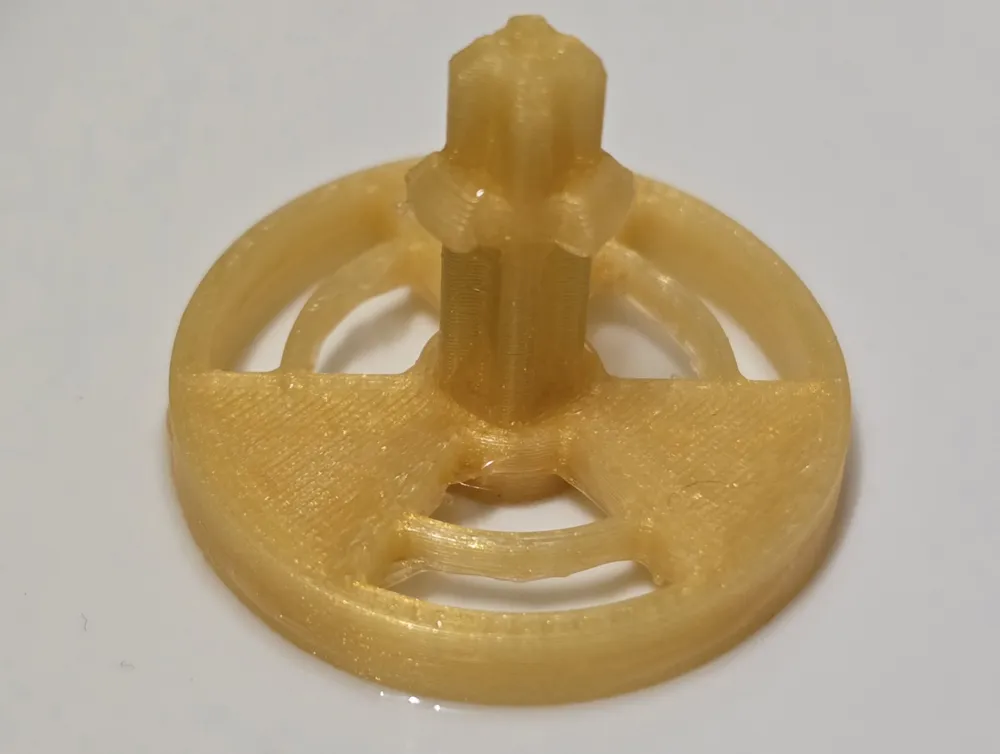

So let me introduce replacement part model - Filter holder Karcher FC3/FC5/EWM2 - plastic part of filter 4.055-110.0 that you can print by yourself and add to it a round filter (D=29mm, H=10mm) from any sponge material you want.
Model is created for DIY lovers and someone who don't want to buy new part or can't do it.
It's replacement for lost or broken park, not an addon.
Model was made by photos in internet because my filter was lost.

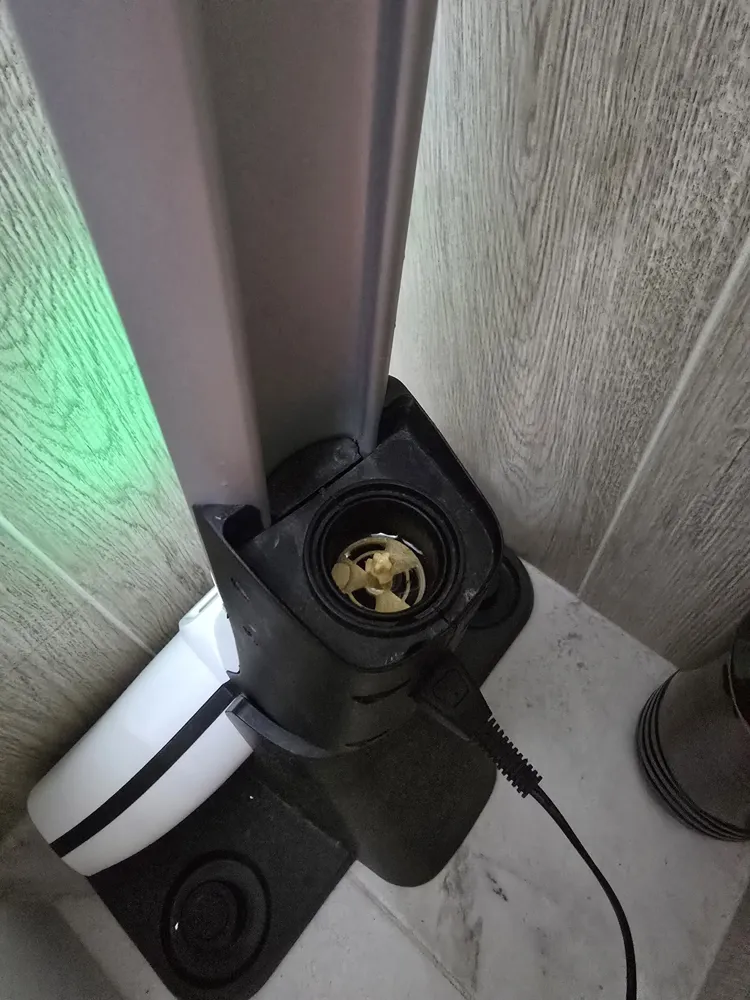

Well tested about 4 models on my Karcher FC3 before this release. It has good fit in body and nice push to water tank valve.
Total dimentions of part:
D=28mm, H=21mm
Recommended to use supports in print.
P.S: on original part there are placed 5.055-448.0 number on the bottom of filter, but it is internal karcher number without connection with part number for order.
