P2S Door Handle PopGrip

P2S Door Handle PopGrip

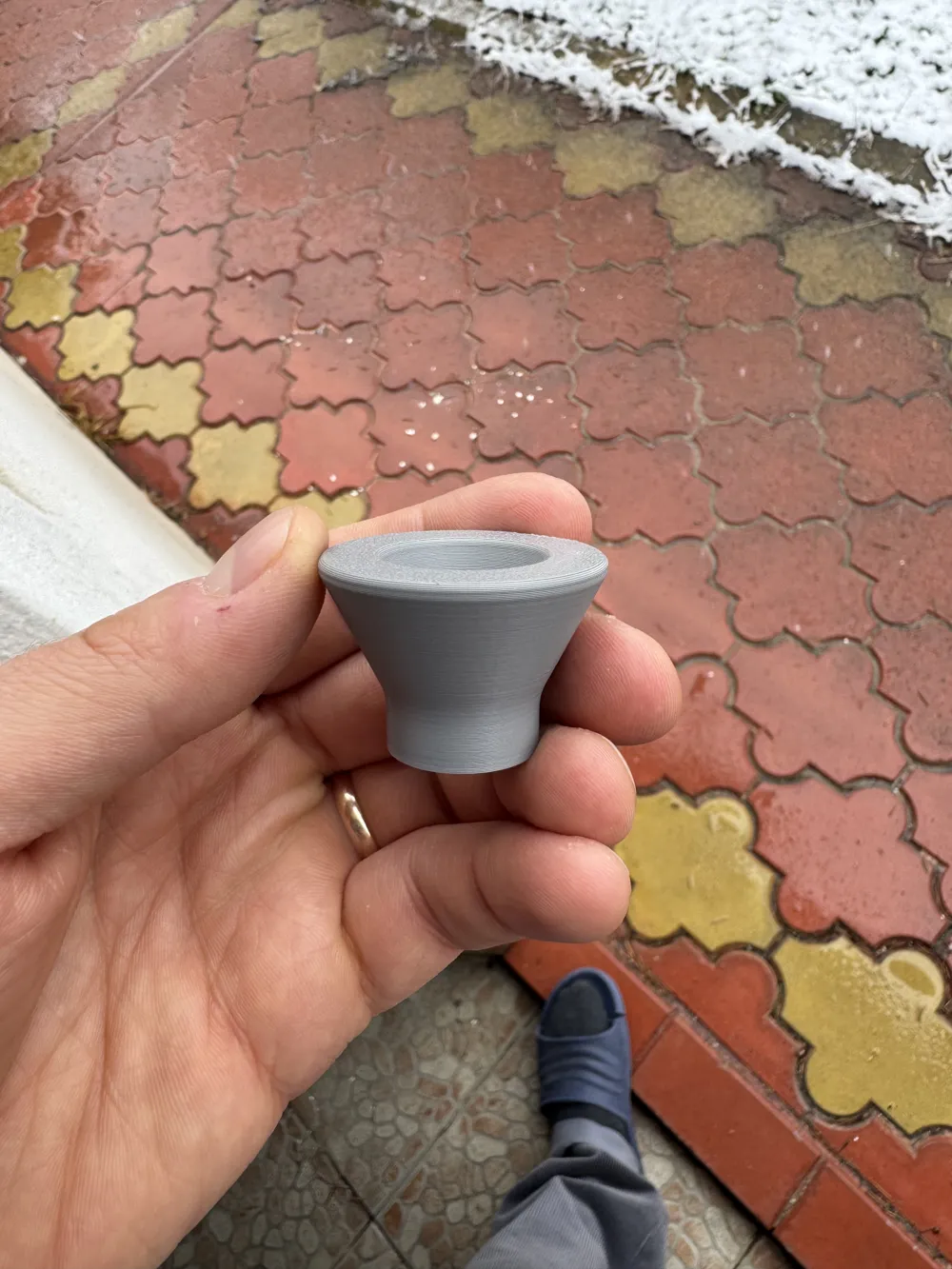

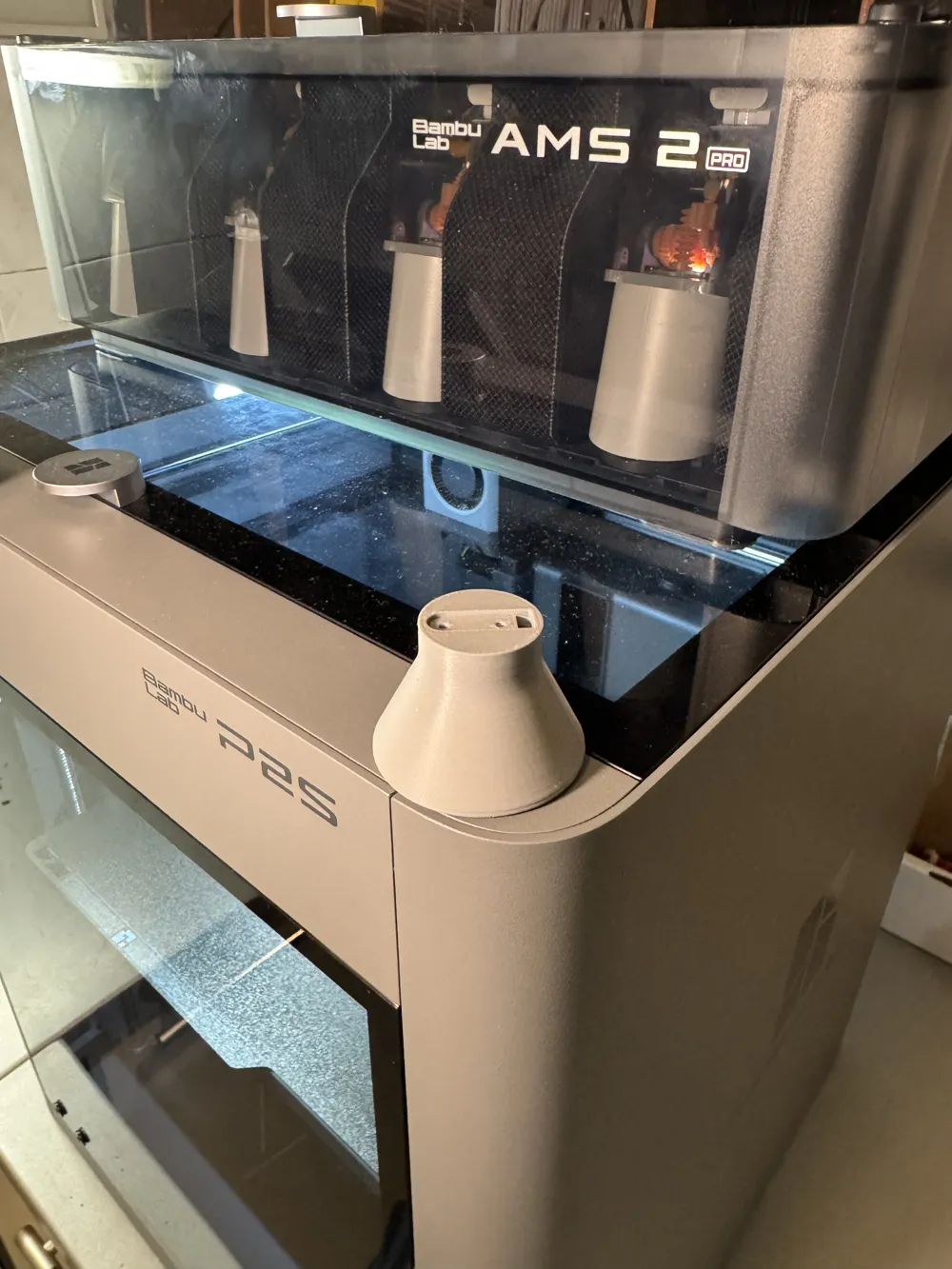

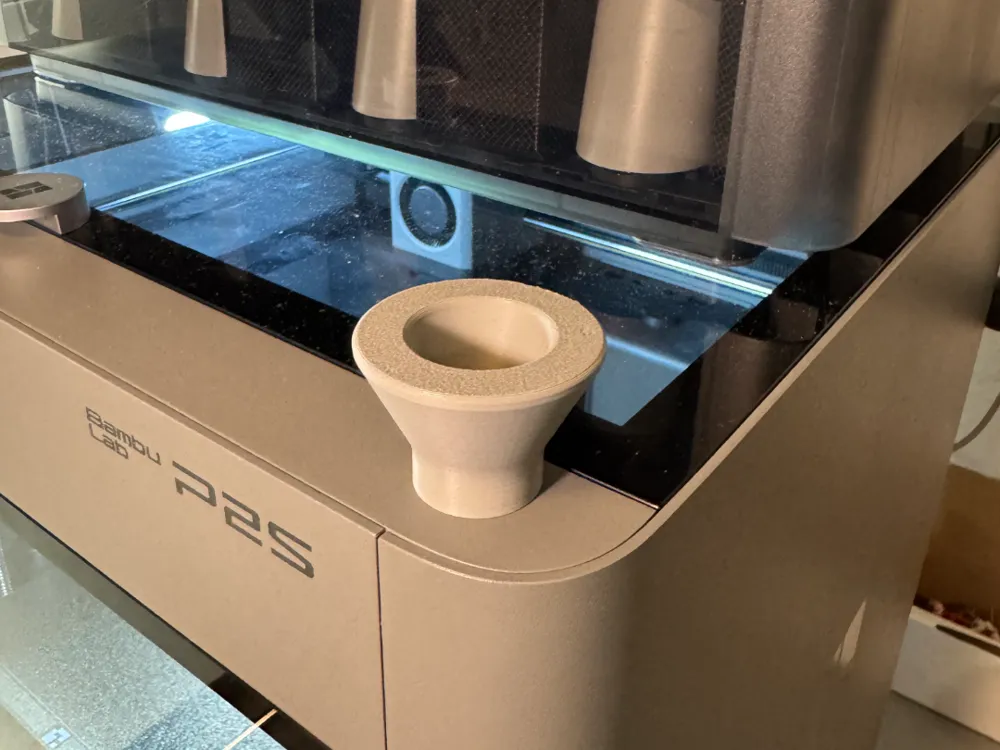

A replacement for the standard printer handle, as the original handle is flat and small. The design is inspired by the shape of PopSockets

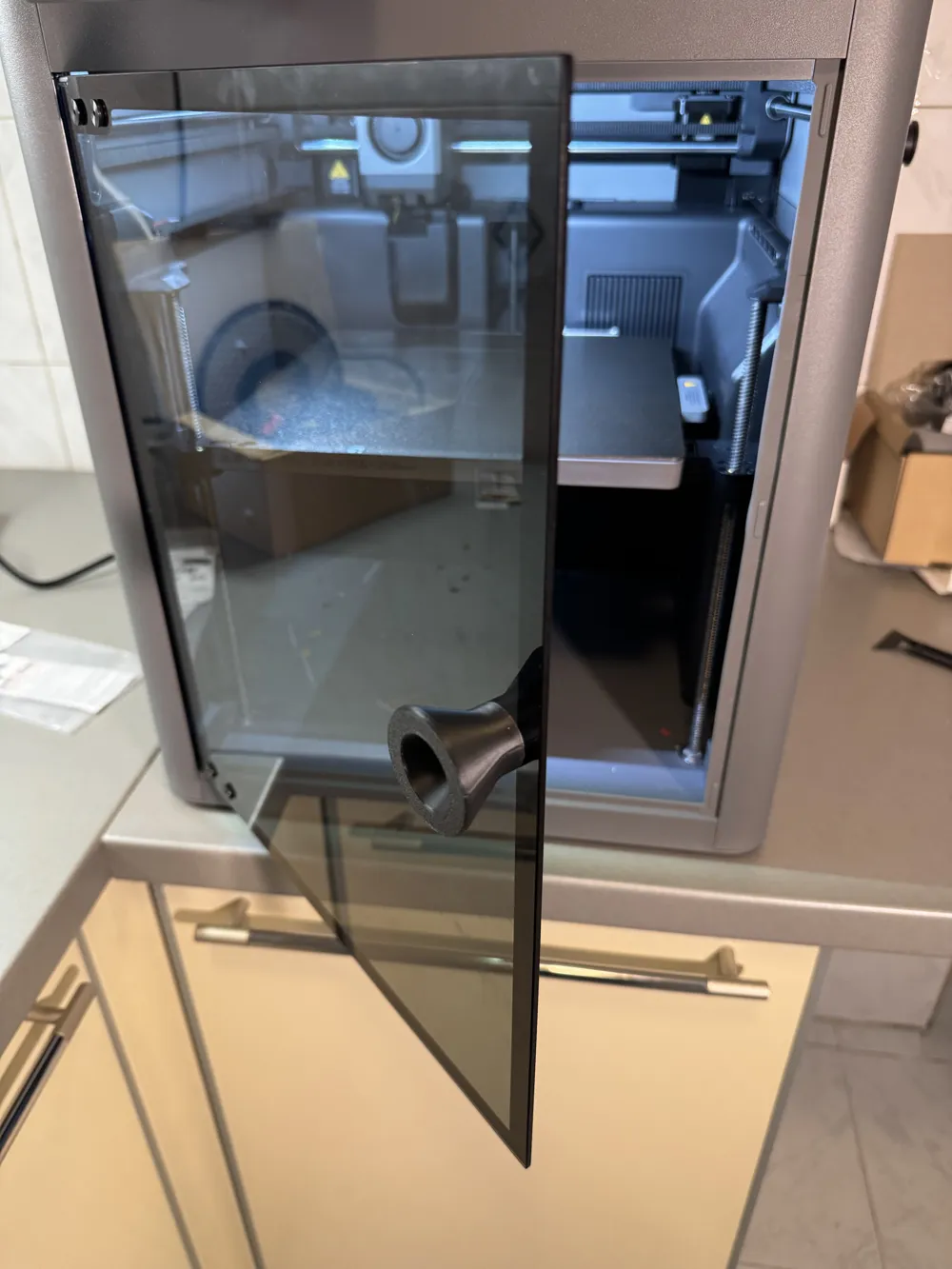

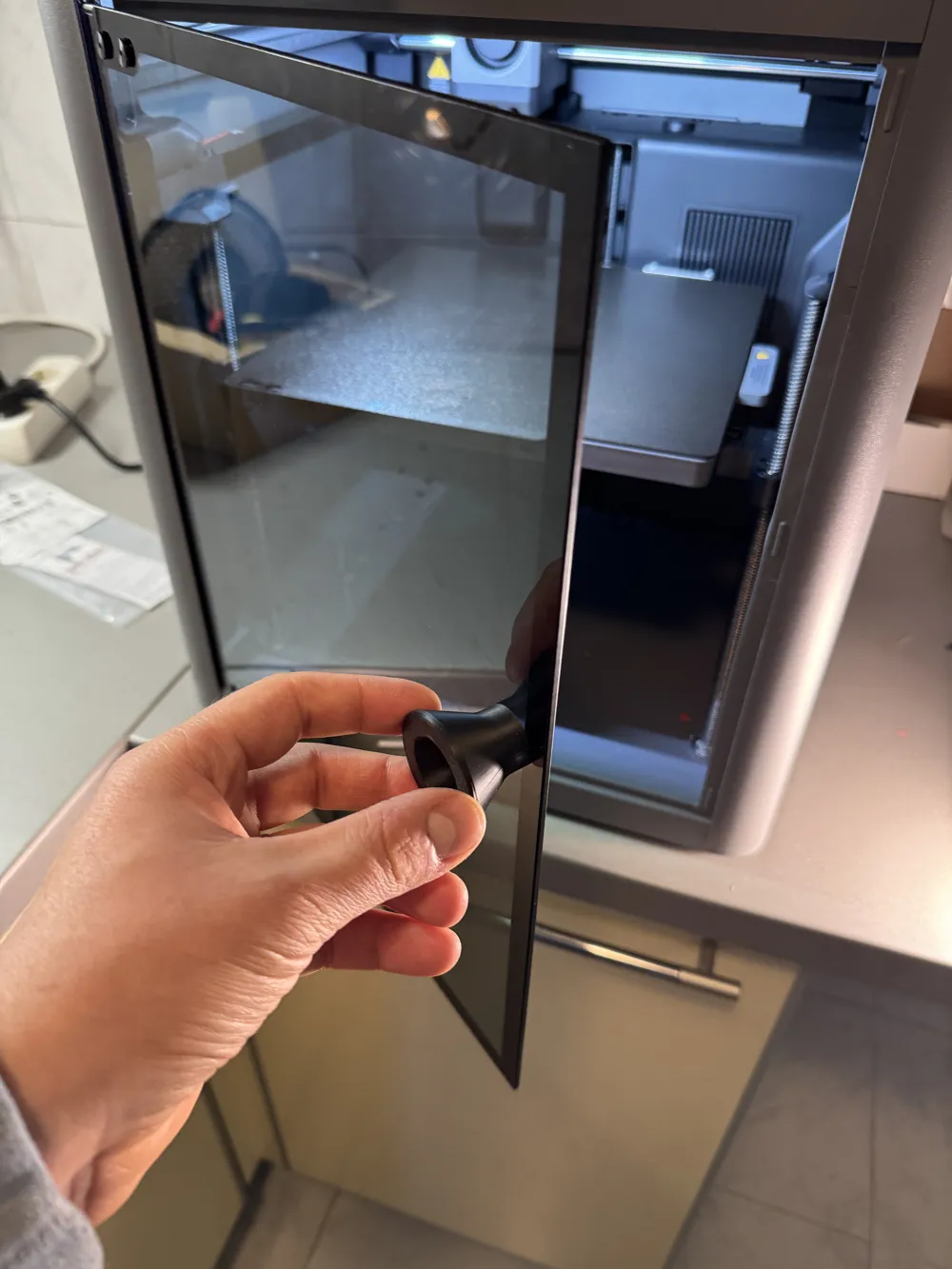

It is installed using the screws from the stock handle. The rubber gaskets in the glass do not need to be removed; special seating areas are provided for them. I recommend screwing in and unscrewing the screws separately before installing on the door, so that threads are formed in the plastic. Screw them in all the way and then a little more. After this, the handle will fit snugly when installed on the door

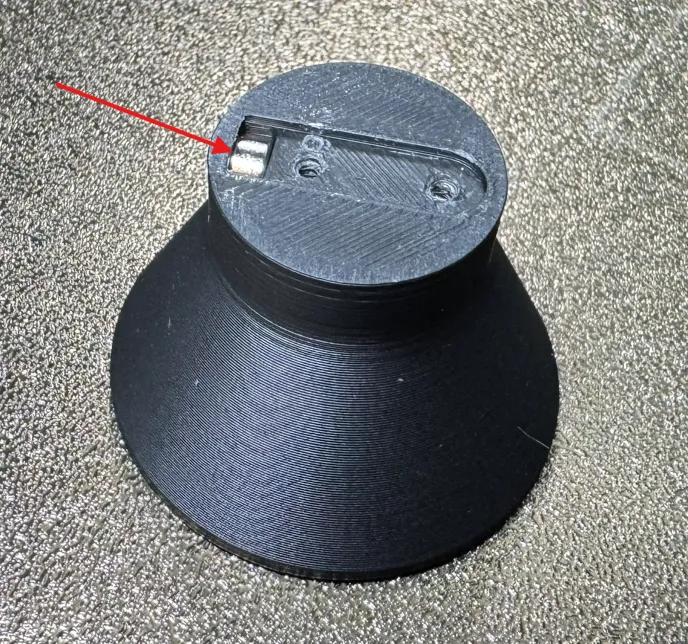

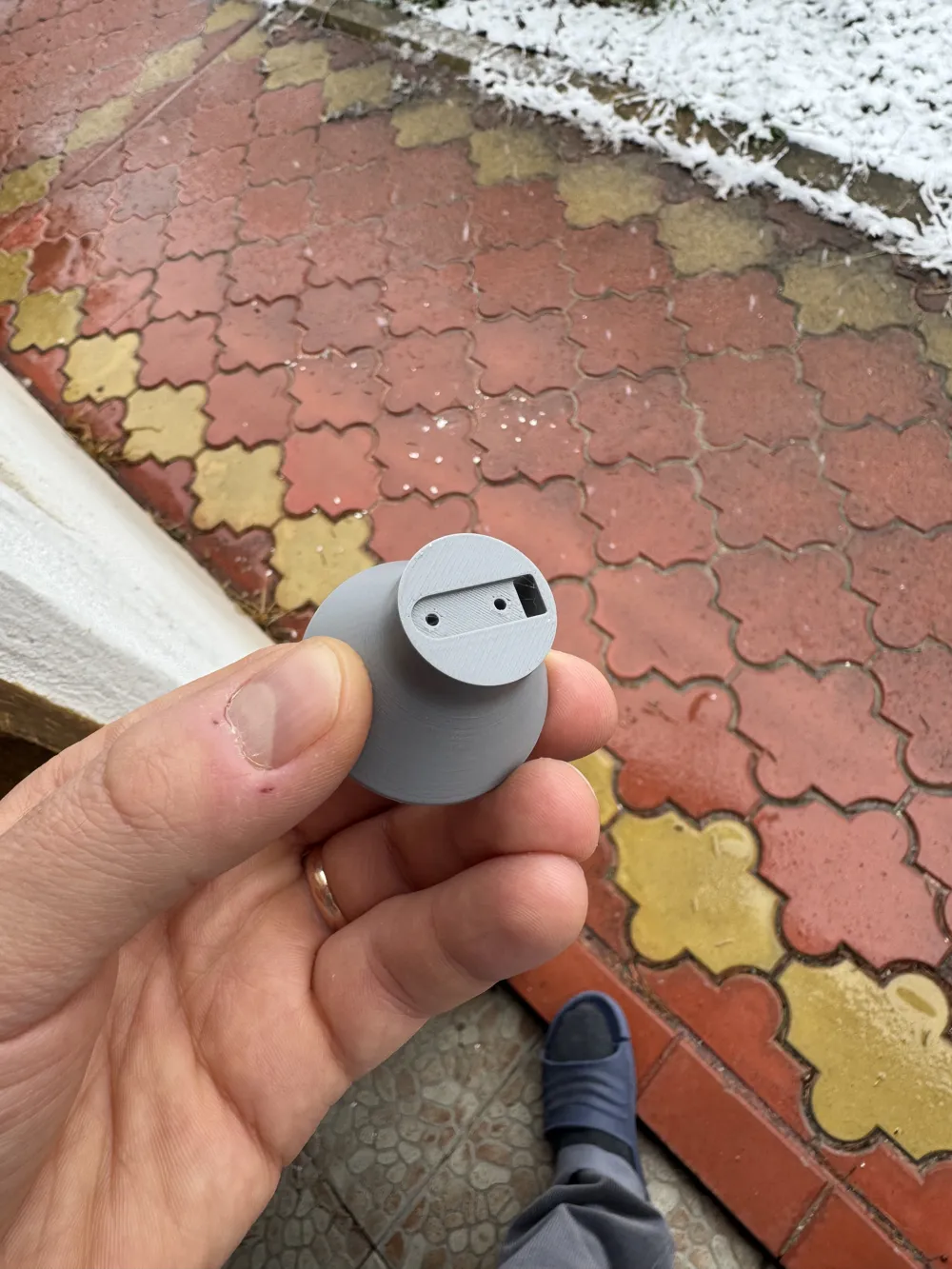

The standard handle has a magnet installed, so this version also provides a space for a magnet. Versions for 6×3 mm or 6×2 mm magnets are available. Glue is not necessary

If you do not have a magnet and do not plan to install one in the future, there is a handle version without a magnet slot

Please note: if the handle is installed without a magnet, the printer will assume the door is not closed. There are three possible behaviors: printing blocked, a warning displayed, or no action taken. In this case, you need to select a mode that allows printing to continue

I have been using this handle for over a month and am completely satisfied with the result!

P.S.
If the handle fits other Bambu printers (I only have a P2S) — please let me know, and I will add the information to the description.
If modifications are needed for another Bambu printer — you can make changes yourself and add a version to this profile, or inform me what needs to be changed, and I will add a new version. A SolidWorks file is included

Thank you!
