Spirit Level Holder for Würth Pegboard

Würth Van Racking: Flexible Spirit Level Holders (7.3 x 7.3 mm)

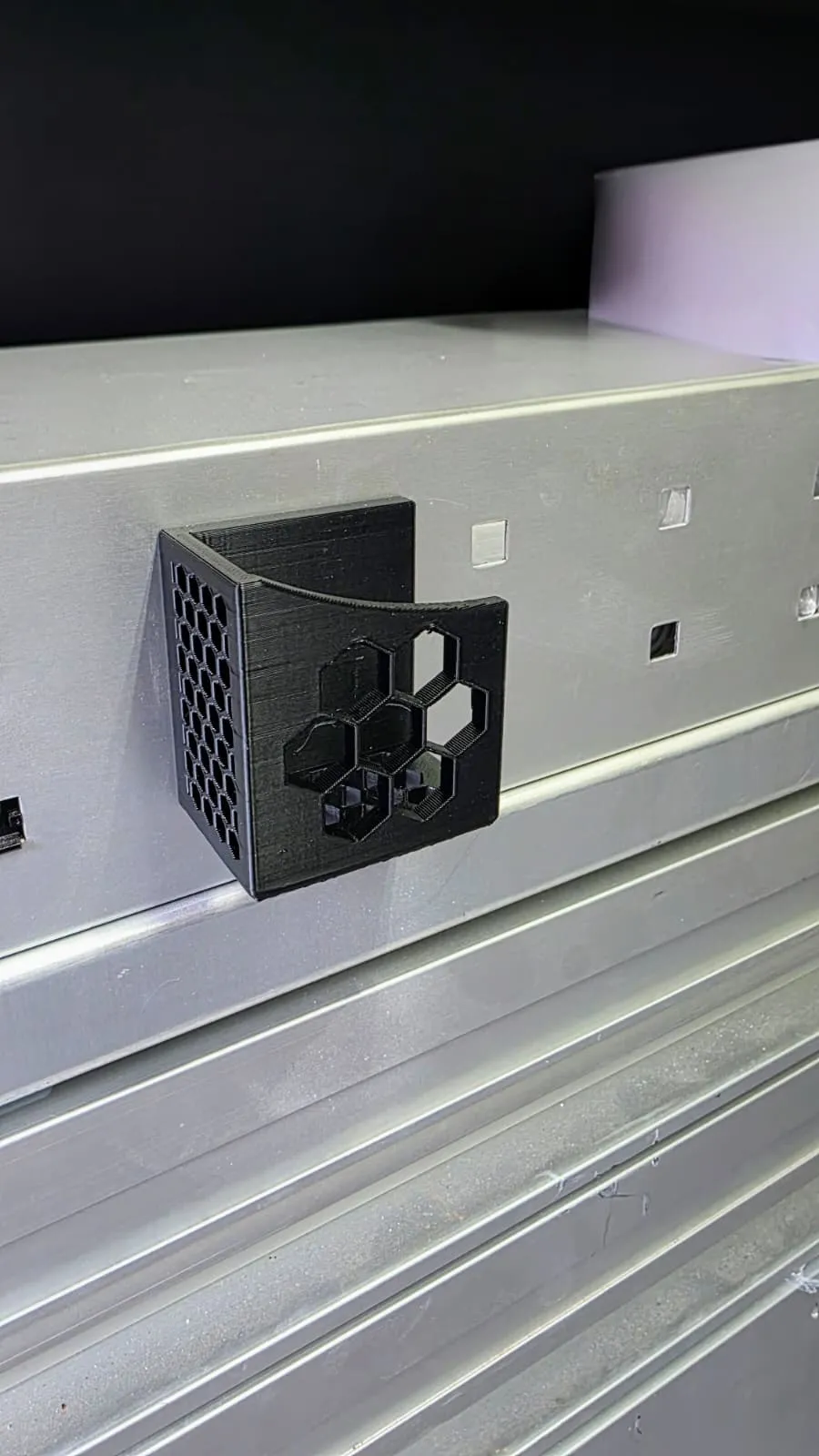

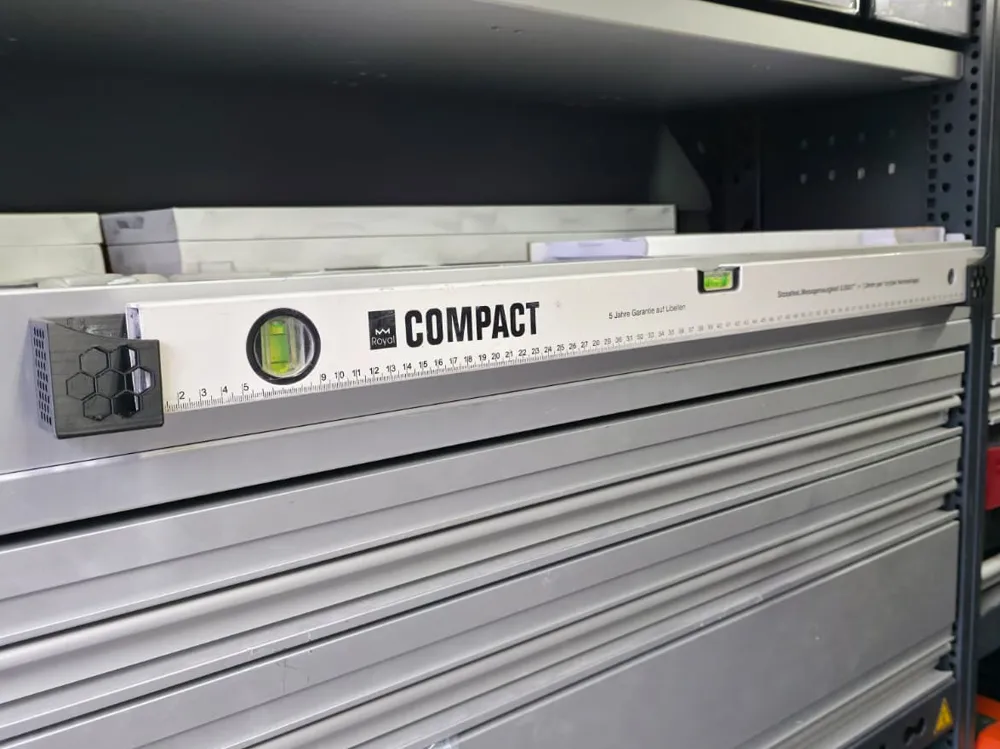

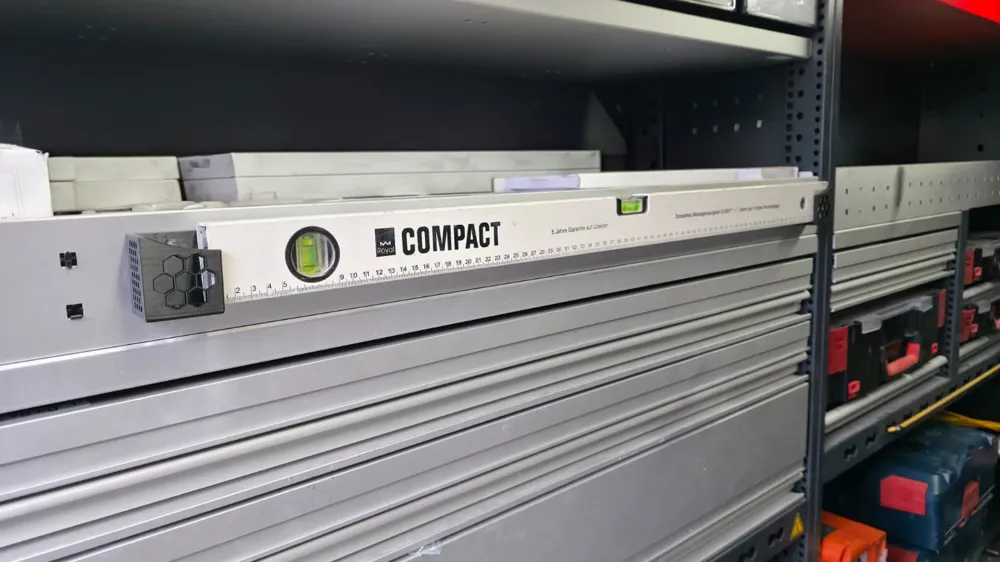

Maximize order in your workshop trolley or workshop with these perfectly fitting spirit level holders in a modern hexagon design. This holder was specially developed for the hole size of Würth vehicle and shelving walls (7.3 x 7.3 mm). Since the system consists of two separate holders, you are completely flexible with the length of your spirit level – as long as your shelf is wide enough.

Features & Variants

The profile contains different versions to guarantee a perfect fit for every tool:

• Available Widths: 23 mm, 25 mm and 28 mm.
• Two Lengths: Each width is available as a Standard Version and as an extended version (for even more secure hold with deep profiles).
• Hexagon Design: Visual highlight that saves material while offering high stability.
• Easy Installation: The holders are simply inserted into the pegboard and sit firmly.

Which version for which spirit level?

Here are some examples of common brands that fit perfectly into the respective widths:

• 23 mm: Ideal for narrow profiles such as the Stabila Series 70 or BMI Eurostar.

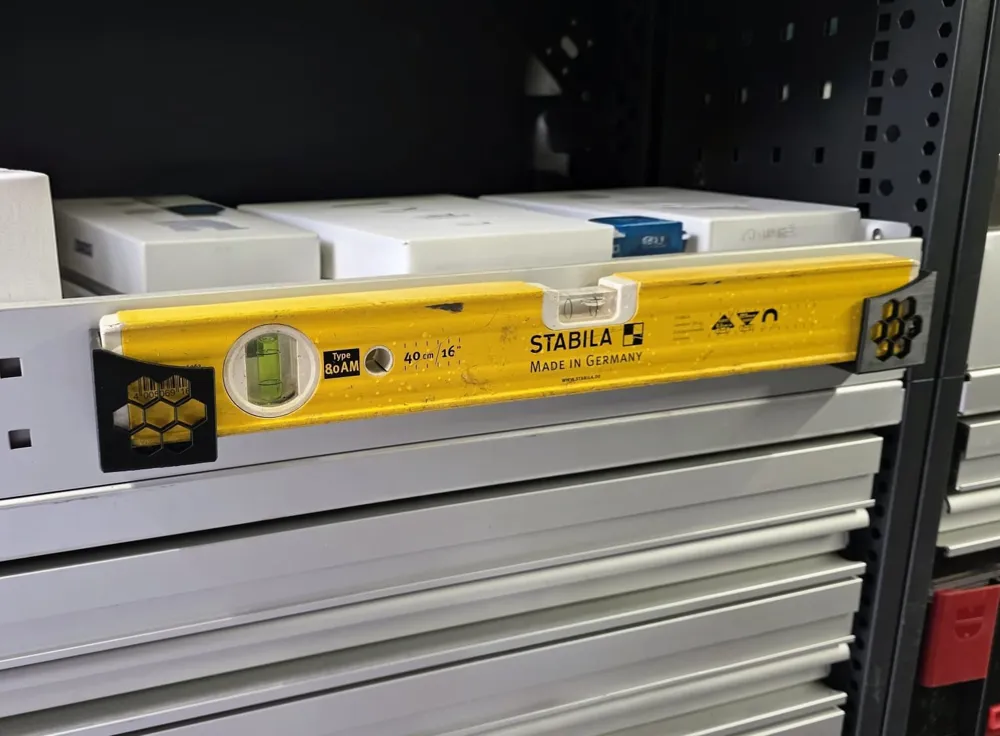

• 25 mm: The standard size for many professional tools, e.g. Stabila Series 80, Würth Classic or Garant.
• 28 mm: For massive designs such as the Stabila Series 196 / R-300, Milwaukee Redstick or Sola Big Red.

Pro-Tip: Briefly measure the width of your spirit level at the thickest point (usually the end caps) to choose the ideal version!

Print Recommendations

• Material: Since the holders in the vehicle are exposed to vibrations and temperature fluctuations, I recommend PETG, ASA, or ABS. (PLA can deform in summer heat in the car).

Do you have a different hole size or a special desired width? Just write me a comment, I will gladly add more dimensions to the project!

Good luck organizing your vehicle interior!
