Wuben C2 Diffused and Signal Light Set
Print Profile(2)
Description
A collection of diffusers and colored light attachments for the Wuben C2 flashlight.

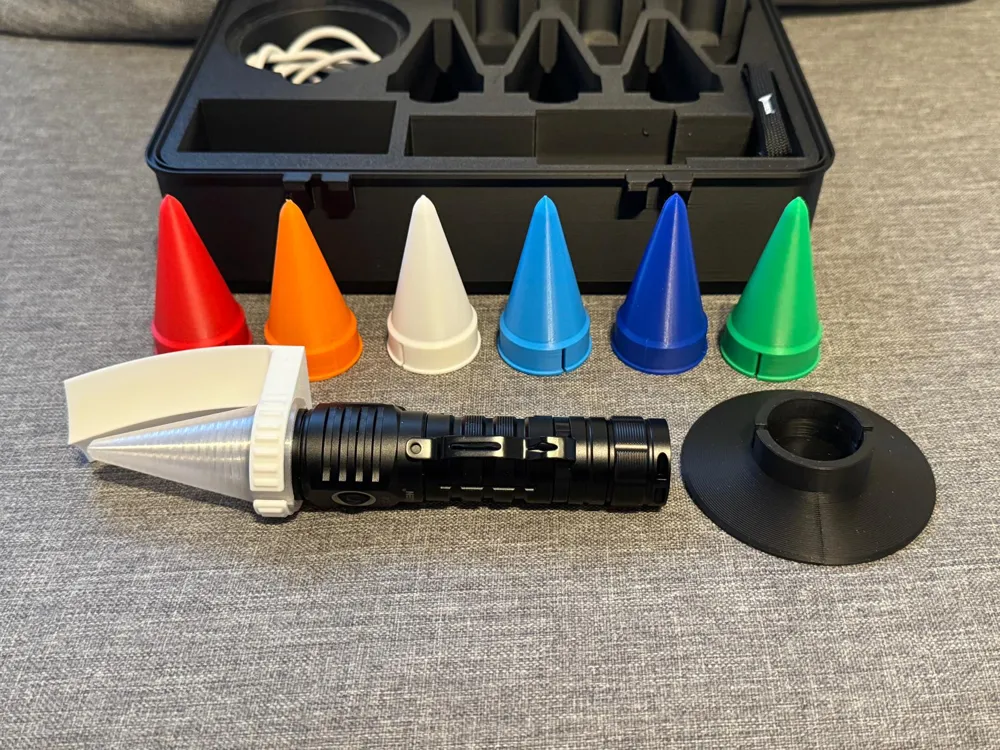

Included:

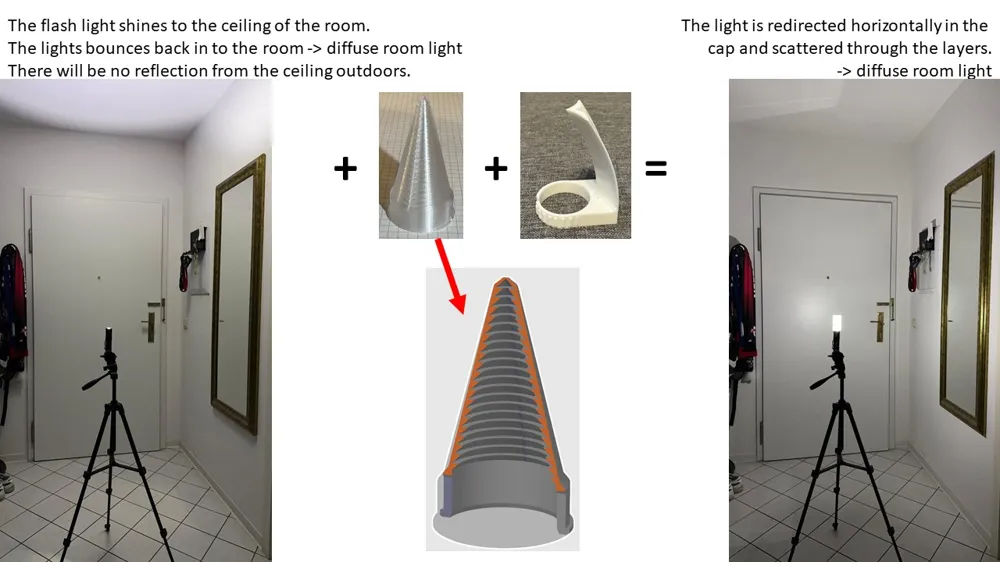

- An attachment to diffuse light horizontally, ideal for room lighting or area lighting, where a focused flashlight beam is not useful, but rather a lantern-like effect. This attachment must be printed with PETG Translucent (recommended) or transparent PLA Basic.

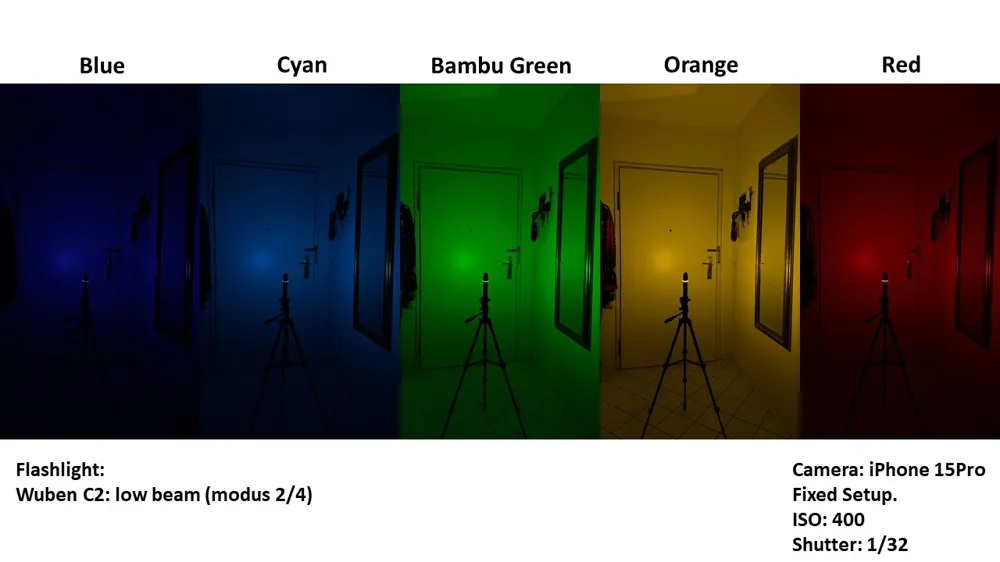

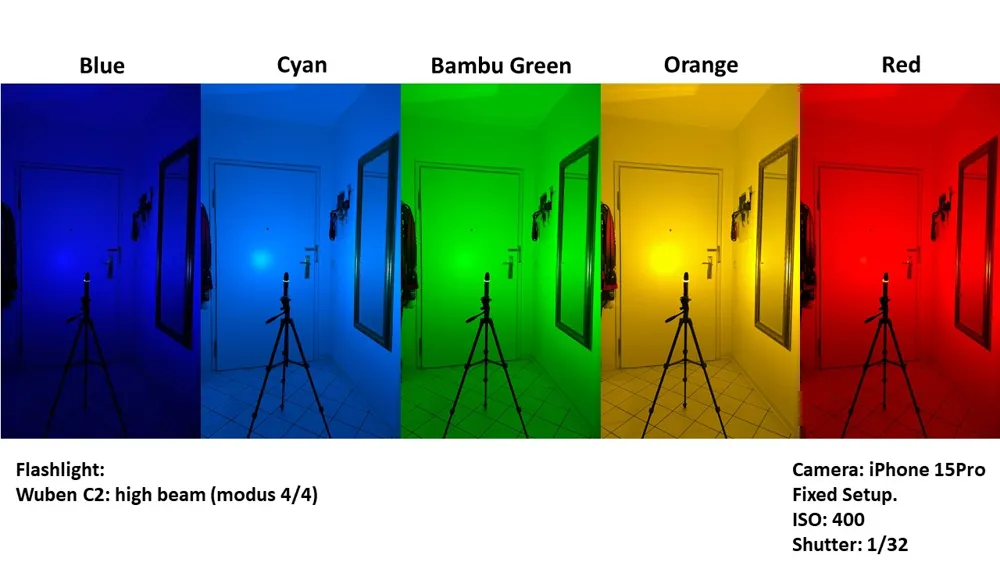

- Simple colored attachments (if using PLA Basic, make sure it doesn't get too hot)

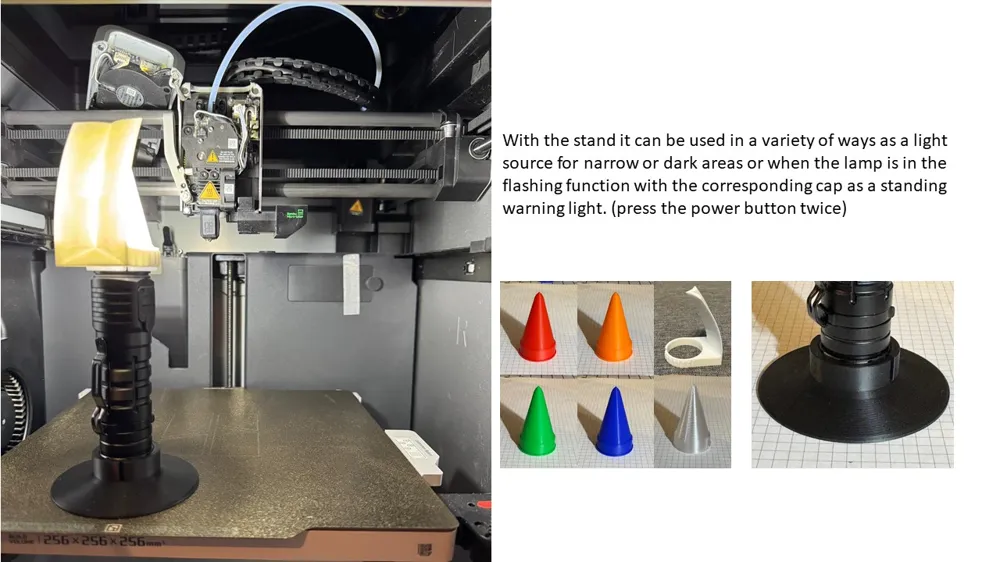

- A stand (all models in the 3mf have 100% infill, this is not necessary for the stand)

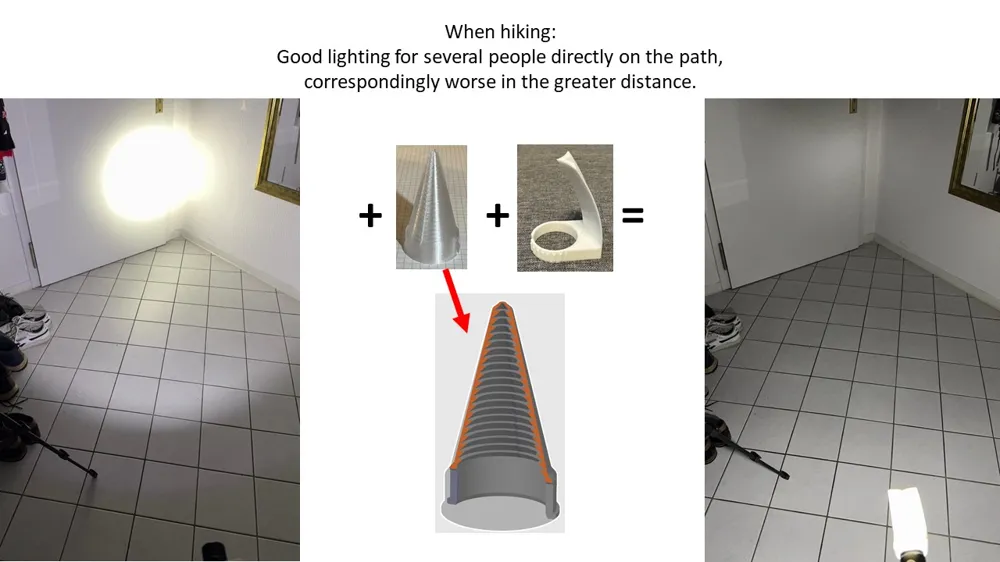

- Glare shield attachment suitable for the caps. The attachment should be printed in white to better reflect the light; the reflector is simply slid onto the cap.
Optional and only for H2 models (due to size).

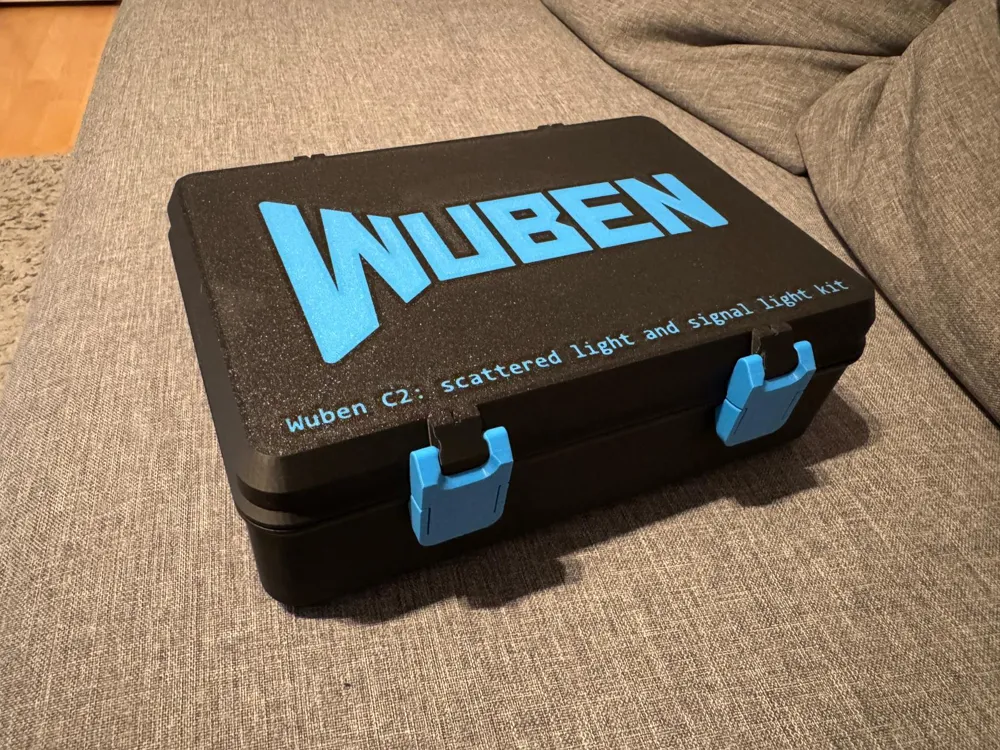

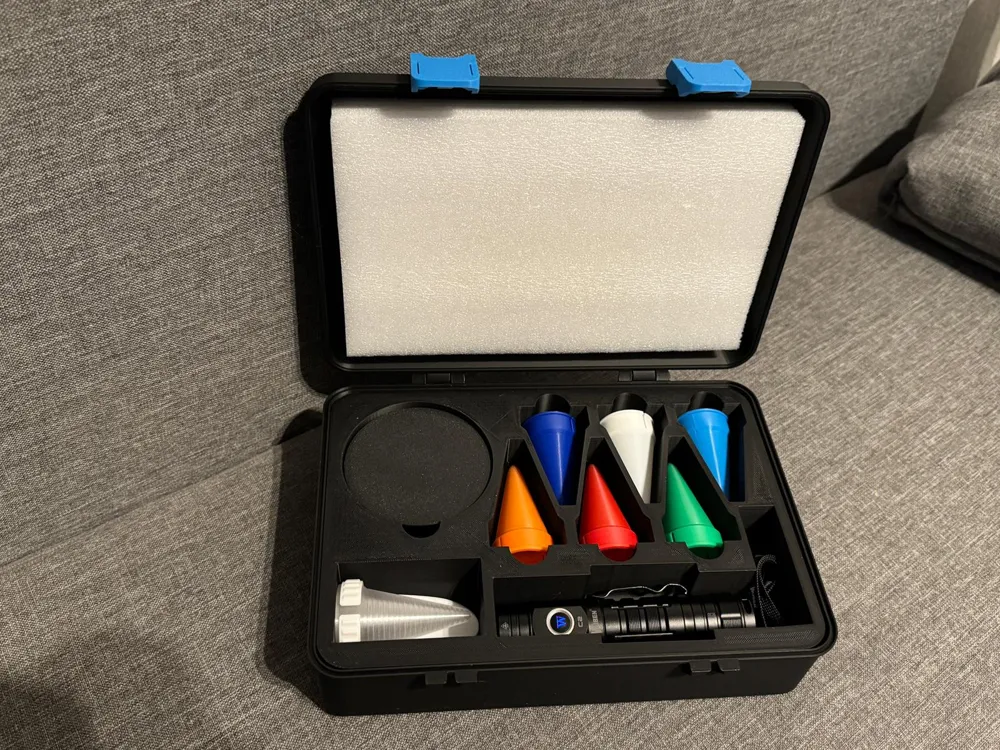

A box is available as an extra template; the insert for the parts is designed somewhat generously. Since multiple prototypes would have cost too much material and produced too much waste, I refrained from improving the insert. Feel free to link your own insert here in a comment.
The base of the box is from:
https://makerworld.com/en/models/2168356-snaplock-v3#profileId-2351483
The box was created using the parametric modeller. For assembly, please go to the specified page.
Used filament:
PETG Translucent - https://eu.store.bambulab.com/de/products/petg-translucent?id=48055896047964
PLA Basic: https://eu.store.bambulab.com/de/products/pla-basic-filament
Cyan (10603); Bambu Green (10501); Blue (10601); Orange (10300); Red (10200); Jade-White (10100); Black (10101)
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
