Door Vent for Exhaust Under Door
Print Profile(10)
Description

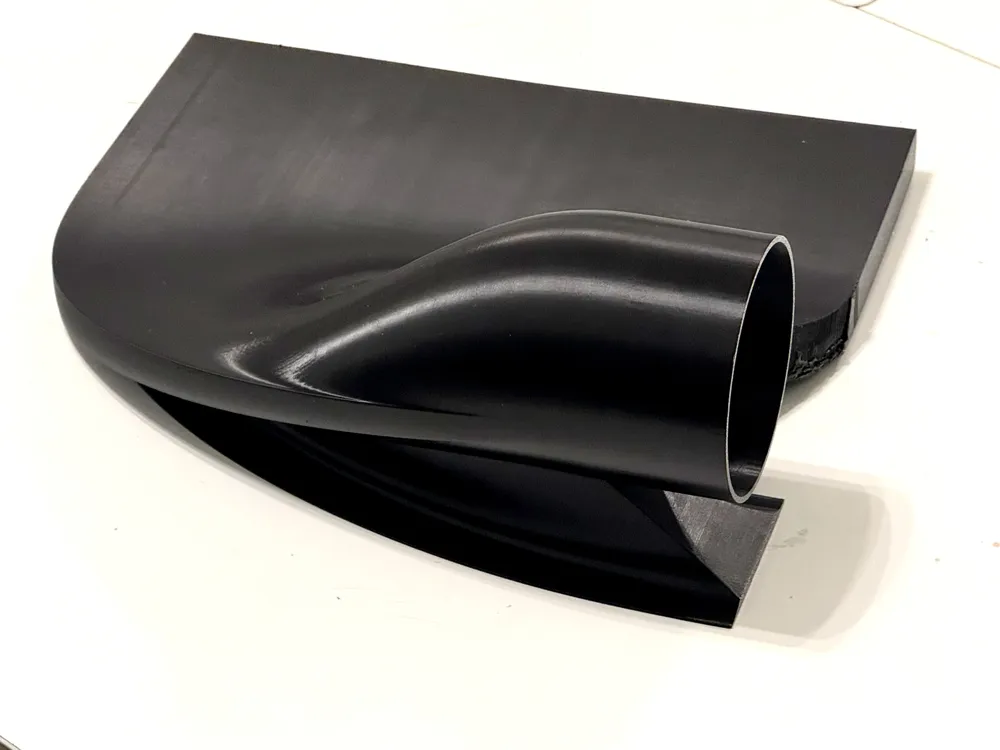

Door Vent for Under Door! Raised opening for Inline Fan!
Multiple configurations - Requests Accepted!!

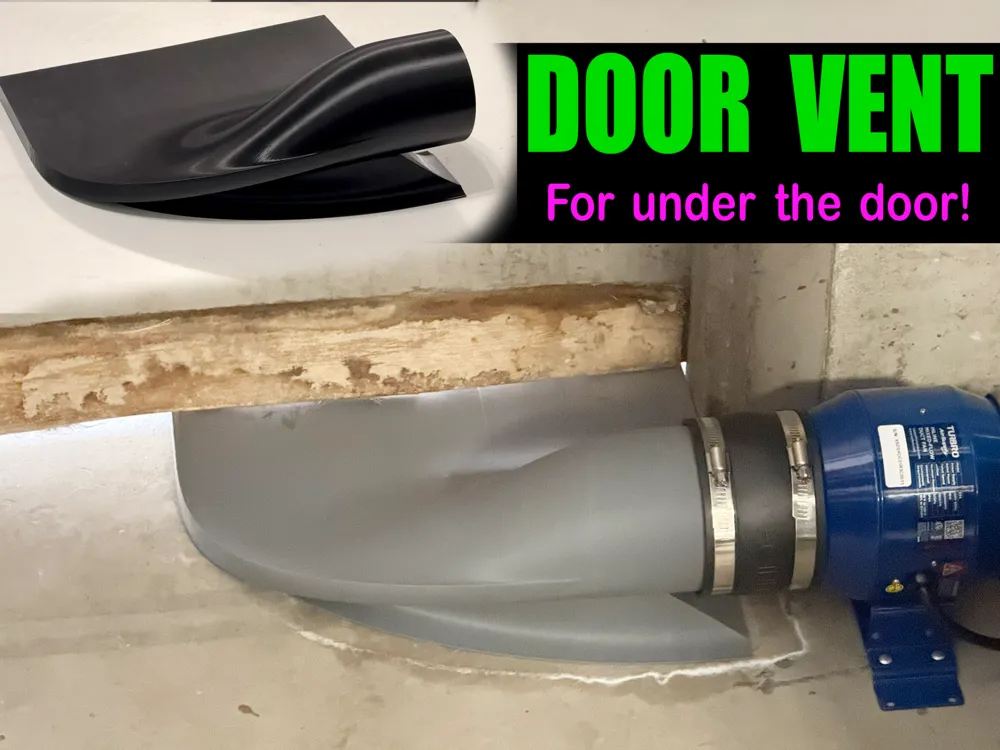

Venting works best with an inline fan right at the end. This vent has a raised entrance to connect an inline fan directly with a coupler. 4" version currently 40mm off the ground which matches many inline fans. 3" version 25mm off ground. Just ask if you need a custom height. 3" profiles added on request.
Multiple versions for different printer sizes!

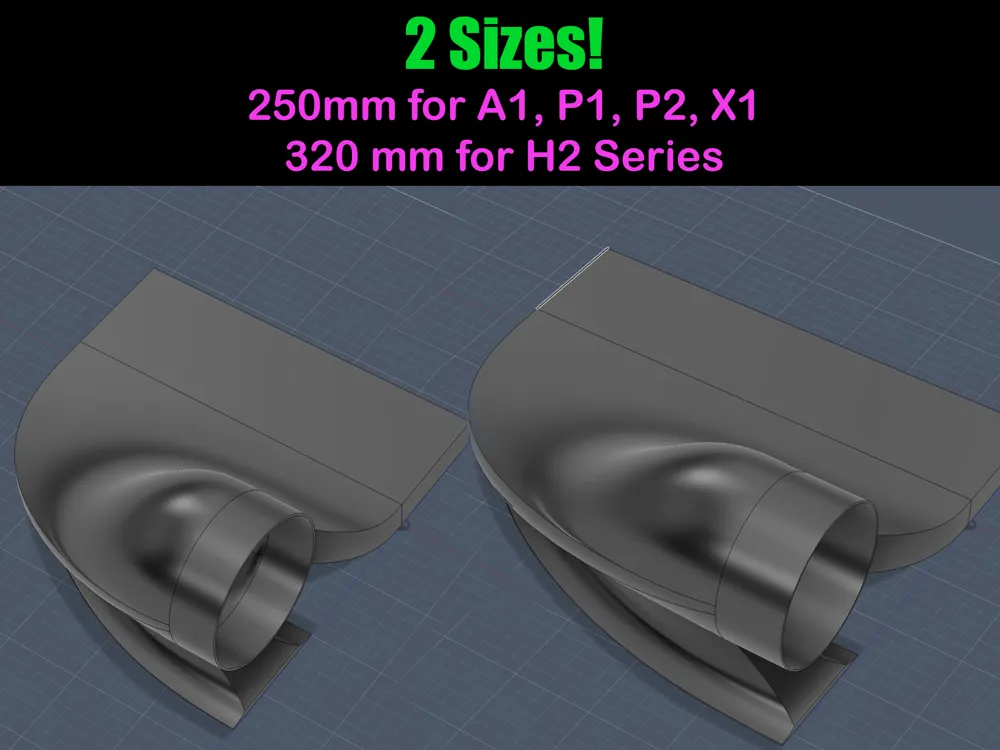

250mm A1 & up. 320mm - H2 series & up. 335mm - H2S only.
Boost Me (for free)
More models coming! Please boost me for free to support! ........ I actually test print for quality so boosts help with supplies!
- 4" adaptor for standard inline fans (98mm)
- 3" adaptor for standard inline fans (74mm)
- adding 3" profiles on request. Please ask for the one you need
- Multiple heights for clearance under doors! 20mm, 15mm, 10mm (2cm, 1.5cm, 1cm)
- Need a special size? Just ask in comments!
- 250mm version for A1, P1, P2, X1
- 320mm version for H2 Series!
- 335mm max version for H2S only!
- A1 mini version coming soon!
- Heavy Duty for Shop Use
- Raised 40mm off ground to couple directly to inline fan
- Need a special height? just ask!
If you're looking for a good 4" inline fan, here's the one I got that is easy to seal (not an affiliate link). I used indoor silicon sealant top close the 2 small holes in the fan: https://a.co/d/0dSsTTd6
I like this fan because it's metal, easy to seal, low wattage, and analog control. It's only 18w at full power, and has an analog dial control so you can easily adjust to balance negative pressure in your 3D printer. I'm not affiliated, it's just the best inline fan I found for this purpose after research.
The 4" opening is 98mm or 3.85" to accommodate a coupler.
The 3" opening is 74mm or 2.91" to accomodate a coupler
IMPORTANT USE NOTE- PLEASE READ:
Some smaller versions restrict airflow which can reduce CFM (cubic feet/minute). The design is optimized to redirect air, so it can still be effective, just keep in mind to adjust settings to make sure you're still getting negative pressure in your printer. I've been told large reductions in size may affect the lifespan of some fans.
More airflow is always better so please use the largest size your door will accommodate.
The optimal sizes that shouldn't significantly reduce airflow from entrance to exit are:
- 4" 335mm - 20 mm clearance
- 4" 320mm - 25 mm clearance
- 4" 250mm - 30 mm clearance
- 3" 250mm - 20mm clearance
Boost Me (for free)
More models coming! Boost me for free to support!
