FlightScope Mevo Gen2 Stand with Protective Case
Print Profile(1)
Description

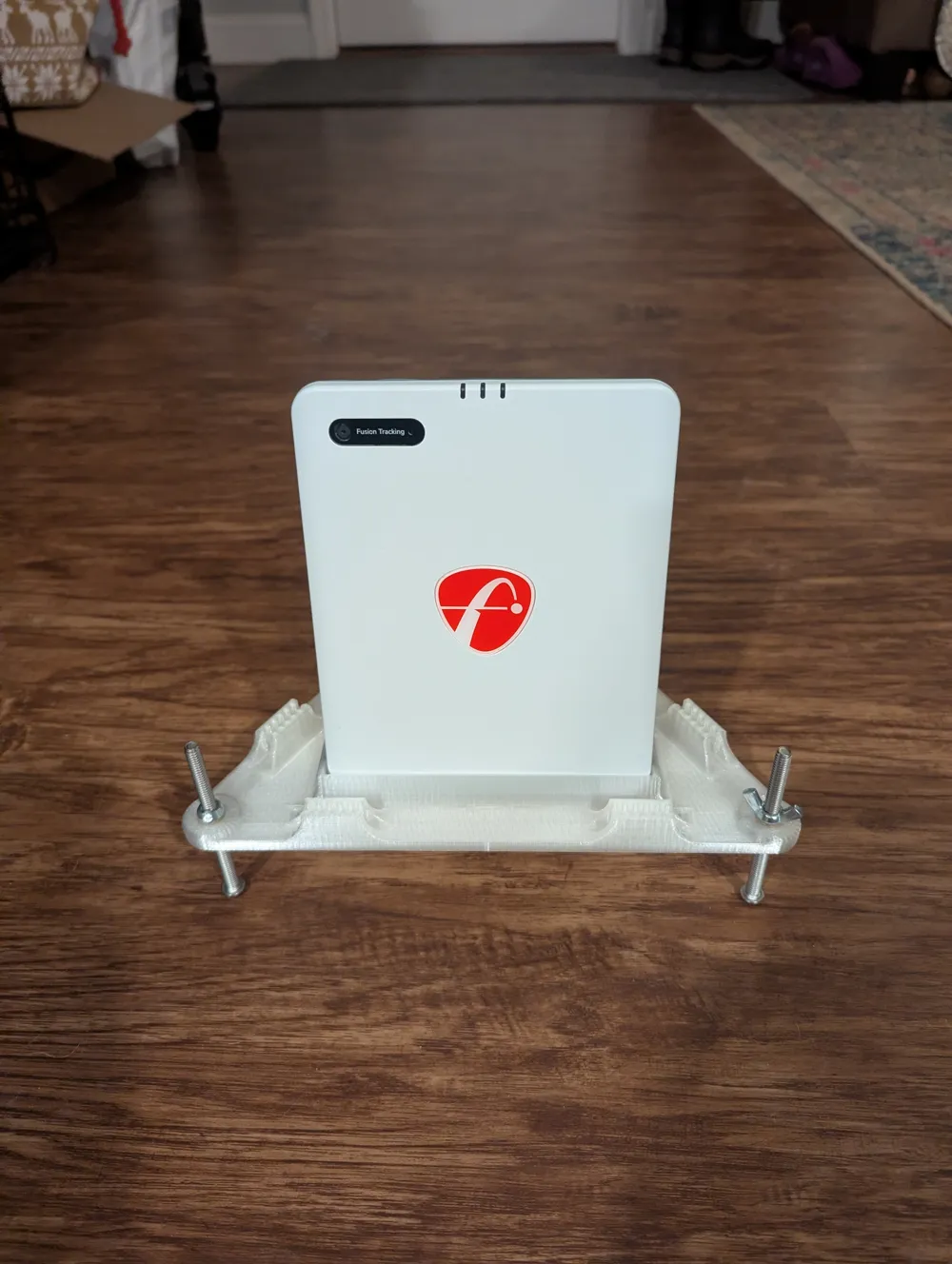

This is a stand for the new FlightScope Gen2 Golf Launch Monitor.
This is an original design that has a similar shape to some of the others out there.
I printed mine with transparent PETG.
Boost Me (for free)
This is a free model to save you the $40+ of buying one. If you like this model, please give me a boost!
This project includes two different plates,
- One with the basic stand that will not accept guarding

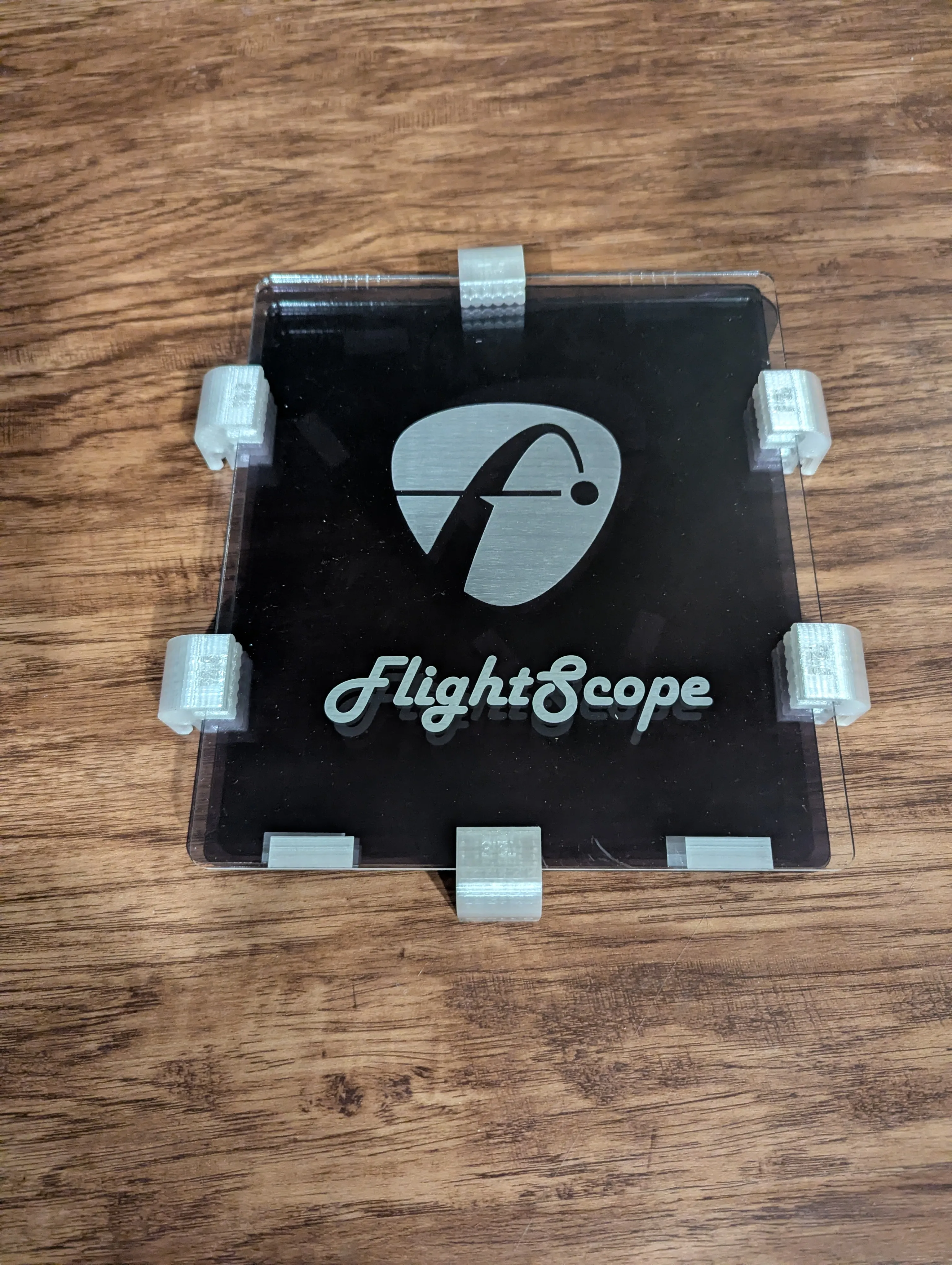

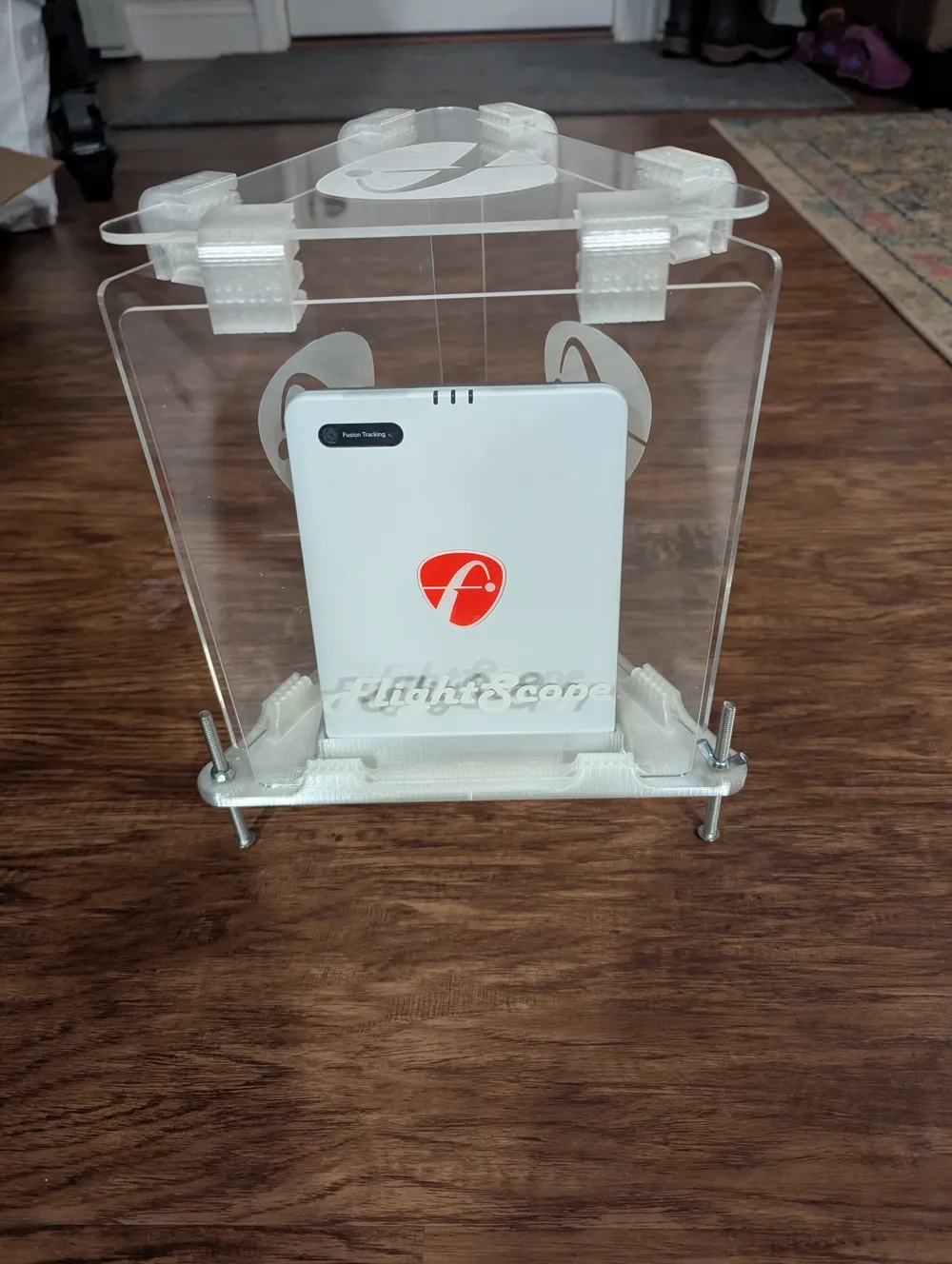

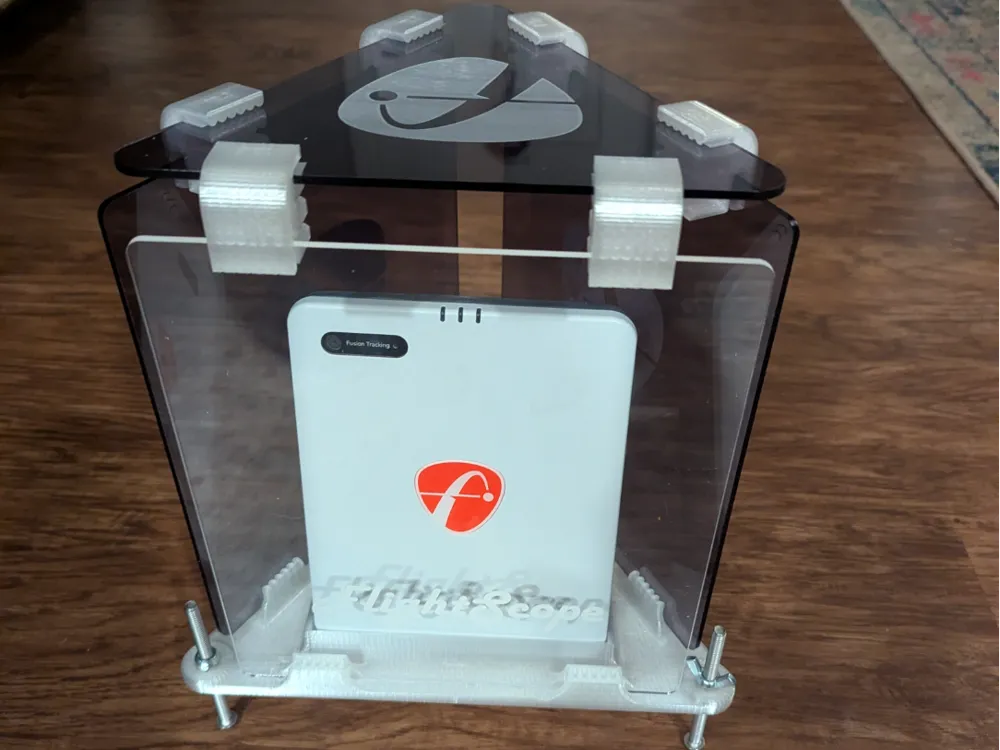

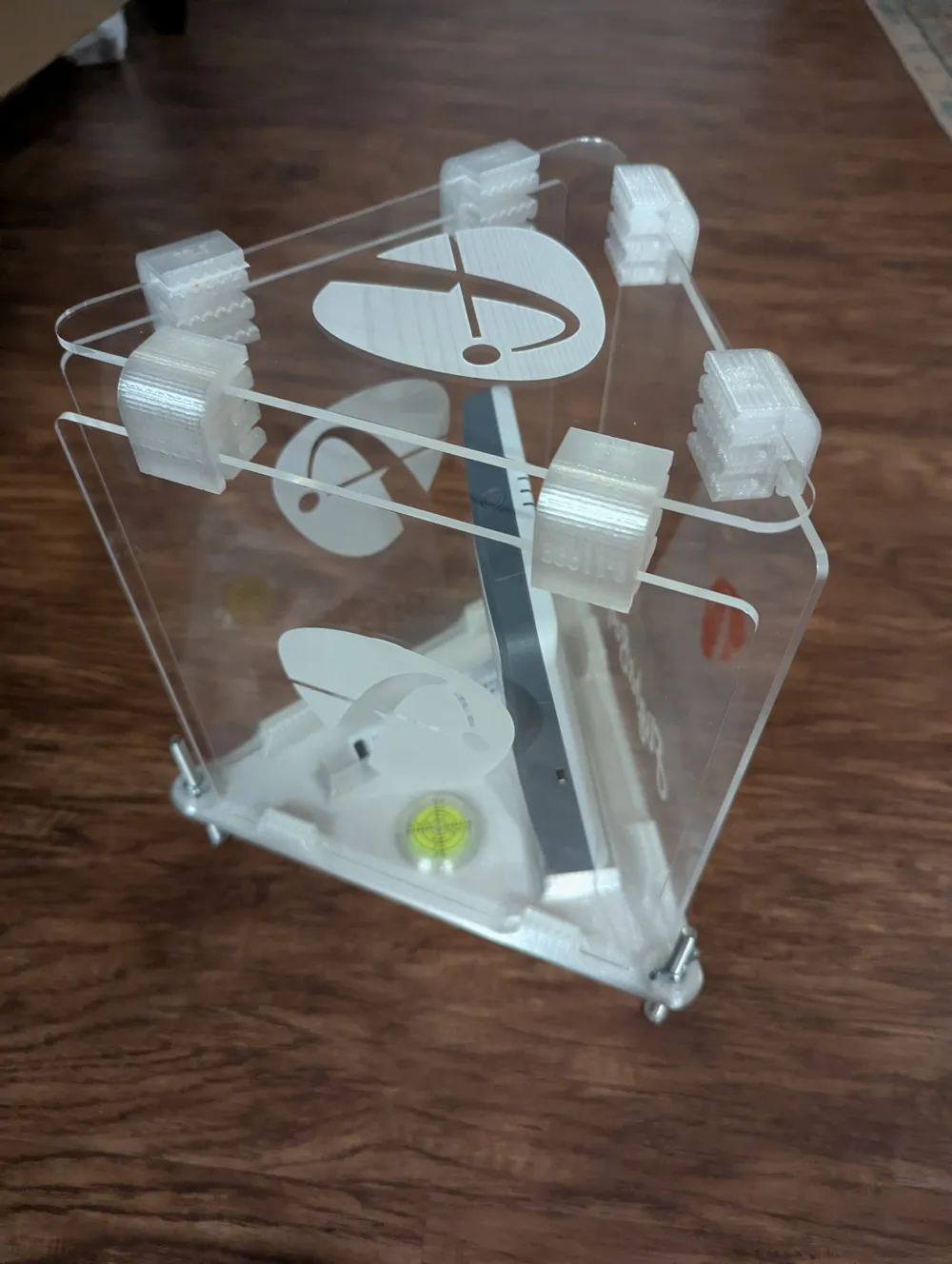

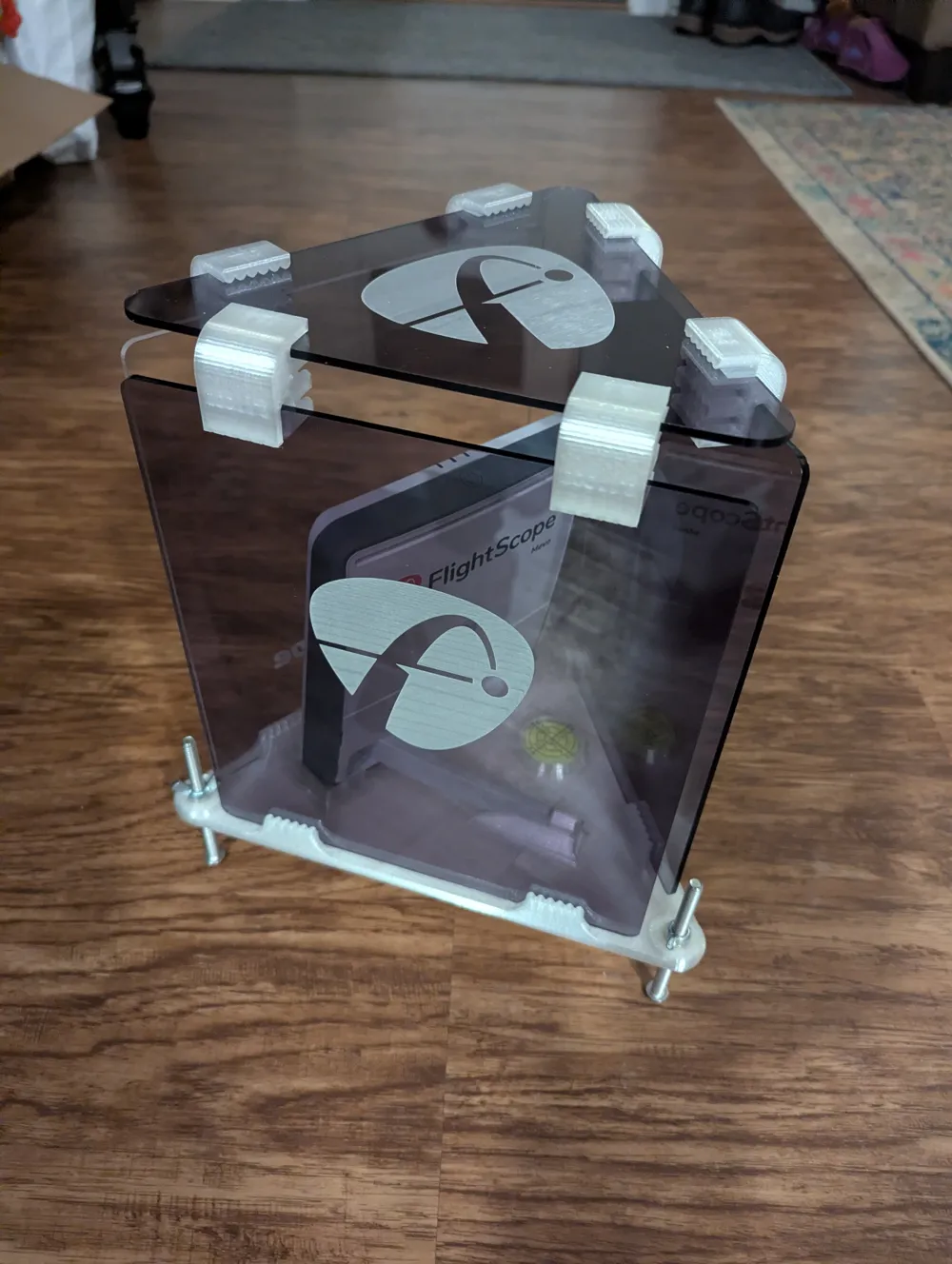

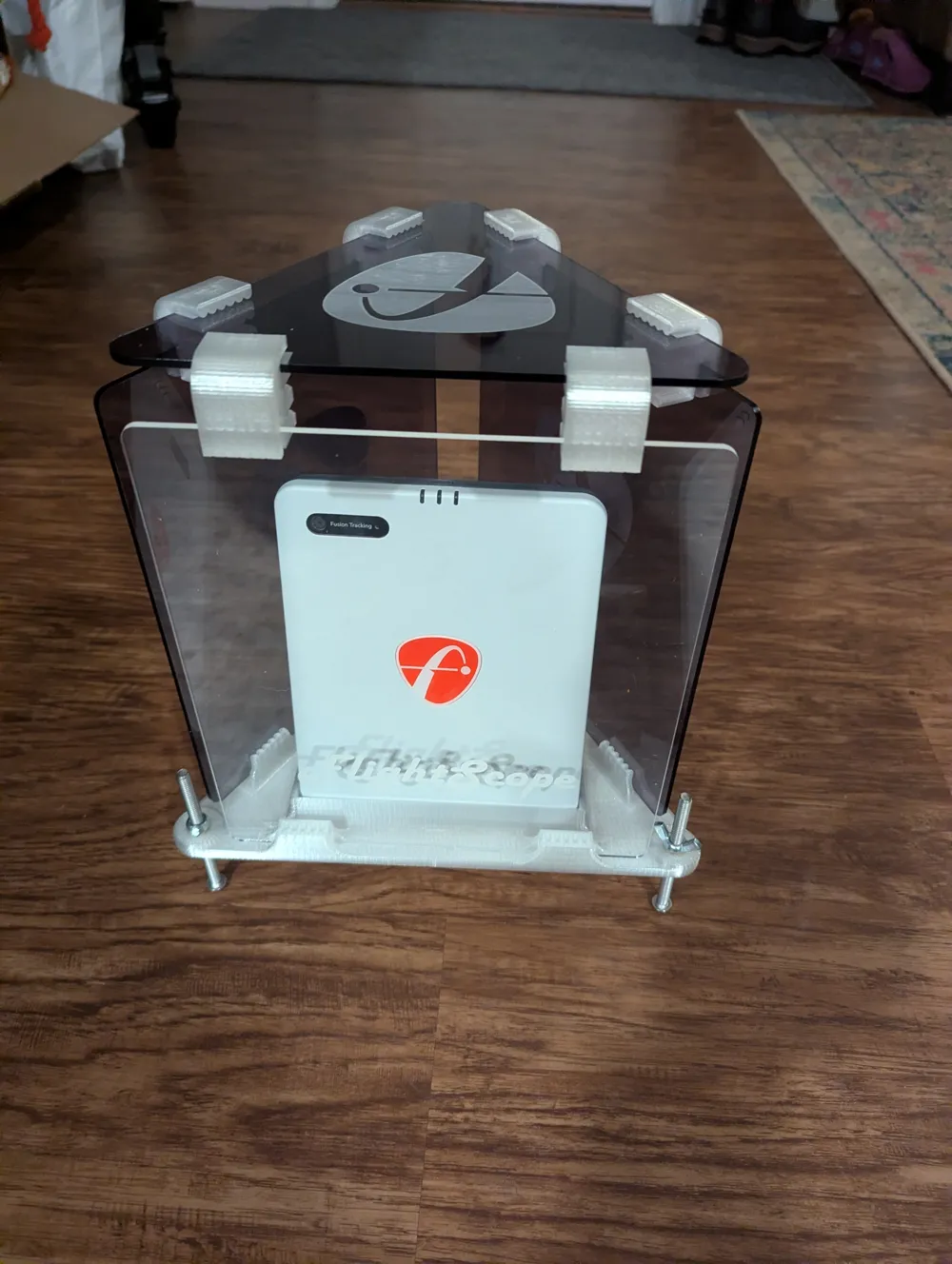

- A second plate that has the guard holders built-in and the corner brackets that will hold the entire structure together snugly. As a bonus, the corner brackets can be used to hold all the safety panels locked together for a clean and easy carry and transport. The backets are designed for use with 1/8” material.

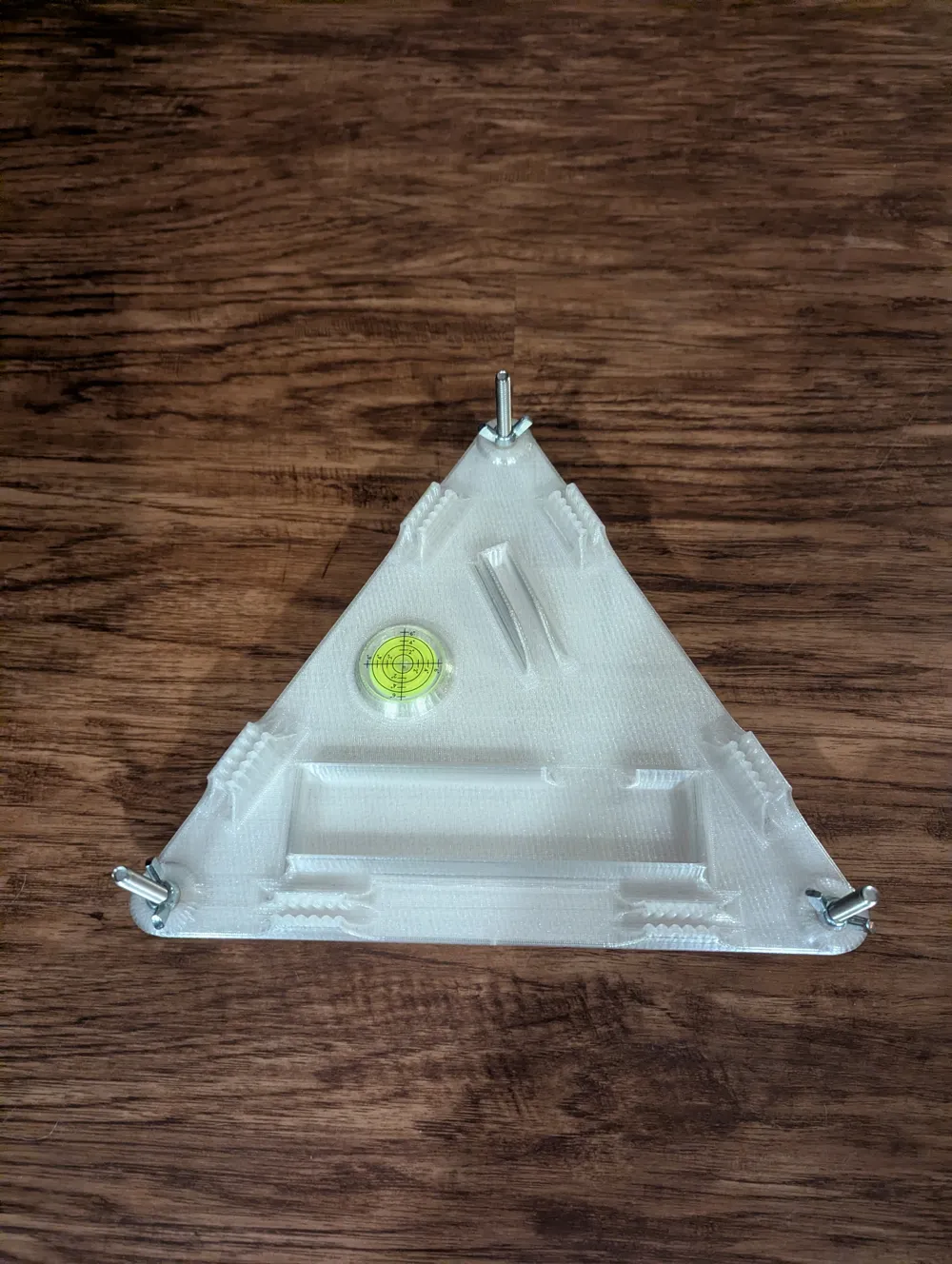

Both models have a spot for a 32mm bubble level and recessions to hold the launch monitor and kickstand firmly in place.
The three holes in the corners are there to add a ¼-20 threaded heat insert. I used short brass inserts and 3 ½ inch machine bolts with wing nuts to lock them in position.
I have included the DWG files for the guards if you want to laser cut them, the files do not have the logos on them.
I am putting these files out for free so please give me a boost if you like them and don’t make these to sell.
