Description

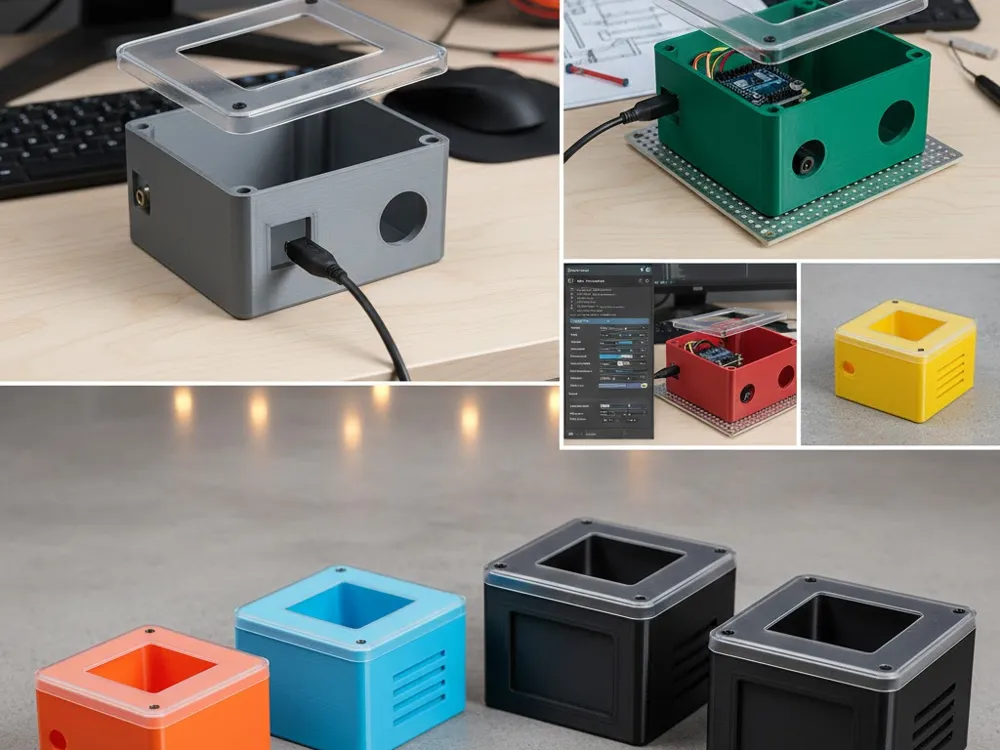

Looking for the perfect enclosure for your DIY electronics, Arduino, or ESP32 projects? Stop downloading "almost right" boxes and start generating your own! This Fully Parametric Project Box is designed specifically for the MakerWorld/Bambu Studio Parametric Model Maker.

With just a few sliders, you can change the dimensions, wall thickness, and screw hole positions. No CAD experience required!

🚀 Key Features:

100% Parametric: Adjust Width, Length, and Height to your exact needs.
Smart Corner Pillars: Internal reinforcement pillars ensure maximum strength for screw mounting without ruining the sleek exterior look.

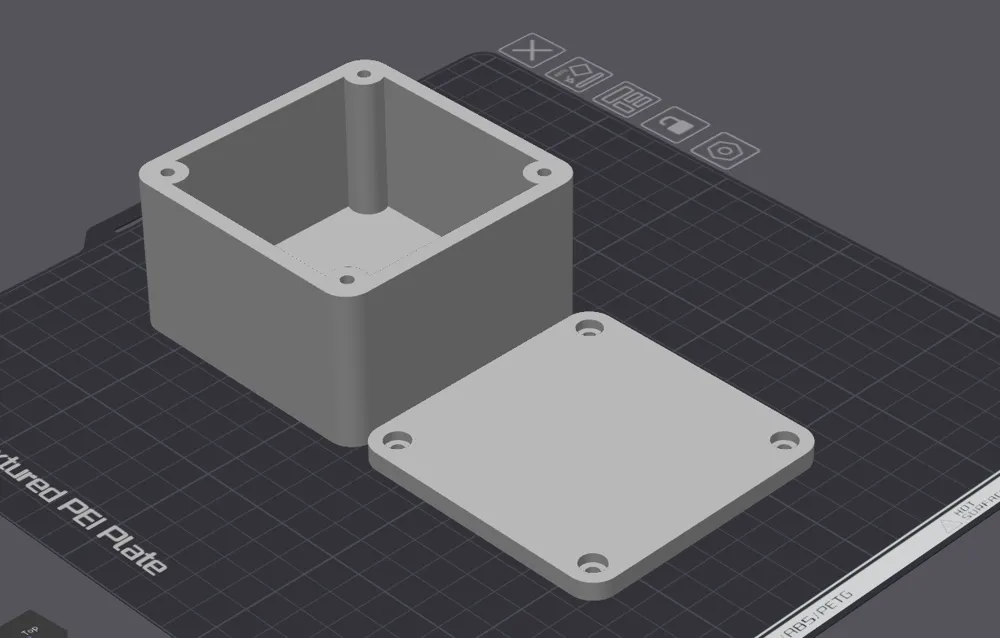

Precision Lid: Includes a matching lid with a built-in alignment rim (lip) to ensure a dust-tight fit every time.
Counterbore Screw Holes: Designed for professional finish; screw heads sit flush or below the surface.

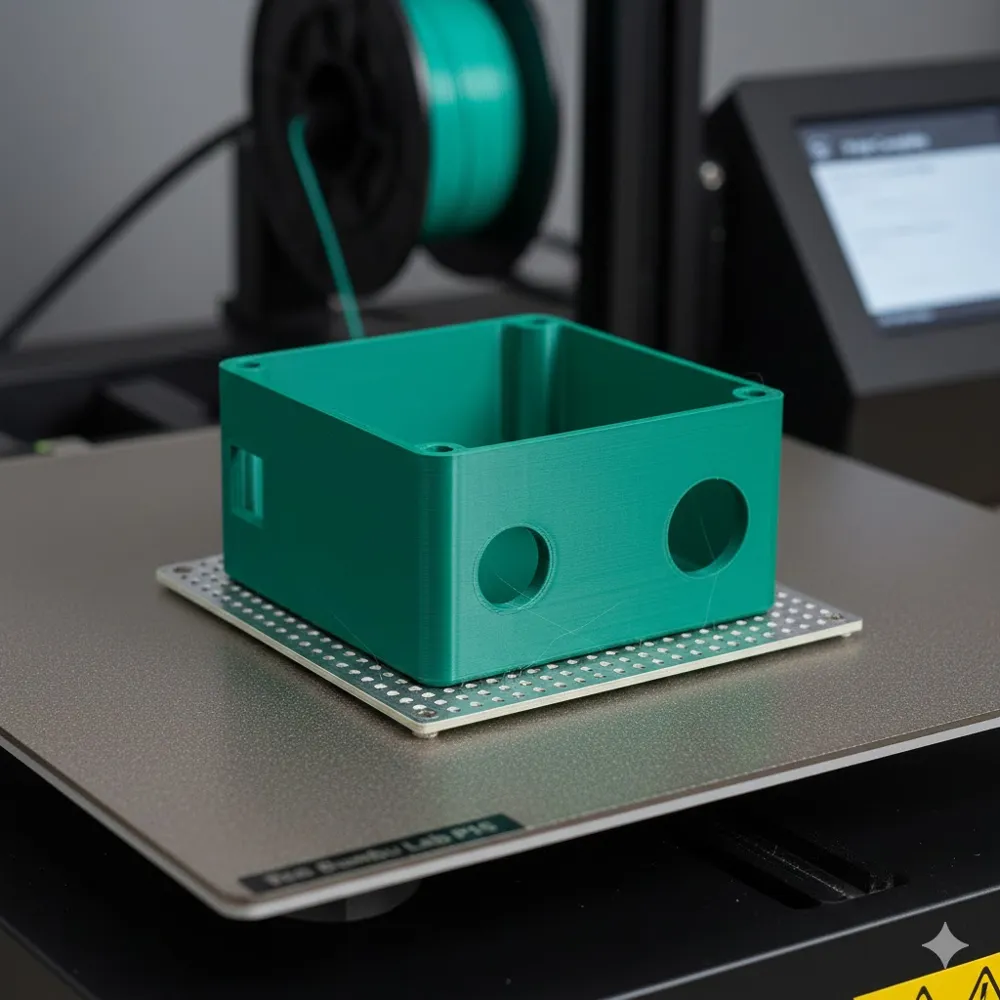

Custom Wall & Lid Cutouts: Easily add square or round holes for USB ports, cables, or displays directly in the customizer.
Optimized for 3D Printing: No supports needed for the basic box, and the tolerance settings are adjustable for a perfect fit on any Bambu Lab printer (P1S, X1C, A1).

🛠 How to Customize:

Open this model in the MakerWorld Parametric Maker.
Input your desired Width, Length, and Height.
Set your Wall Thickness (standard is 5mm for rugged use).
Adjust the Pillar Diameter based on the screws you plan to use (e.g., M3 or M4).
(Optional) Enable the Cutouts to create openings for your ports or wires.
Download the generated STL and print!

📐 Technical Details:

Default Screw Size: Optimized for M3/M4 hex bolts.
Recommended Settings: 3 wall loops, 15-20% Gyroid infill for maximum durability.
Material: Works great in PLA, PETG (for heat resistance), or ASA.
