Slanted Box Round

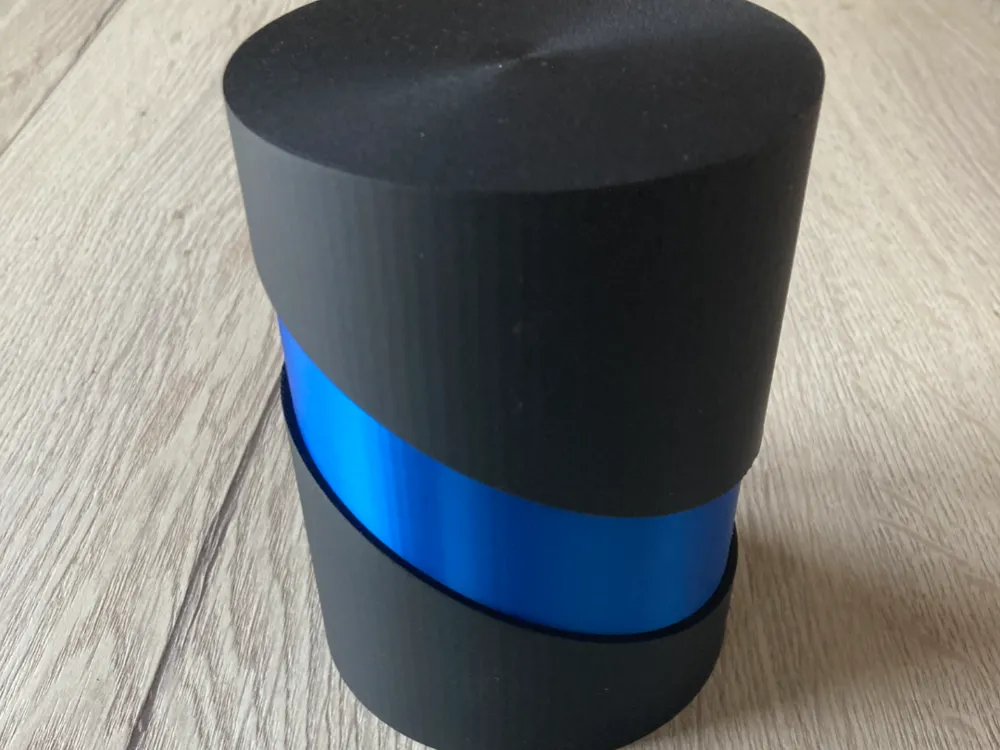

A box with two identical outer parts and a different colored inner part inserted.

The project is parametric; the internal dimensions can be any size.

All other values such as wall thickness, clearance, width, and angle of the cutout can also be changed if required.

The example file has internal dimensions of 60*100mm.

The OpenScad model combines all 3 parts. For printing, you need to separate the parts into objects in Bambu Studio and rotate the lid 180° (place it on its bottom surface).

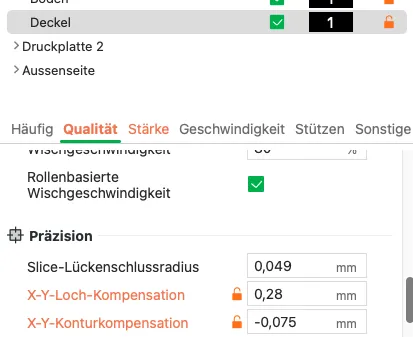

If the lid fits too tightly, you can slightly increase the clearance using the XY Compensation function.

This is stored in the print profile:

I have published a similar angular model here.
