Parametric Seat Tube Shim MTB, Road, Gravel, BMX
Print Profile(2)
Description
Adapt more seat posts or dropper posts to your bike frame seat tube!!

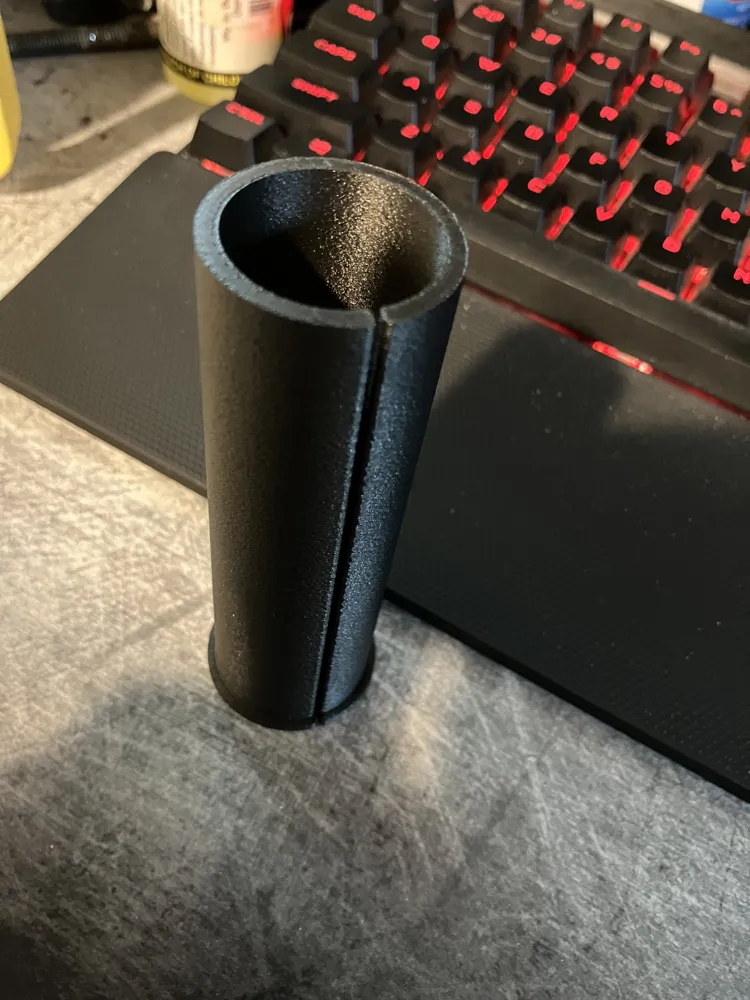

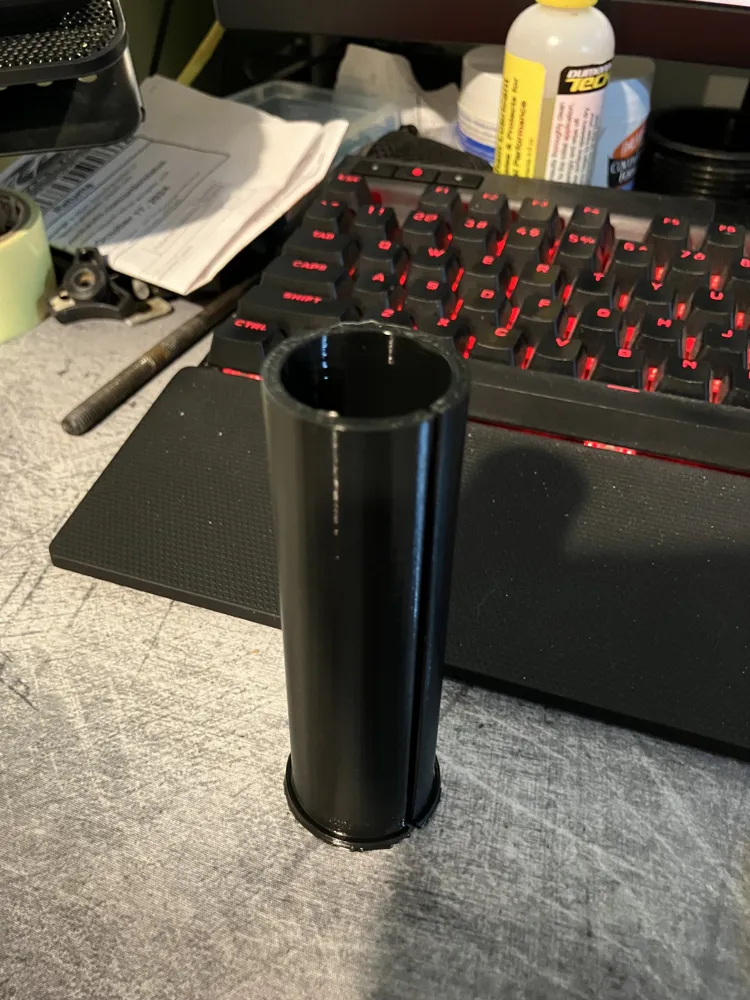

Adapt a pivotal 25.4mm post (common BMX size) to 30.9 seat tube ID. (25.34mm OD to 30.83mm ID) x 100mm Long
OR
MAKE YOUR OWN ADAPTER! With my parametric model and print profiles!
Recommended sizes of adapters:
Inner Diameter (ID) | Outer Diameter (OD) | Recommended ID | Recommended OD |
| 30.9 | 36 | 30.84 | 35.93 |
| 31.8 | 34.9 | 31.74 | 34.83 |
| 33.9 | 34.9 | 33.84 | 34.83 |
| 28.6 | 31.8 | 28.54 | 31.73 |
| 31.6 | 33.9 | 31.54 | 33.83 |
| 31.6 | 34.9 | 31.54 | 34.83 |
| 30.9 | 31.6 | 30.84 | 31.53 |
| 30.9 | 33.9 | 30.84 | 33.83 |
| 27.2 | 31.8 | 27.14 | 31.73 |
| 25.4 | 30.9 | 25.34 | 30.83 |
| Choose your own! | Choose your own! |
Printing
Recommend PETG-CF or PET-CF (or maybe a GF filament). Tried EasyPA but it's slippery... Shim head has a relief to prevent cracking/layer separation. Can be printed vertically with no issue, as the forces clamping it are in XY anyway.
It 100% works - perfect fit for my son's mountain bike. However the PA material required additional torque on the seatpost clamp to stop it from slipping. I used the shim to adapt a Spawn Brood Yama Jama Pivotal seatpost to a Rocky Mountain Reaper Mtb.
For Easy PA: 270C Nozz, 50C bed, iron top surfaces, 100% infill 0.6 nozzle with 0.18-0.30 layer height (your choice)
Personally, printing again, I'd go with a CF filament and possibly fuzzy skin for extra friction/grip when clamping down the post. I'd also add friction paste like finish line fiber grip.
