OpenGrid Beam

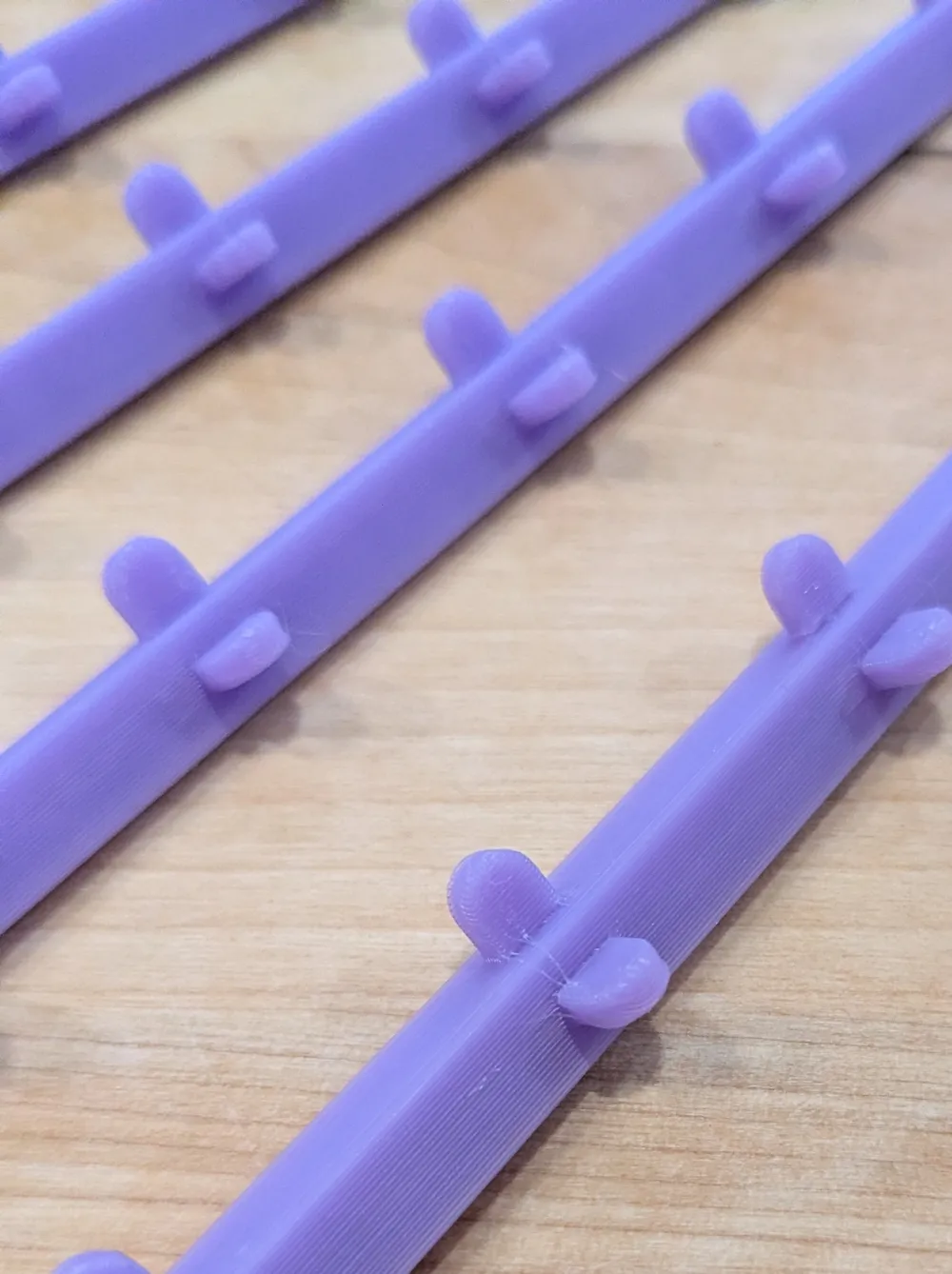

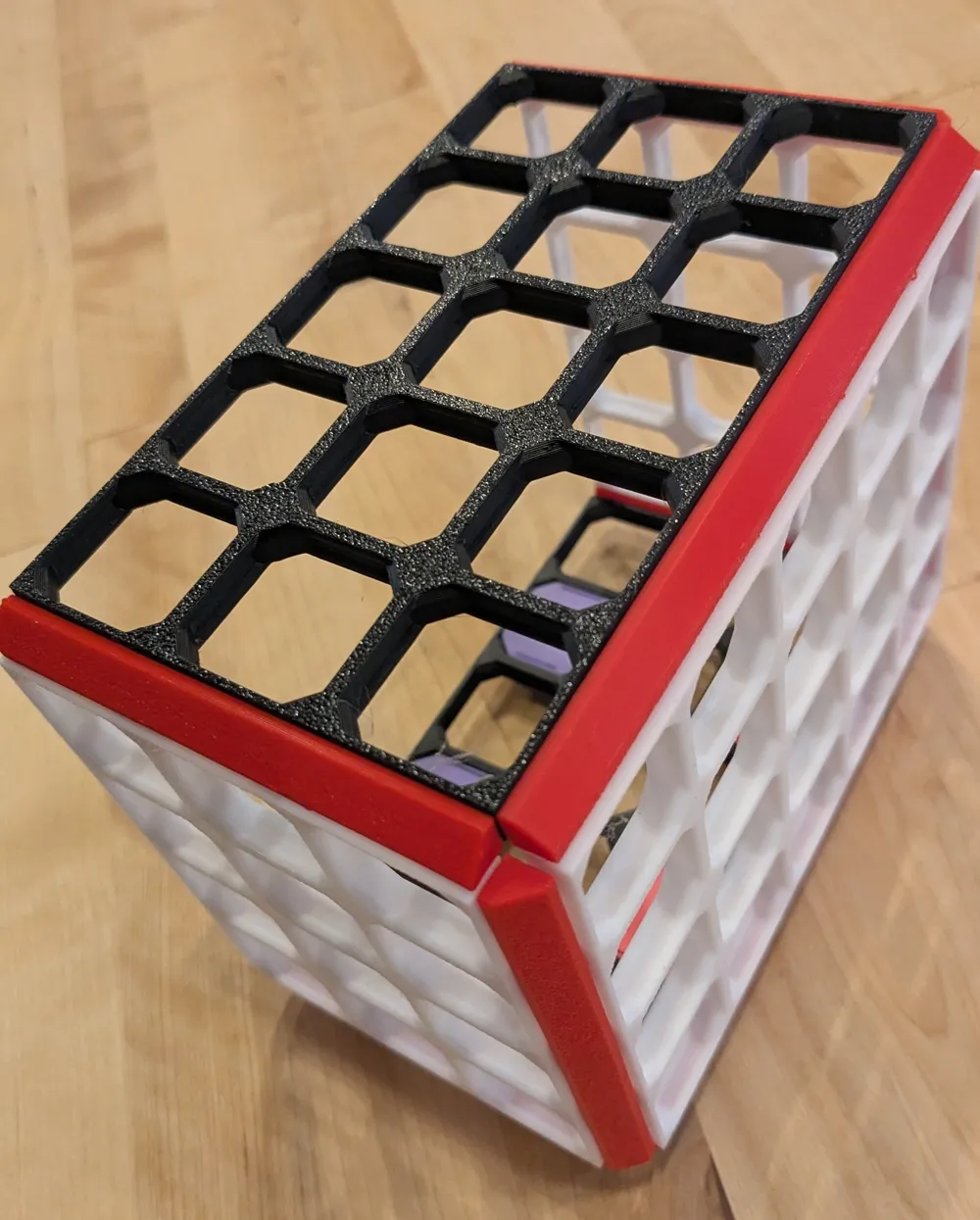

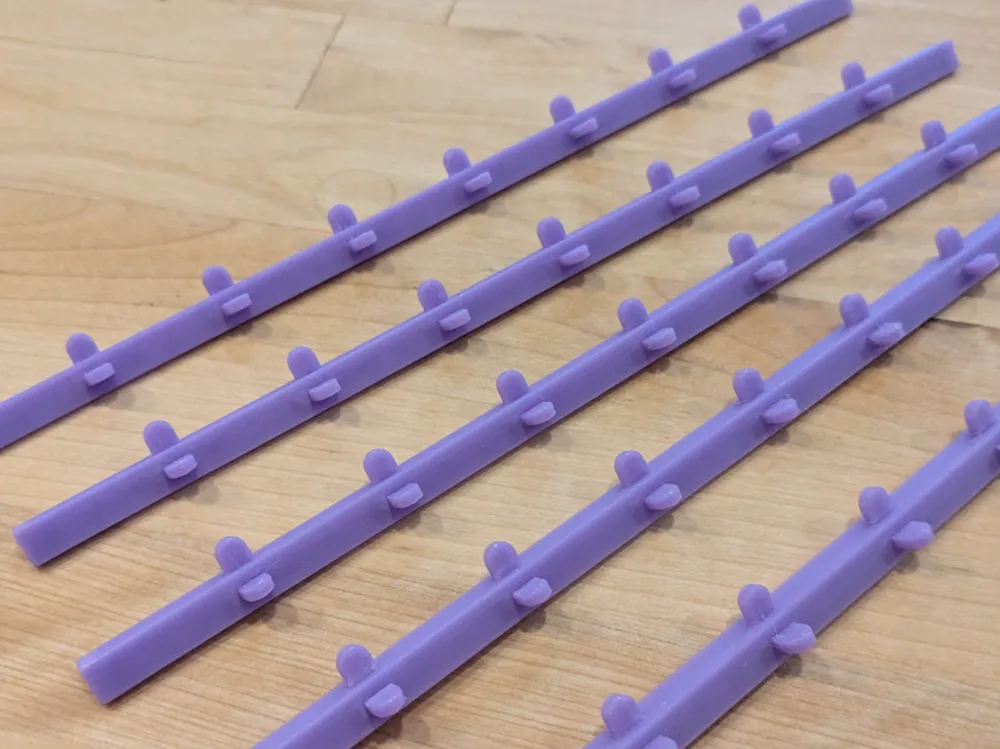

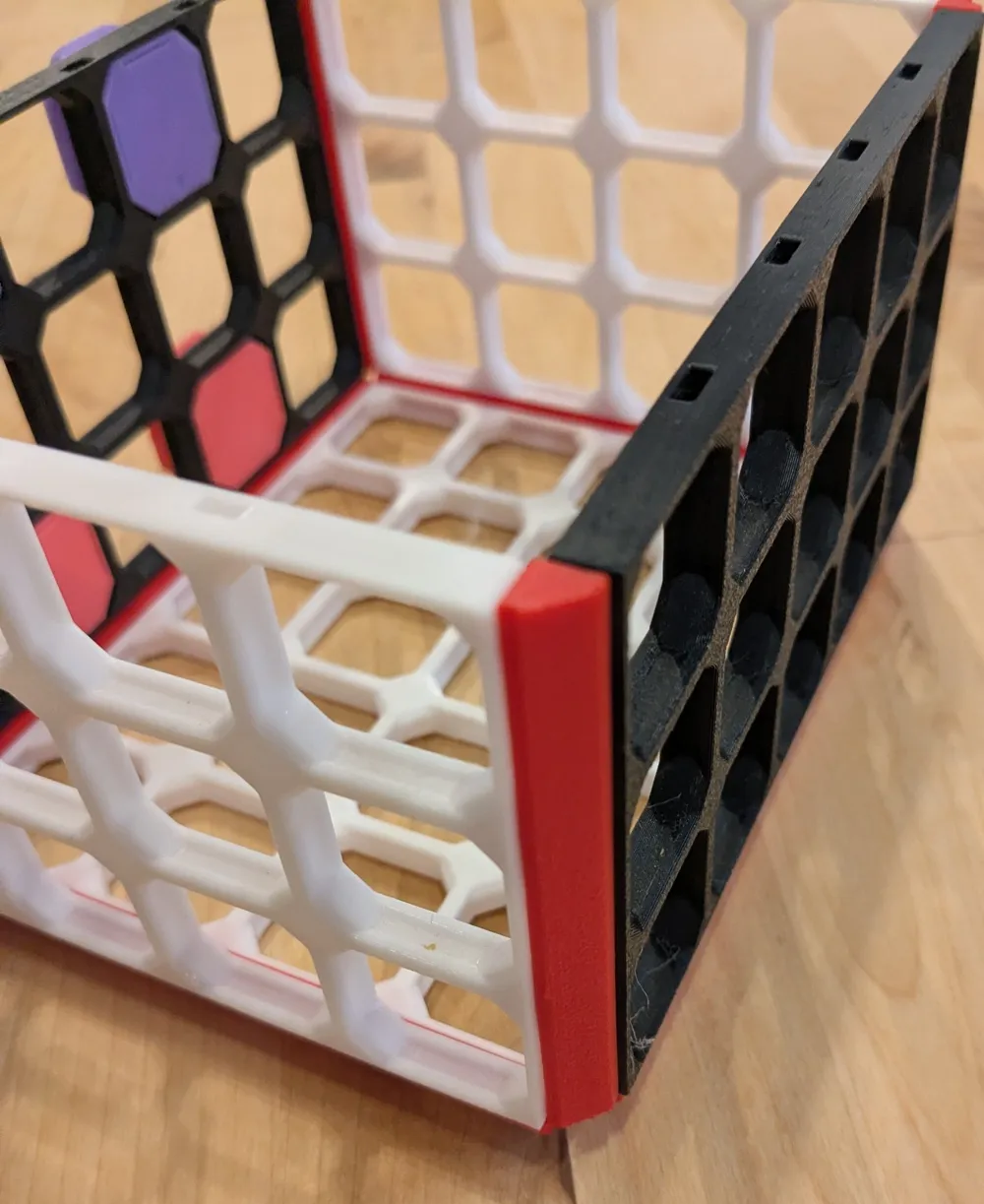

This beam combines the OpenGrid connector with a structural beam element, allowing you to join two OpenGrid tiles at a 90-degree angle. Use beams to build baskets, shelving, enclosures, or more complex modular structures.

Available in both Full (6.8mm) and Lite (4mm) grid thicknesses, with lengths ranging from 2 to 8 units. Use the OpenSCAD customizer to generate any size you need.

Print Settings

Standard print settings should work well. For extra strength, add an additional perimeter/wall.

Assembly

Press the beam's connectors into the OpenGrid connector holes on the grid tiles you want to join.
