Ford Focus MK3 Headlight Cap for Osram LED CanBus
Print Profile(1)
Description

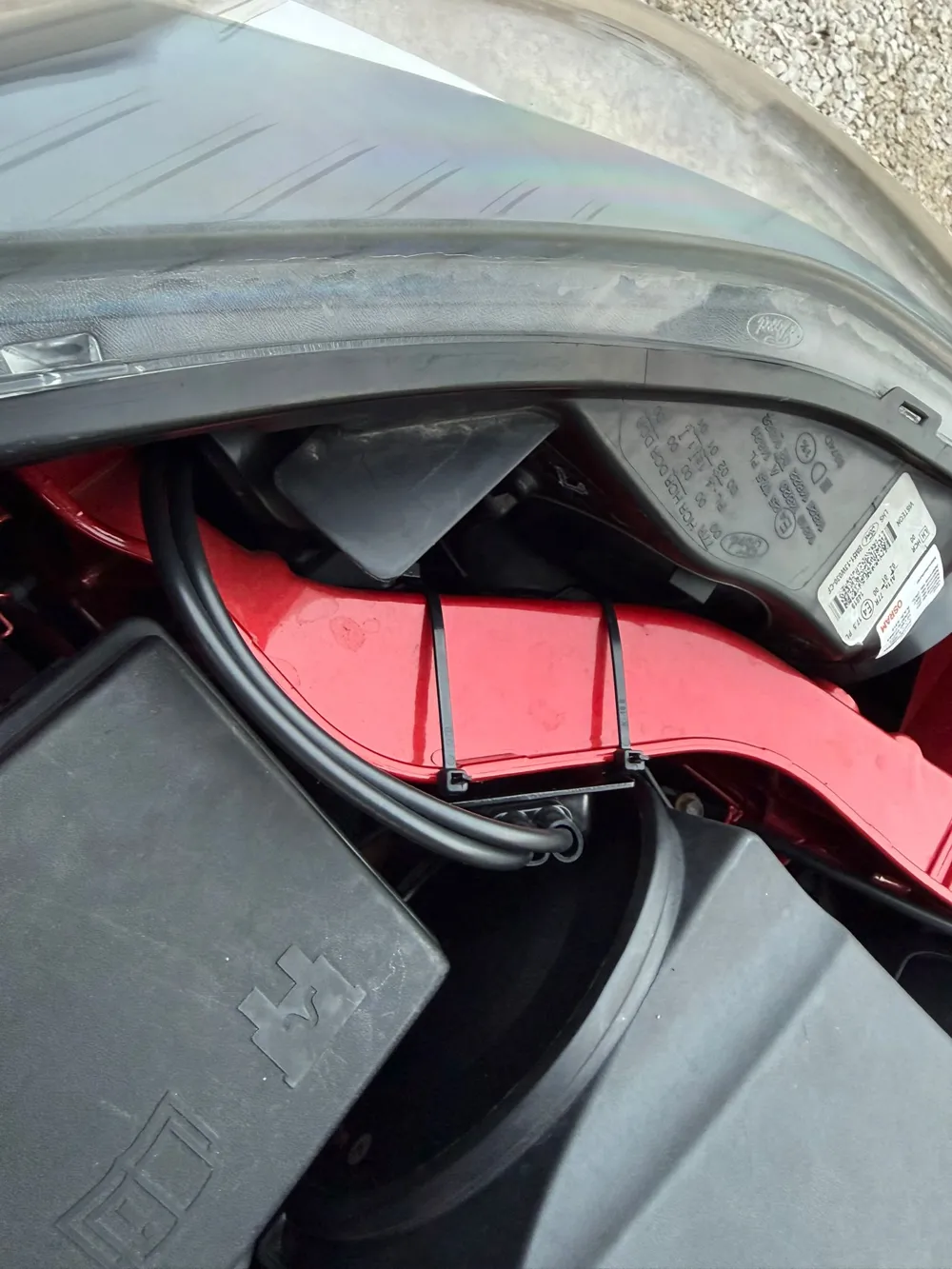

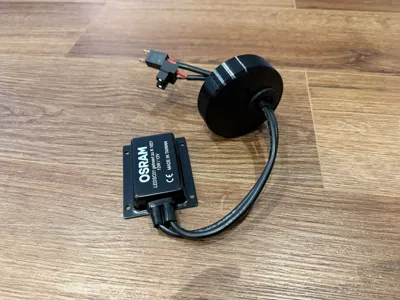

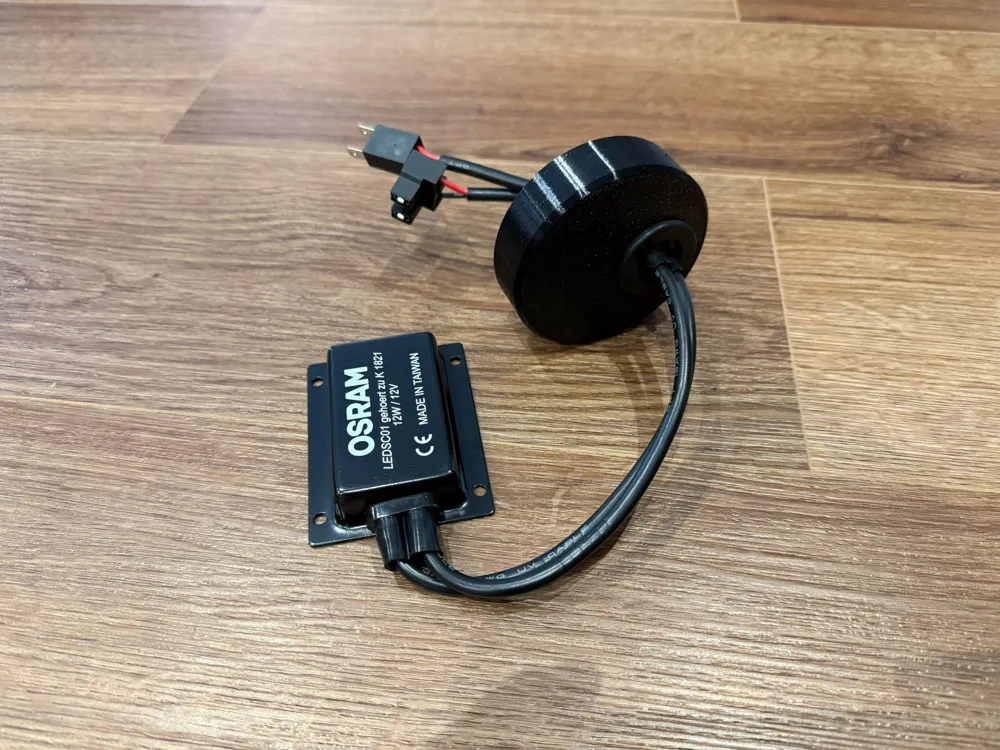

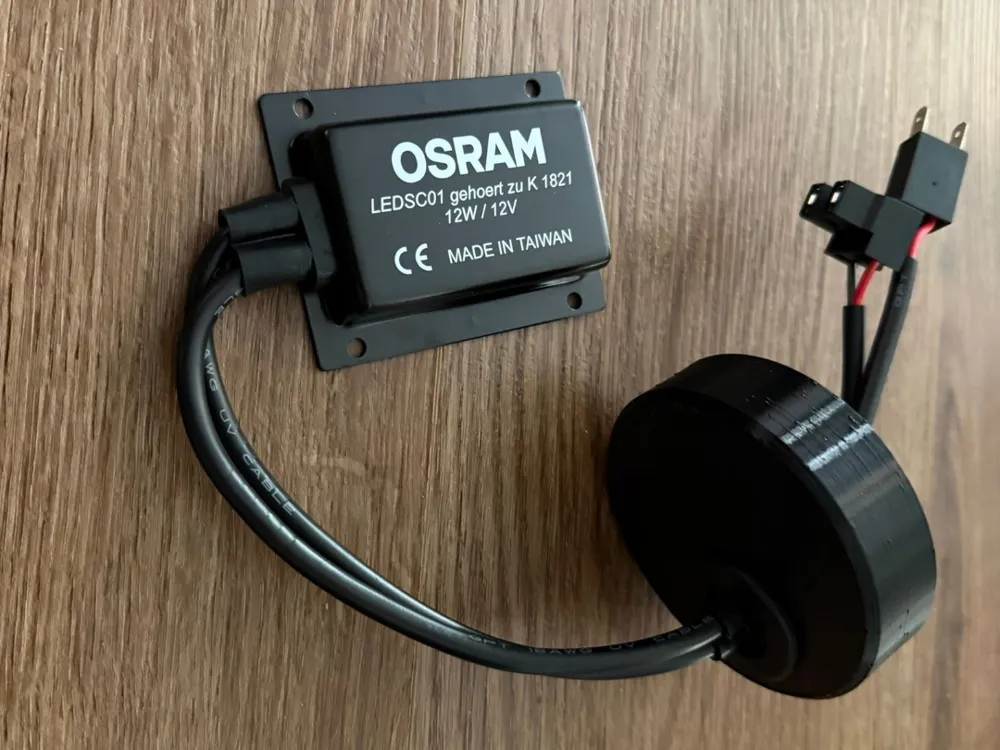

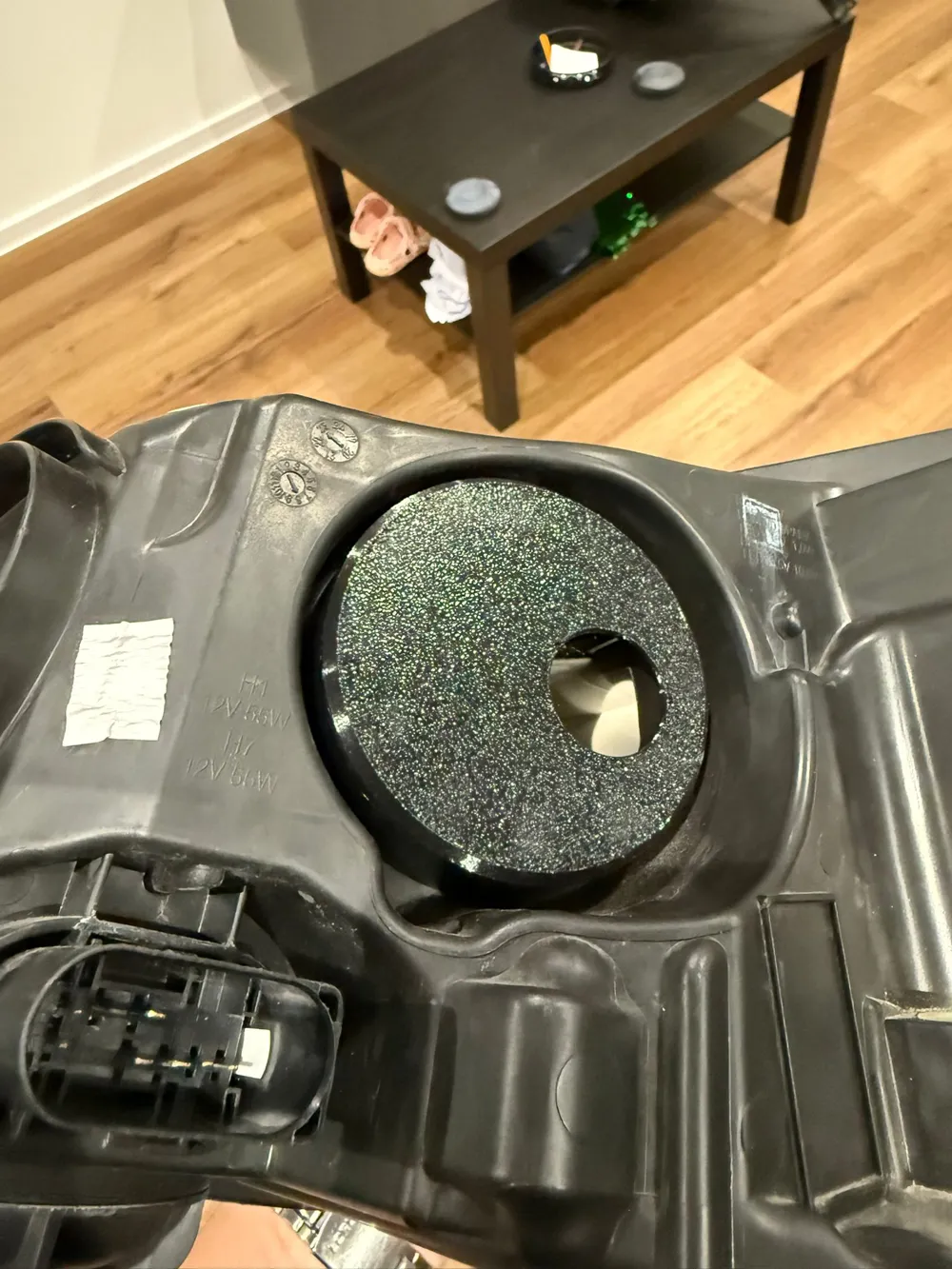

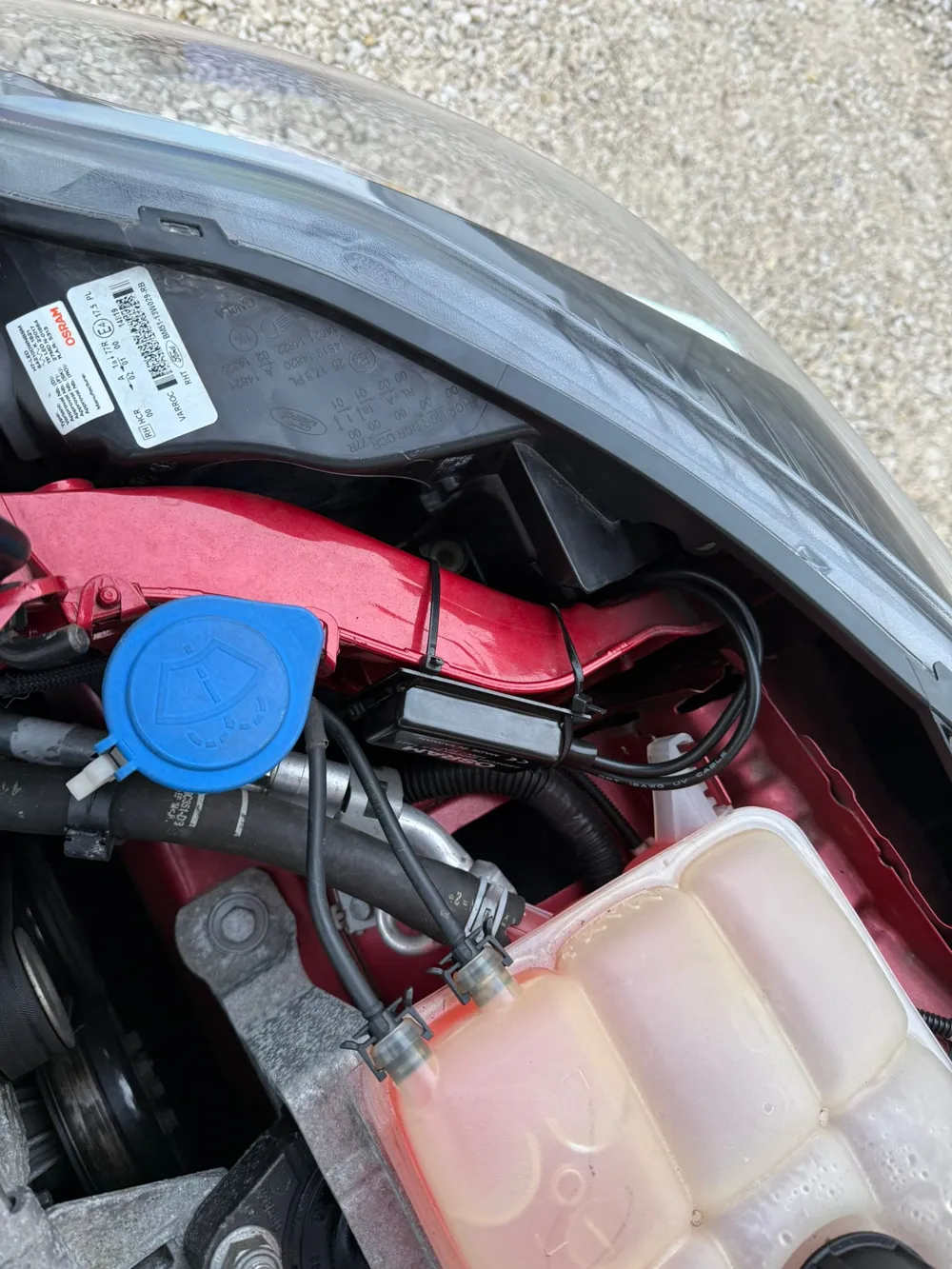

I bought Osram LEDs for my wife's 2011 Ford Focus MK3. This car has a headlight check system, and after installing the LEDs, they didn't work. I bought the 'CANBUS adapters' (which are just 12W resistors), but they get very hot, so they need to be installed outside of the headlight housing. I didn't want to drill into the headlight body, so I designed this cap with the correct hole to mount the adapter outside.
It is important to use TPU for this job! (I used Shore 95A TPU-HF)
