Mikuni VM 20 / 24 Carburetor Gasket
Print Profile(1)
Description

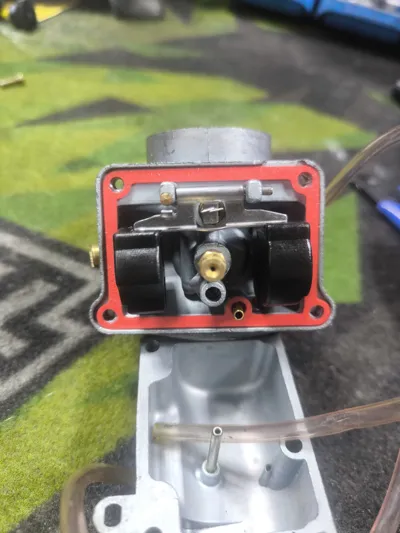

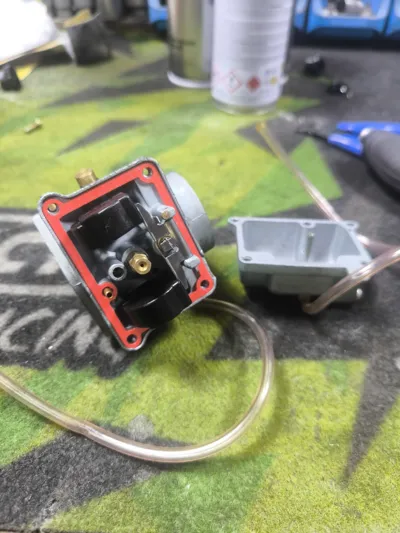

Mikuni VM20/VM24 Float Bowl Gasket
It's Sunday, the weather is perfect, but your carburetor is leaking? The old gasket is torn and the nearest shop is closed? Or do you just not feel like paying €10 or more plus shipping for a simple piece of gasket rubber?
Here is the solution! Simply print your own Mikuni VM20 / VM24 float bowl gasket. Precisely fitting, inexpensive, and ready for immediate use.
💰 Why this download?
- Immediate Help: No waiting for the postman – the print is ready in 10 minutes.
- Extreme Savings: Material costs are in the cent range. Save yourself the expensive original spare part prices!
- Customizable: Print it in your desired color (e.g., matching the moped in red).
🔧 Technical Details:
- Compatibility: Tested on Mikuni VM20 & VM24 (round slide).
- Material: Be sure to use TPU (fuel resistant!).
- Settings: * 100% Infill (mandatory to prevent fuel leakage!)
- Layer Height: 0.1 mm - 0.12 mm (for maximum flatness)
- No Support needed.
Assembly Tip:
Briefly clean sealing surfaces, insert the TPU gasket, and gently tighten the float bowl screws in a cross pattern.
Have fun wrenching and enjoy the ride!
