Modular Gaming Headset Holder | Cable Management & 2 Sizes (40/50mm)
Description

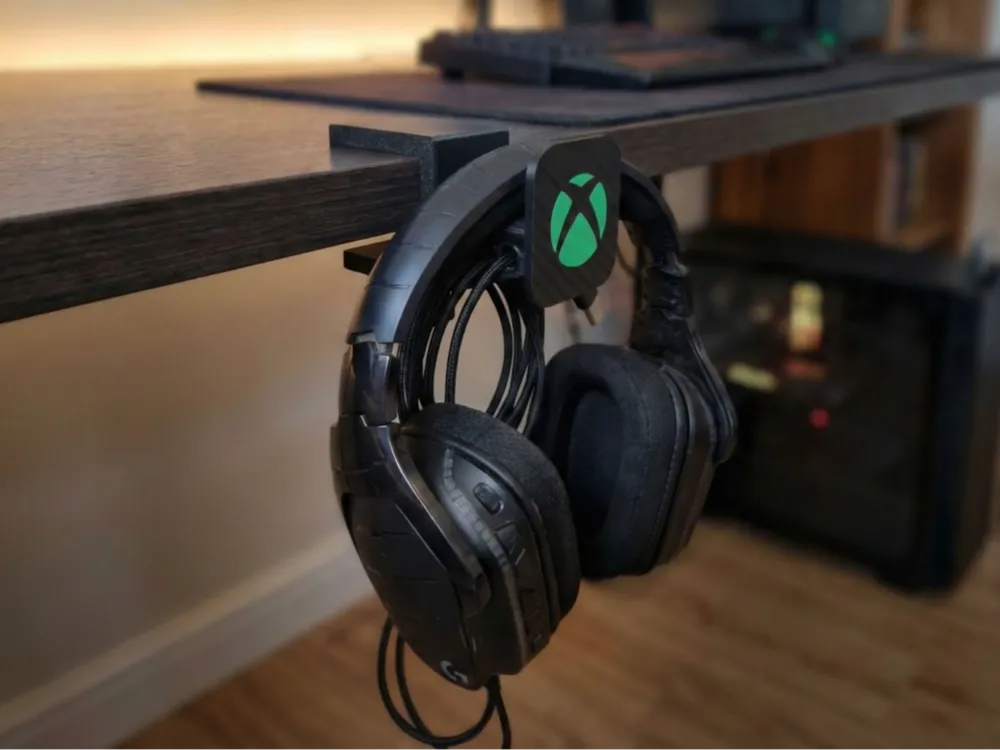

Organize your gaming desk with this modular headset holder.
No more headphones lying around and tangled cables! This holder was specially developed for gamers and home office setups. It clamps securely to the tabletop and not only provides space for your headset but also integrates clever cable management.

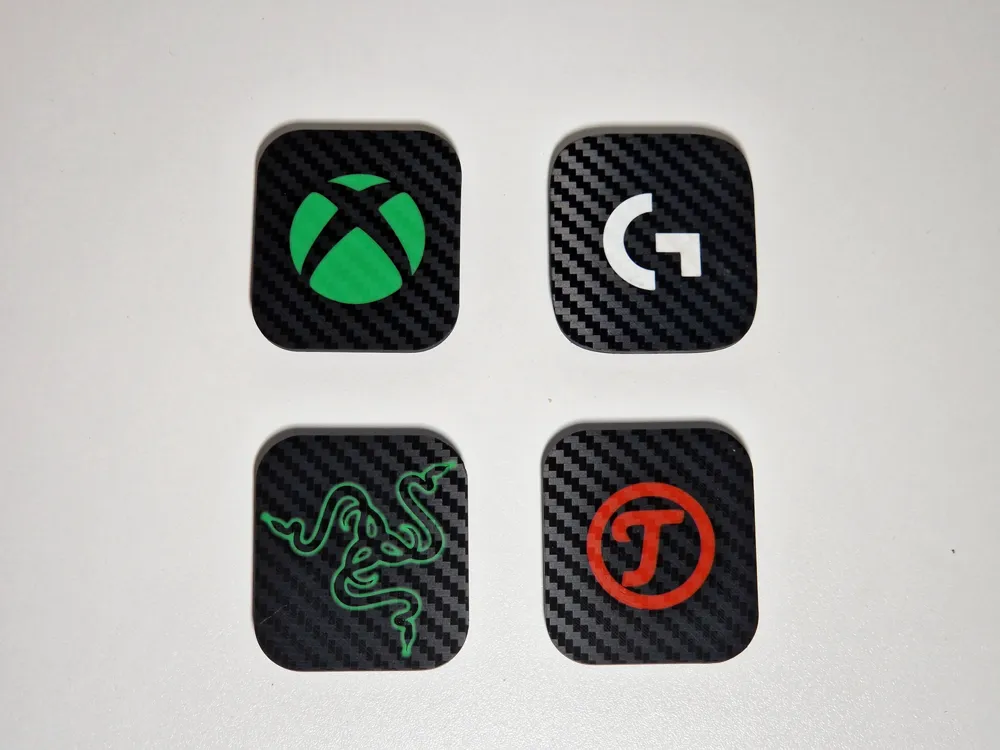

The highlight: Personalize your holder! The front logo is interchangeable. You can choose from 10 different designs (Xbox, Logitech, Razer, Teufel, Playstation, Apple, Windows, SteelSeries, TurtleBeach, and Corsair) and then print the one that suits your setup. The logo plate simply slides into the holder from above.
Features
- Standard: For headphone headbands up to approx 40mm wide.
- Wide: An extended version for wider headbands up to approx 50mm wide.
- Universal: Fits tables with a top thickness of up to 40mm.

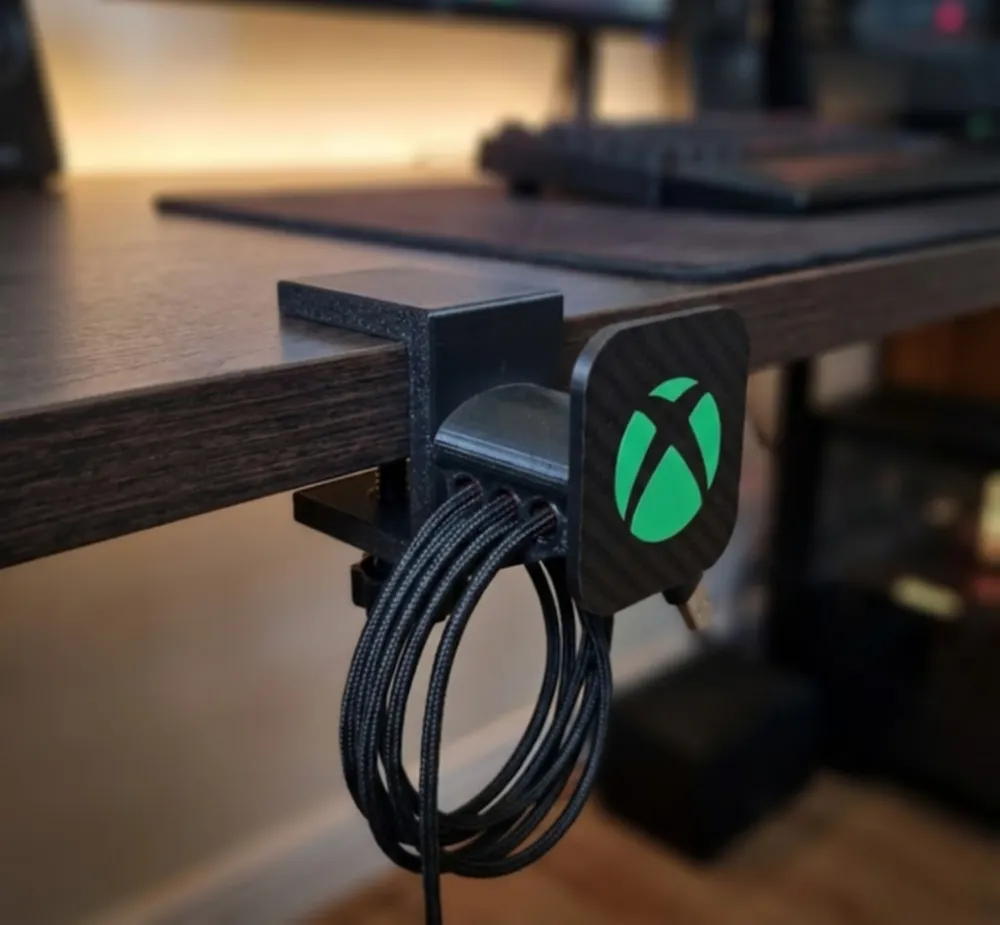

- Cable Management: A special slot is integrated into the holder where you can neatly wrap and secure the headset cable.
- Modular: The logo system is pluggable. Don't like your new equipment anymore? Just print a new logo without remaking the entire holder.
- Gentle: The clamping screw has a separate protective cap. This is screwed onto the thread.
- Easy Print: The design consists of 4 parts that are easy to print and assemble.

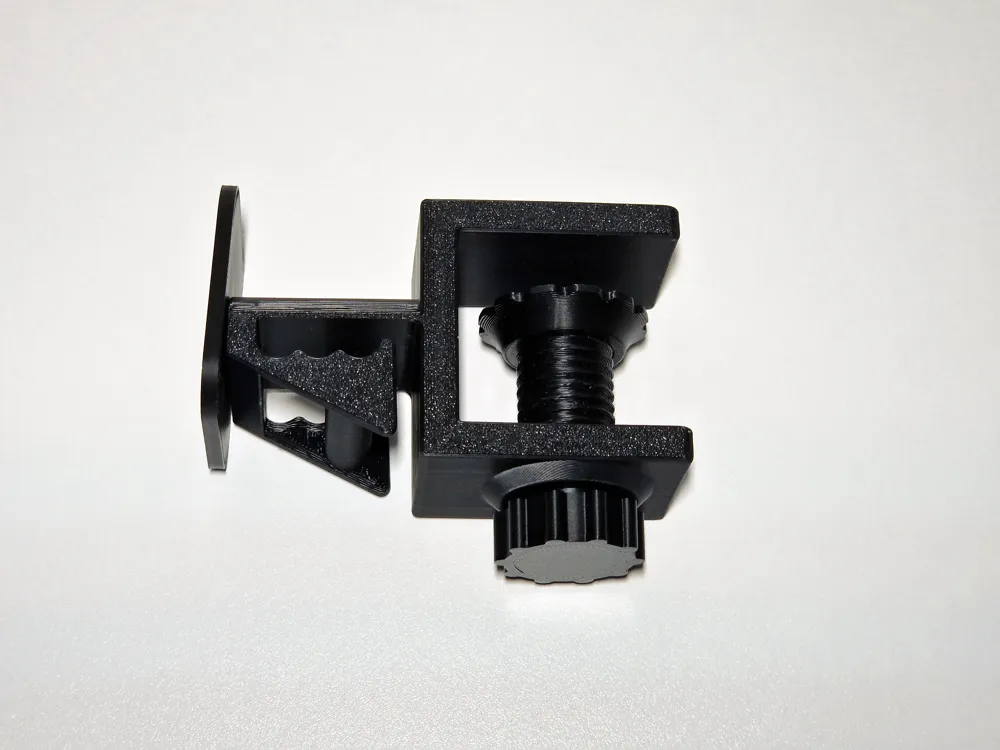

Included Parts & Assembly

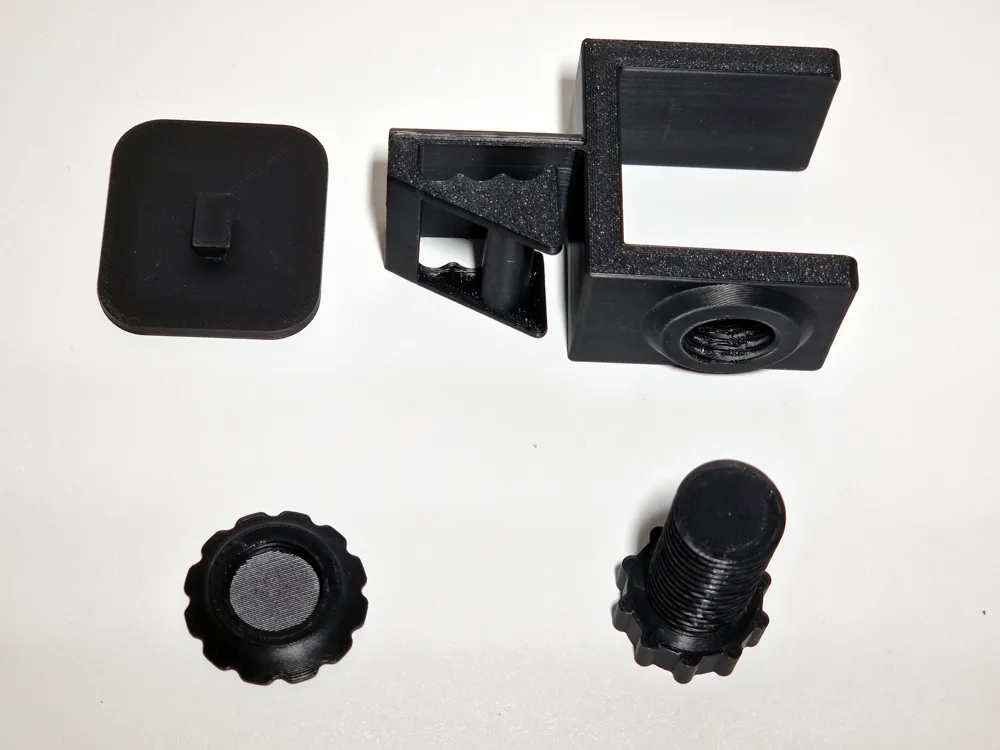

The set consists of 4 components:
- Holder (Base): The main body with the cable receptacle.
- Adjusting screw: For securing to the table.
- Protective cap (Pad): Is screwed onto the tip of the adjusting screw.

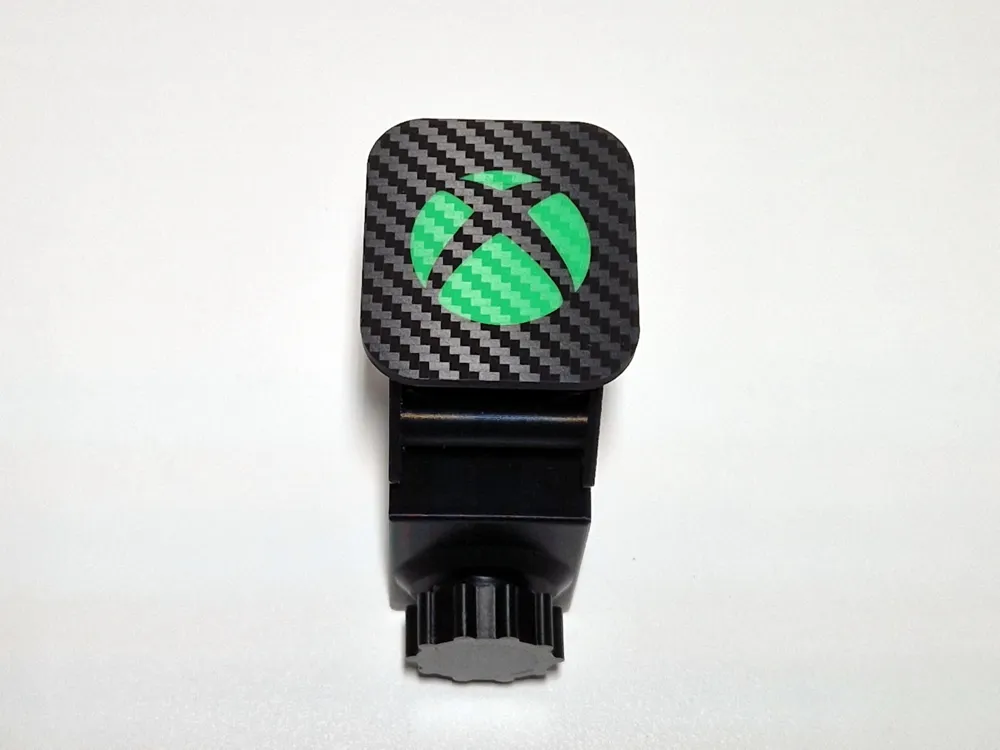

- Logo plate: Is simply pushed into the guide rail from above.
Assembly: Print the parts suitable for you. Screw the screw from below into the holder. Screw the protective cap onto the end of the adjusting screw. Slide your desired logo from above into the slot on the front. Clamp the holder to your table – done!
Print Recommendations (Print Settings)
- Material: PLA, PETG or PLA+ (PETG is recommended for the clamp for more flexibility and strength).
- Infill: 20-30% (e.g. Gyroid for stability, modifiers are added to the model for reinforcement. Note this if the holder should be moved on the build plate!).
- Walls (Perimeters): 4 perimeters increase the stability of the clamp significantly more than infill.
- Support: Yes, but minimal.
- Layer Height: 0.2mm.
