Description

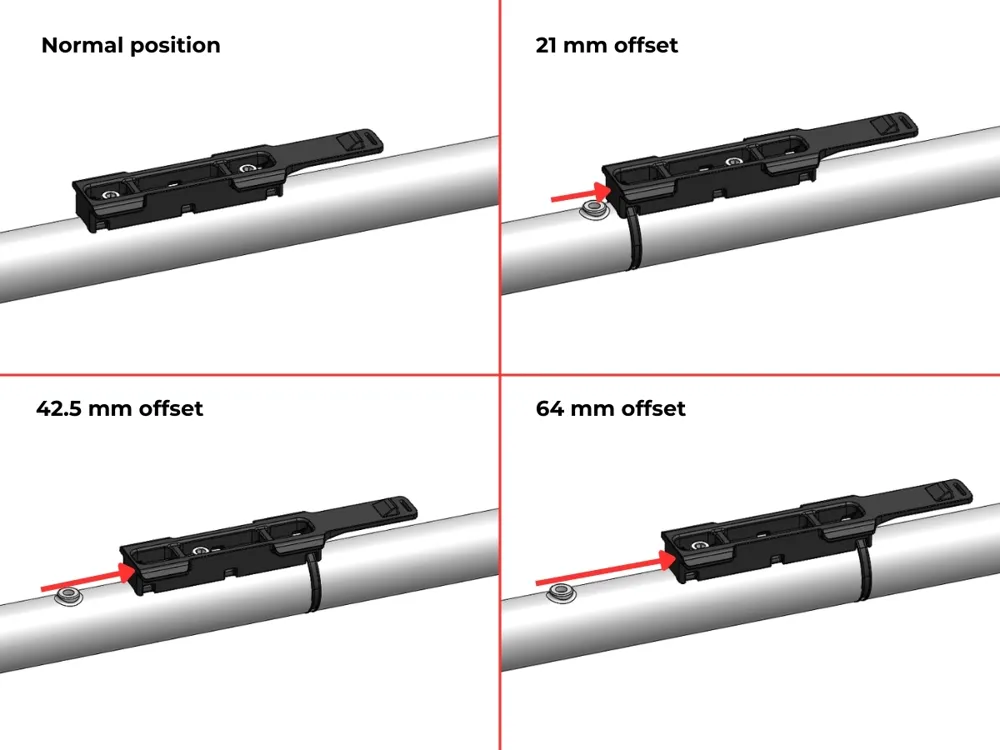

This specialty B-Rail mounting rail lets you offset the rail to either side, so you can fine-tune the position of your accessory exactly where you need it.
It can be installed using the standard mounting points, or offset to both sides when extra clearance or positioning adjustment is required. In the offset configuration, one screw mounting point is used, and the rail is additionally secured with one (or more) tie wraps for a stable hold.

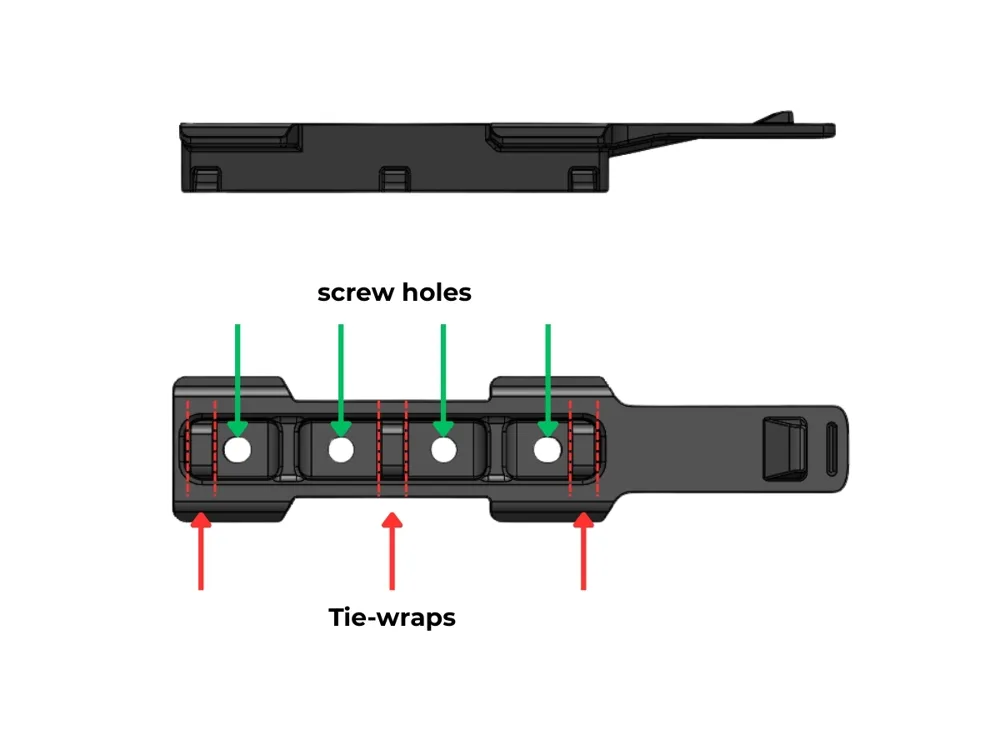

The 3 integrated tie-wrap slots are designed to accept tie wraps up to 5 mm wide.

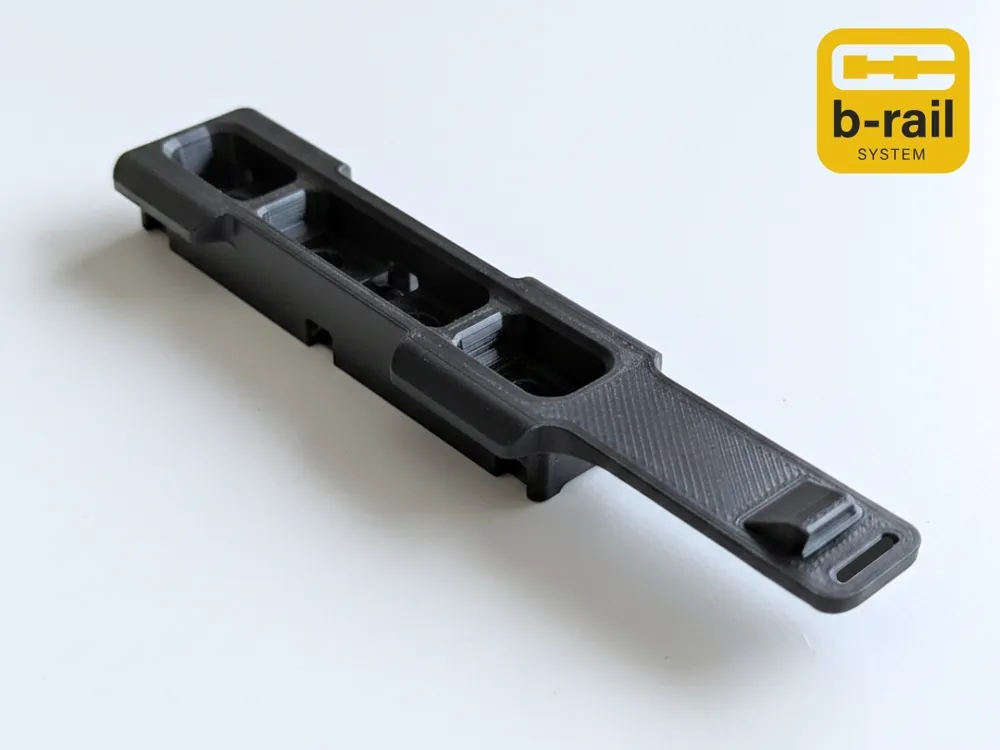

Additionally, this version of the rail is thicker than the standard rail, making it ideal for bikes with taller screw heads, where extra clearance is needed.
About the B-RAIL System:
The B-RAIL System uses standardized mounting rails that can be installed in multiple locations on your bike. It allows you to attach a wide range of accessories and swap them out in seconds.
For the official B-RAIL standard mounting rail and a full list of compatible accessories, visit:
🔗 https://makerworld.com/en/models/1790757-official-b-rail-mounting-rail#profileId-1908428
