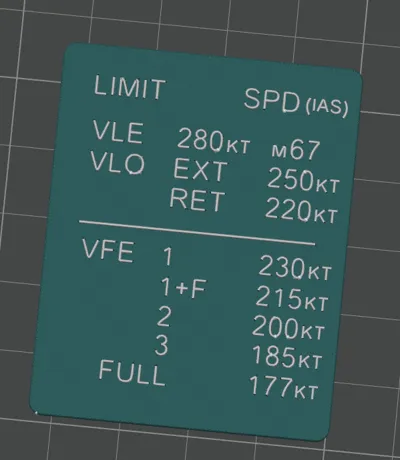

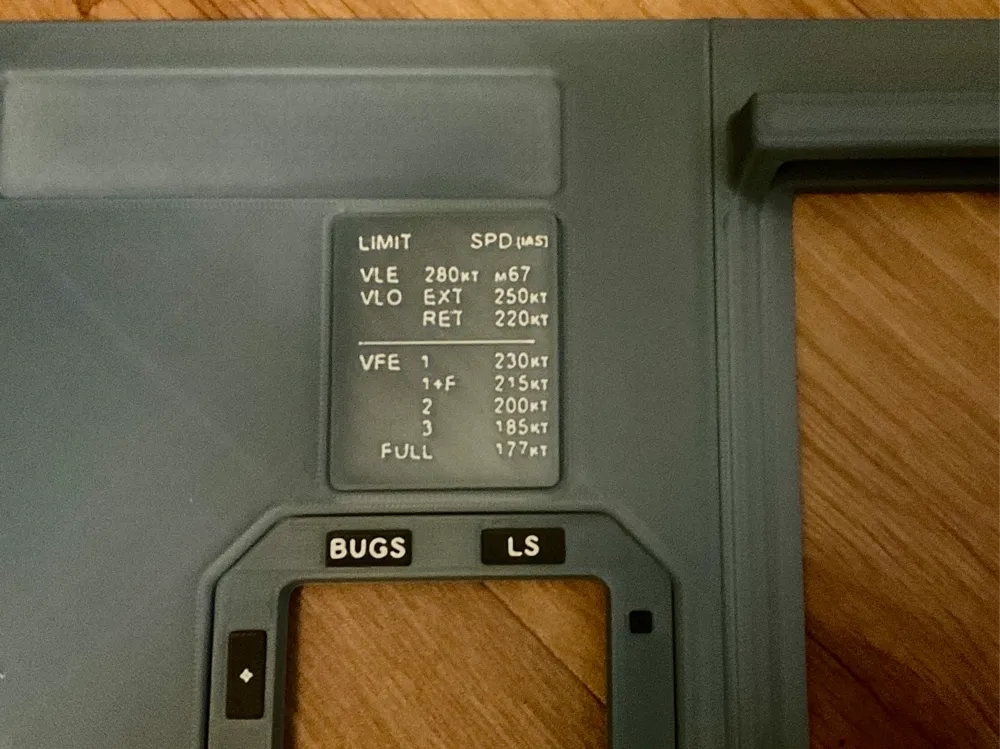

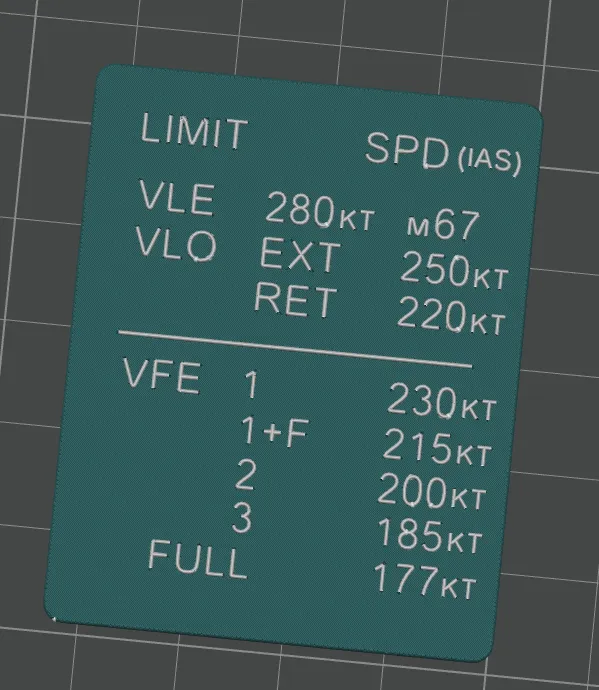

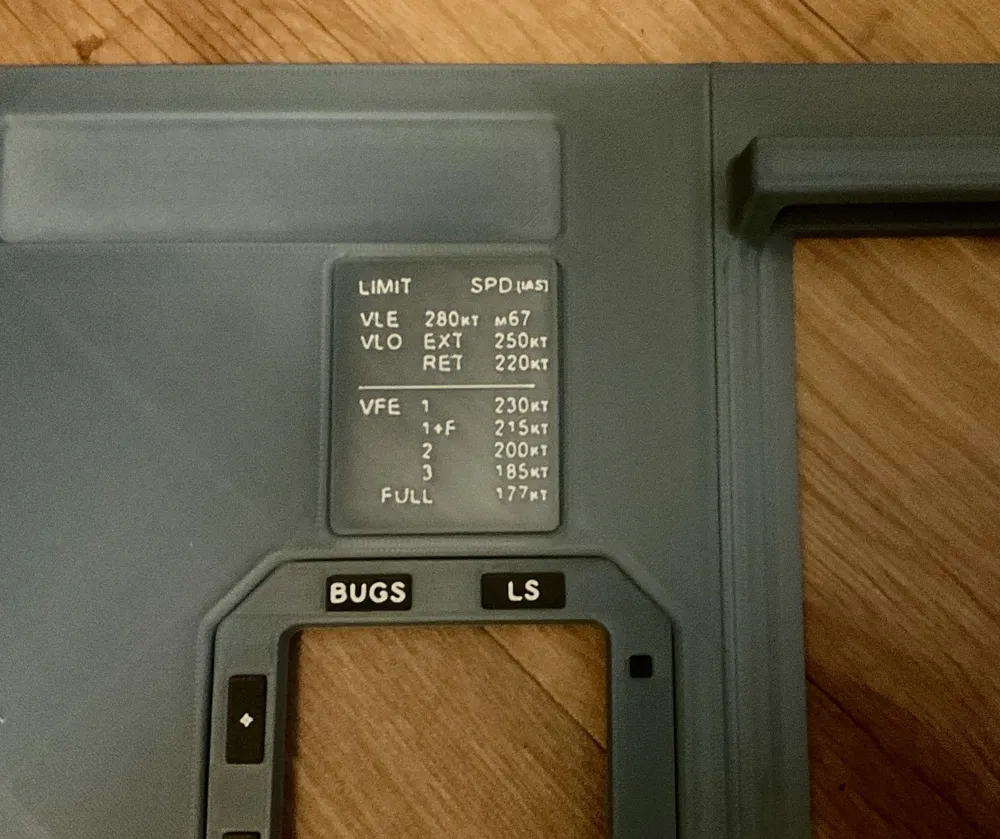

Airbus A320 Speed Plate

A320/A320NEO Speed Plate with dimensions to specifically fit the fantastic “MIP Central A32X – 250×250 – Part 05” Airbus Flight Sim Cockpit created by user_1766629509 - see here:

https://makerworld.com/en/models/2380770-mip-central-a32x-250x250-part-05#profileId-2607051

Some printing suggestions:

It is easier to print this with a 0.2mm Nozzle because of the small text - the text will print better. However, it is possible - with care - to print using a standard 0.4mm Nozzle and obtain a reasonably acceptable result (which is what I used, as I don't tend to swap our nozzles unless I really need to). If using a standard 0.4mm nozzle then the following suggestions will help:

 - Ensure you are using “Arachne” wall generator, rather than default standard.

 - Set layer height to either 0.12mm or 0.08mm.

 - Reduce line width to between 0.35 - 0.38mm

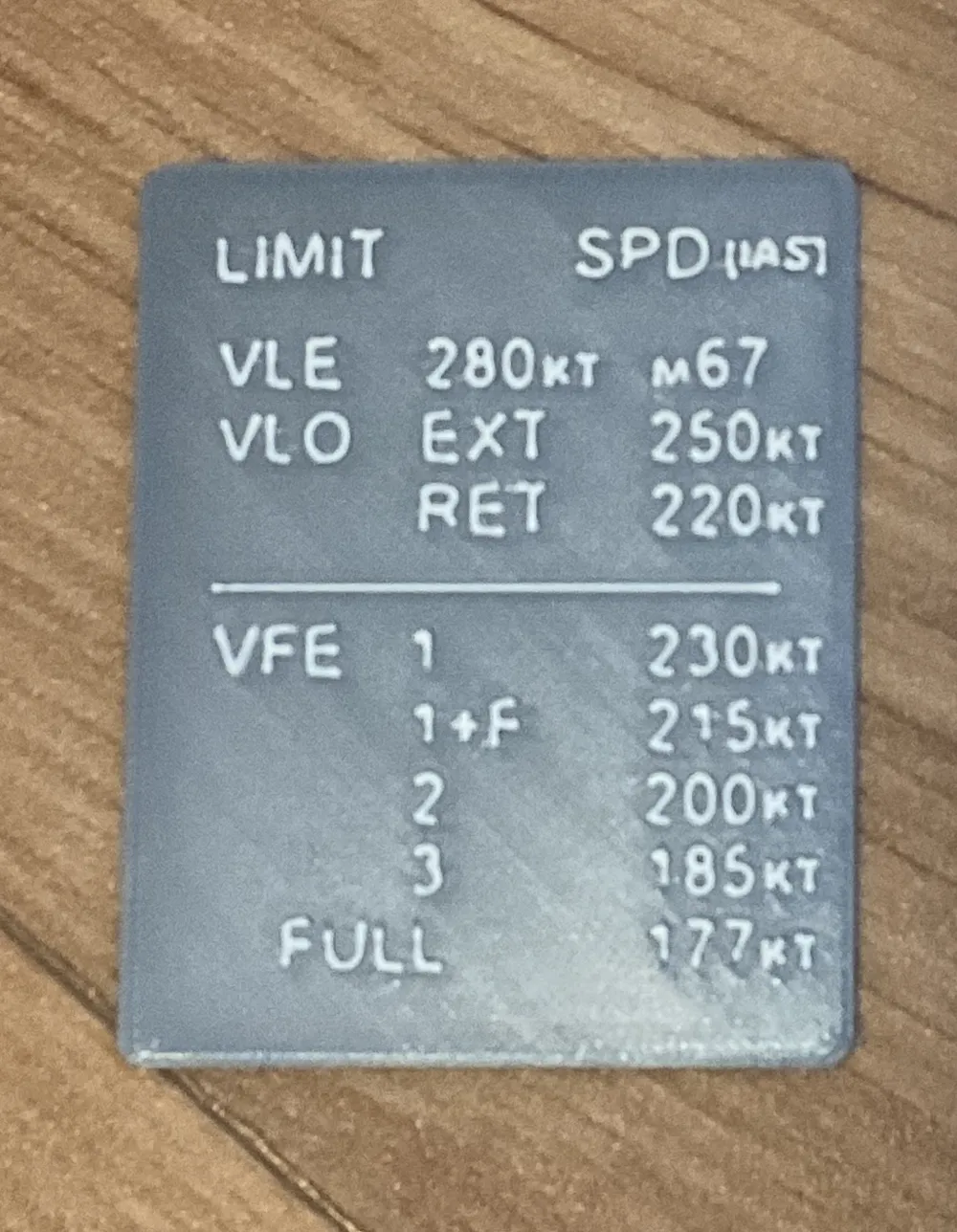

I printed in two colours (manual change - as my printer is single spool/feed).  Colour change set in the slicer at layer 9 out of 13 (but this may be different for you depending on your slicer settings). Multimaterial Prime Tower enabled.

Printed in PLA/PLA+ - not particularly temperature sensitive, so just use your regular PLA settings (or for whatever filament you choose to use).
