Built one up, works fine, but more instructions on the case would have  been helpful.


user_805479144

0.2mm layer, 2 walls, 15% infill

Nikolay Pervukhin

cover

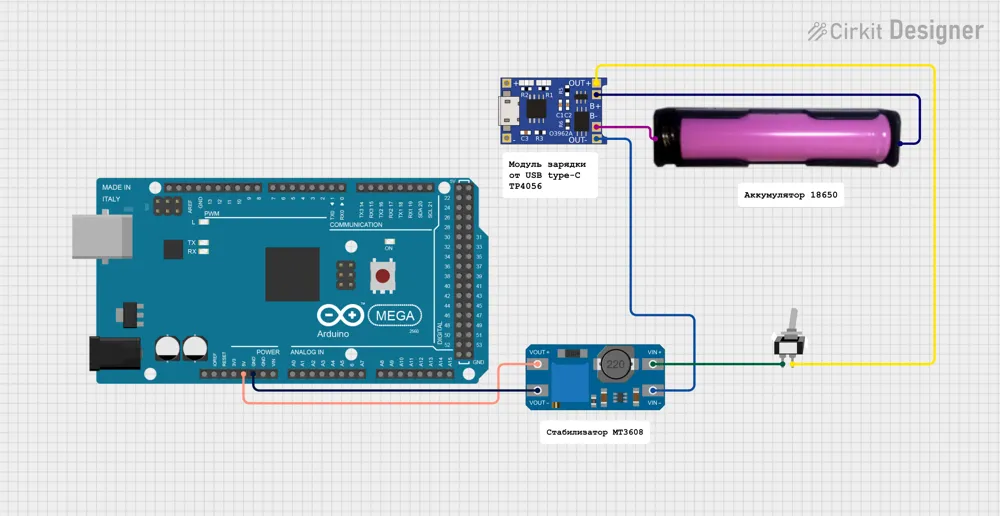

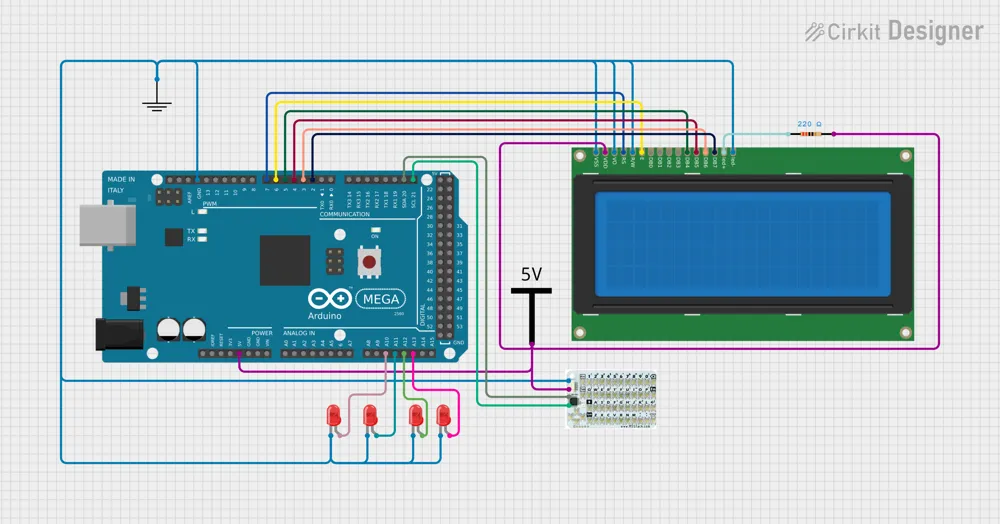

Arduinio computer with BASIC interpreter.&nbsp;Hardware components:<ul><li>Arduino Mega 2560,</li><li>Text LCD 20x4 symbols, МЭЛТ MT-20S4A-2YLG or any HD44780,</li><li>CardKB keyboard I2C,</li><li>4 leds, better 5V,</li><li>220 Om resistor,</li></ul>Optional with recharging battery:<ul><li>Accumulator battery 18650,</li><li>Charger TP4056 or any,</li><li>MT3608 DC-DC Boost Converter or any to stailize 5V</li></ul>Source code:https://github.com/nicolas-vp/mega_basic

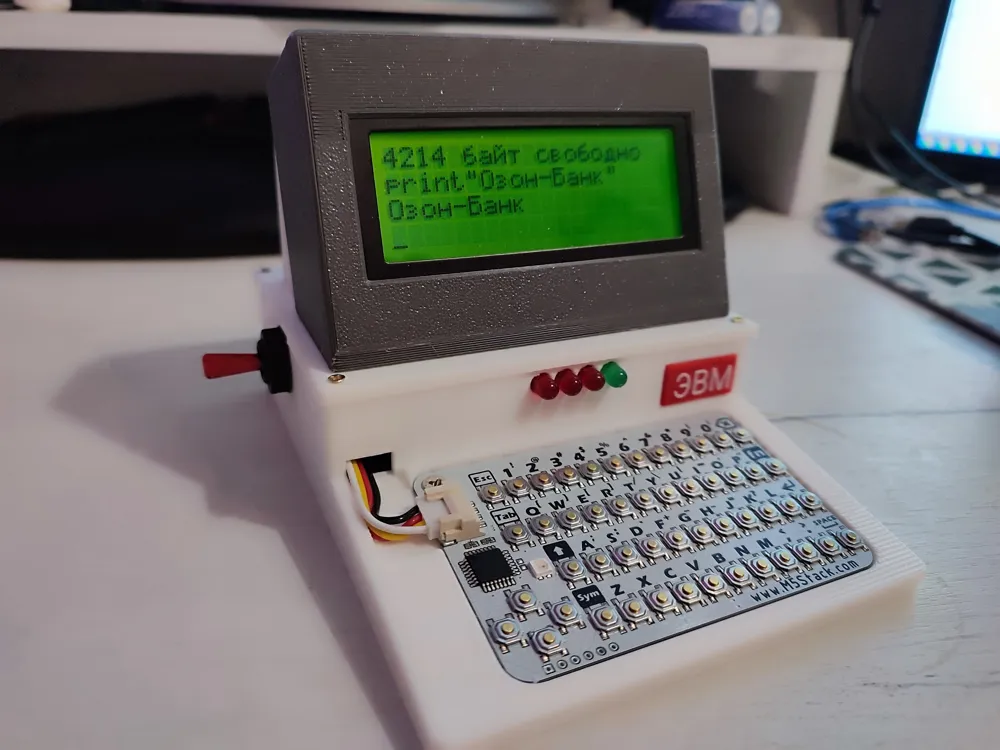

Arduino Computer with BASIC
