Beolab 7 Wall Mount extremely stabile
Print Profile(1)
Description

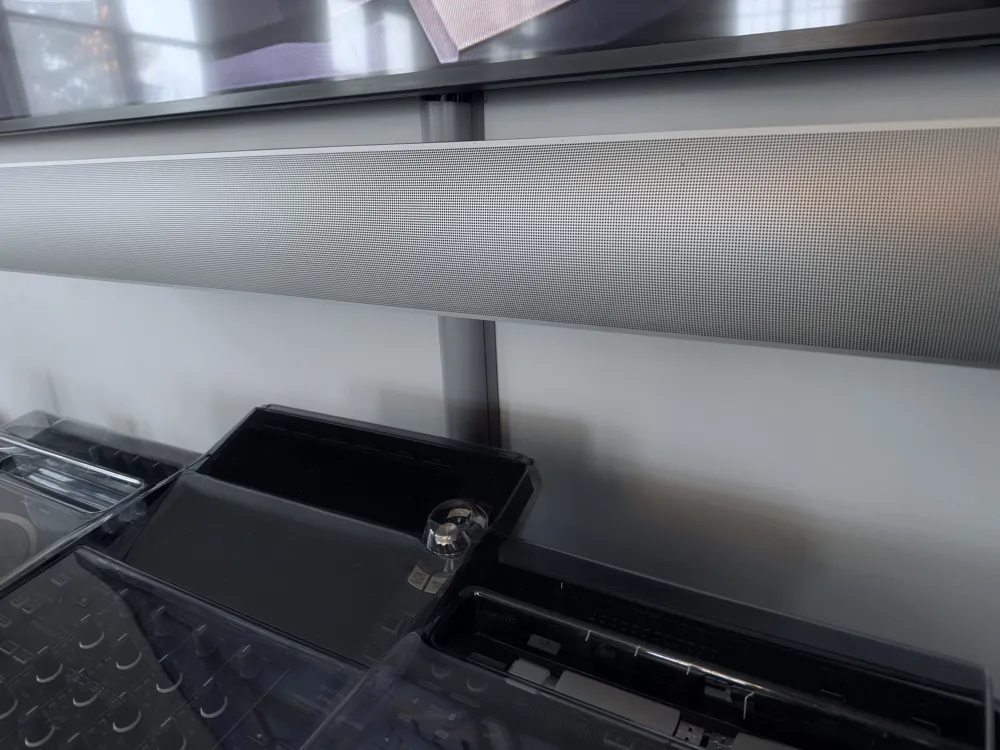

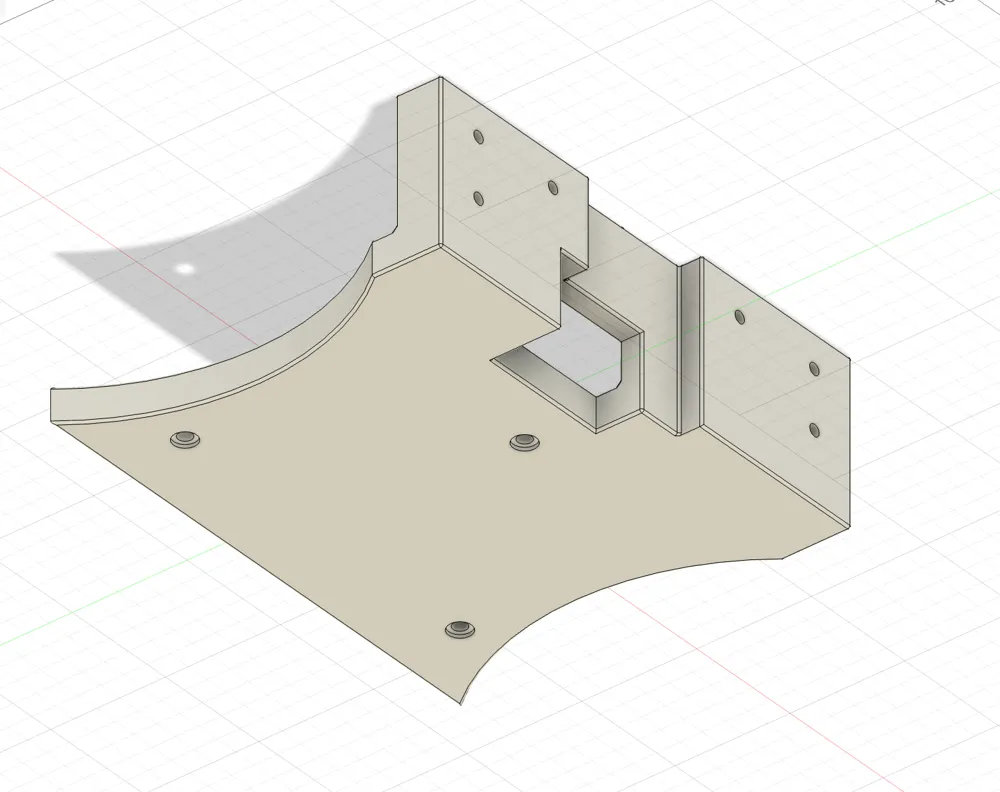

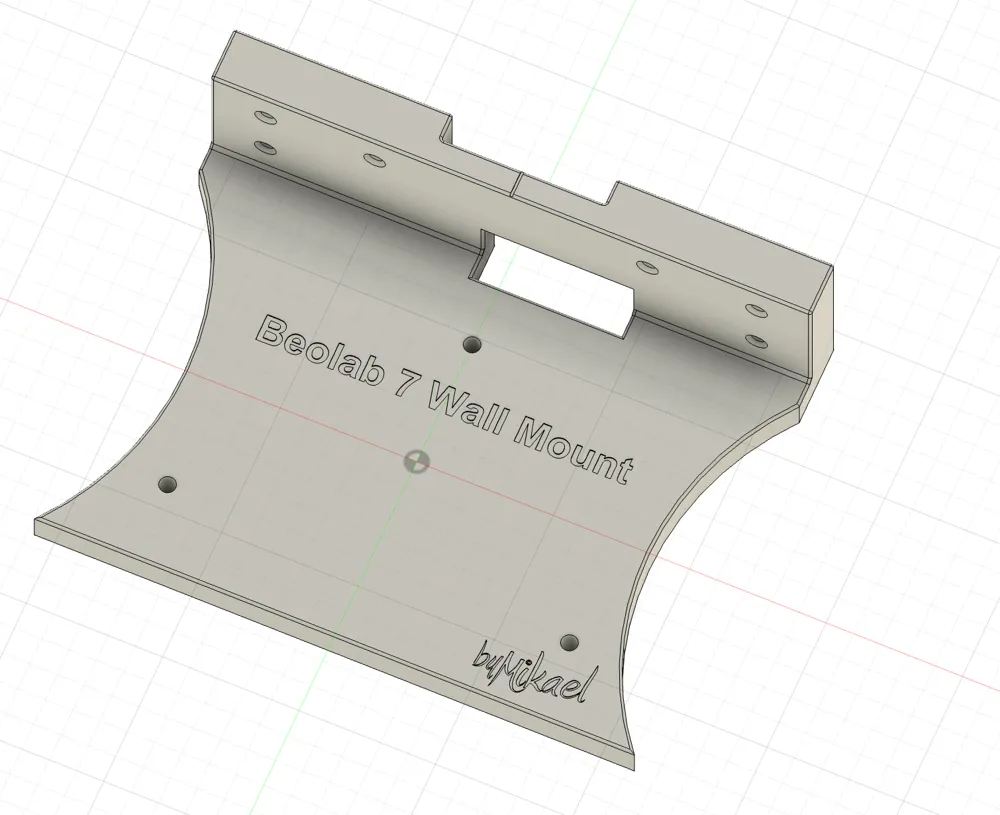

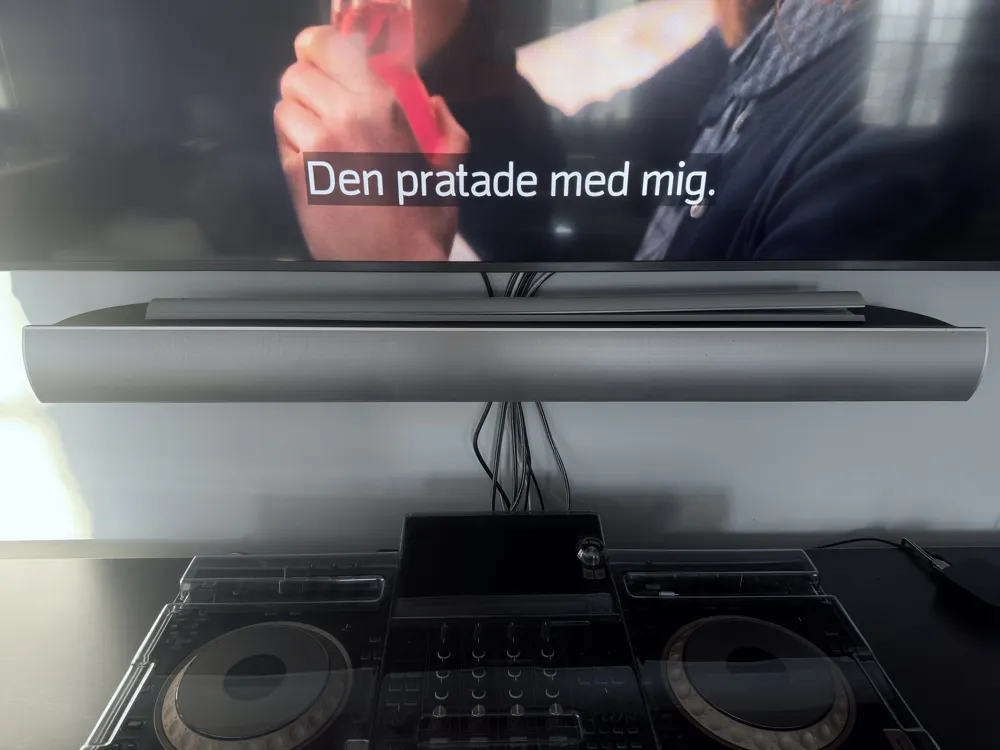

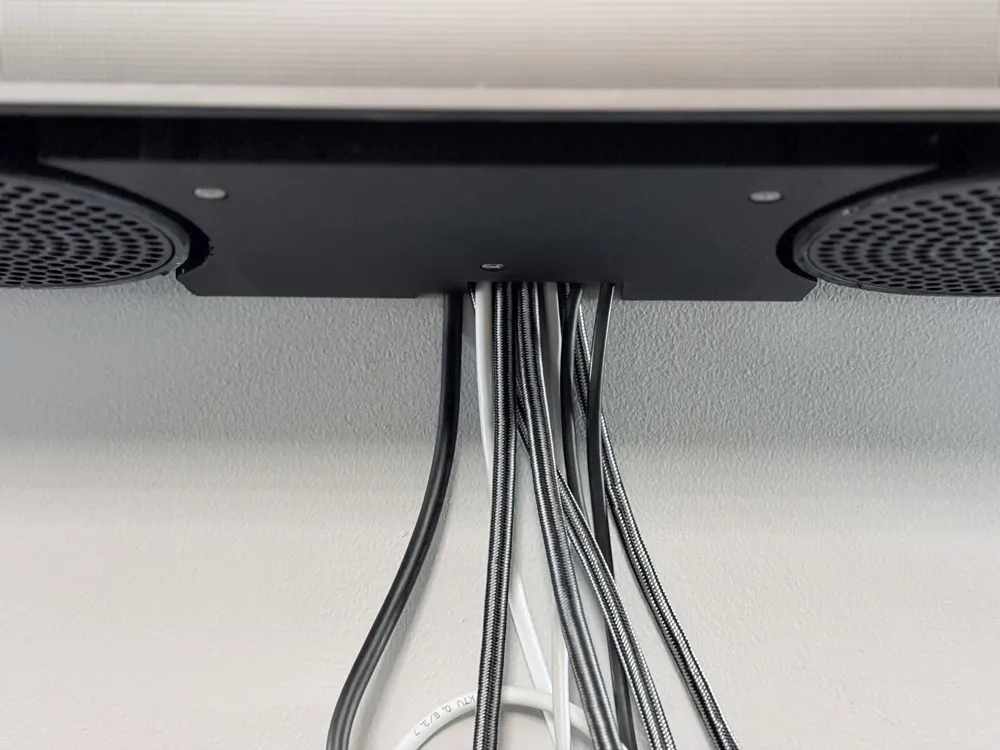

This is an extremely stabile wall mount for the Bang Olufsen Beolab 7 TV speaker. Once mounted on the wall it is completely concealed and mounts closer to the wall than the original mount from B&O. The original mounts are really hard to get and super expensive. This is free and much better and totally concealed when mounted which means you can mount it closer to your TV. It also have a cable channel in the back for up to 8-10 cables to pass thru from the TV, such as HDMI cables, power and so on.

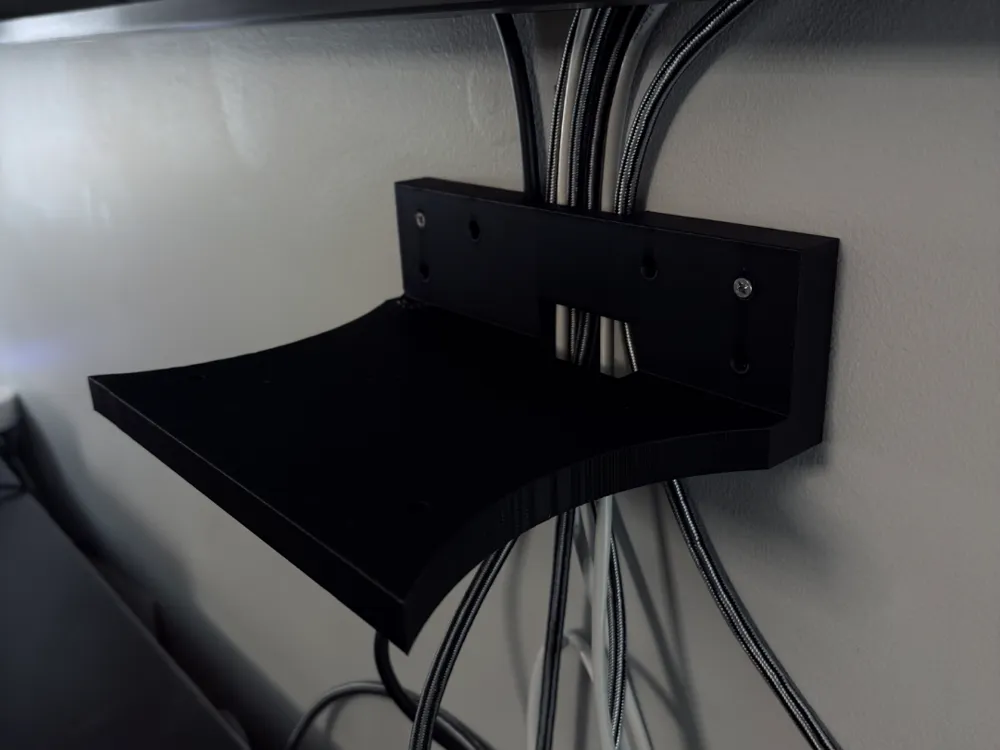

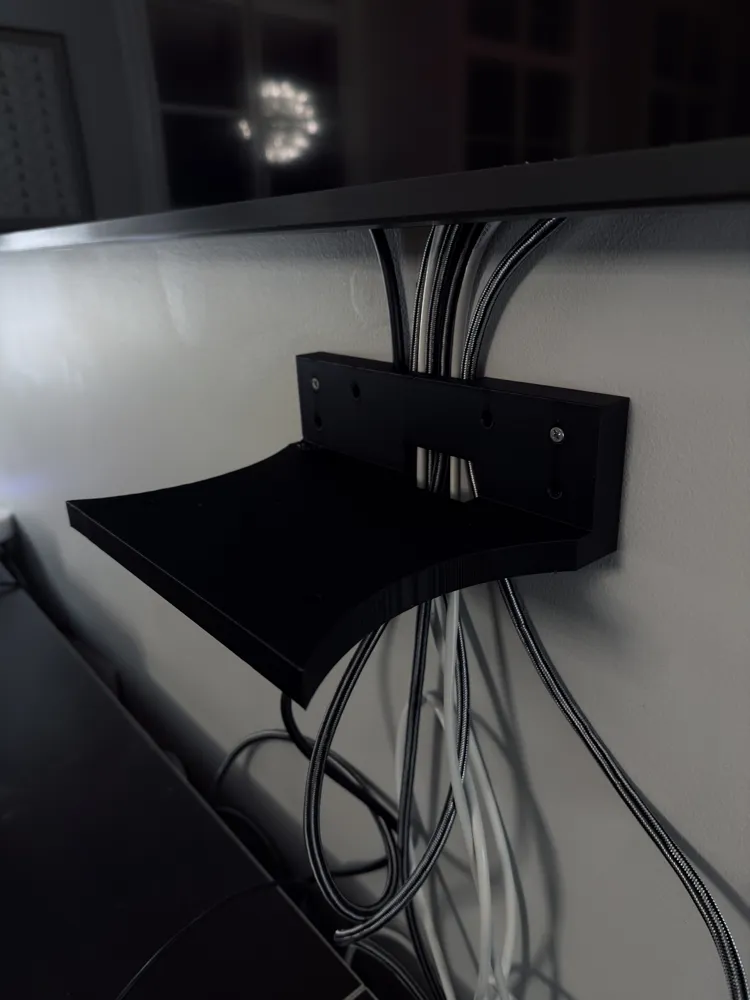

Arrange cables from the TV in the back and then screw the mount to the wall, pull the cables for the Beolab 7 thru the cable opening in the mount. Connect the cables to the Beolab 7 and lift it up on the mount and fasten it with 3 pcs M4x25mm screws from the bottom. Super secure and nothing will break this mount.
My advice is to NOT change the models placement on your print plate. It is printed this way to make sure the printer doesn't change direction when printing the angle. if you print it laying down, the strength of the angle on the mount will be compromised. The mount have a 60% infil except for the angle that has 99%. Ultra strong. Normal low cost PLA will work just fine.
It is a long print and it takes about 600+ grams of filament. But it will outlive you and the speaker and you will never have to worry about it falling down.
If you like my models, please consider following me as I release new models on a regular basis. Thank you in advance.
And if you could leave a comment, a rating, and even upload a picture of your creation, so please do that if you have time. Thank You
Don't forget to check out my other models. https://makerworld.com/sv/@Mikael_Swe/upload
If there are any prints not suitable for your printer model. Just let me know and I will try to fix that.
