Description

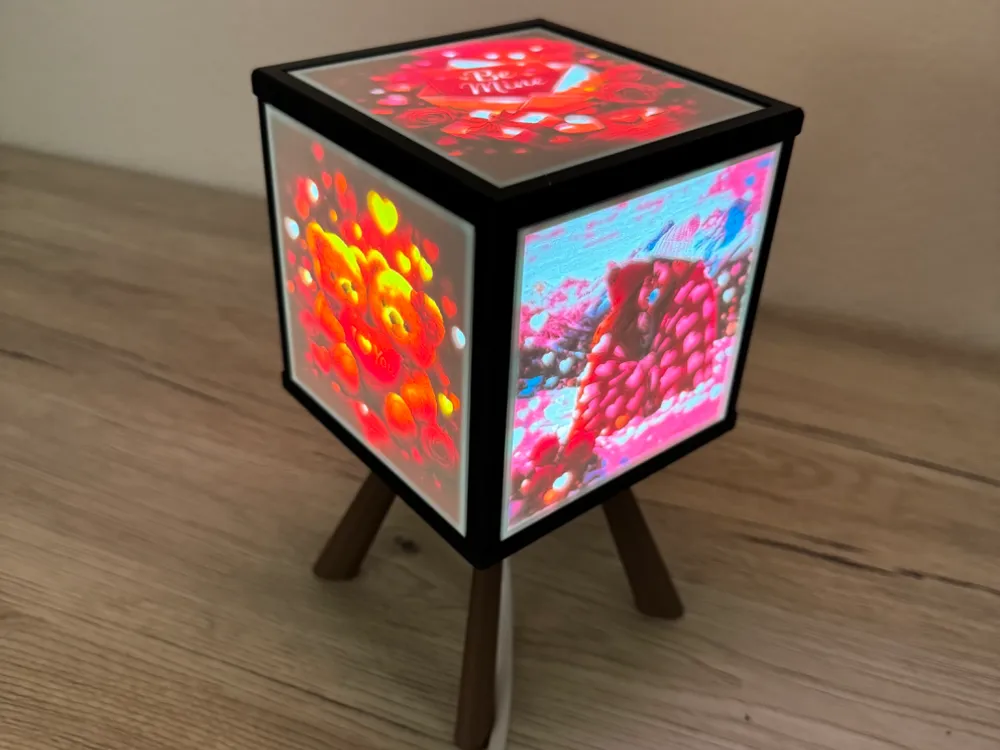

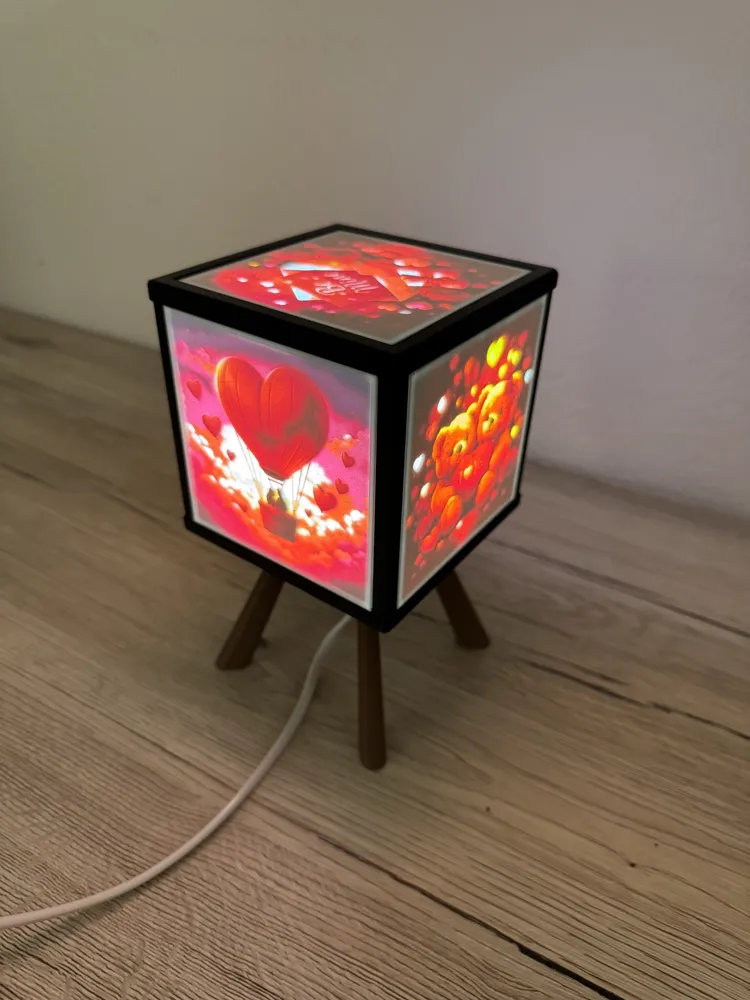

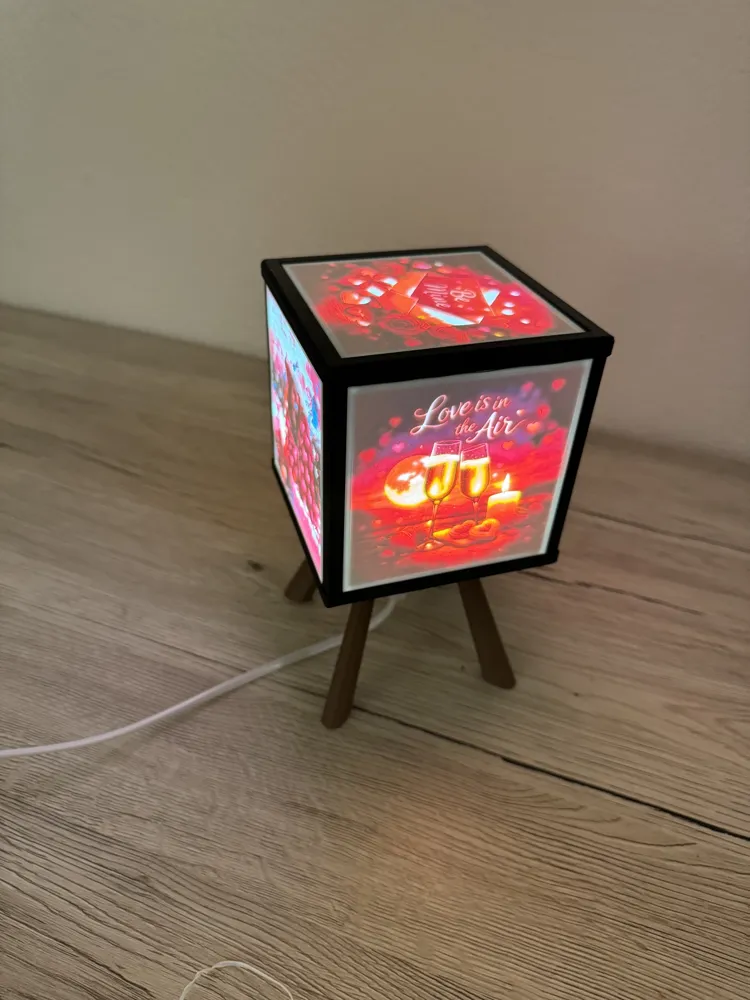

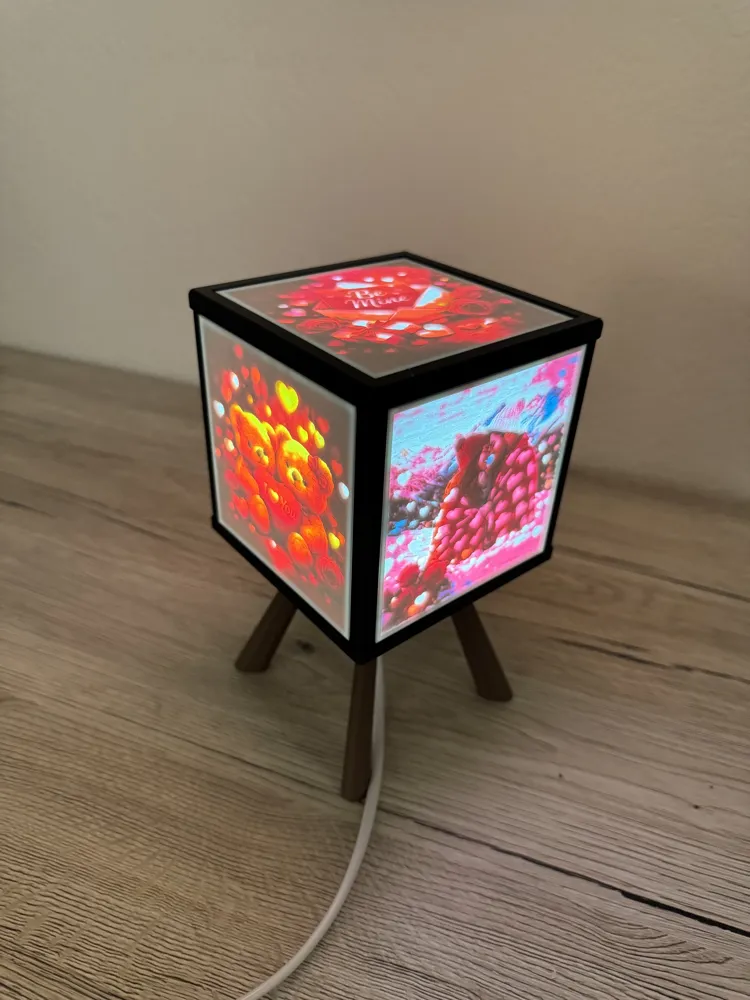

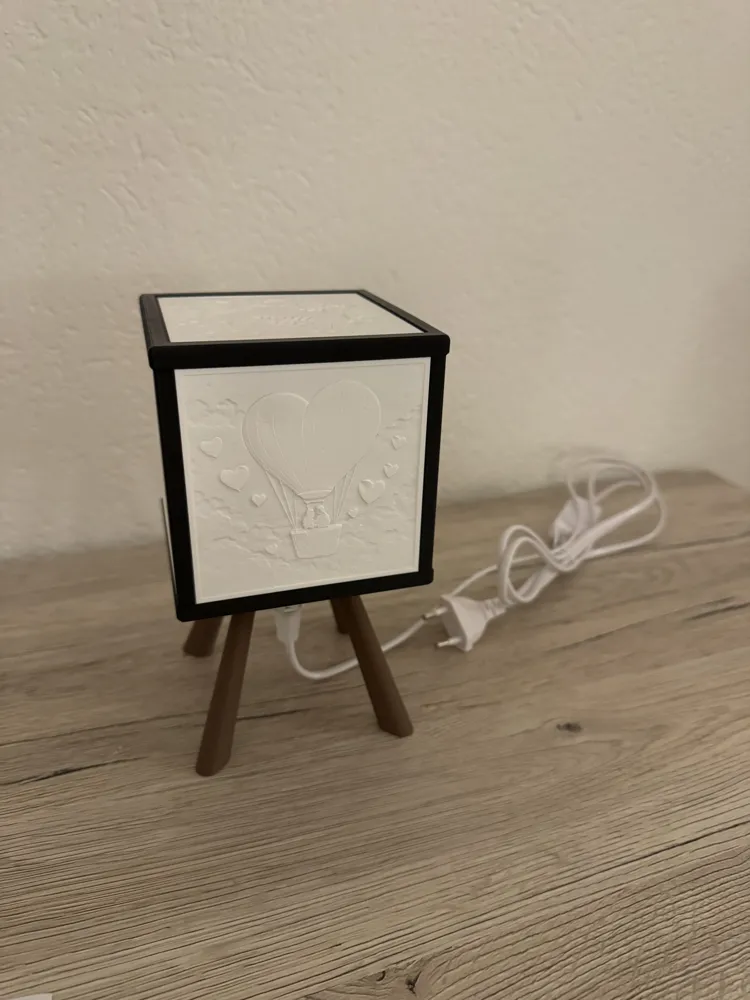

This is a fully customizable 3D printed photo lamp, designed as a modular cube with interchangeable image panels.
Perfect as a personalized gift, decorative light, or seasonal display piece.
📐 Dimensions
- Height: approx. 19,5 cm
- Image size: approx. 9 x 9 cm
- Light source: E14 bulb
- Power: wired
🖼 Creating Your Own Photo Panels

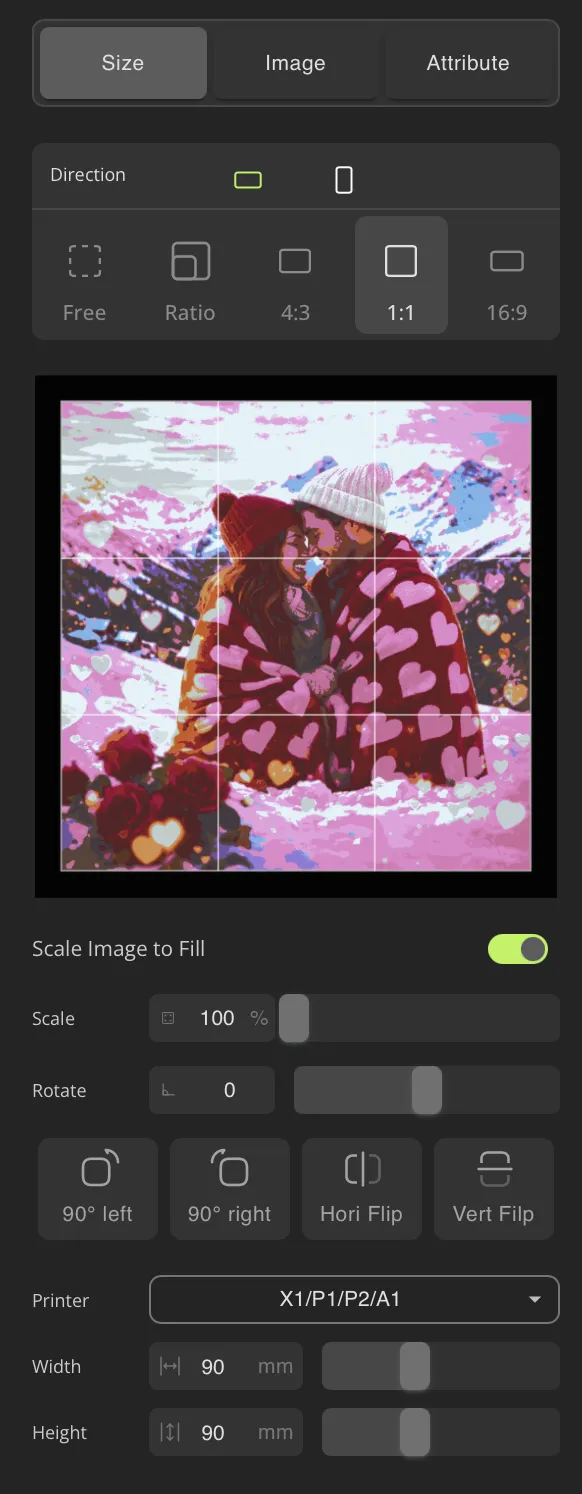

If you want to use your own photos, please generate them using the Lithophane Creator in MakerLab, following the settings shown in the attached reference image.
Important:
- Adjust the size to 90 mm x 90 mm, margin 2 mm, margin thickness 2,5 mm
- Use standard lithophane settings for optimal light transmission
- Export as STL and print with CMYK PLA set for best illumination effect
Proper lithophane settings are essential for achieving a clean and detailed glow effect.
🔁 Modular System
- Panels can be replaced at any time
- You can create different images depending on the event (Valentine’s Day, Christmas, birthdays, anniversaries, etc.)
- After printing the base frame once, you only need to print additional image panels
- Frame can be printed in different colors to match your interior
🧵 Recommended Materials
Filament:
- Sunlu PLA CMYK Set (Amazon)
Lamp holder (E14 socket):
Bulb (E14 LED recommended):
🖨 Printing Notes
- Designed for PLA
- Recommended layer height for lithos: 0.1 mm, and nozzle size 0.2 mm
- Recommended layer height for frame and stand: 0.2 mm, and nozzle size 0.4 mm
- Use a bright/white LED bulb for best illumination but not stronger than 5W
- Print panels with light-permeable settings for optimal glow effect
⚠️ License & Usage Terms
❗ Commercial use is strictly prohibited.
You are not allowed to sell, distribute, or commercially exploit this model or printed versions of it.
🔁 Remixing is allowed for personal use only.
All remixes and shared versions must include clear credit to the original design and a direct link to this listing.
By downloading this model, you agree to these terms.
If you print it, feel free to share your make – I’d love to see your version 😊
