20k Lumen 3d Printed Flashlight

Designed and Engineered by Hydrance

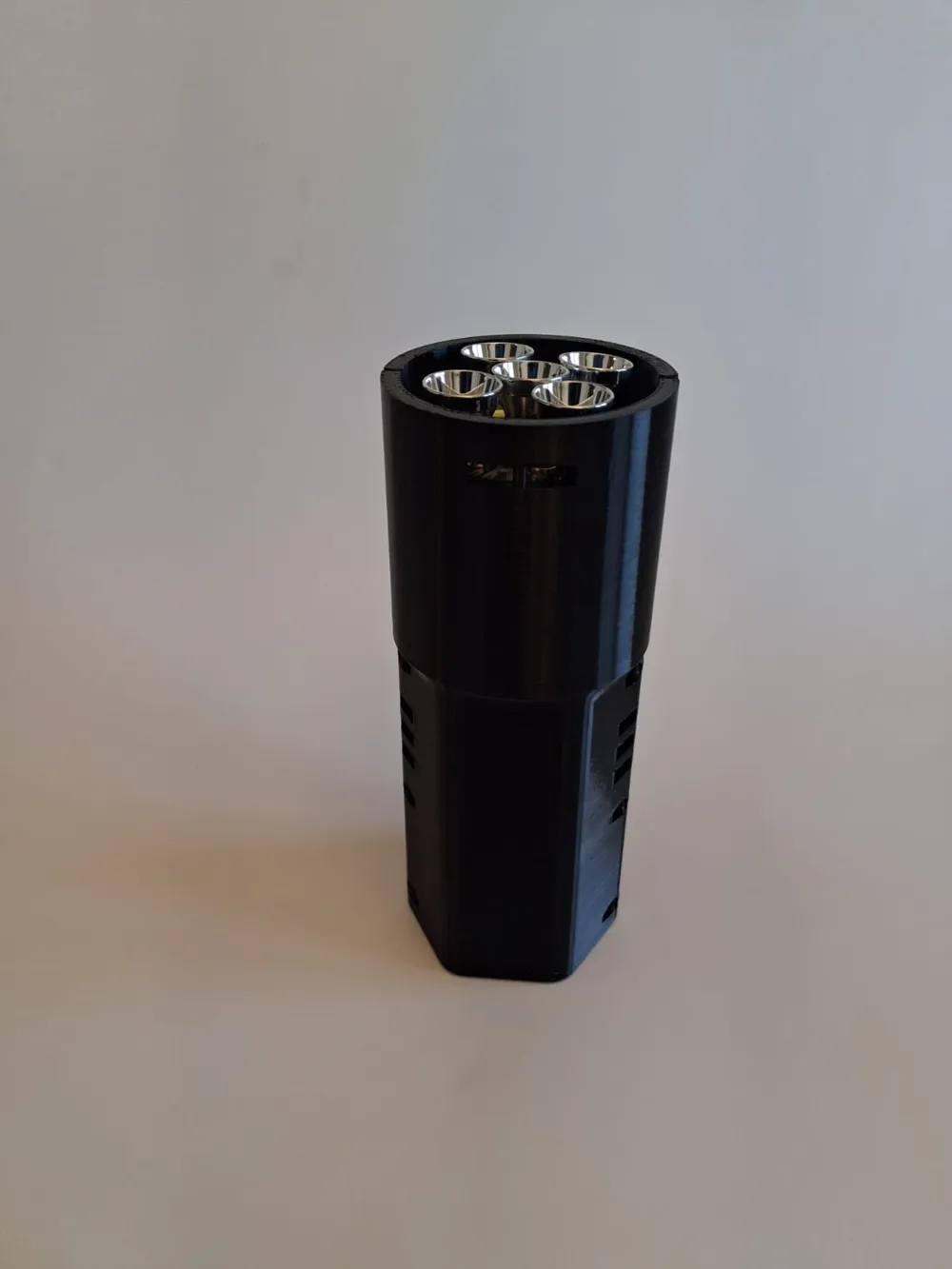

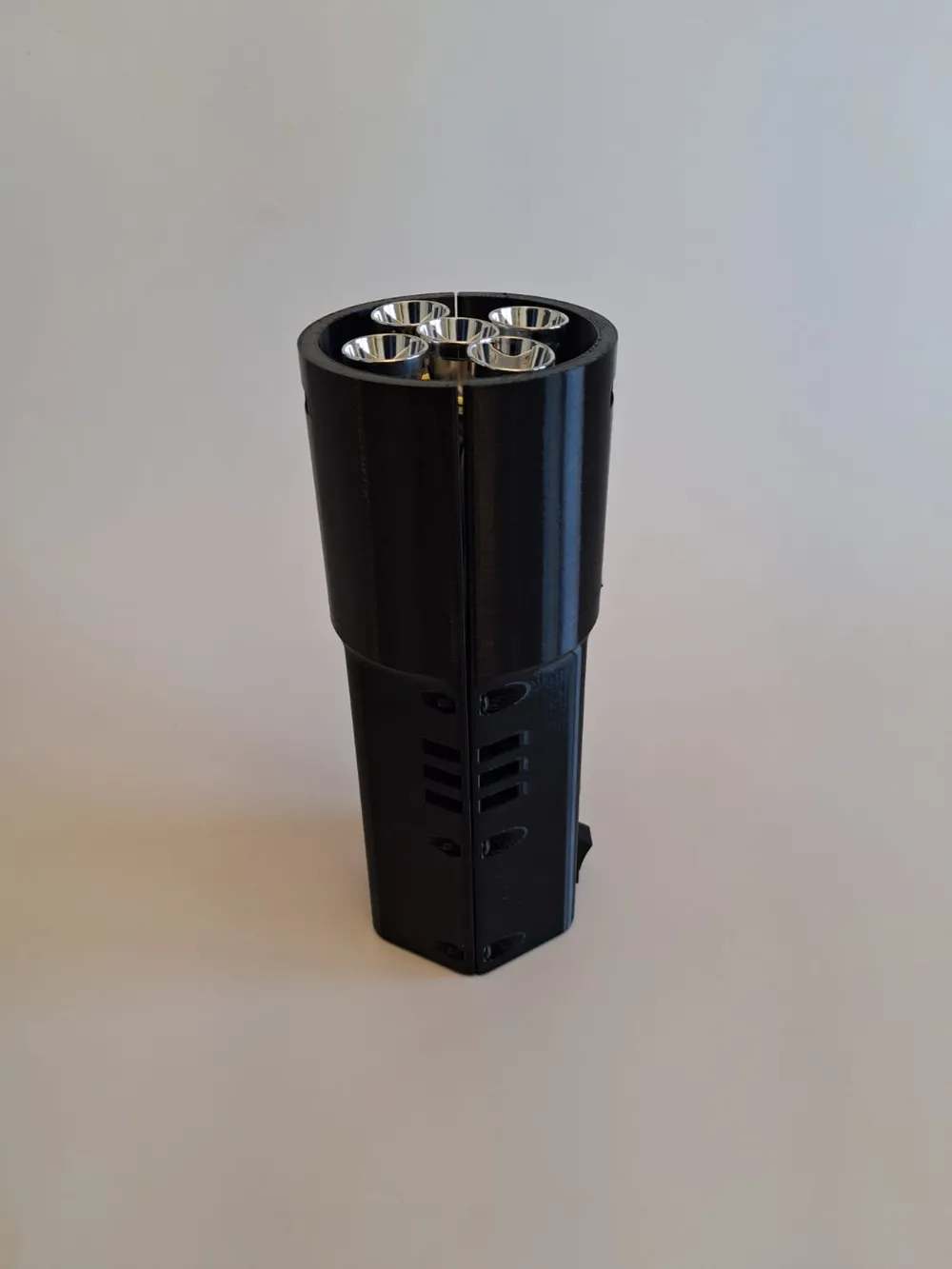

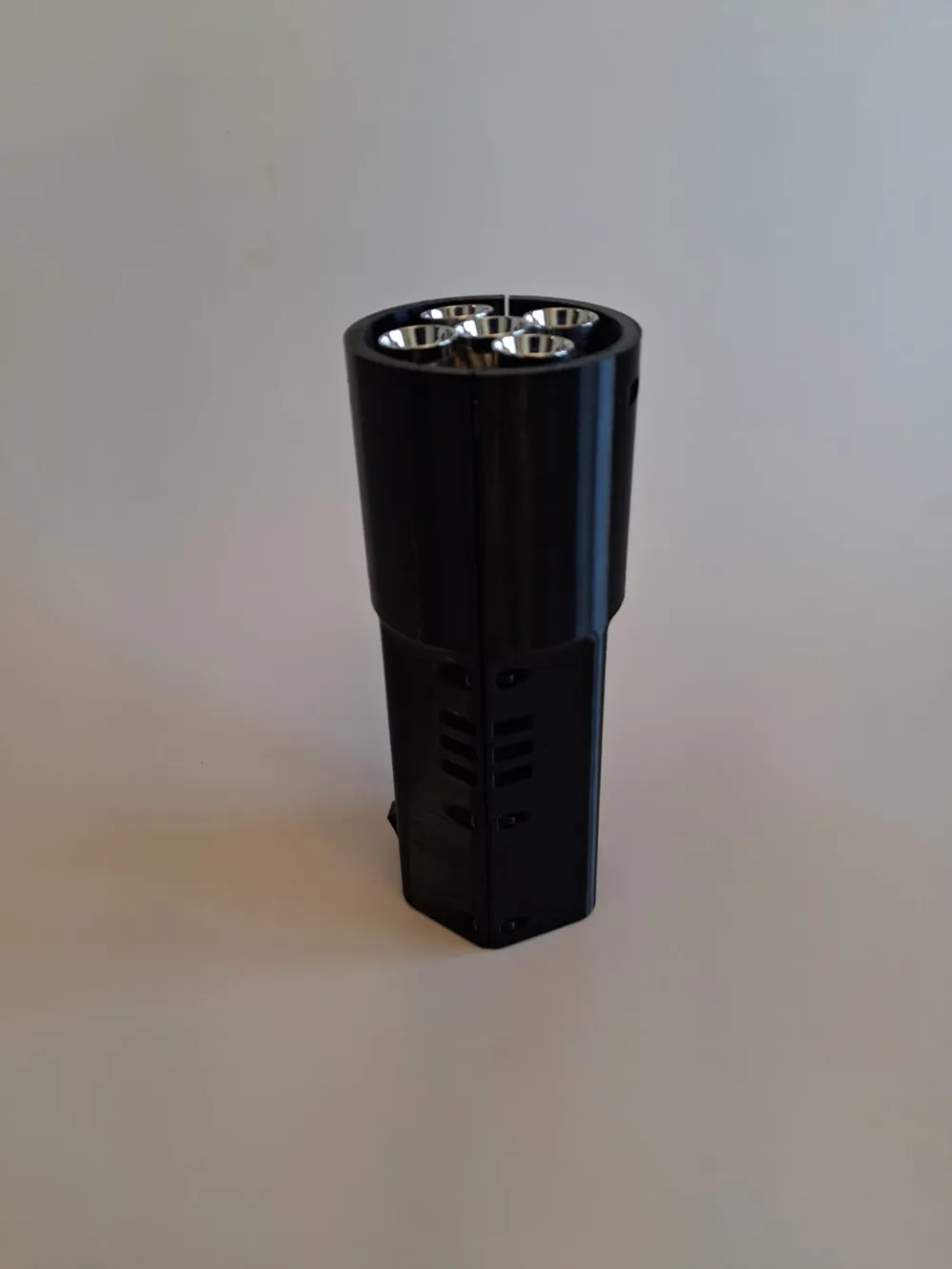

This is a full 3d printed flashlight that can reach up to 20k lumen or even 30k if you use upgraded LEDs.

Compared to commercial flashlights out there that have the same power, this one is 1/3rd the price, and you get to have fun creating it.

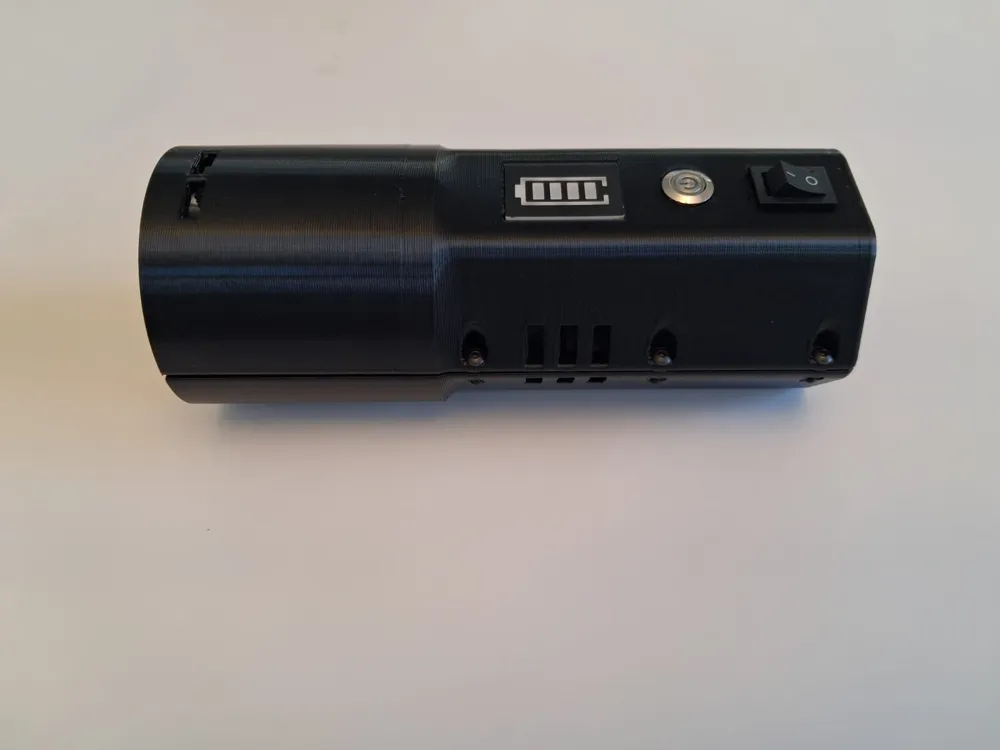

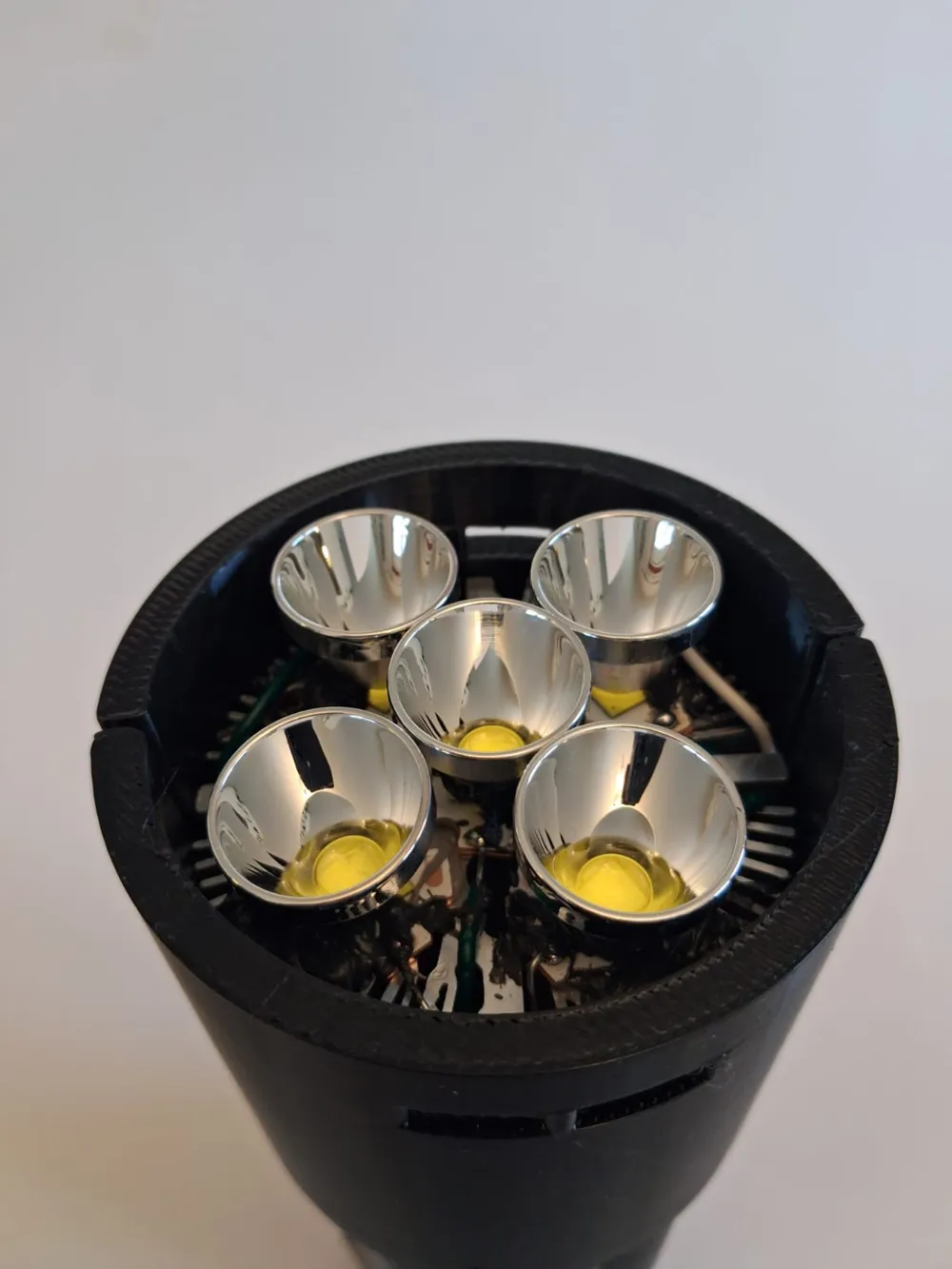

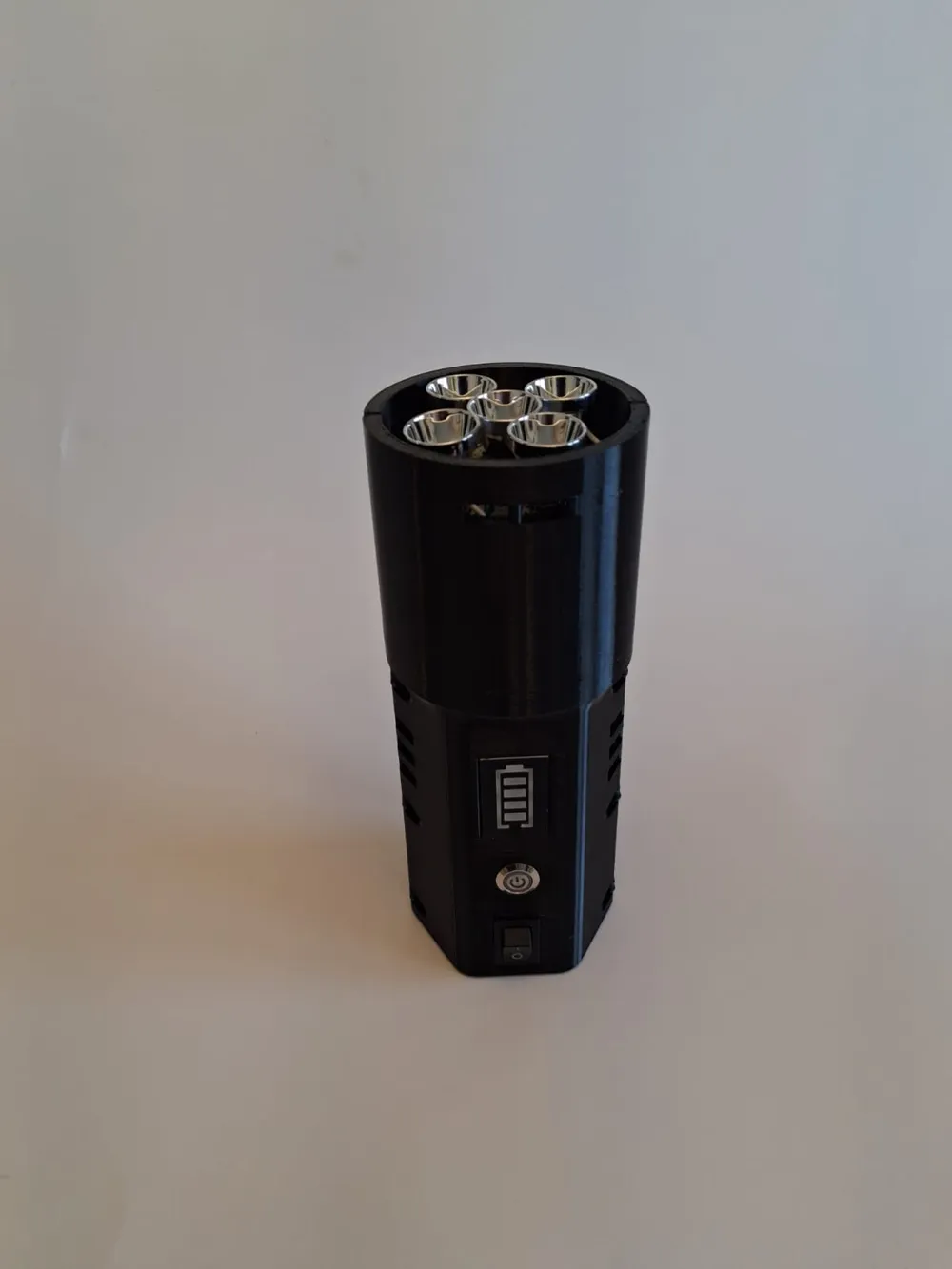

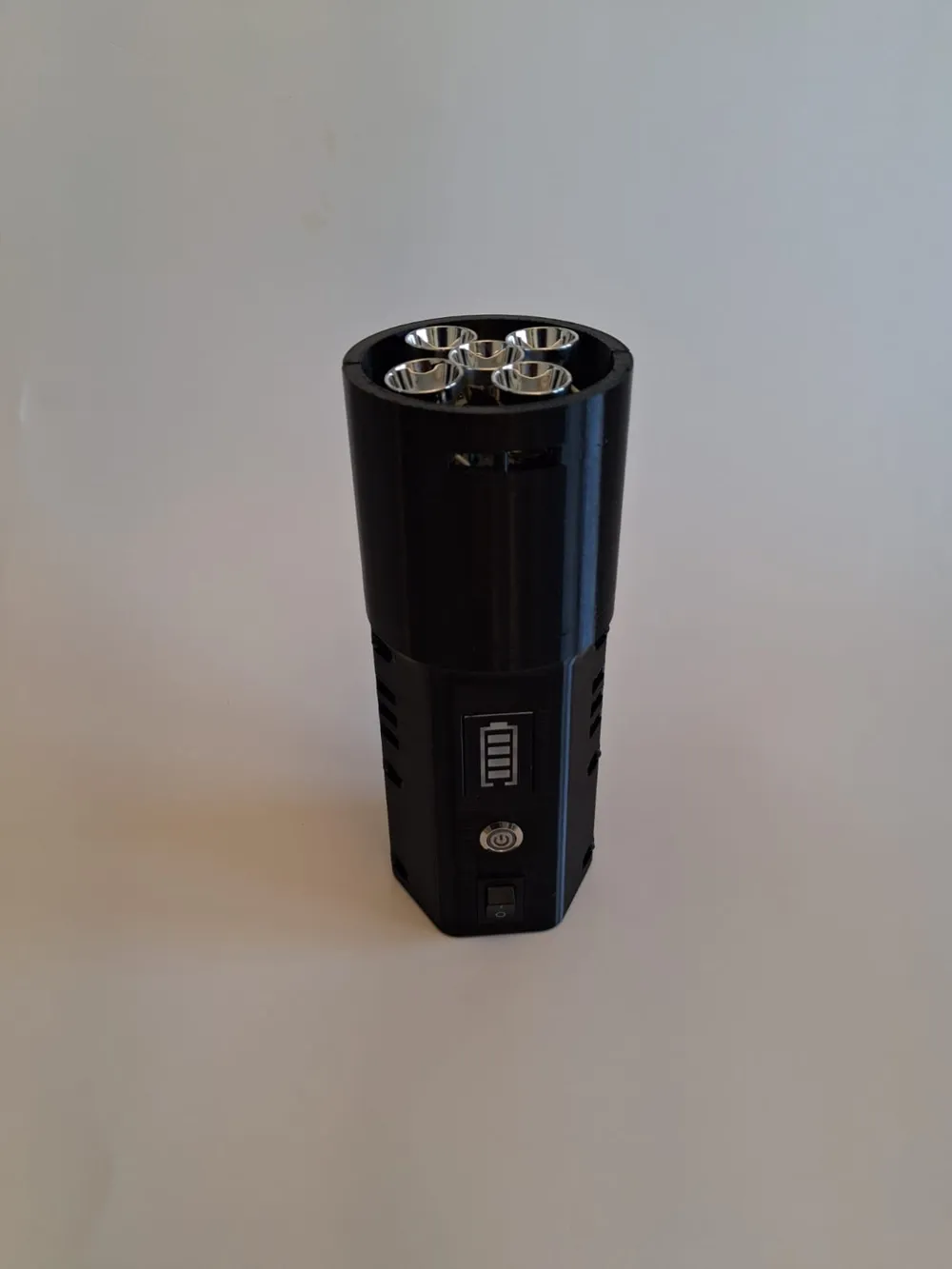

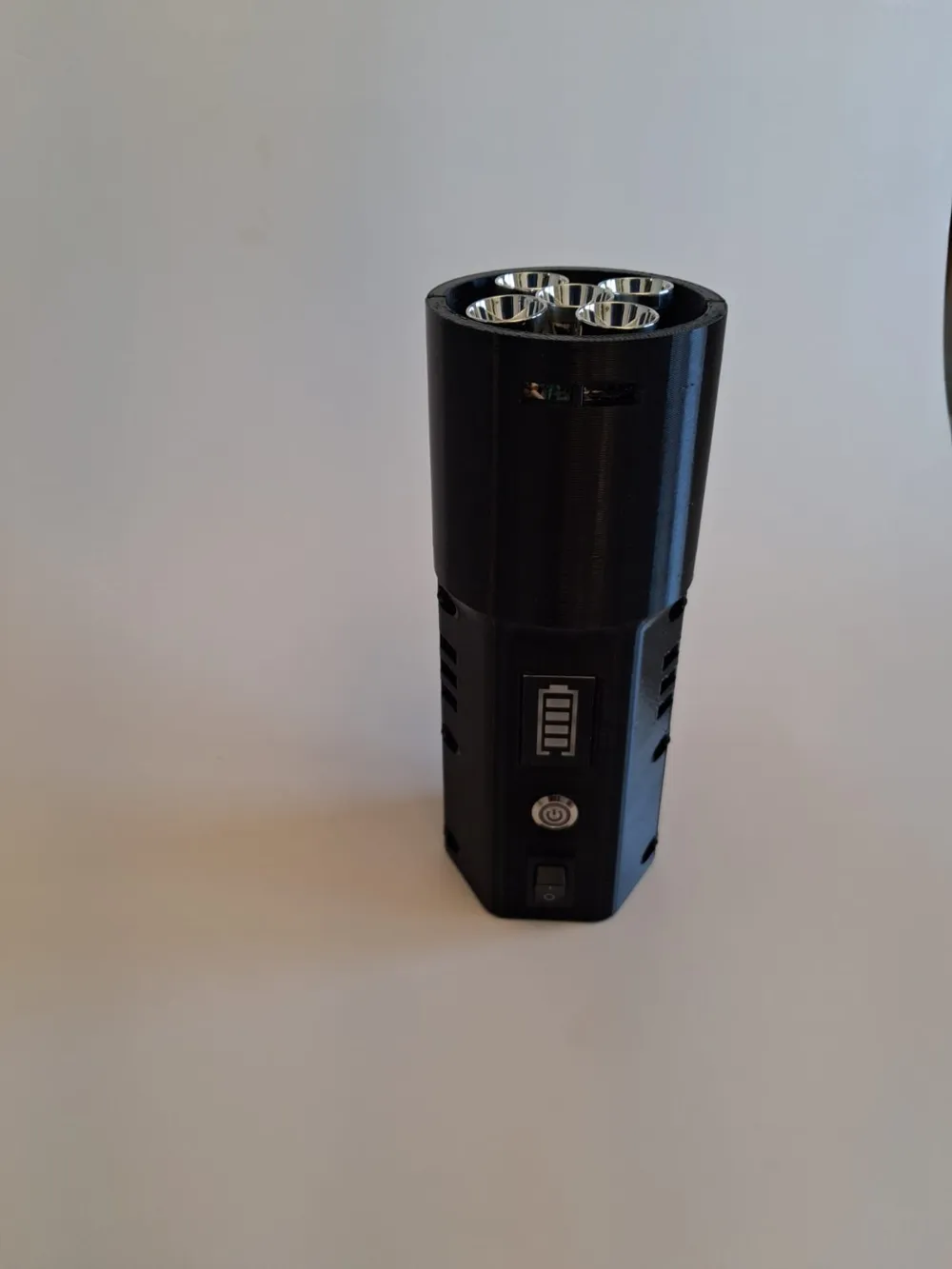

It is semi water resistant (NOT water proof), has USB-C charging for easy and quick charging, 5 LEDs on the front with focusing cones, powerful fan to keep it cool in almost every situation, and a strong rigid body that can take a beating.

Here are all the parts you'll need:

In detailed description (all prices in CAD):

- 1 unit
- $1.90
- Charging Chip
- https://www.aliexpress.com/item/1005004846748321.html

- 10 units (cant purchase one)
- $6.67
- Switch
- https://www.aliexpress.com/item/1005007396573433.html

- 1 units
- $3.18
- Switch
- https://www.aliexpress.com/item/1005006953954542.html

- 1 units
- $2.99
- Battery Level Indicator
- https://www.aliexpress.com/item/1005008464466886.html

- 1 units
- $11.68
- Fan
- https://www.aliexpress.com/item/1005008579692532.html

- 2 units
- $17.69
- Batteries
- https://www.aliexpress.com/item/32998232055.html

- 5 units
- $28
- LEDs (6v, xhp90)
- https://www.aliexpress.com/item/1005006727275886.html

- 5 units
- $12
- Reflective Cones
- https://www.aliexpress.com/item/1005005841167657.html

- 1 units
- $12
- Heatsink
- https://www.aliexpress.com/item/1005005364176768.html

The total comes to $113 CAD.

Or $84 USD.

Discounts are available that could further reduce the price.

For all the details and wiring diagrams, please visit my github page: https://github.com/HydranceAK/20k-Lumen-Flashlight/

If you have any questions or concerns, feel free to reach out to me by discord: .hydrance. or by gmail: abdusamaku@gmail.com.
