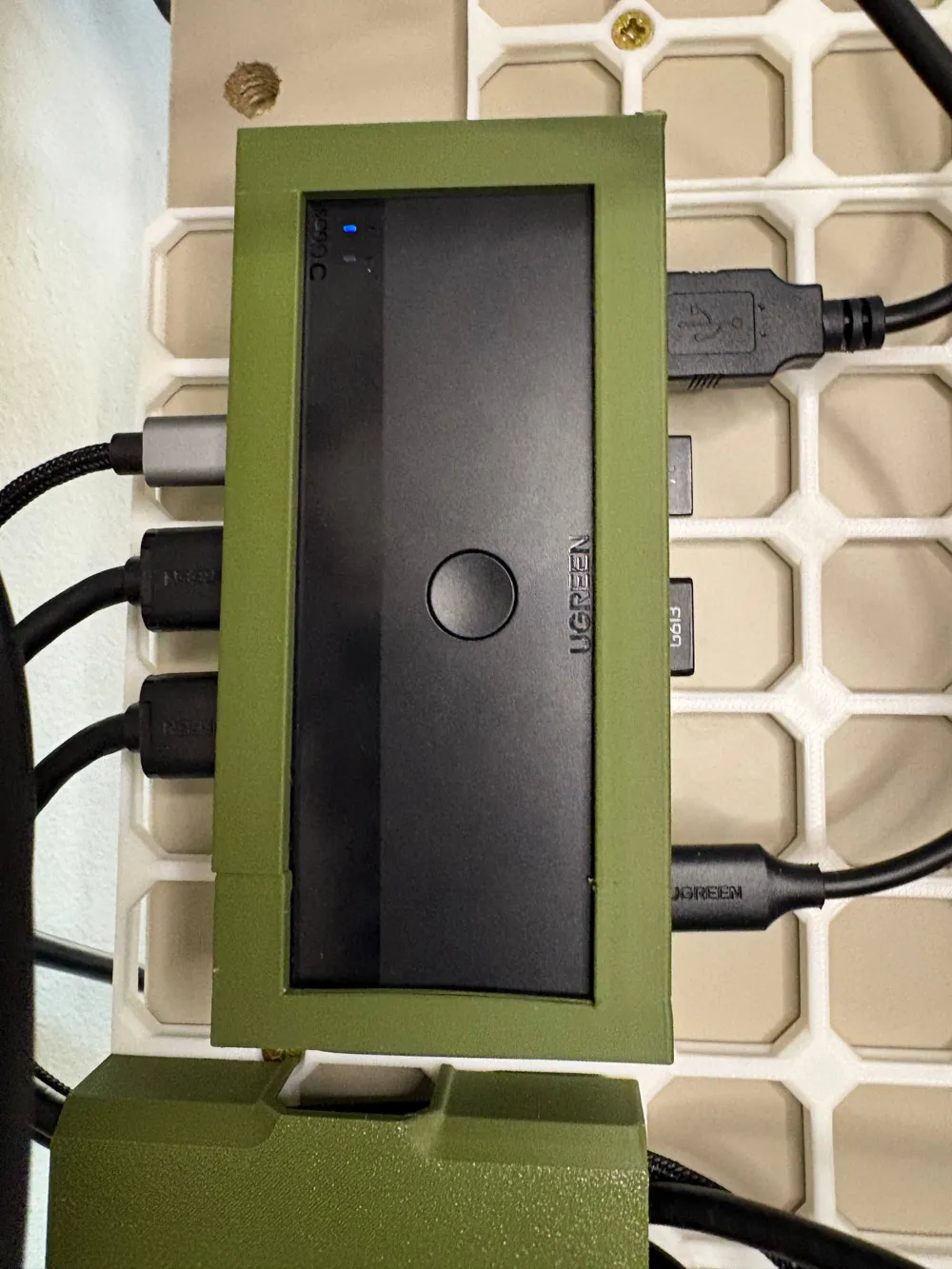

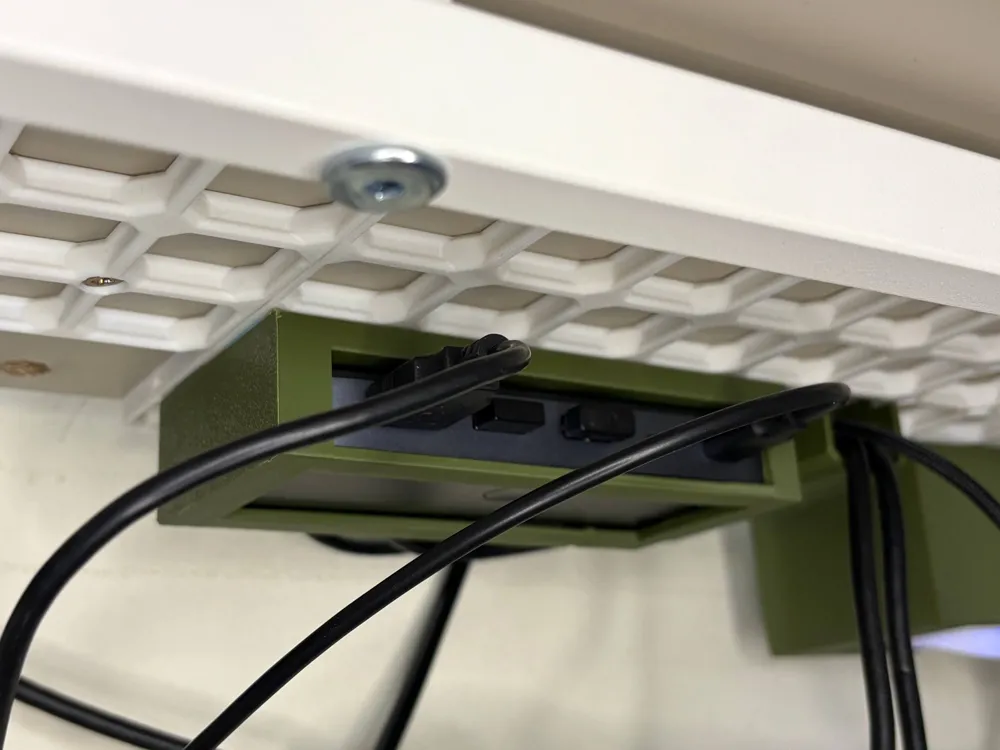

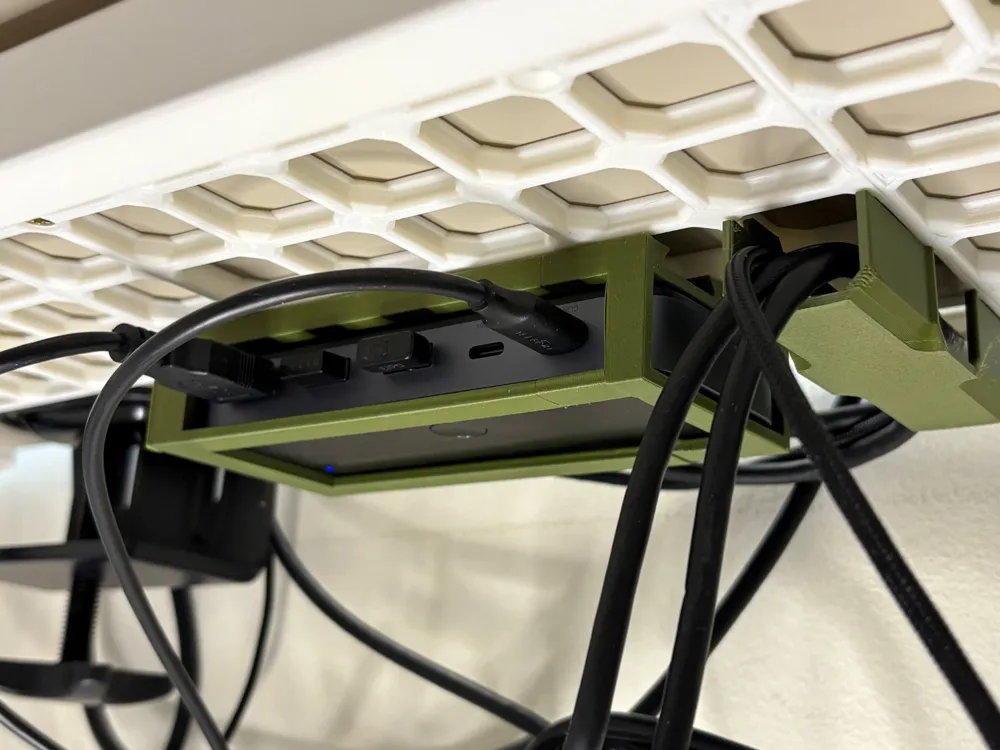

OpenGrid Holder for Ugreen KM Switch (Underware )

An under-desk holder designed for the Ugreen 2-in 4-out USB 3.0 switch, compatible with OpenGrid and Multiconnect.

Compatibility:

There are a couple of different Ugreen models with the same dimensions that this holder is designed to fit:

• Ugreen CM662
• Ugreen CM687
• Other models sharing the same dimensions (approx. 123mm x 54mm x 17mm).

Design & Print Parameters:

This holder was made using the "Underware 2.0 model maker" with the following parameters:

• Internal Dimensions (D-W-H): 124mm x 55mm x 18mm
• Front Cutout: 7mm x 7mm x 7mm
• Bottom Cutout: 3mm x 3mm x 3mm
• Right Cutout: 20mm x 20mm x 0mm
• Left Cutout: 8mm x 8mm x 0mm
