Osmanthus embossed bookmark | Guangxi Provincial Flower embossed bookmark | [Chinese Provincial Flower Series Bookmarks]

🌟 [Huangshan Azalea Embossed Bookmark]

🎨 Introduction to the work | Description

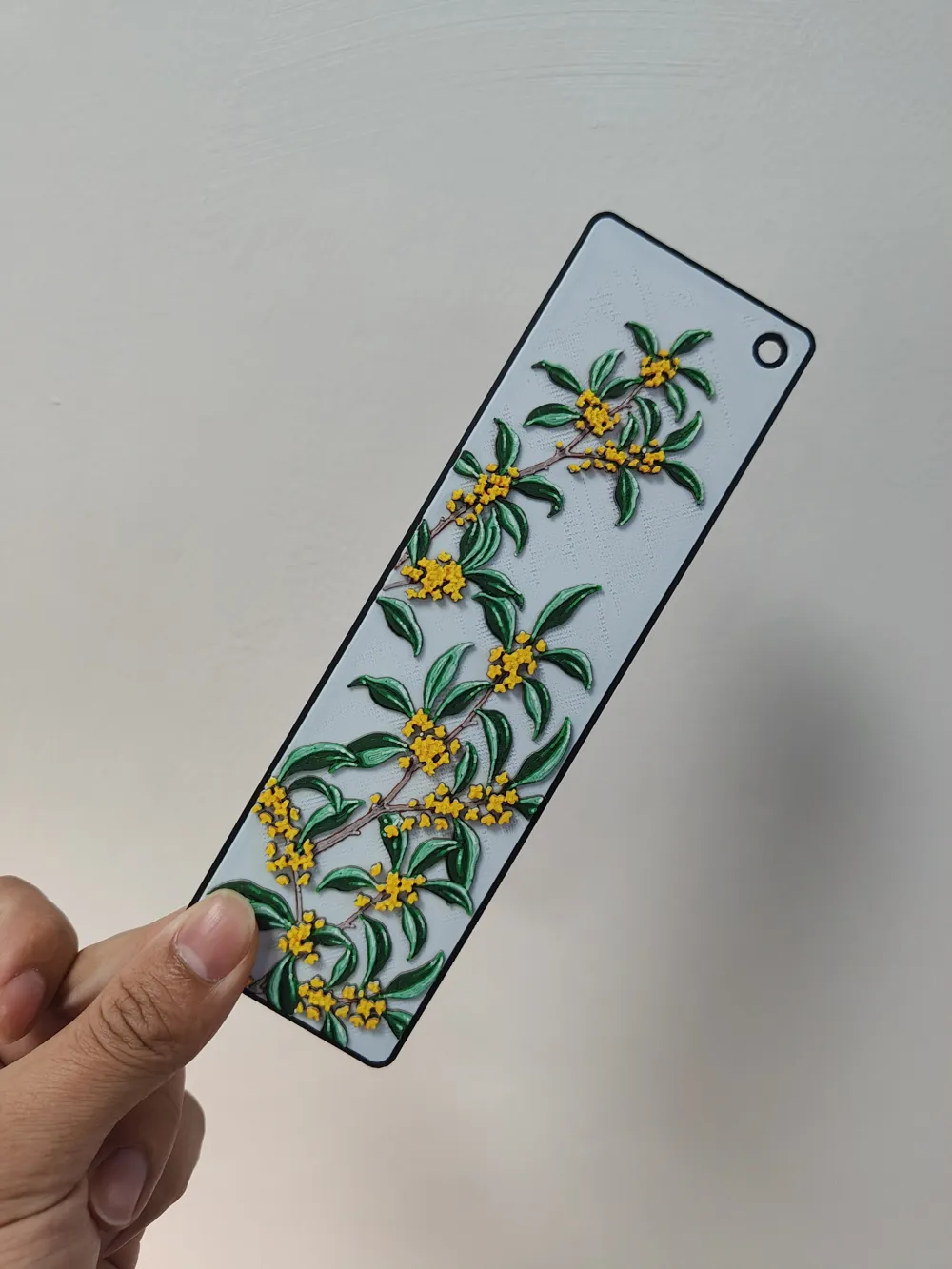

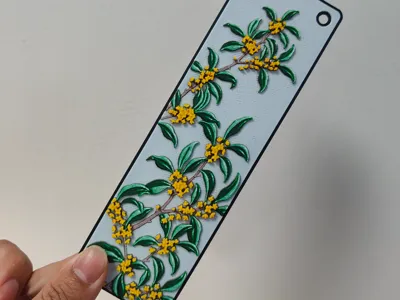

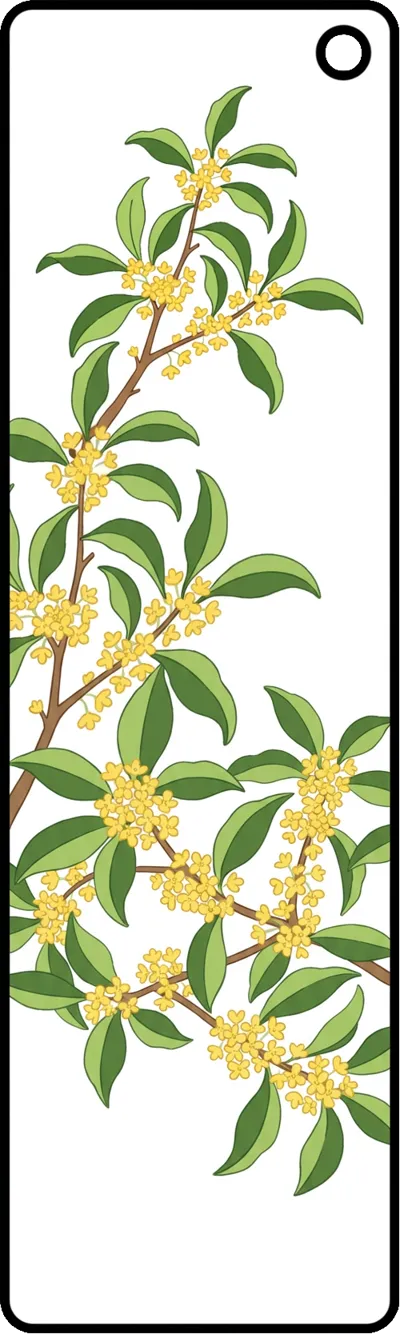

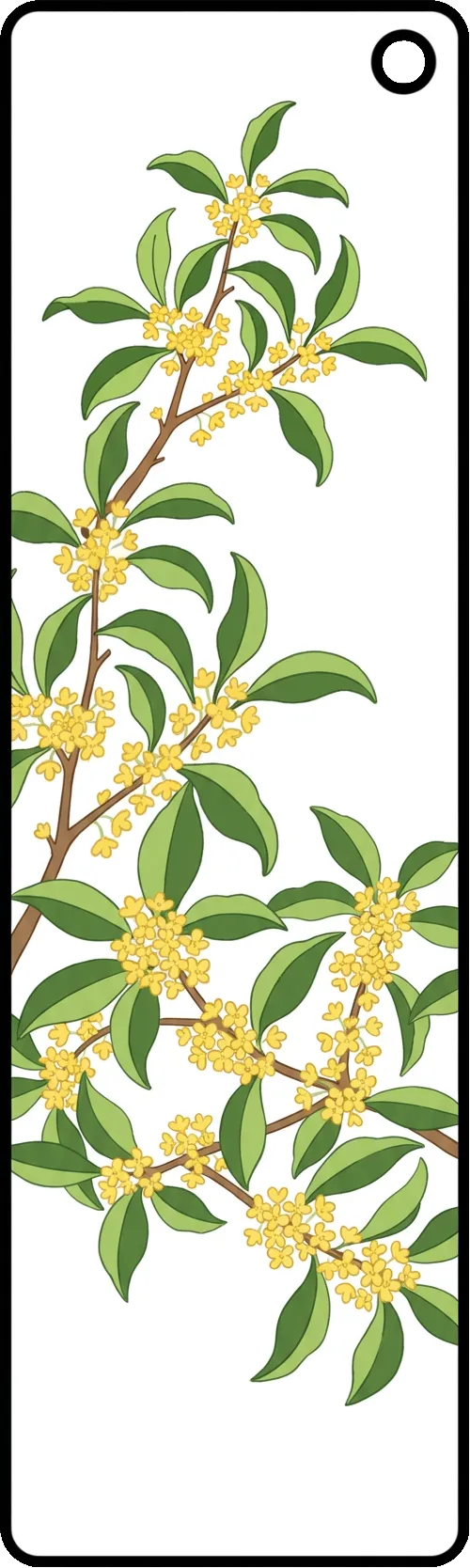

Osmanthus, the provincial flower of Guangxi.

Osmanthus is an evergreen tree or shrub of the family Oleaceae, genus Osmanthus. Its flower stalks are slender, stamens are extremely short, and flowers are highly fragrant; the fruits are oblique, generally oval, and purplish-black; the leaves are leathery, opposite, oval, oblong, or elliptic-lanceolate, with acuminate apex and cuneate or broadly cuneate base. (Description source: Baidu Baike)

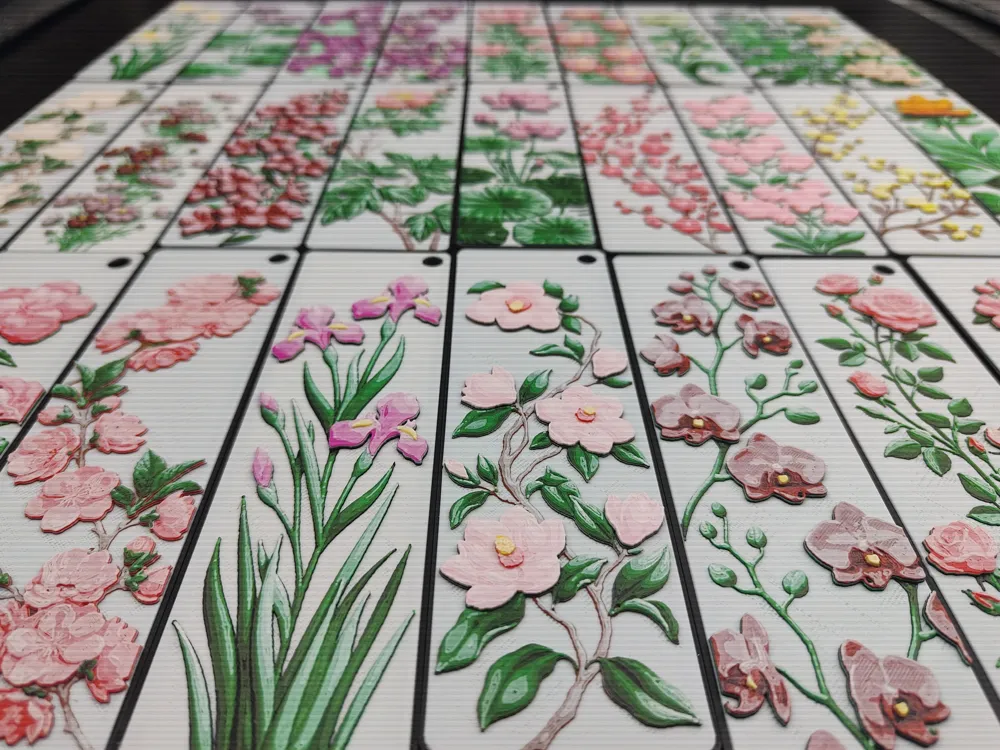

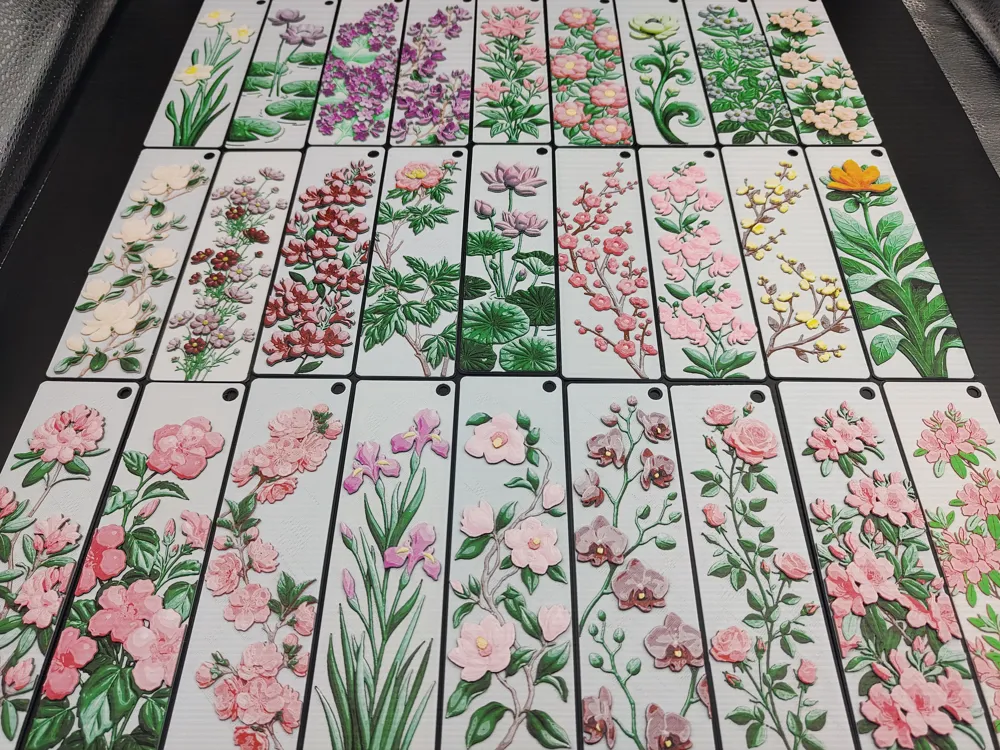

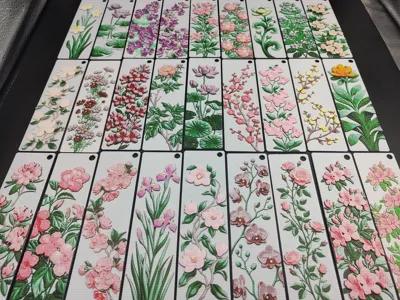

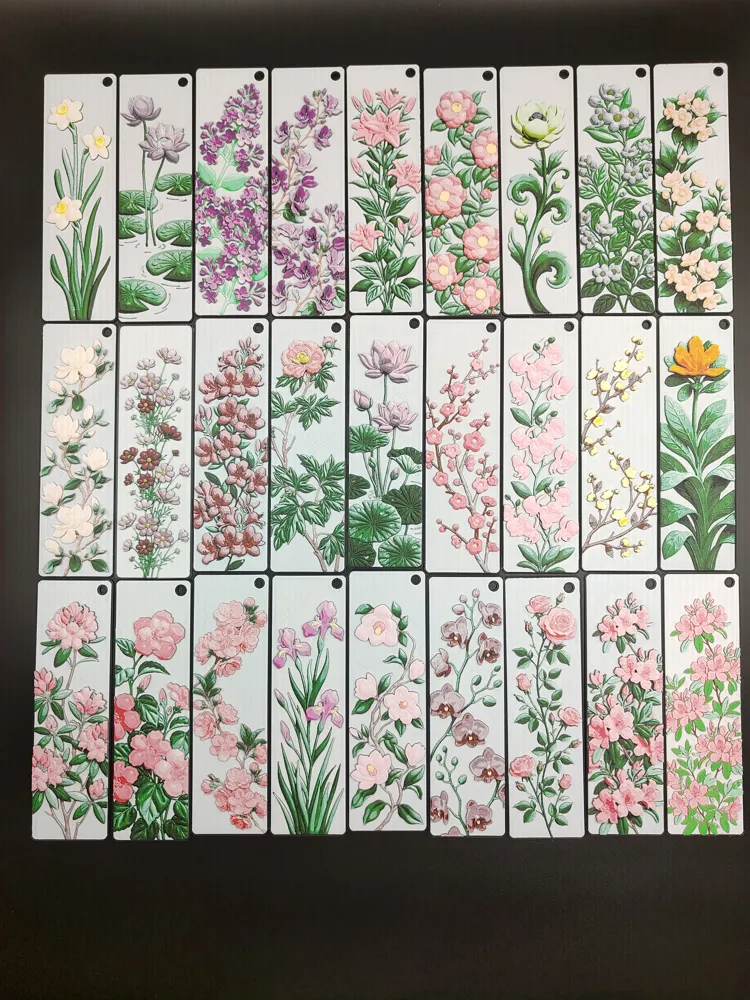

This is one of the [Chinese Provincial Flower Series Bookmarks], hope you like it.

🚀 Core Technology: hicolors-3d

This model is generated using the hicolors-3d workflow, which offers the following advantages compared to traditional processes:

No AMS color change system required: Adopting a layered color change design approach, no color change system is required to print the model. You only need to manually change the filament at the corresponding layers, saving filament to the extreme.

Precise layer height: By physically simulating all possibilities of superimposed colors, the effective height is allocated to a limited layer height, saving layer height usage.

Intuitive matching: Based on color and region matching logic (there is no situation where a region cannot be matched to the desired color), it is more intuitive than traditional grayscale matching.

Physical-level simulation: The preview effect is the printing effect, accurately simulating color overlay at different layer heights.

Light and shadow aesthetics: Specifically designed for FDM printing, making full use of the translucent and color-stacking properties of PLA and other materials.

🔄 Color Change Instructions | Color Change Instructions

No multi-color 3D Printer (AMS) is needed; manual color changes on a standard single-nozzle machine are sufficient:

Color change information is included in the 3mf file, just download and view it.

The following is the filament information used for printing, for your reference:
Base/Start color:black - TD：0.1

| Color change height | Cumulative layers | Change to | Brand | HEX | RGB | TD |

|----------|----------|--------|------|-----|-----|-----|

| 0.64mm | 7 | 18-white | - | #ffffff | rgb(255, 255, 255) | 4.4 |

| 1.12mm | 13 | 18-chooclete | - | #684425 | rgb(104, 68, 37) | 0.4 |

| 1.36mm | 16 | 18-white | - | #ffffff | rgb(255, 255, 255) | 4.4 |

| 1.60mm | 19 | test-black | - | #181a16 | rgb(24, 26, 22) | 0.1 |

| 1.76mm | 21 | 18-green | - | #4d943d | rgb(77, 148, 61) | 1.8 |

| 2.08mm | 25 | 18-white | - | #ffffff | rgb(255, 255, 255) | 4.4 |

| 2.48mm | 30 | 18-orange | - | #de672d | rgb(222, 103, 45) | 4.4 |

| 2.88mm | 35 | 18-yellow | - | #fbf431 | rgb(251, 244, 49) | 5.5 |

🛠️ Print Parameters | Print Settings

For best results, please strictly adhere to the following settings:

Infill: 100% (required)

Layer Height: 0.08mm

First Layer Height: 0.16mm

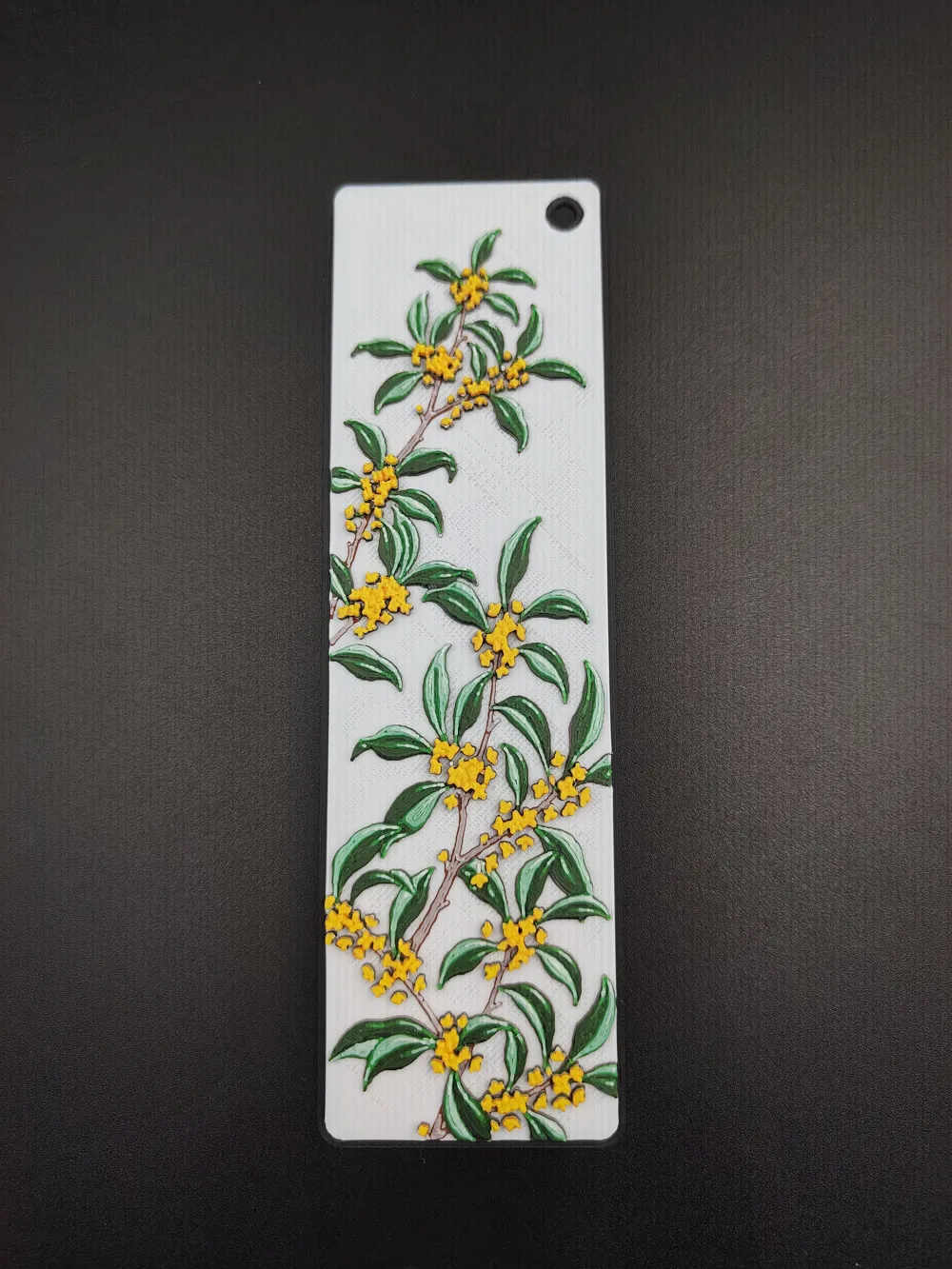

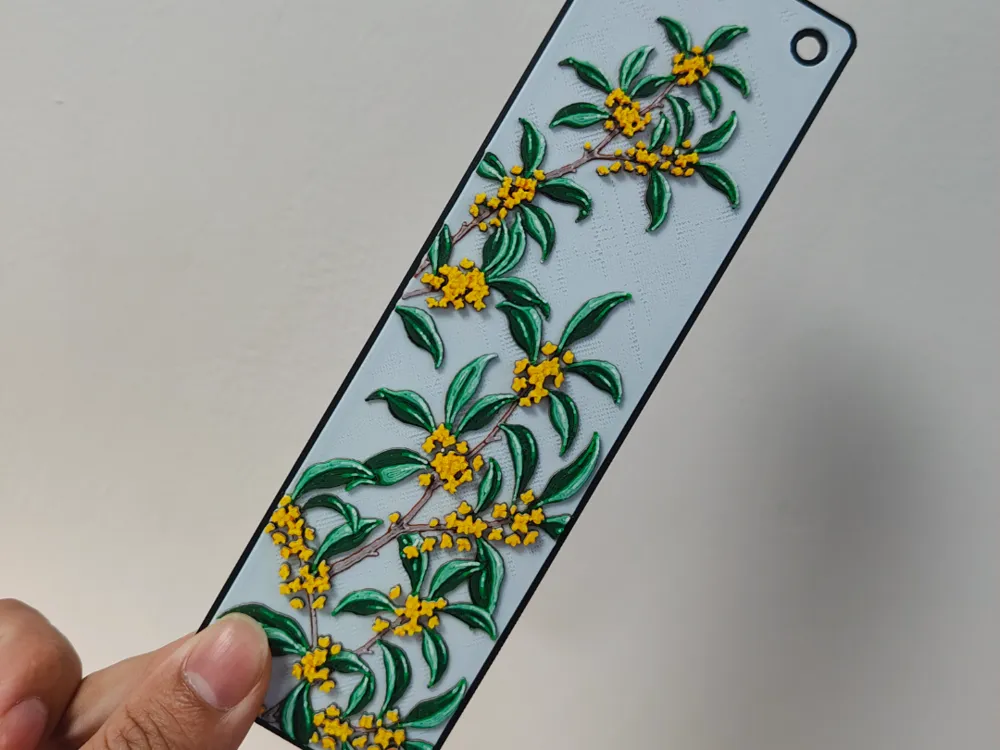

Nozzle suggestion: 0.2mm recommended (strongest detail), 0.4mm is also acceptable (the actual photo was taken with 0.4mm).

Model Scale: Do not adjust the Z-axis scale of the model to ensure correct layered color change information. You can freely adjust the X and Y axis scaling to achieve your desired size.

Post-processing tip: Quickly sweep a lighter over the model surface to perfectly remove common fine stringing from FDM. 🔥
