ZWO EAF riser for William Optics RedCat 51 - EQ6R
Print Profile(1)
Description

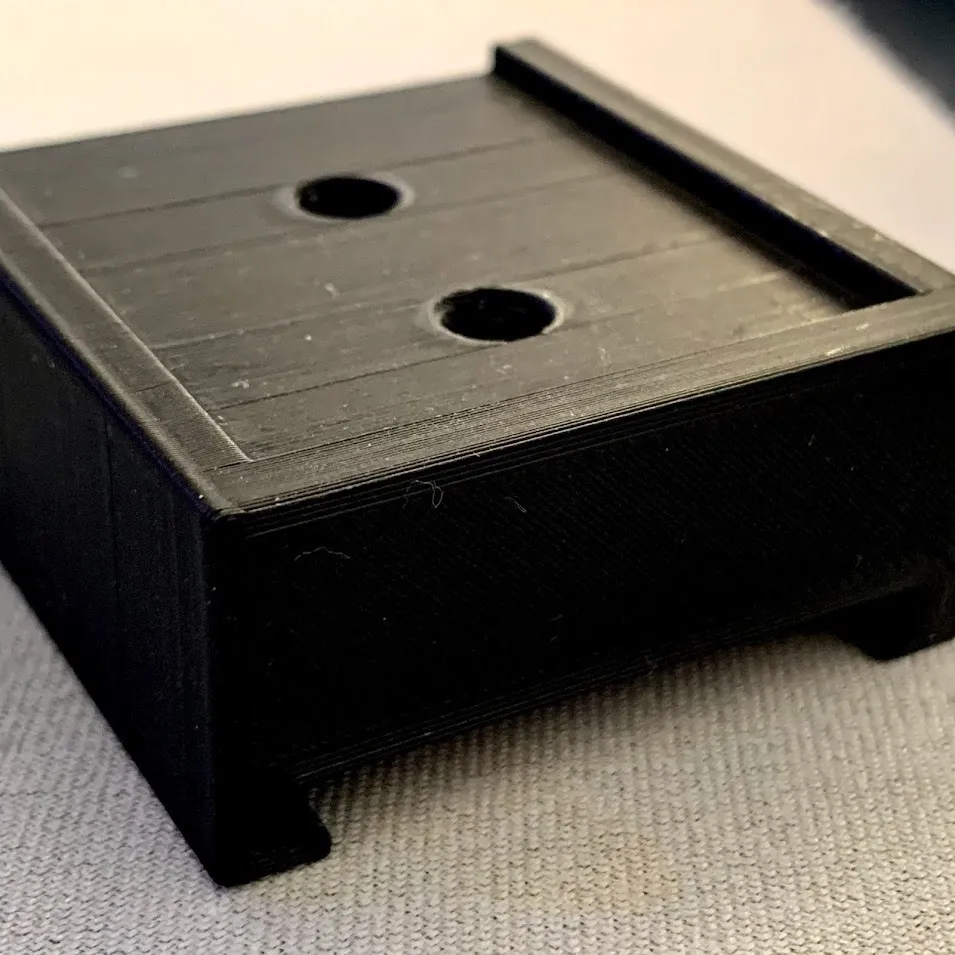

This is a riser block for the EAF/RedCat mount ( by domino89 / thing 4883844 )
to prevent the EAF from hitting the EQ6R knobs.
I used the ARCA slide mount to fit this onto the bracket of the RedCat51.

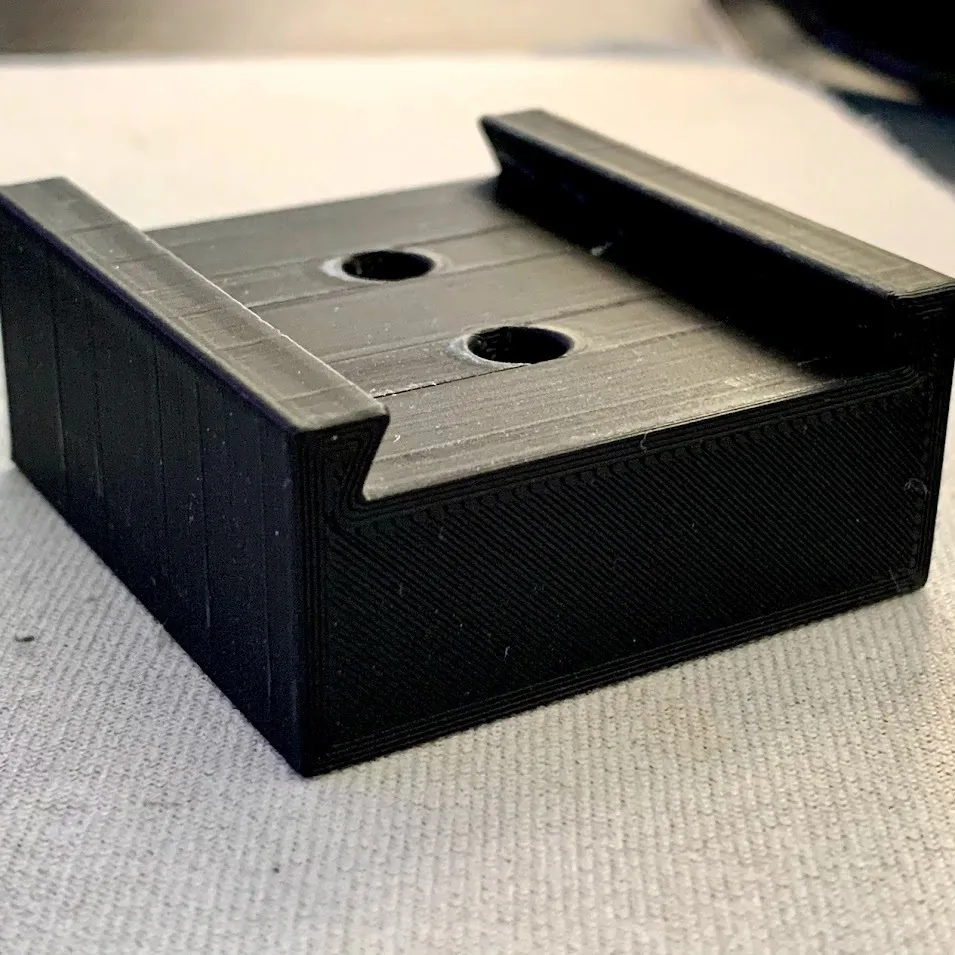

The top side edges help to align the scope bracket.

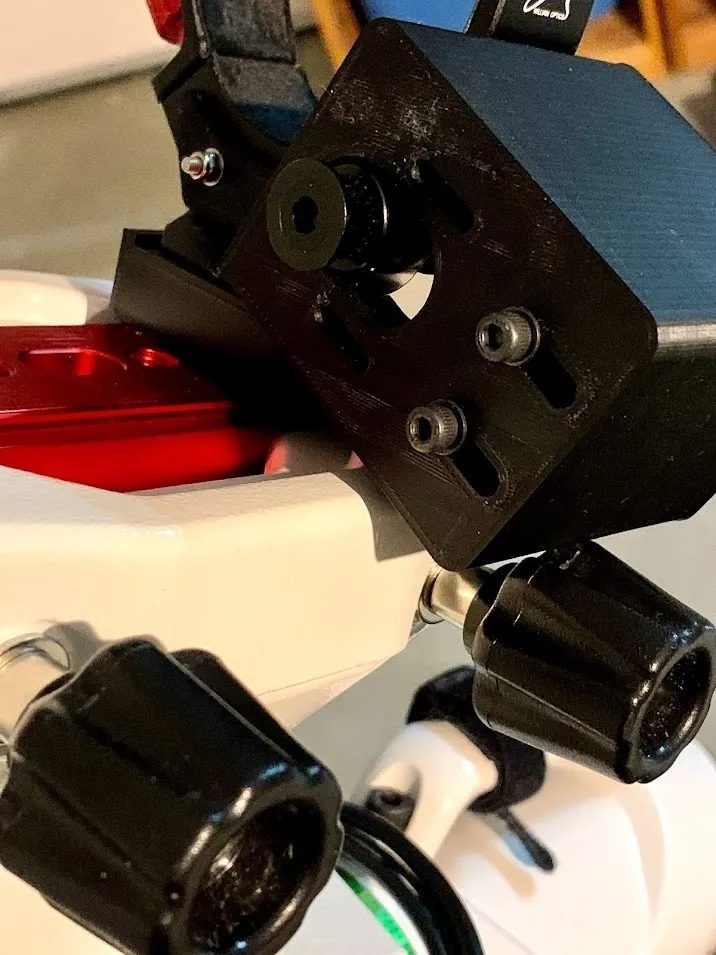

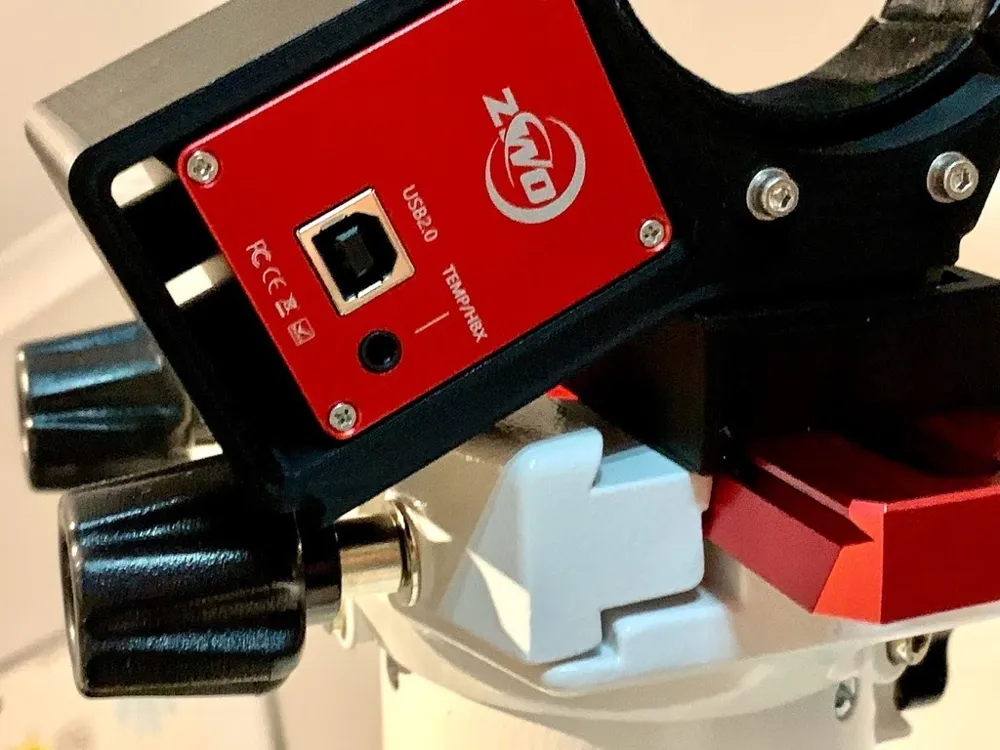

See photos for further info of how this is mounted and how it prevents collision of the mount with the Skywatcher EQ6R knobs.
This part could also be used on other mounts.
You'll also need two M6 x 35mm bolts for mounting.
Originally printed on Ender3 v2 , however I have uploaded Bambustudio file as .3mf for printing on an A1mini.

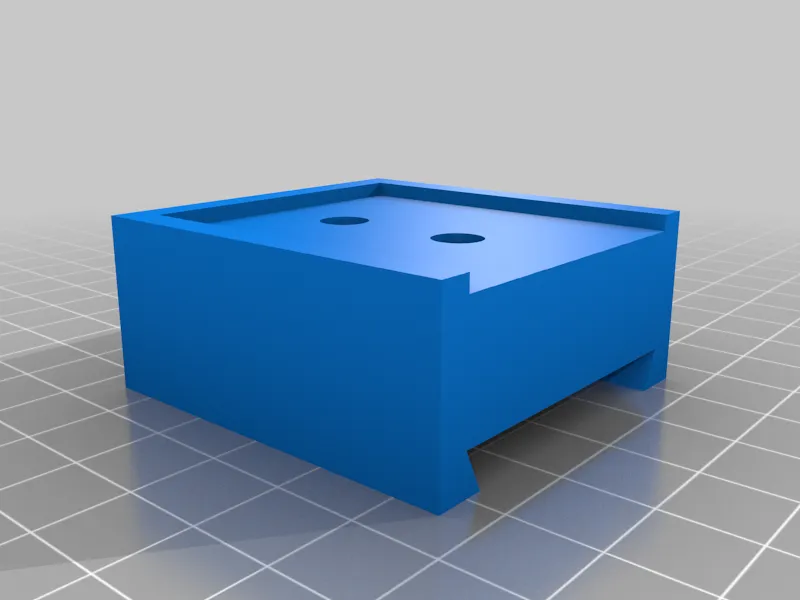

Model history : This is my original model , as designed in TinkerCAD.
It was originally uploaded to C..3d, but I have now consolidated all my models to MakerWorld.
I used this design for a number of years without any issues.
Using a belt driven setup for the RedCat 51 and ZWO EAF.
