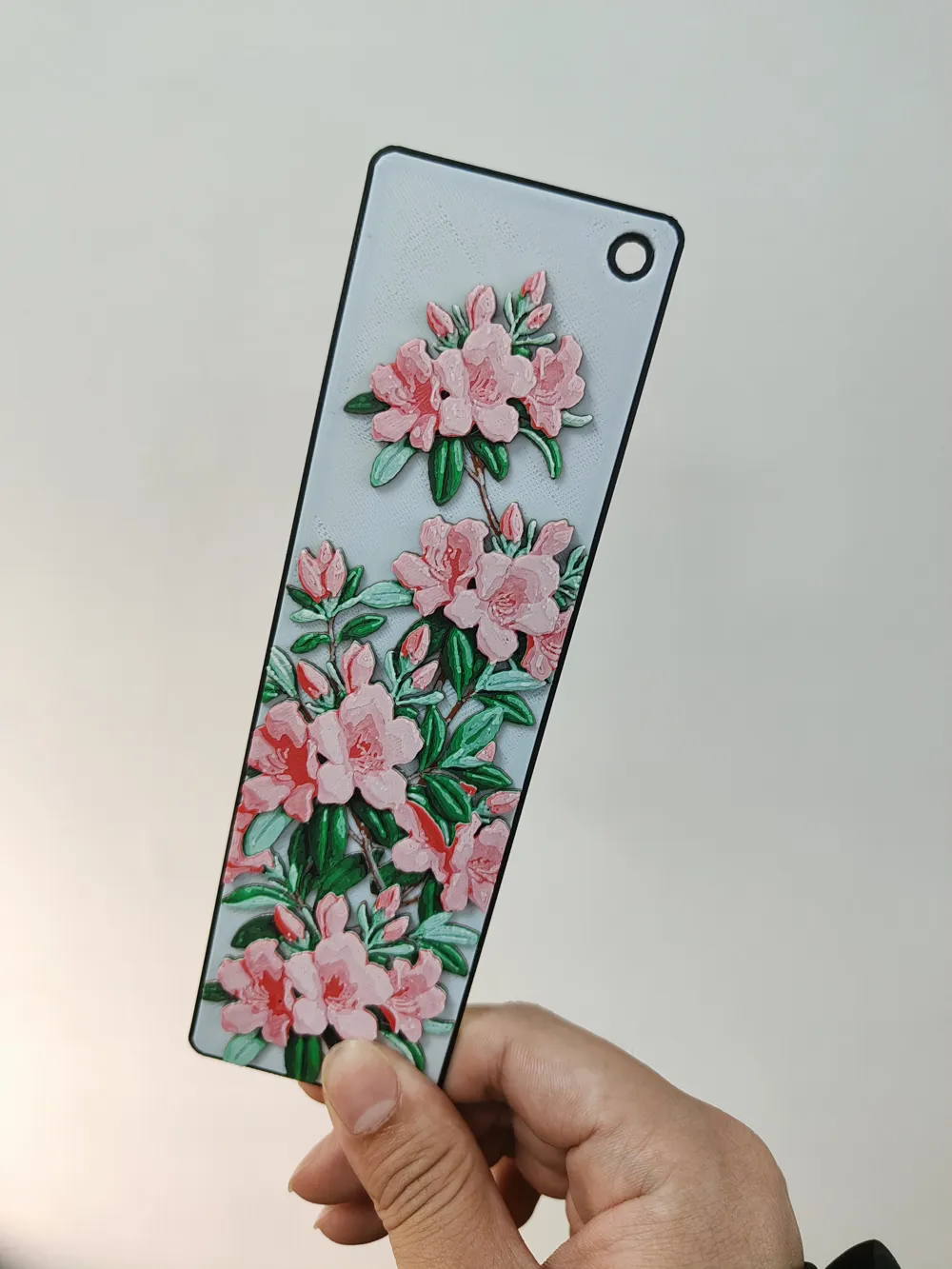

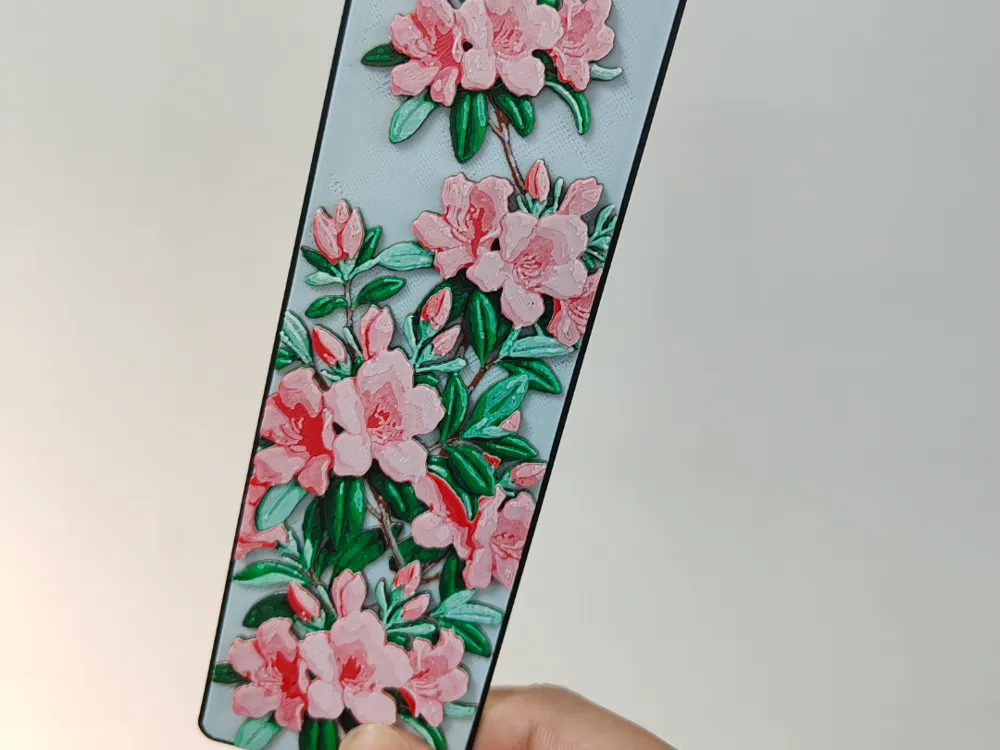

🌟 [Rhododendron Embossed Bookmark]

🎨 Introduction | Description

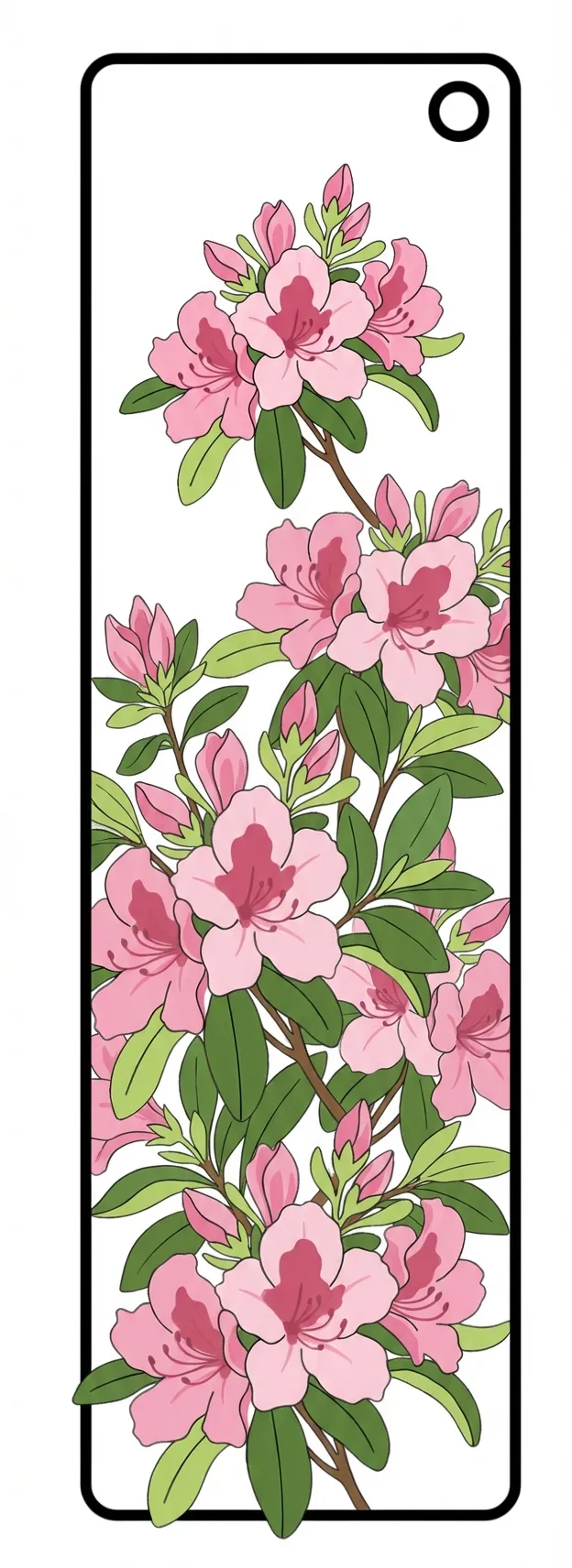

Rhododendron, the provincial flower of Guizhou Province.

2-5 meters high, with numerous slender branches. Leaves are leathery, often clustered at the branch tips, ovate, elliptic-ovate, or obovate, with a short, gradually pointed apex, slightly revolute and finely toothed margins, deep green above, pale white below; corolla broadly funnel-shaped, obovate, usually 2-6 clustered at the branch tips, rose, bright red, or dark red (description source: Baidu Baike)

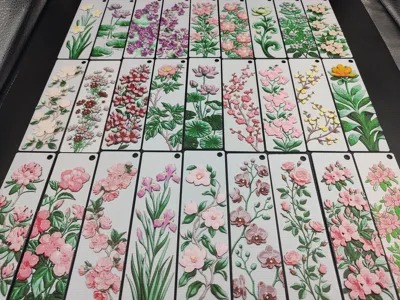

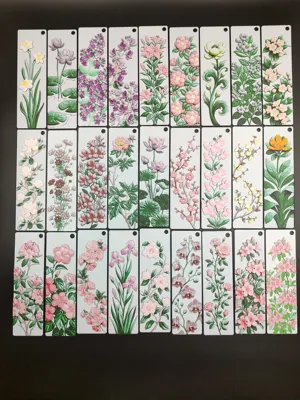

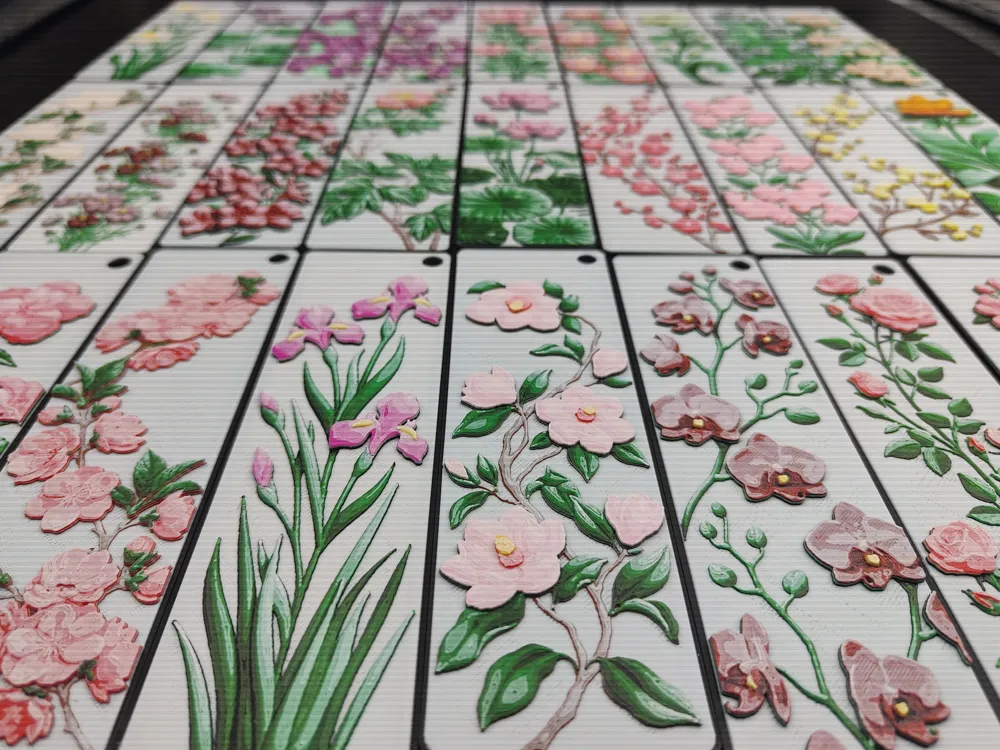

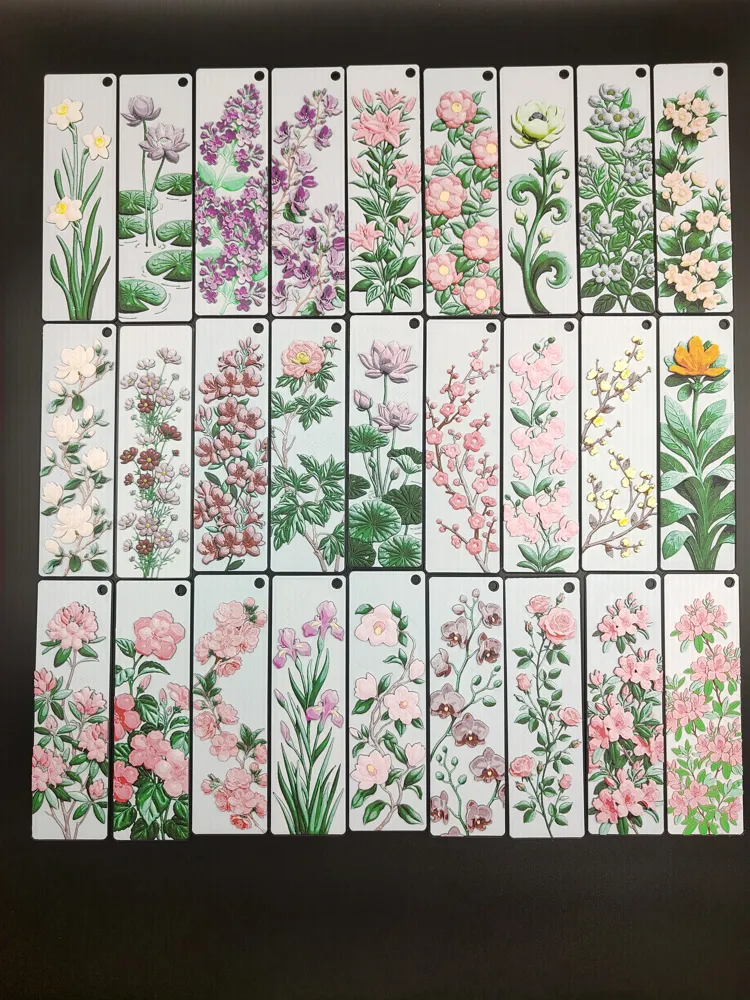

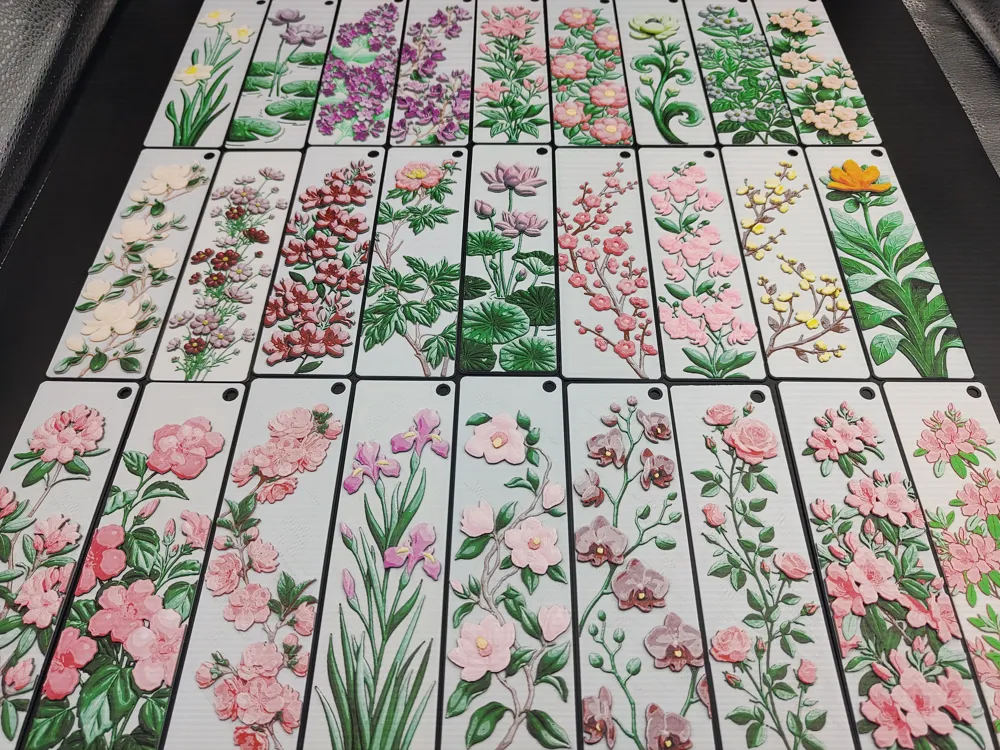

This is one of the [Chinese Provincial Flower Series Bookmarks], hope you like it.

🚀 Core Technology: hicolors-3d

This model is generated using the hicolors-3d workflow, which offers the following advantages compared to traditional processes:

No AMS color changing system required: Using a layered color changing design approach, no color changing system is needed to print the model. You only need to manually change the filament at the corresponding layers, resulting in extreme material saving.

Precise Layer Height: By physically simulating all possible color overlays, effective heights are allocated to limited layer heights, saving layer height usage.

Intuitive Matching: Based on color and region matching logic (where regions can always be matched to desired colors), which is more intuitive than traditional grayscale matching.

Physical-level Simulation: The preview effect is the print effect, accurately simulating color superposition at different layer heights.

Light and Shadow Aesthetics: Designed specifically for FDM printing, fully utilizing the translucent color overlay characteristics of PLA and other materials.

🔄 Color Change Instructions | Color Change Instructions

No multi-color 3D Printer (AMS) is needed; manual color changes can be performed with a standard single-nozzle machine:

Color change information is included in the 3mf file; simply download and view it.

Here is the filament information used for printing, for your reference:
Base/Start Color:black - TD：0.1

| Change Height | Total Layers | Change to | Brand | HEX | RGB | TD |

|----------|----------|--------|------|-----|-----|-----|

| 0.64mm | 7 | 18-white | - | #ffffff | rgb(255, 255, 255) | 4.4 |

| 1.12mm | 13 | 18-chooclete | - | #684425 | rgb(104, 68, 37) | 0.4 |

| 1.36mm | 16 | 18-white | - | #ffffff | rgb(255, 255, 255) | 4.4 |

| 1.60mm | 19 | 18-black | - | #181b17 | rgb(24, 27, 23) | 0.1 |

| 1.76mm | 21 | 18-green | - | #4d943d | rgb(77, 148, 61) | 1.8 |

| 2.08mm | 25 | 18-white | - | #ffffff | rgb(255, 255, 255) | 4.4 |

| 2.48mm | 30 | 18-red | - | #a82b2d | rgb(168, 43, 45) | 3.1 |

| 2.80mm | 34 | 18-white | - | #ffffff | rgb(255, 255, 255) | 4.4 |

🛠️ Print Settings | Print Settings

For best results, please strictly follow these settings:

Infill: 100% (Mandatory)

Layer Height: 0.08mm

First Layer Height: 0.16mm

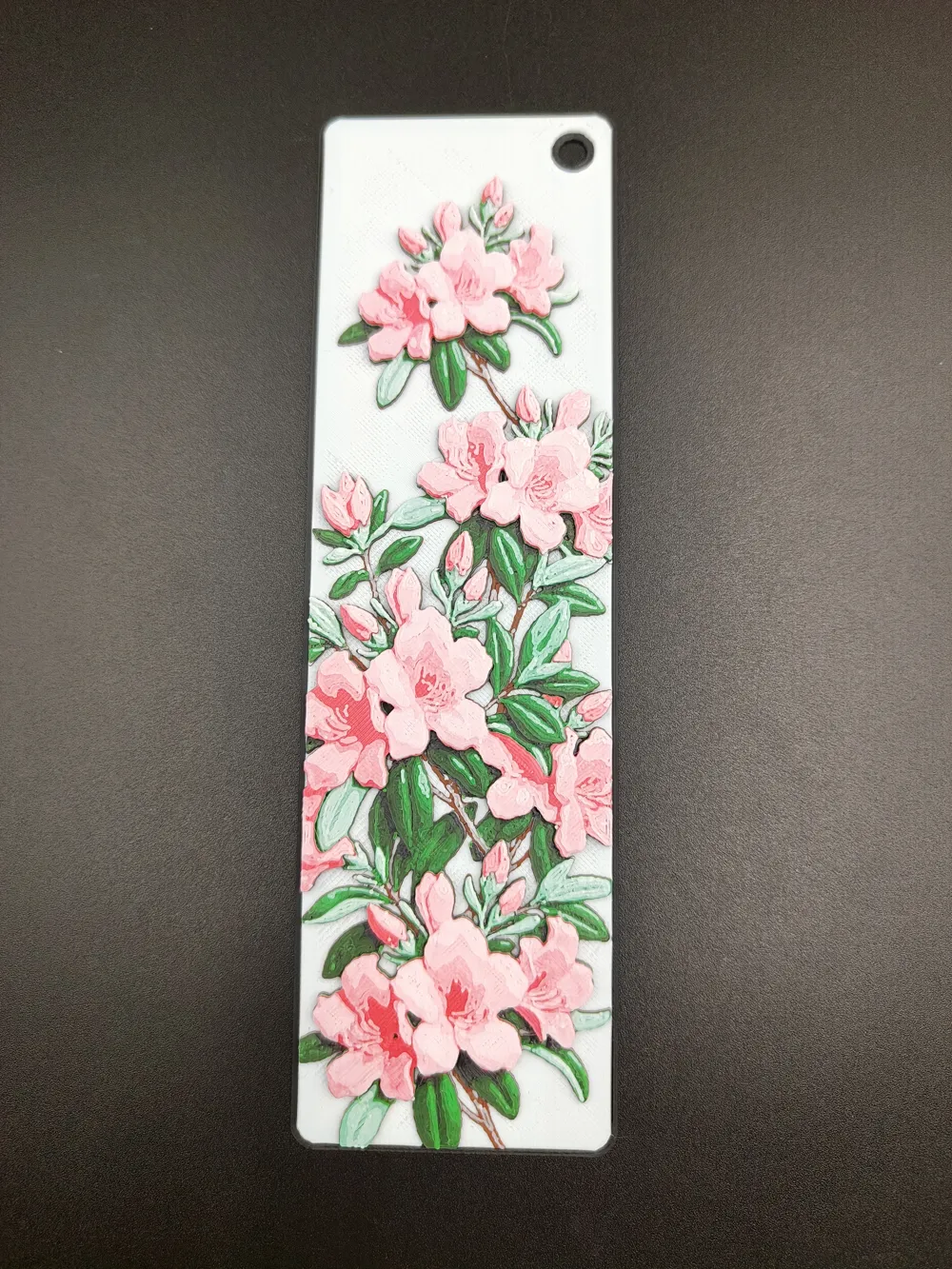

Nozzle Recommendation: 0.2mm is recommended (for strongest detail), 0.4mm is also acceptable (the actual photo was taken with 0.4mm).

Model Scaling: Do not adjust the Z-axis scale of the model to ensure correct layered color change information. You can freely adjust the X and Y axis scaling to get your desired size.

Post-processing Tip: Quickly run a lighter over the model surface to perfectly remove common FDM fine stringing. 🔥
