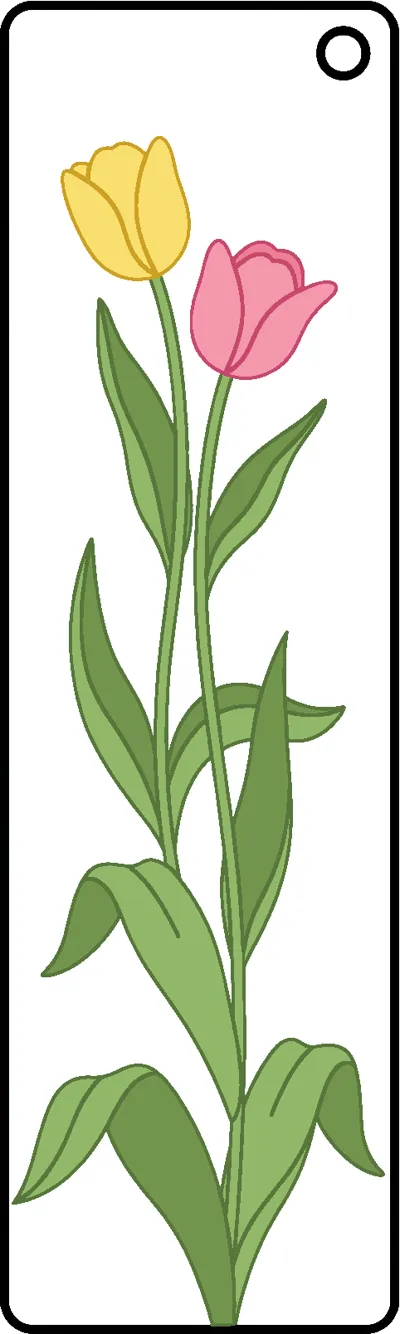

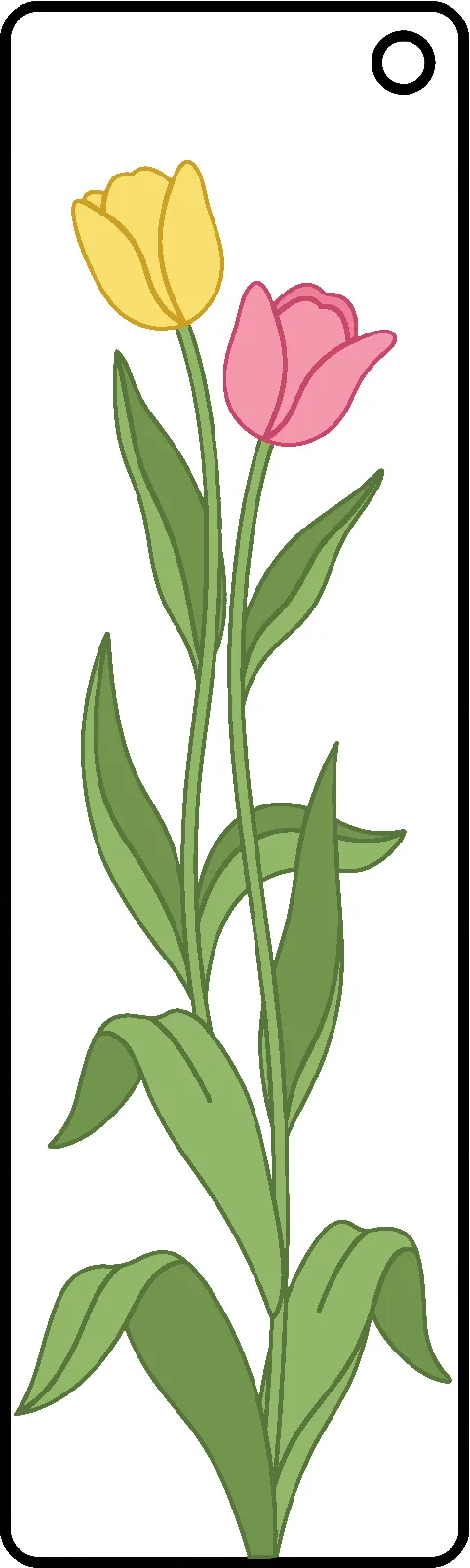

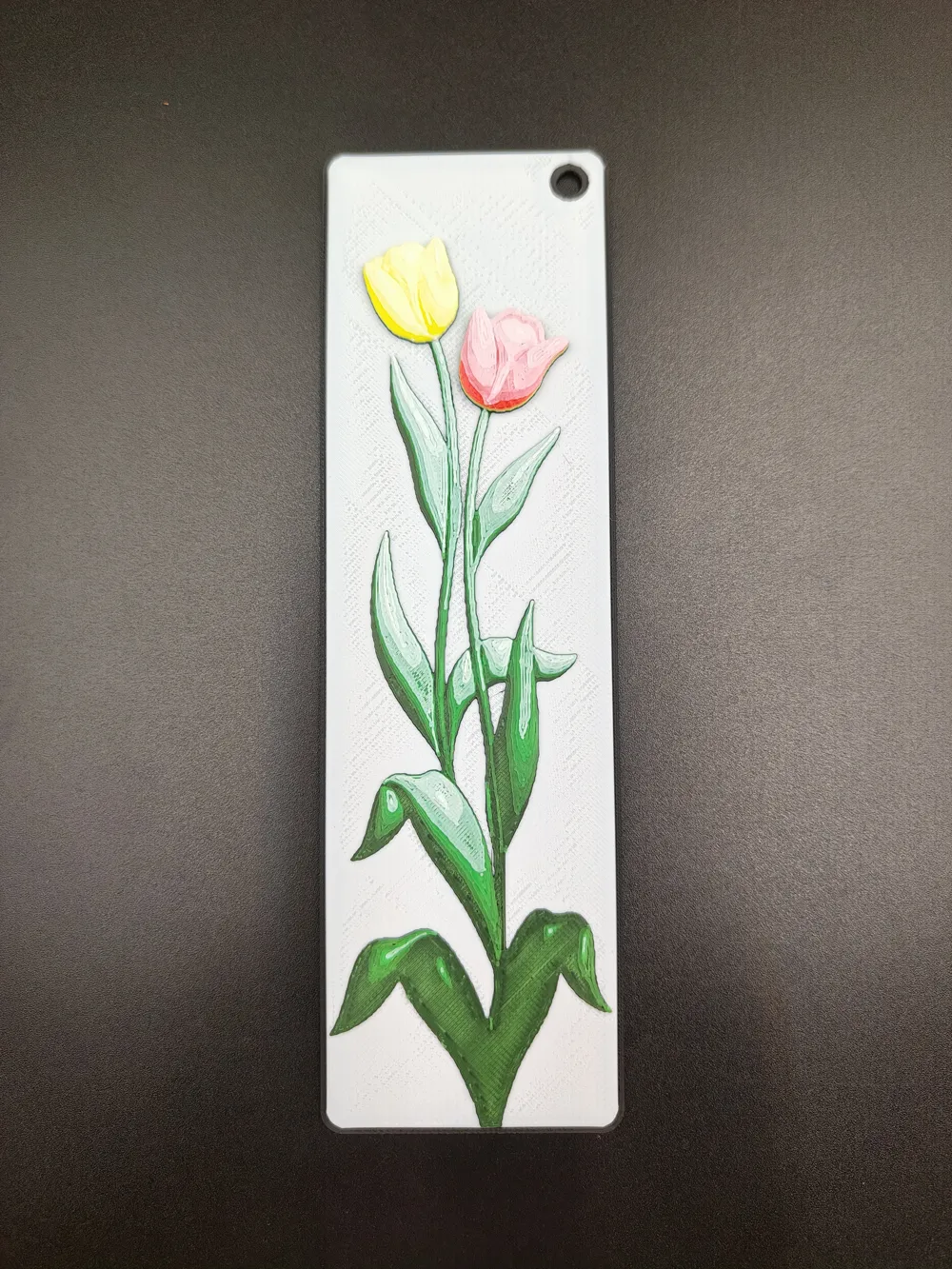

🌟 [Tulip lithophane bookmark]
🎨 Introduction | Description
The tulip is the provincial flower of Gansu Province/Qinghai Province.
Tulips have large, cup-shaped flowers, with elegant stems, a wide variety of colors, and a fresh, pleasant fragrance. They are suitable for potted plants, ground planting, and can also be used as cut flowers.

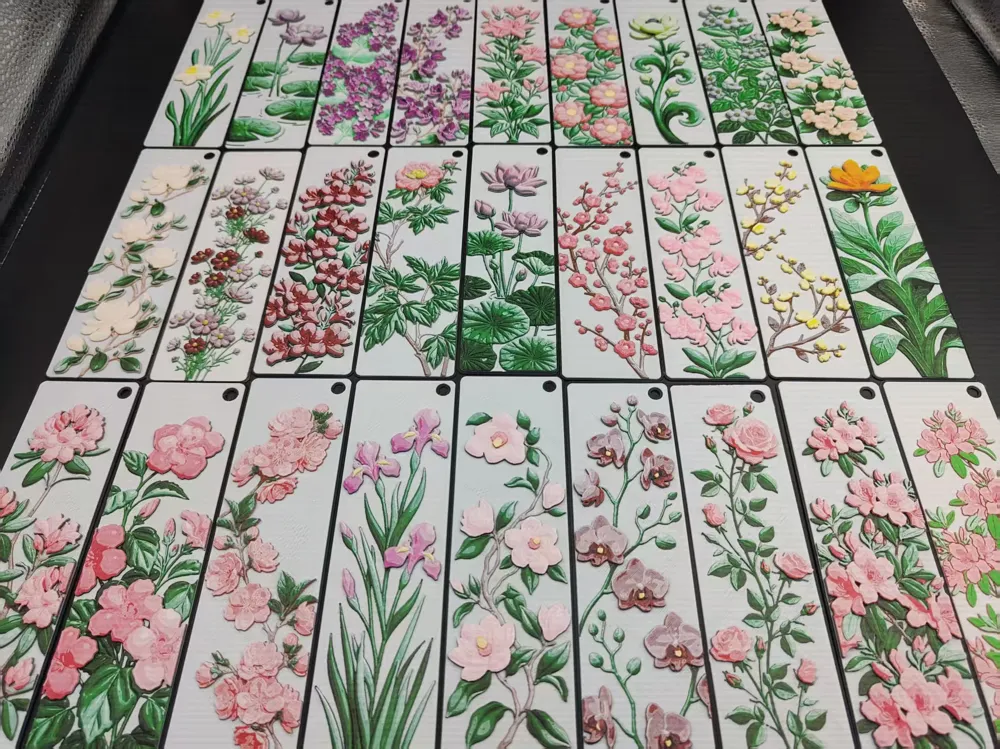

This is one of the [Chinese Provincial Flower Series Bookmarks]. I hope you like it.
🚀 Technical Core: hicolors-3d
This model is generated using the hicolors-3d workflow. Compared to traditional processes, it offers the following advantages:
No AMS color changing system required: Using a layered color change design concept, no color changing system is needed to print the model. Simply manually change the filament at the corresponding layers, which is extremely material-efficient.
Precise Layer Height: By physically simulating all possible color overlays, effective height is distributed across limited layer heights, saving layer height occupancy.
Intuitive Matching: Based on color and region matching logic (there is no situation where a region cannot match the desired color), it is more intuitive than traditional grayscale matching.
Physical-level Simulation: Preview effect is the print effect, precisely simulating color overlay at different layer heights.
Light and Shadow Aesthetics: Specifically designed for FDM printing, fully utilizes the light-transmitting and color-stacking properties of PLA materials.
🔄 Color Change Instructions | Color Change Instructions
No multi-color printer (AMS) required; a regular single-nozzle machine can change colors manually:
Color change information is included in the 3mf file; simply download and view it.
Here is the filament information used for printing, for your reference:
Base/Start Color: black - TD：0.1
| Color Change Height | Accumulated Layers | Change to | Brand | HEX | RGB | TD |
|----------|----------|--------|------|-----|-----|-----|
| 0.64mm | 7 | 18-white | - | #ffffff | rgb(255, 255, 255) | 4.4 |
| 1.12mm | 13 | 18-black | - | #181b17 | rgb(24, 27, 23) | 0.1 |
| 1.28mm | 15 | 18-green | - | #4d943d | rgb(77, 148, 61) | 1.8 |
| 1.60mm | 19 | 18-white | - | #ffffff | rgb(255, 255, 255) | 4.4 |
| 2.00mm | 24 | 18-yellow | - | #fbf431 | rgb(251, 244, 49) | 5.5 |
| 2.40mm | 29 | 18-white | - | #ffffff | rgb(255, 255, 255) | 4.4 |
| 2.72mm | 33 | 18-red | - | #a82b2d | rgb(168, 43, 45) | 3.1 |
| 3.04mm | 37 | 18-white | - | #ffffff | rgb(255, 255, 255) | 4.4 |
🛠️ Print Parameters | Print Settings
For best results, please strictly adhere to the following settings:
Infill: 100% (mandatory)
Layer Height: 0.08mm
First Layer Height: 0.16mm

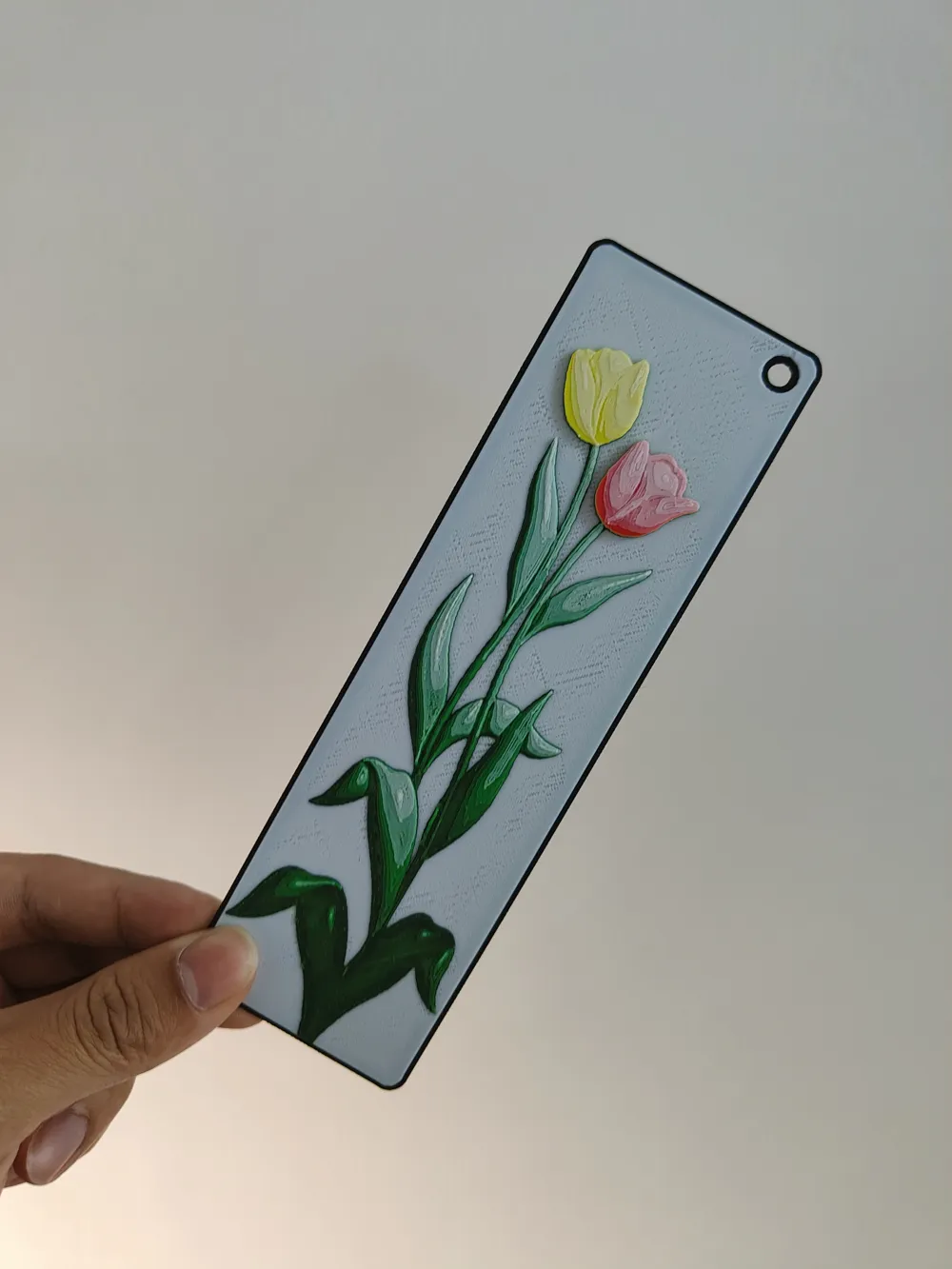

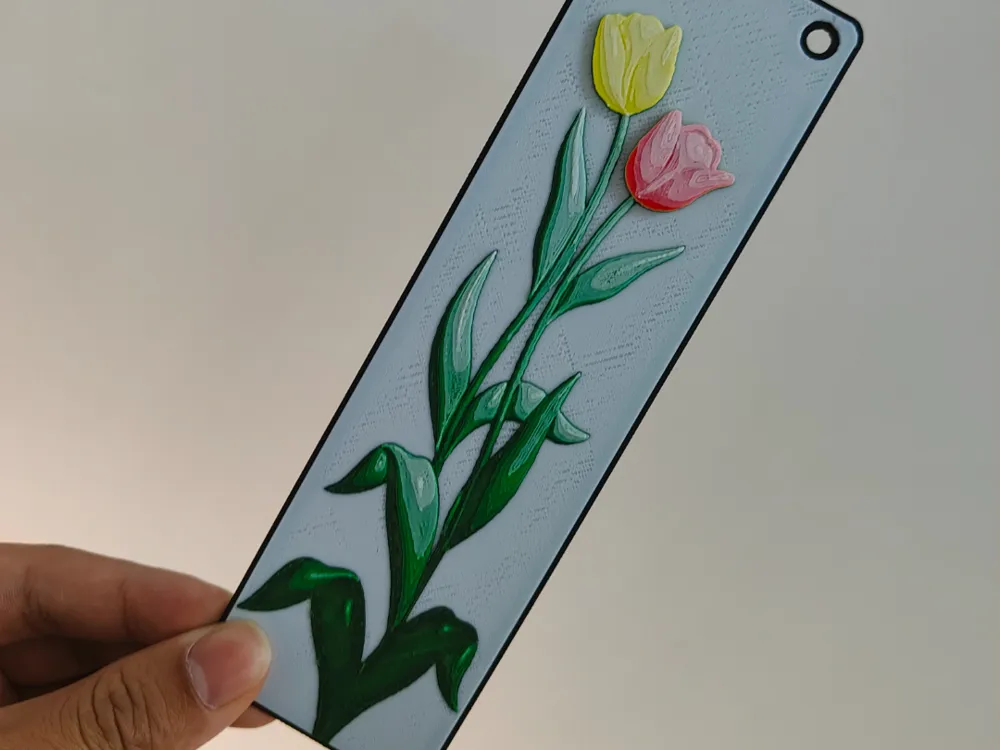

Nozzle recommendation: 0.2mm recommended (for strongest detail), 0.4mm is also acceptable (the actual photos were taken with 0.4mm).
Model Scale: Do not adjust the model's Z-axis scale to ensure correct layered color change information. You can freely adjust the X and Y axis scales to get your desired size.
Post-processing tip: Quickly run a lighter over the model surface to perfectly remove common FDM fine stringing.🔥

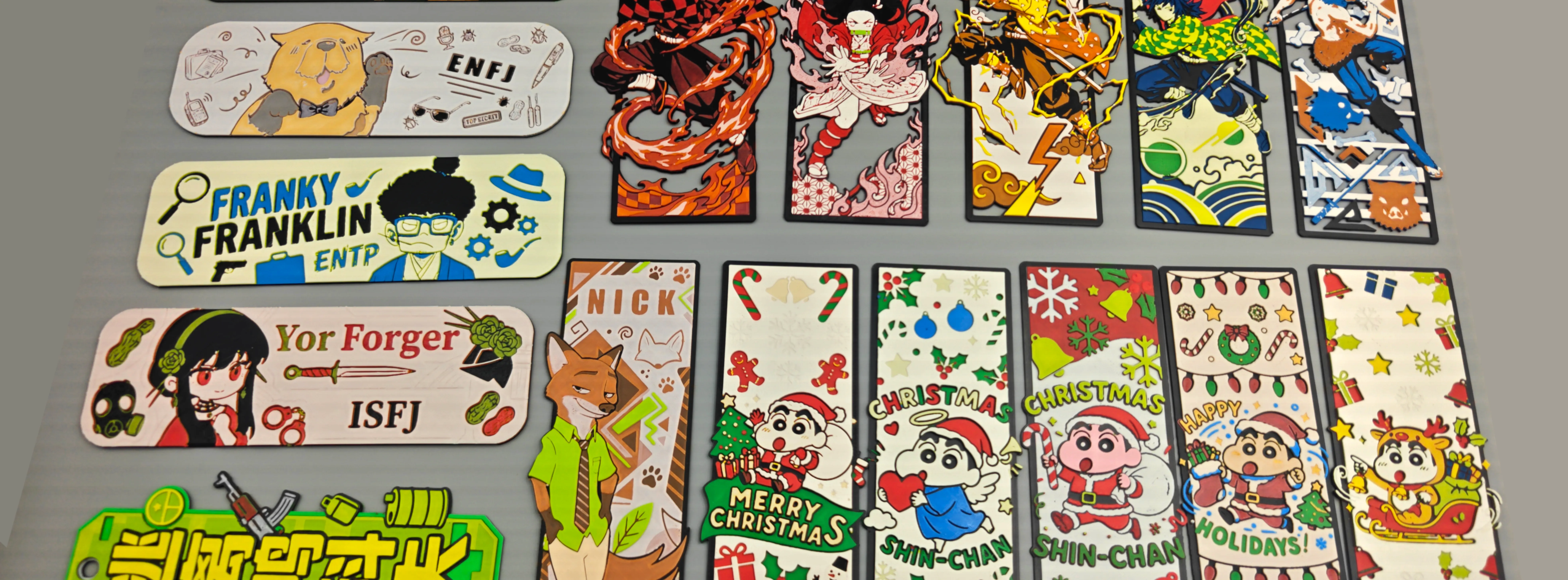

✨Click on the homepage to see more of our high-quality works
