Chimney Sweep Funnel Adapter
Print Profile(1)
Bill of Materials
Description
Boost Me (for free)
If you like this model, a boost helps support future designs and free uploads. Thanks for the support!

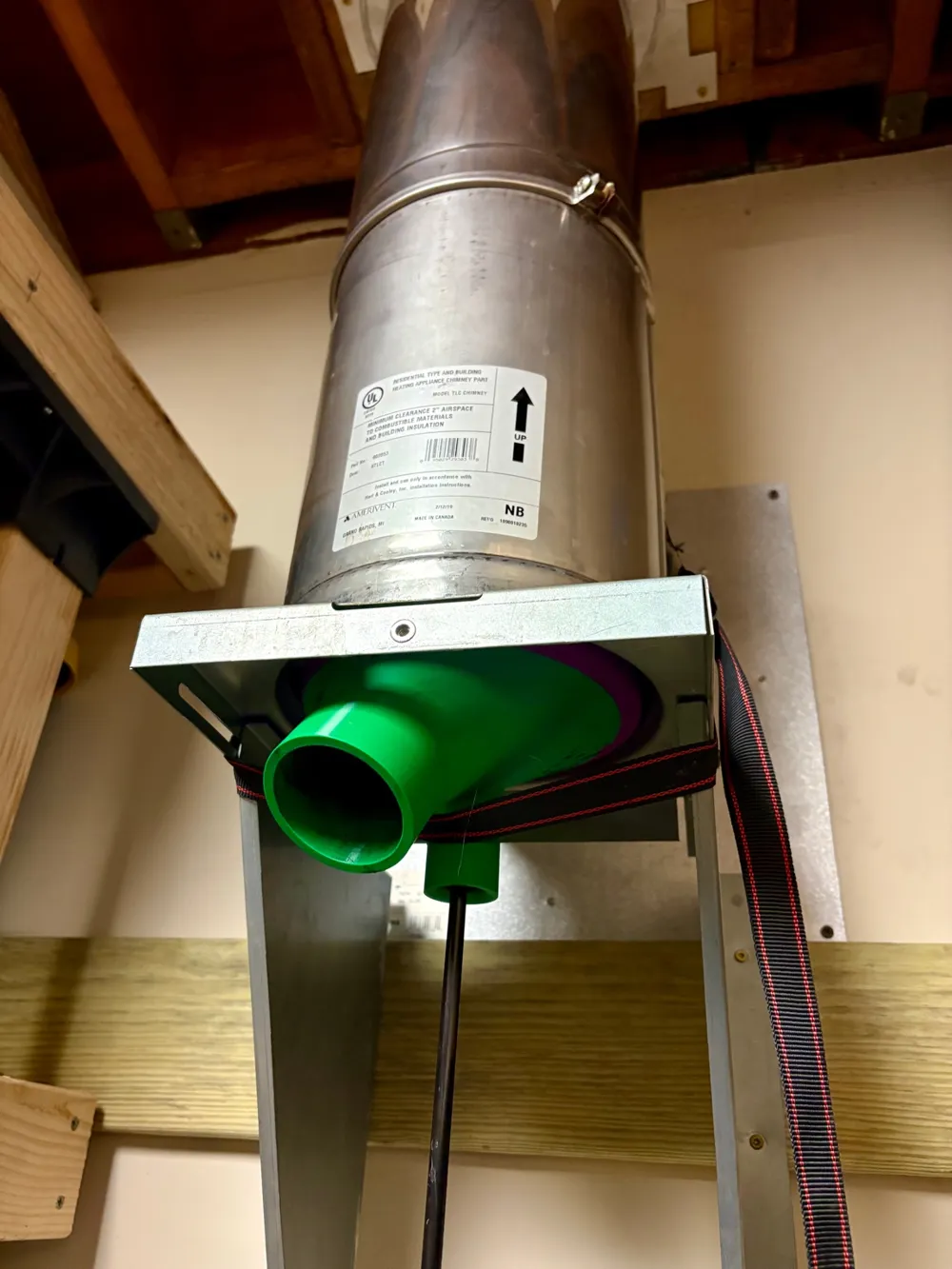

This soot collection funnel adapter is designed to mount under a chimney or flue pipe while cleaning with a rotary chimney brush. It captures falling soot and debris and directs it into a vacuum hose for cleaner indoor chimney maintenance.
The design features:

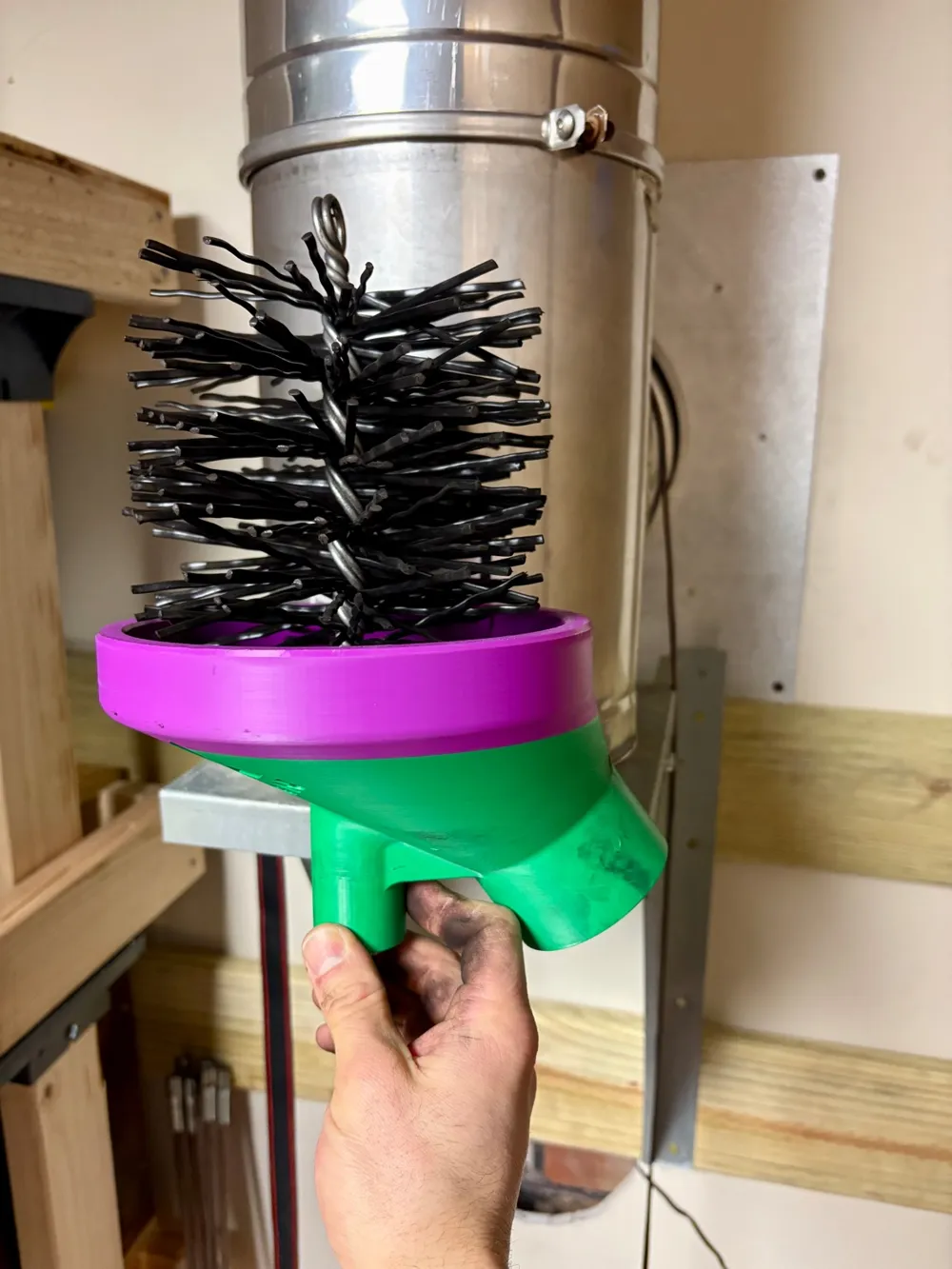

- Wide debris capture bowl

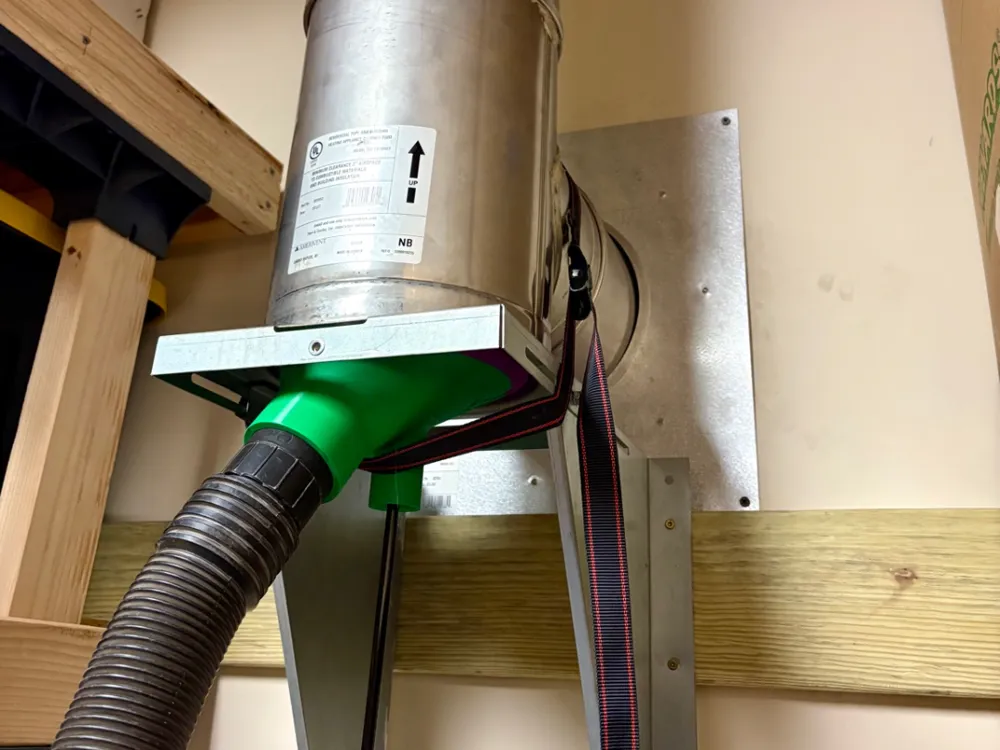

- Angled side outlet for vacuum hose

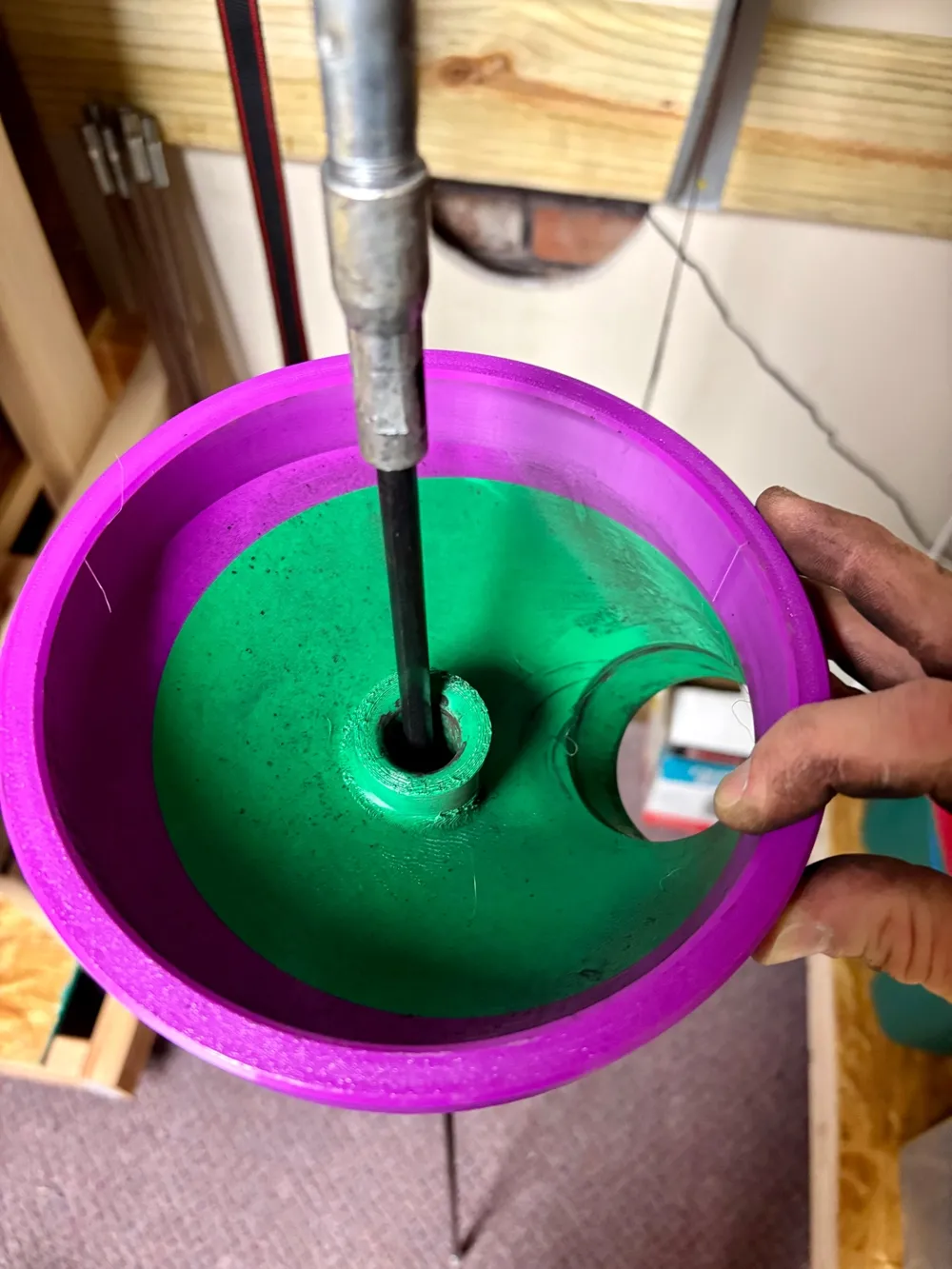

- Center guide port for cleaning rod
- Smooth internal funnel for better airflow
Great for indoor chimney sweeping setups where dust control matters. Helps reduce mess while cleaning flue pipes.
Assumption: Designed for standard round 6" Triple-wall flue pipe and typical chimney cleaning rods. Be sure to scale or modify to match your pipe and hose diameter. My specific chimney is Hart and Cooley TLC series.
Parts Required:

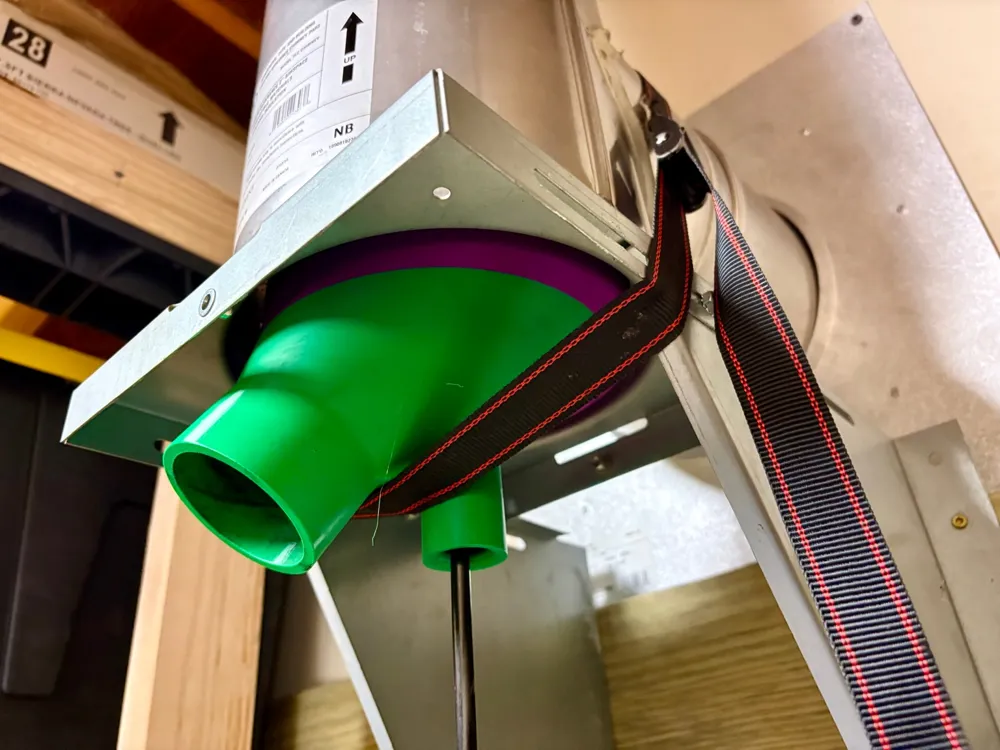

- Lashing Strap to hold to tee
- Get parts here: https://max3ddesign.com/#garagetools
