Wall Mount for Ecowitt HP2560 / Froggit HP2000

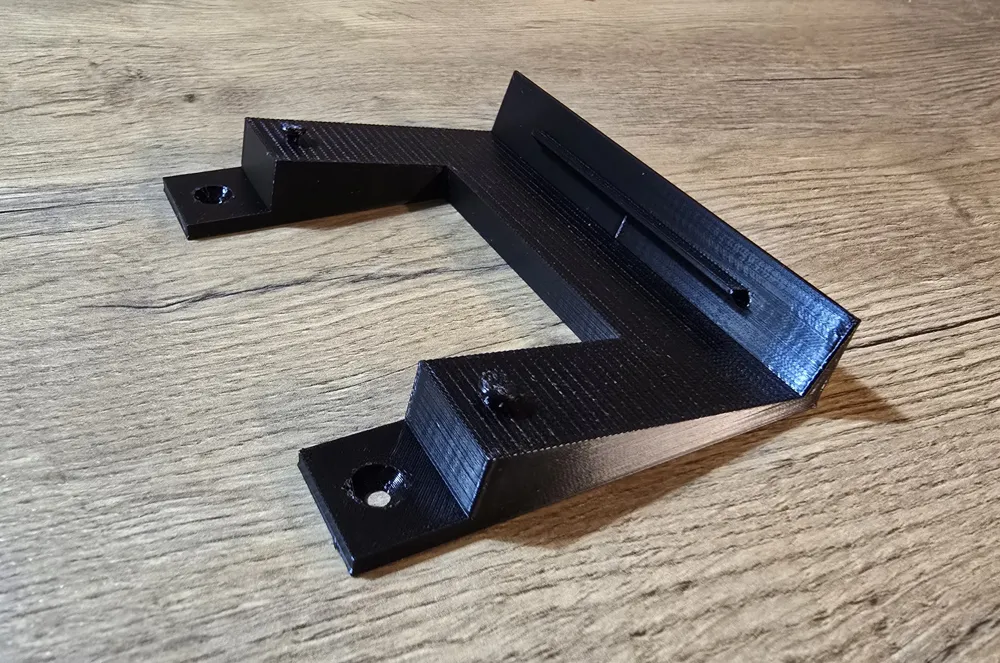

This custom-fit wall mount allows the console of the Ecowitt HP2560 or Froggit HP2000 weather stations to be mounted securely and space-efficiently on the wall.

Since the original device is primarily designed for standing, this mount fills the gap for anyone who prefers to keep their display firmly in view in a central location.

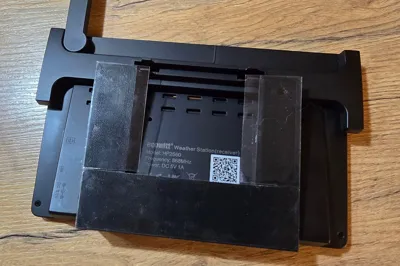

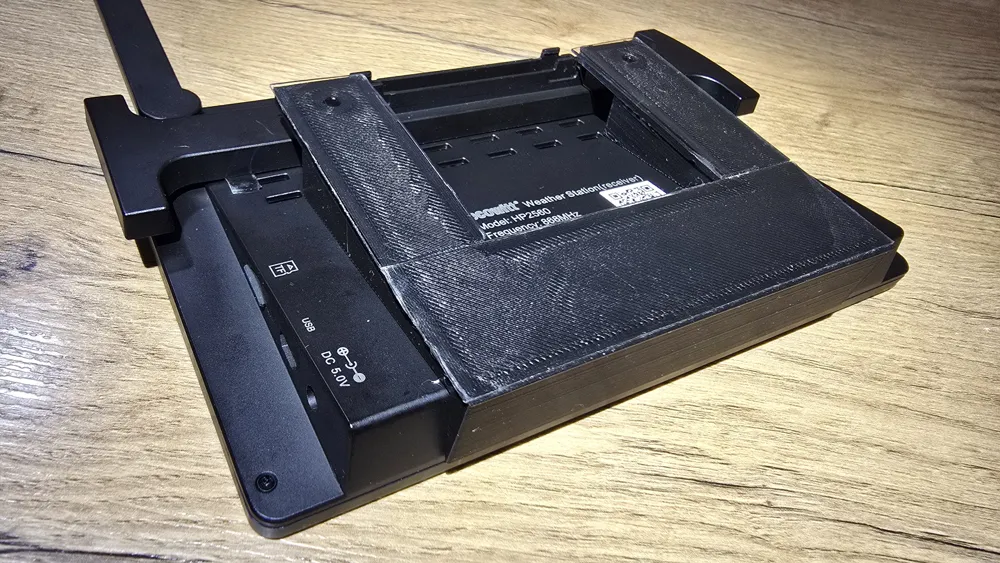

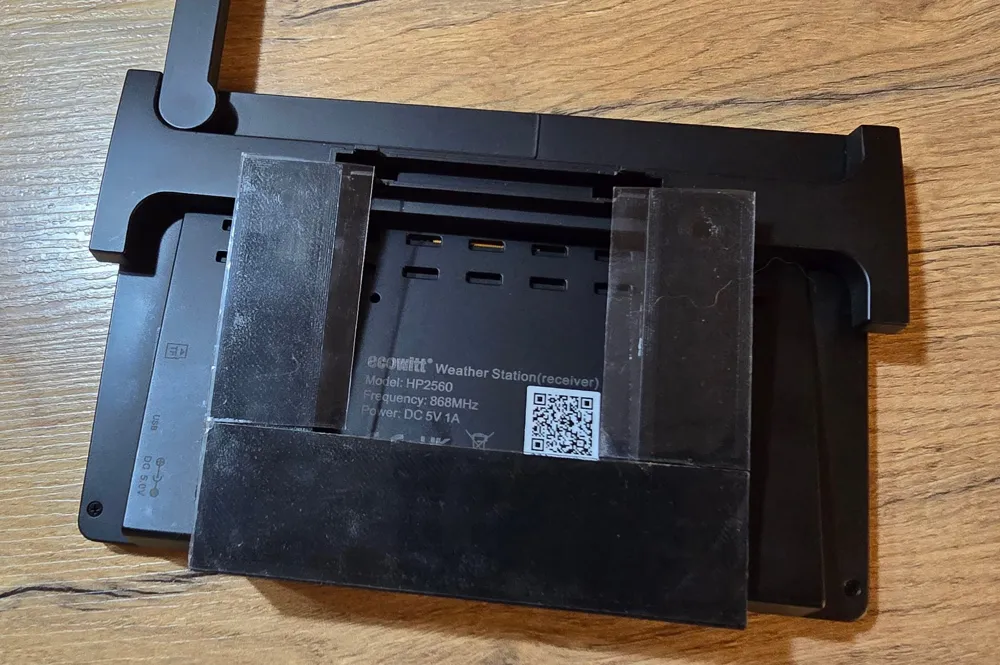

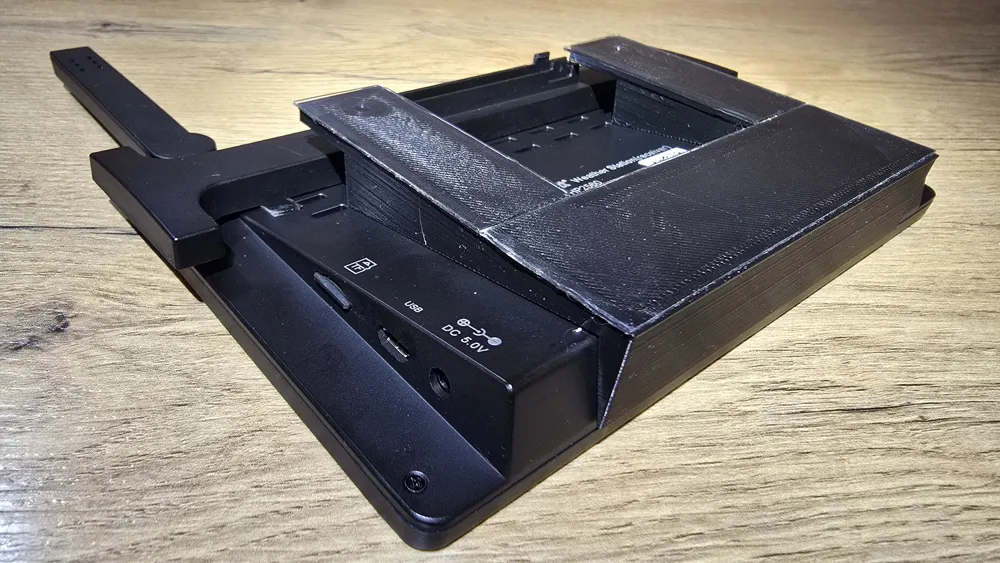

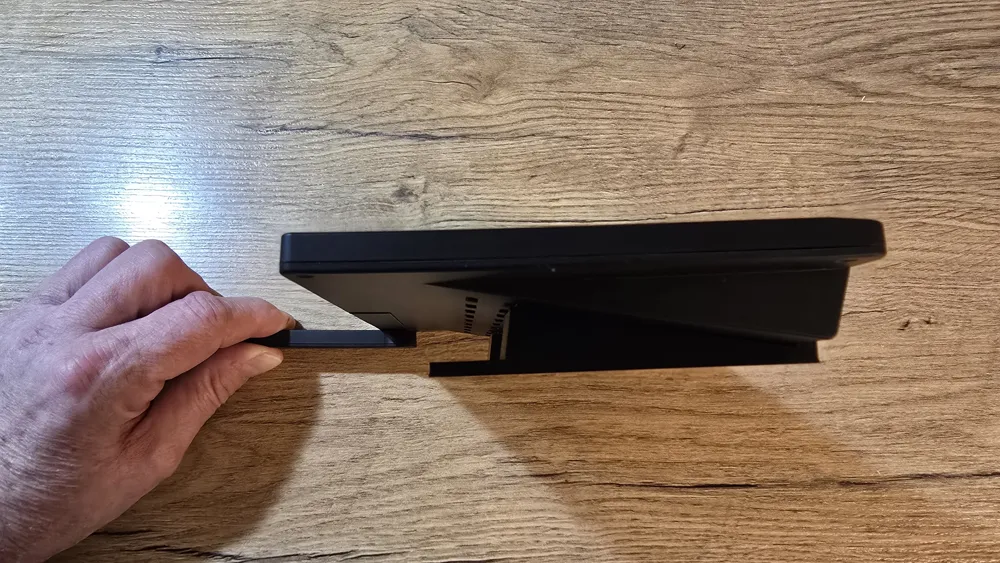

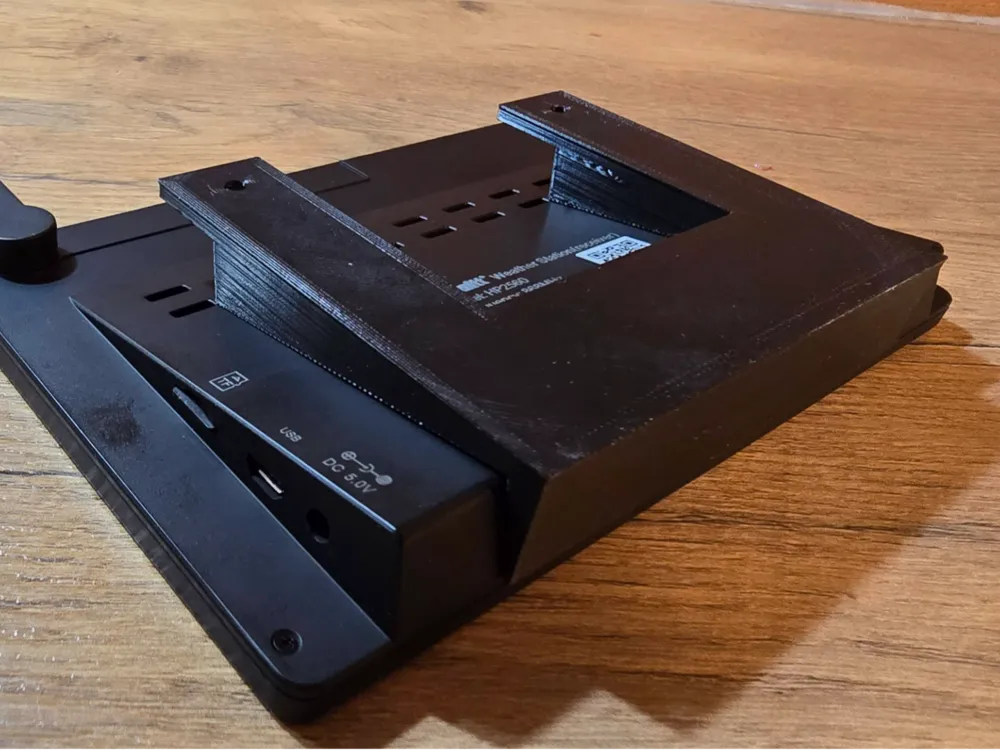

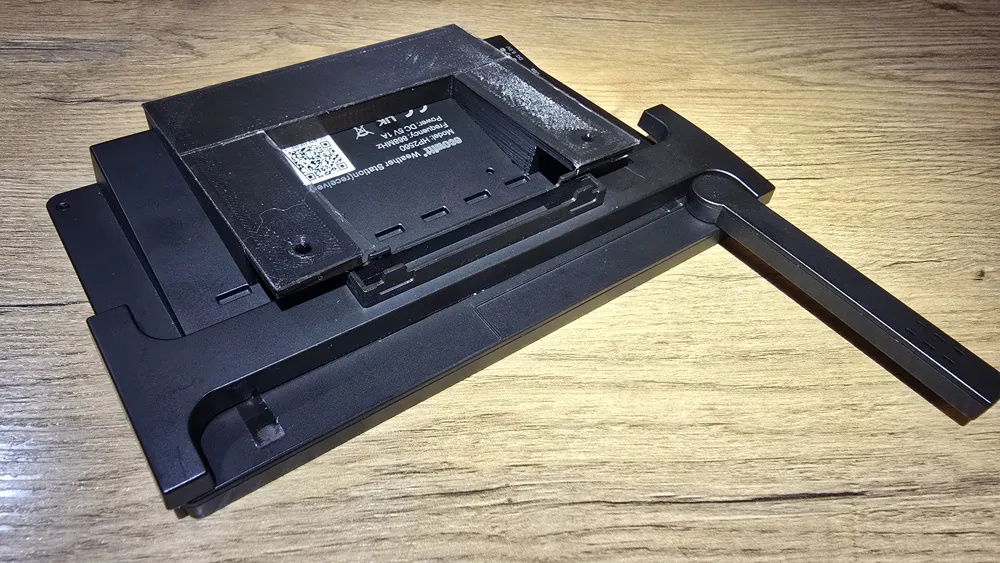

The design is constructed so that the console can be easily slid into the guide from above. Thanks to the precise angle, the display remains easy to read, while all connections (power supply, SD card slot) on the side remain freely accessible. Additionally, there is still space to store the original stand so it doesn't get lost.

Design Features

Compatibility: Perfectly matched for Ecowitt HP2560 and identically constructed models such as the Froggit HP2000.

Secure Hold: The console sits firmly in the holder and cannot tip forward.

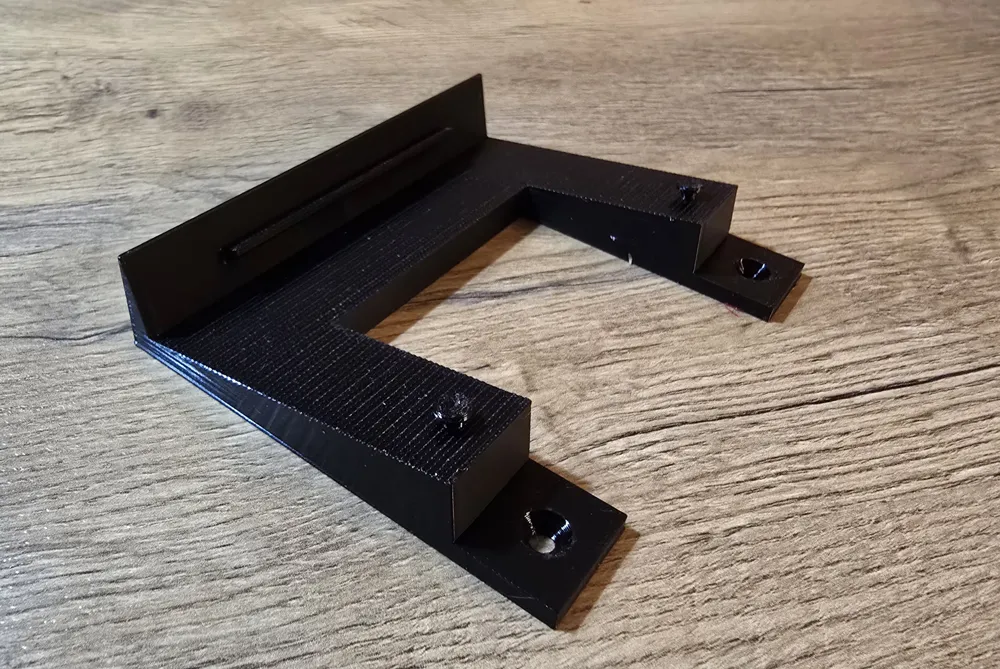

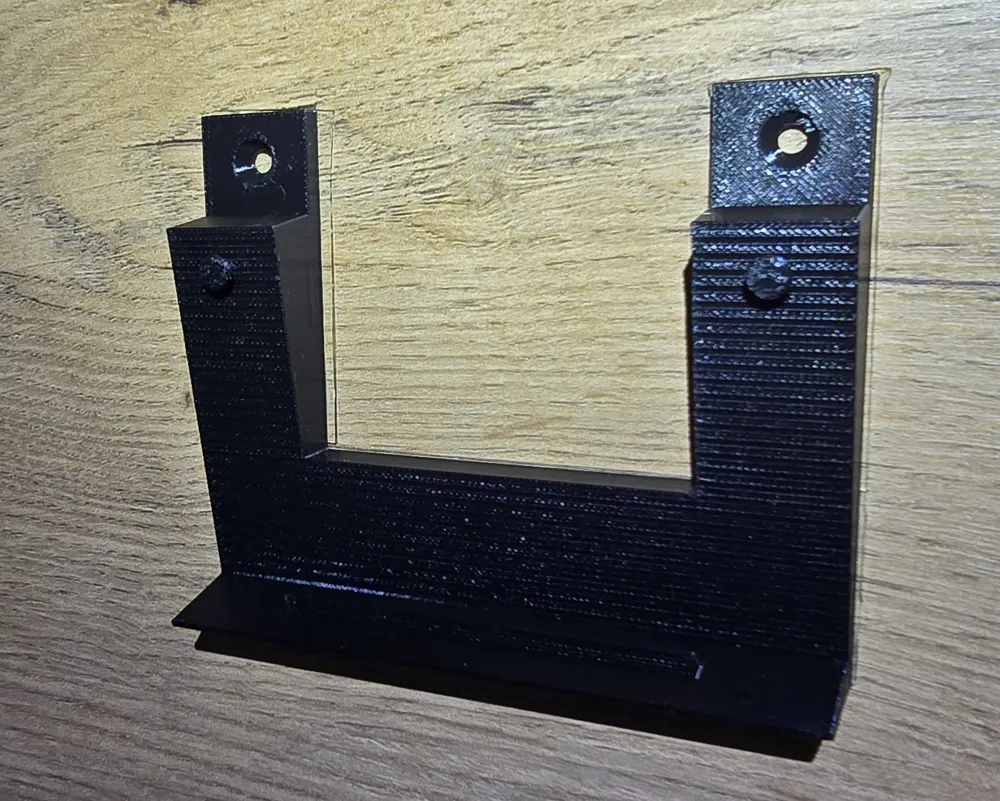

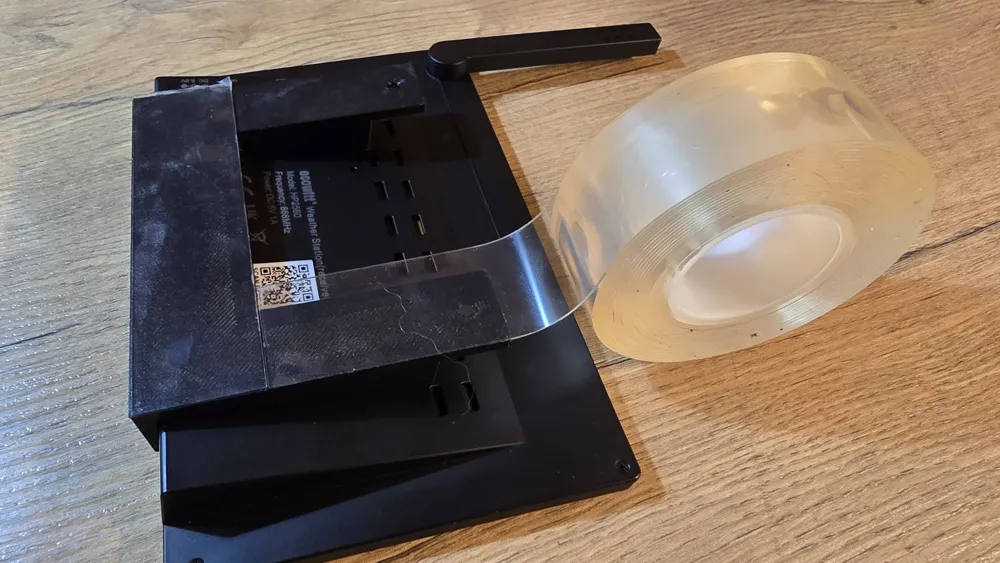

Two Mounting Options: * Screw Mount: Two integrated countersunk holes for stable fastening with screws. Adhesive Option: The flat back offers enough surface for mounting with strong double-sided adhesive tape (e.g., Nano-Tape) if drilling is not desired.

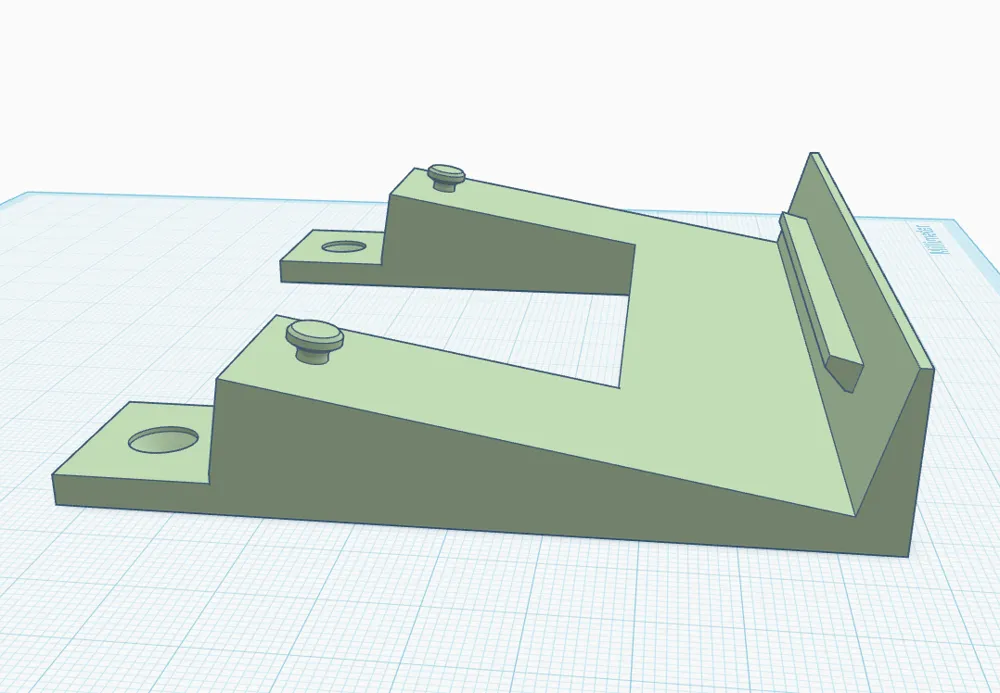

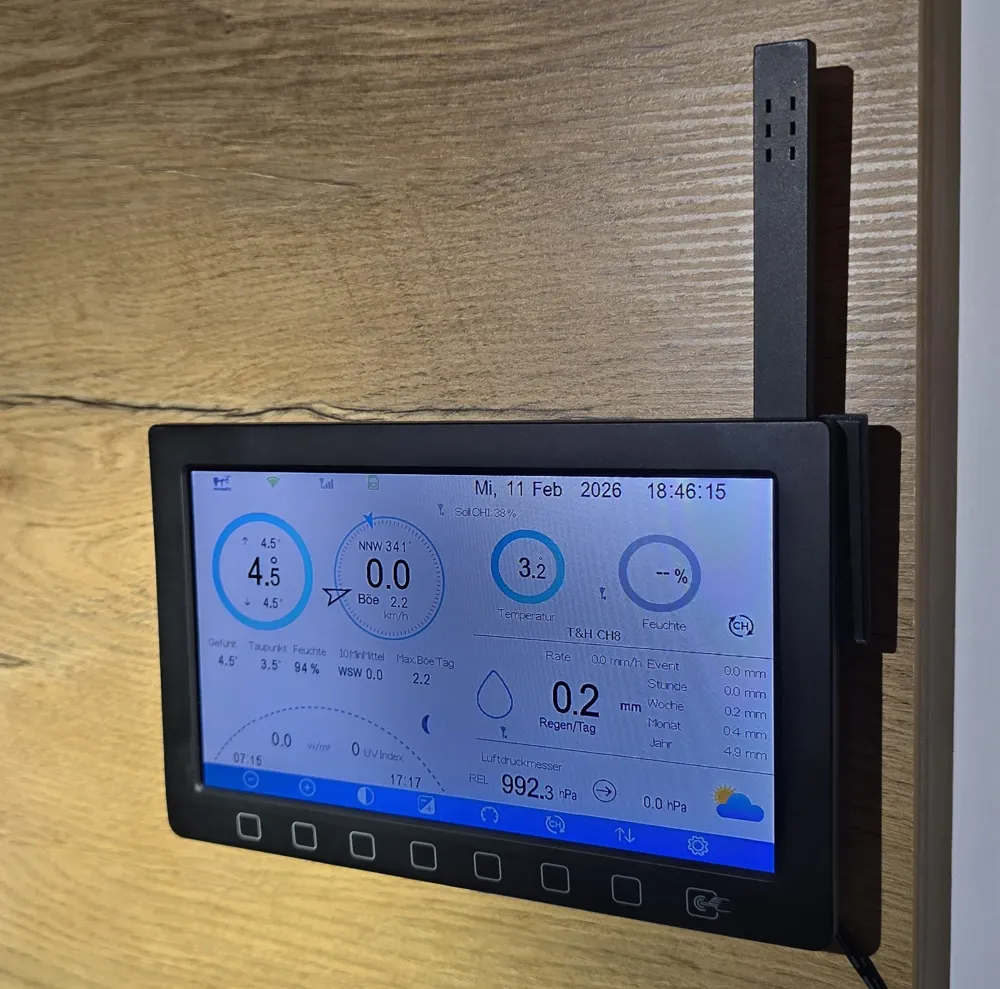

Optimized Angle: The slight tilt ensures an ideal viewing angle when wall-mounted at eye level.

Technical Details / Print Settings

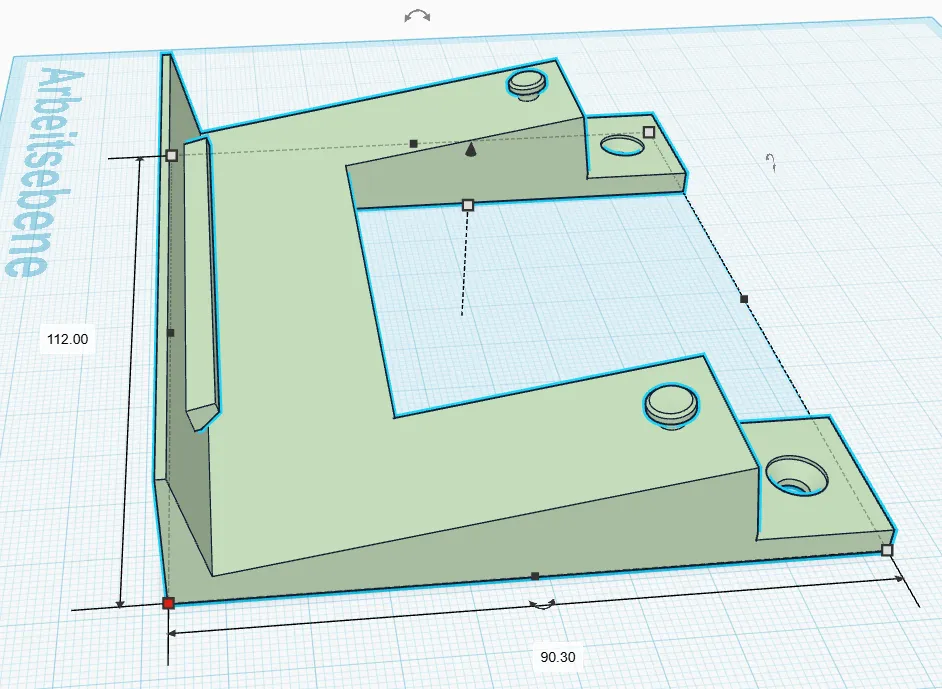

Dimensions: Base area approx. 112 mm x 90 mm.

Material: I used PETG (recommended for better strength on the suspension).

Infill: 15–20%

Support: no supports.

Wall lines: At least 3, to ensure the stability of the screw holes and suspension.

Assembly Note:

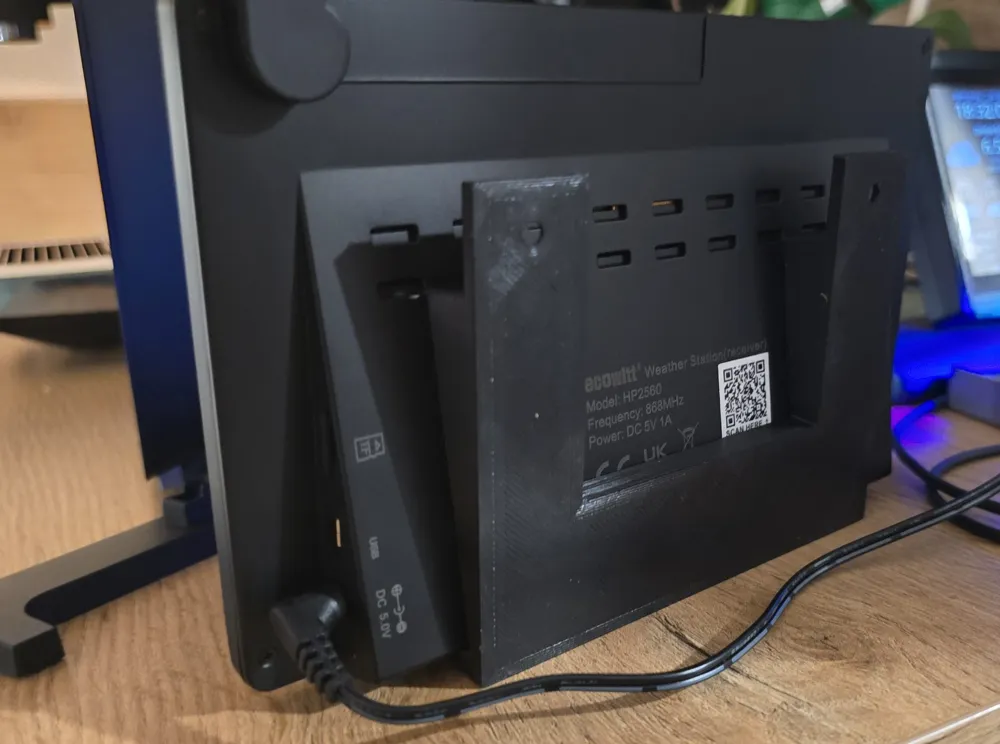

When assembling, make sure to leave enough space upwards to comfortably slide in the console. The power cable can be neatly routed sideways.
