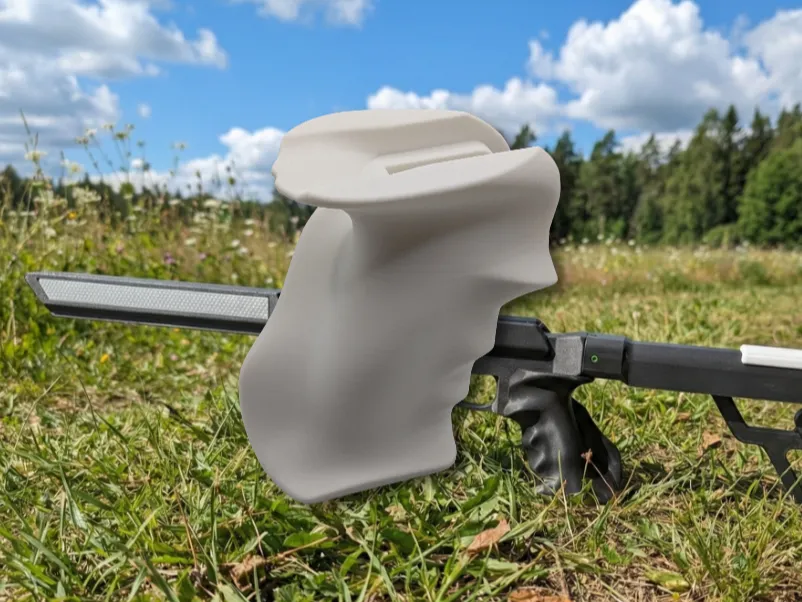

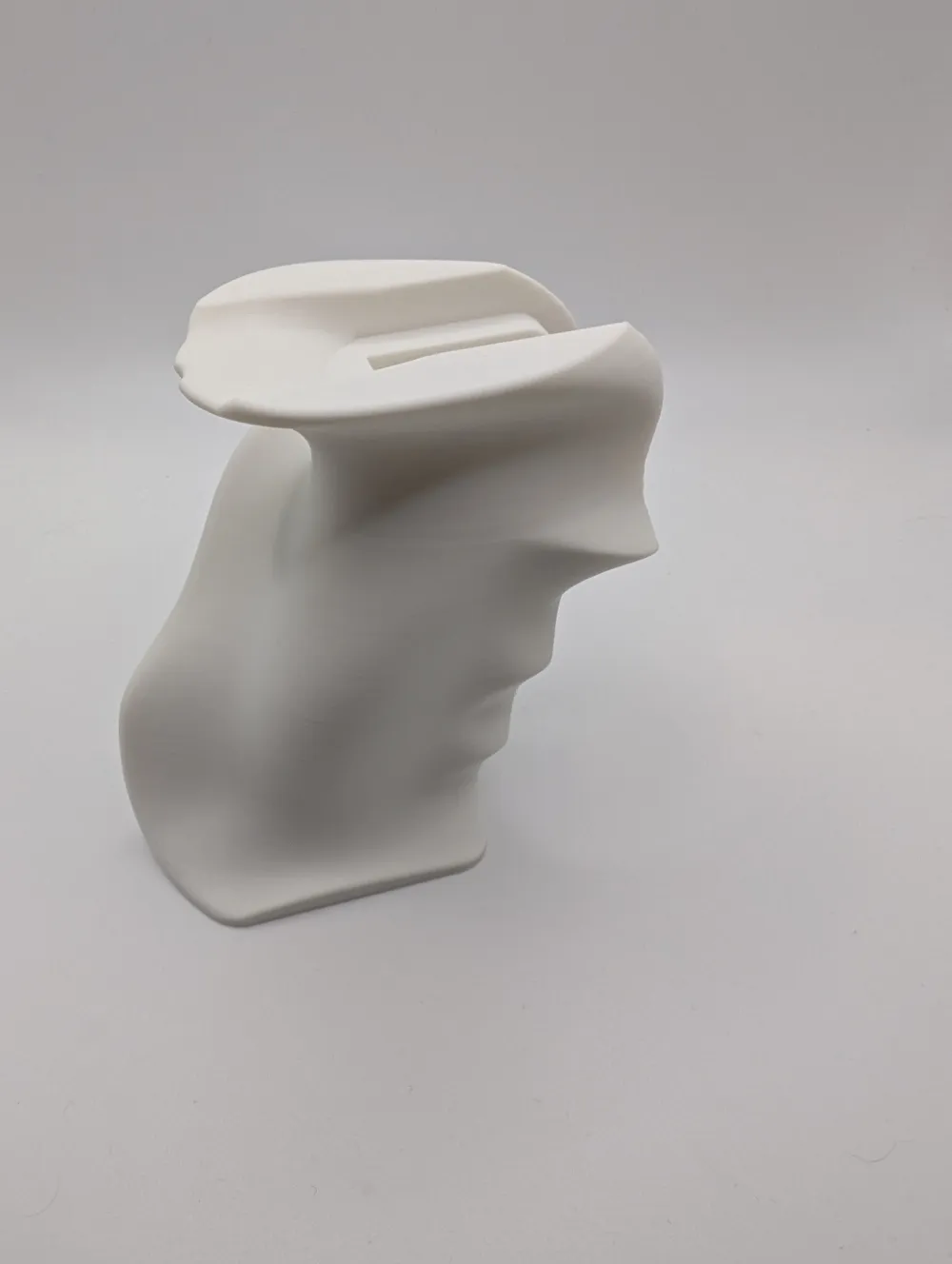

Open source Ergonomic AR grip that I made for my rifle chassie, but here with AR compatible screw hole (¼"x28). Should fit most rifles that using AR grips but its probably not 100% compatible since I made it a little larger than most grips.

How you like the grip will most likely depends a lot on your hand size. I have something around 9-10 (EU sizes).

This was made from a pistol grip I found online many years ago and modified quite a lot but I cant find the original now to attribute it correctly. If you find it, please contact me and I will of course add it here. As its not my original, I publish the source and you are free to modify.

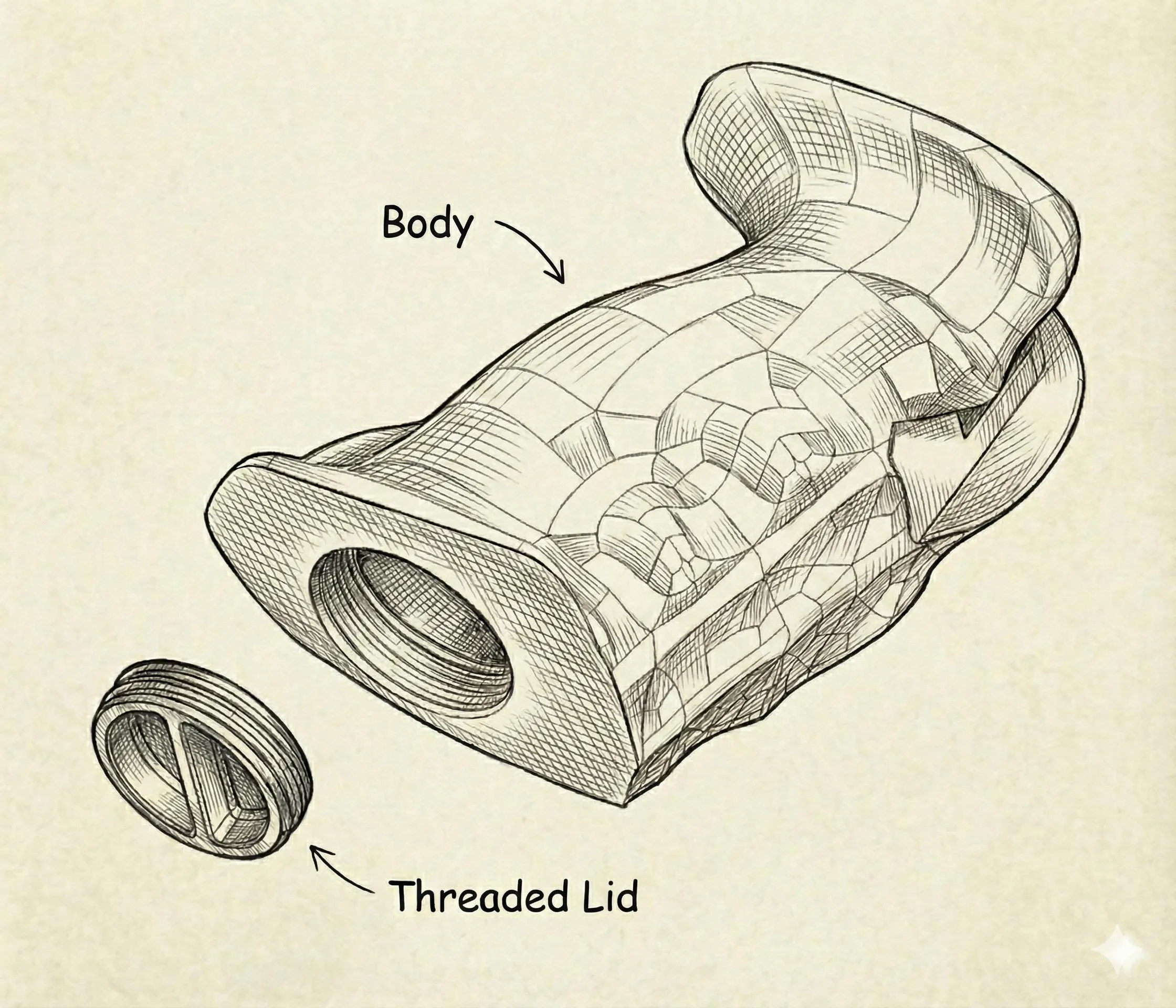

To access the mounting screw there is a open volume inside the handle where you also can hide anything you want. (screw lid)

Printing

No special to think about here. The print profile is using the correct print direction. I have chosen a little more strength for a cost on weight but you can optimize that a lot more if you want it lighter.
