Description
Cleaning floppy disks is important especially ones as old as the 5.25" ones, that is where the ultimate 5.25" floppy disks cleaner comes in! You can either use the lever mechanism or the dial mechanism to spin the floppy disk while cleaning them. The model is inspired by Lemaru's design and Javmaster's design for the floppy disk cleaner, I fixed some issues by designing my own parts which are fully compatible with their designs which allows for easy interoperability between them.
Specs

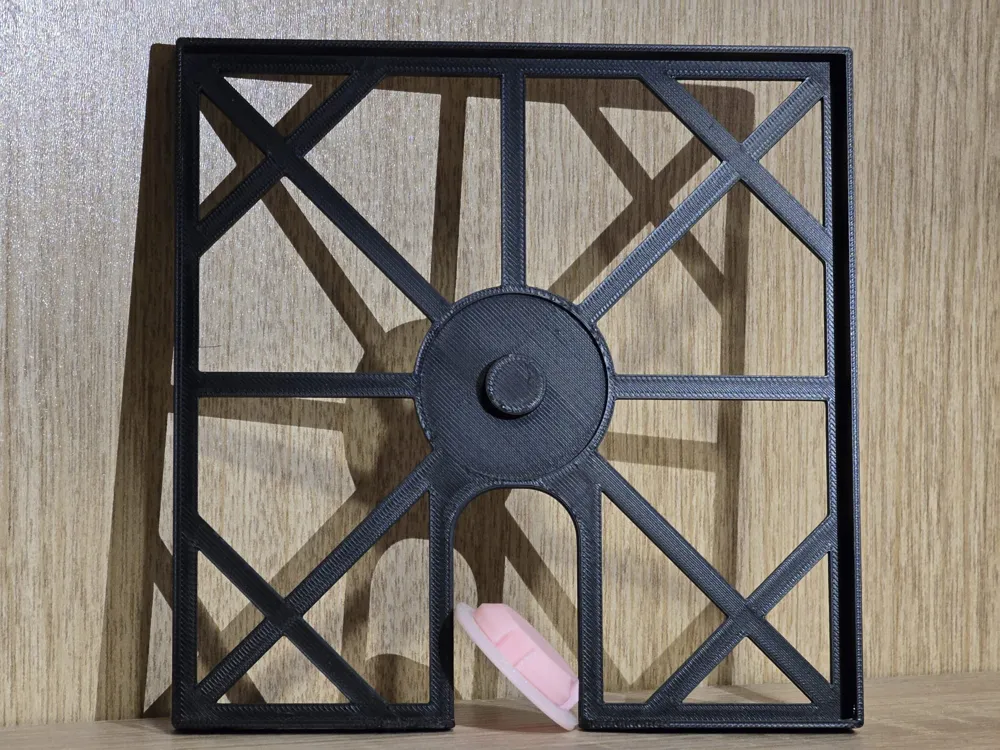

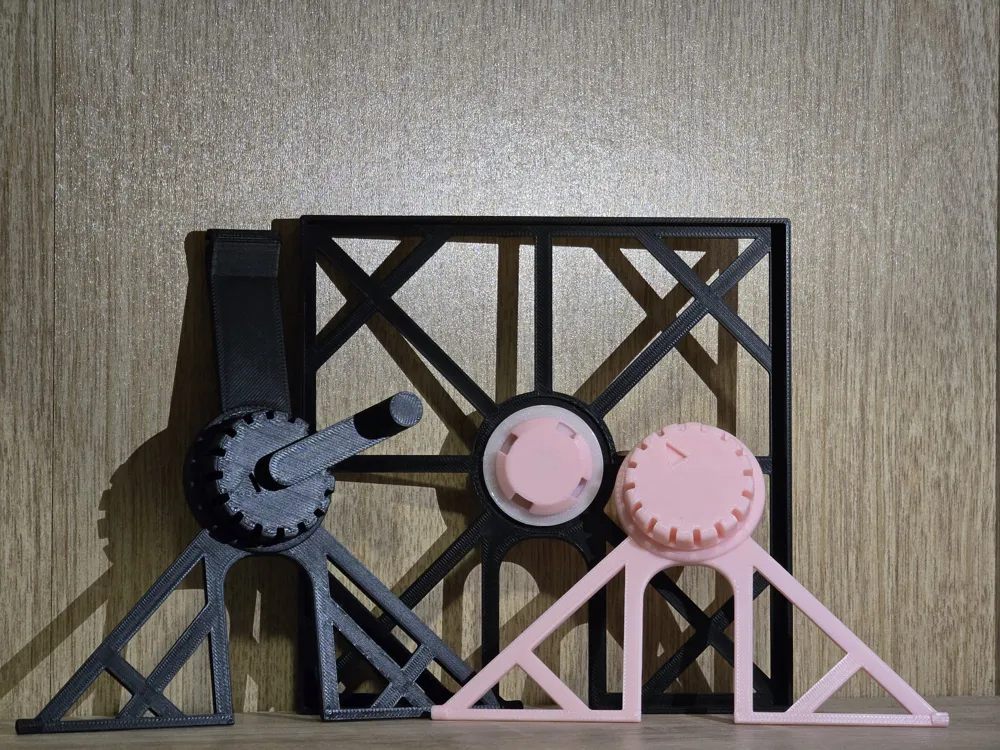

- Parts Included: Housing, Lever Attachment, Dial Attachment, TPU Gasket
- Size: 137.5mm (L) x 180mm (W) x 11mm (H)
- Use Case: Cleaning 5.25" Floppy Disks
- Material Recommendation: PLA/PETG/TPU
Assembly Instructions
Step 1 Assemble Spindle:

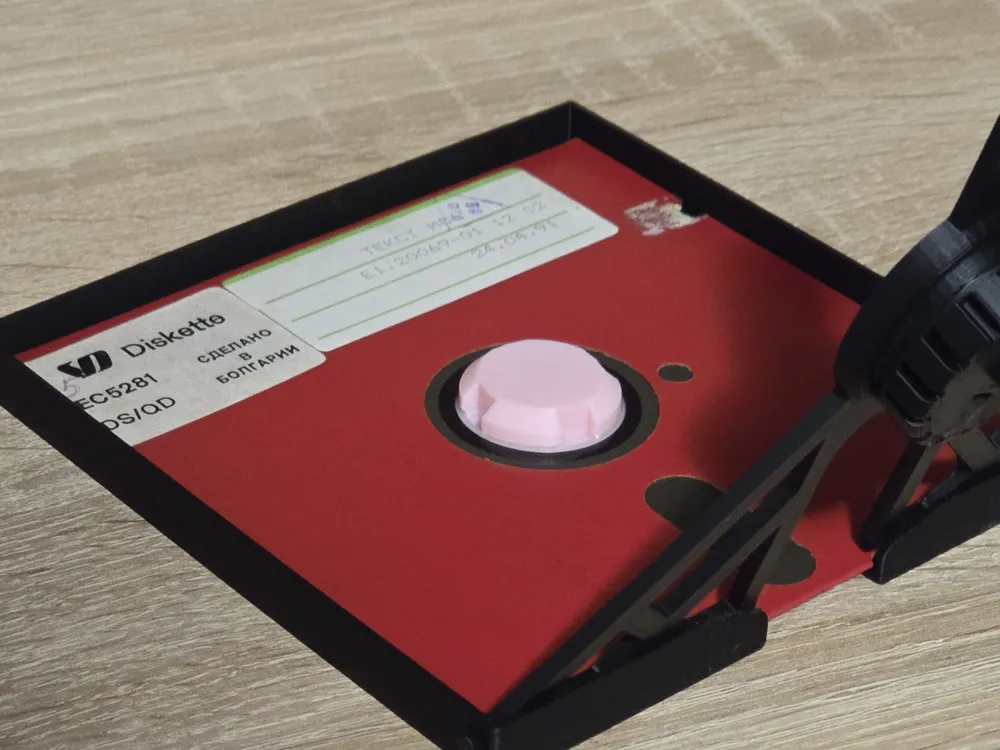

The TPU Gasket is for the Spindle, just attach the Gasket to the spindle. Alternatively you can also use a normal rubber gasket with these dimensions:
- 26mm inside diameter
- 34mm outside diameter
- thickness of 1mm
Step 2 Assemble Spinning Mechanism:

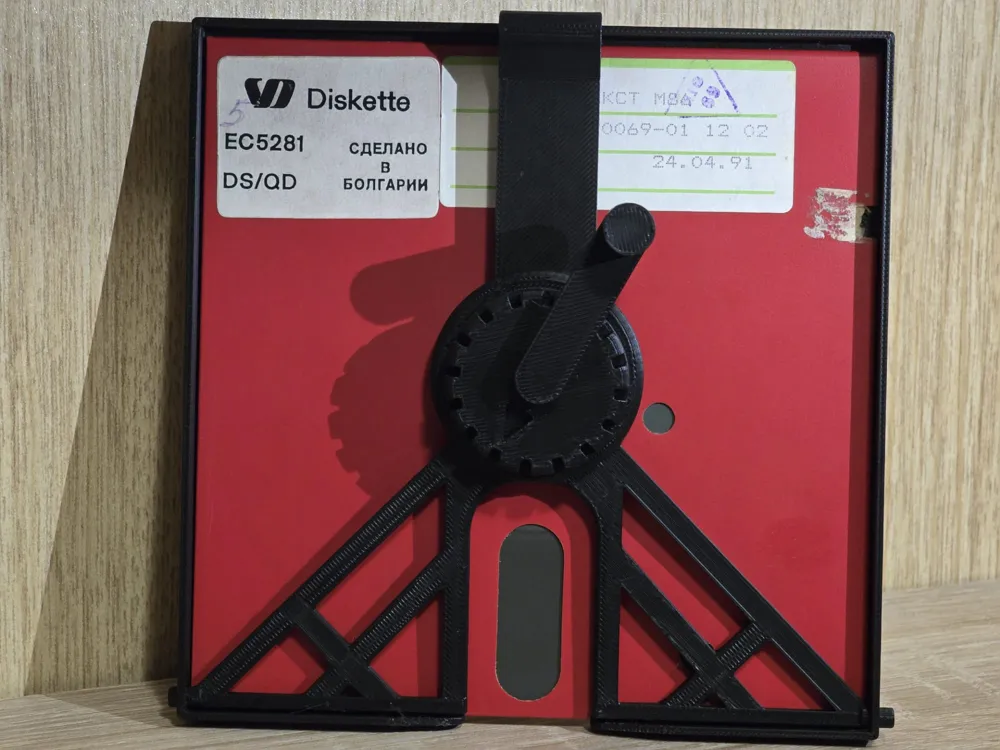

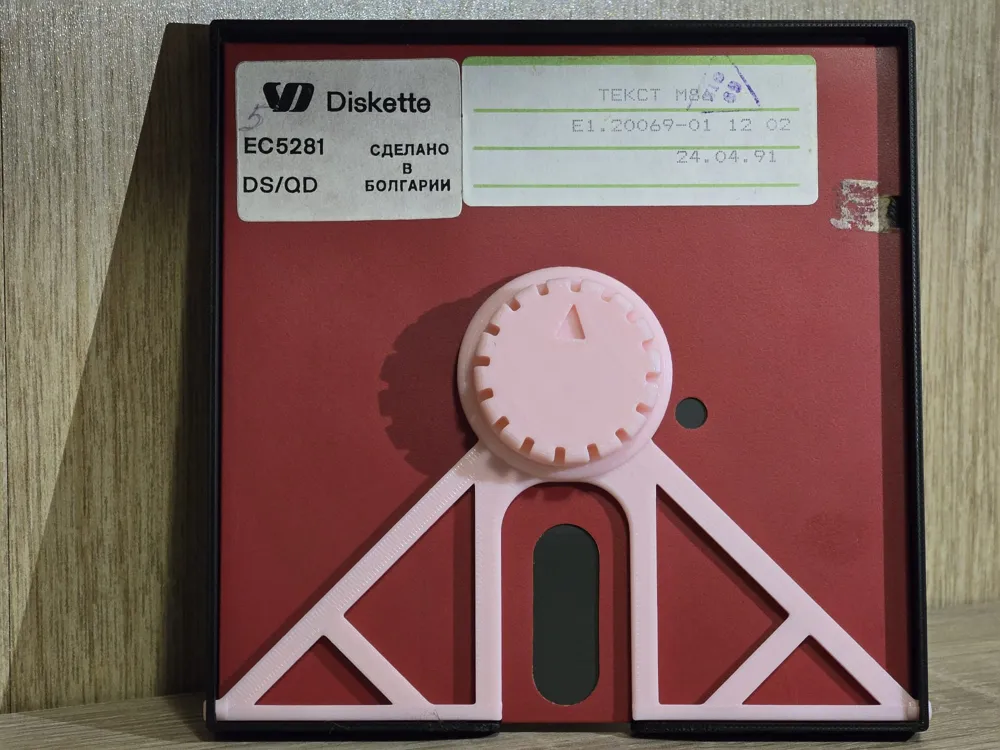

No matter what spinning mechanism you chose the lever or the dial they both lock in with the little legs on the sides of the Housing.
