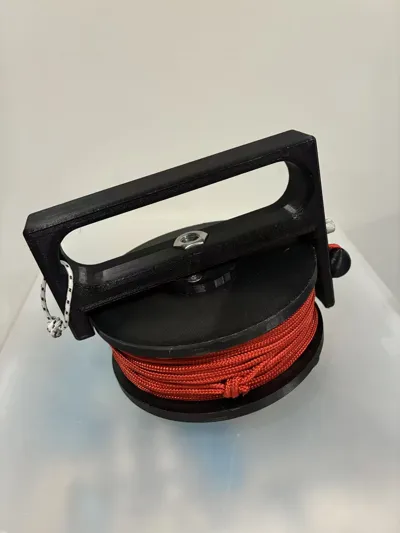

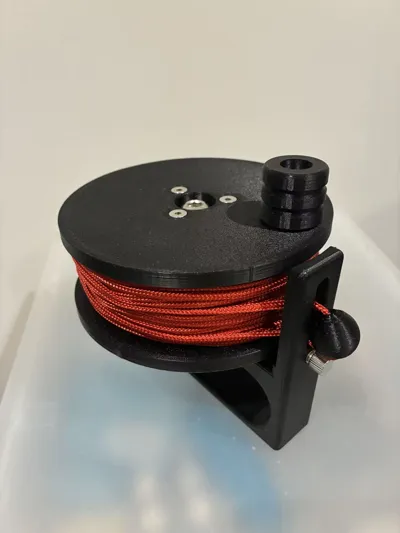

Modification on Pachymon's Dive Reel, Scuba- MKII. Increase reel diameter to be used as primary reel in cave and wreck penetration.
This will fit 100 meters of standard 2mm diving spool line, or 50 meters of 3mm thick line.
Hardware is mostly same as original design, but with counter sink and nut mouting hole slightly modified to fit the screws and M10 nylon lock nut I got.
Hardware list (stainless steel):

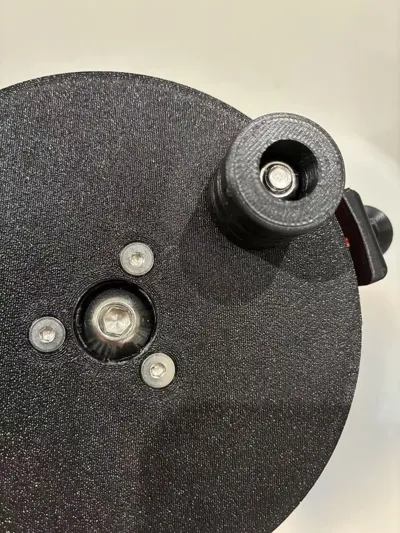

- Attach reel upper and lower plates to core
- (6x) M4 x 25mm flat head screw, self tapping
- Attach knob to lower plate
- (1x) M6 x 25mm flat head screw
- (1x) M6 nylon lock nut
- (2x) M6 x 10mm nylon wash

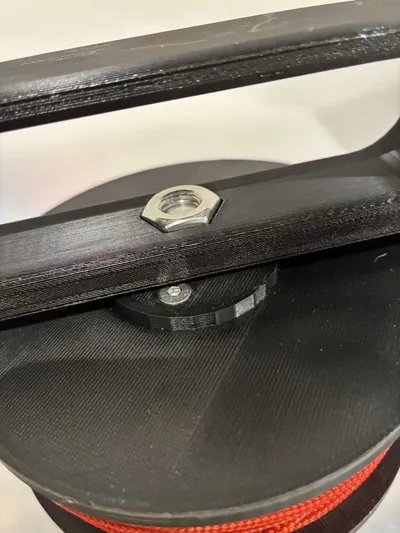

- Attach spool to handle
- (1x) M10 x 55mm socket head cap screw
- (1x) M10 nylon lock nut
- (2x) M10 x 15mm nylon washer

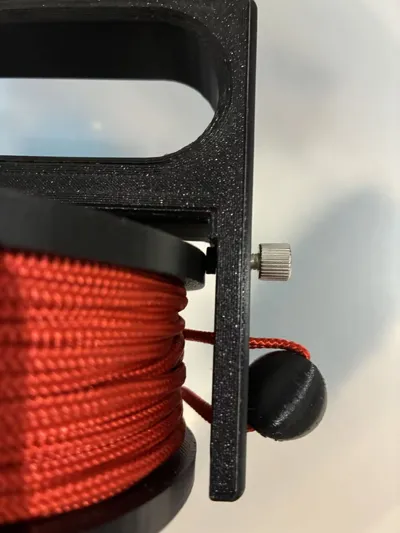

- Break (drill hole on handle)
- (1x) M4 heat set threaded insert
- (1x) M4 x 10mm hand screw
(part ‘Lock _screw_top’ is for screwing to the tip of hand screw to prevent scratching reel plate)
