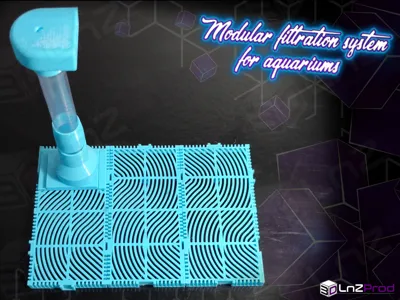

Modular filtration system for aquariums

Thanks for visiting my model! I hope you like it and find it useful! ✅

On my profile, you can find all kinds of models, from diorama figures to household items and decor.

I'll be updating the catalog little by little with the hope of providing you with quality items. 🚀

Enjoy! 💜

🫧Take your aquarium filtration to the next level with this High Performance Modular Filtration System!🫧

🛠️This design has been created specifically for aquarism enthusiasts looking for a customized, economical, and above all, scalable solution. Thanks to its system of interconnectable plates, you can design a filtration tower as large or small as you need: your aquarium sets the limit 🌊
Use only PETG as material with 100% infill and 3 perimeters, respecting the orientation of the parts, the tubes I used for the tower are made of clear acrylic as they give a better finish, however, I added the files for these tubes, simply scale them vertically to the size you need for each one
Wash all your printed parts very well before introducing them into the aquarium any glue residue can be critical for your fish!

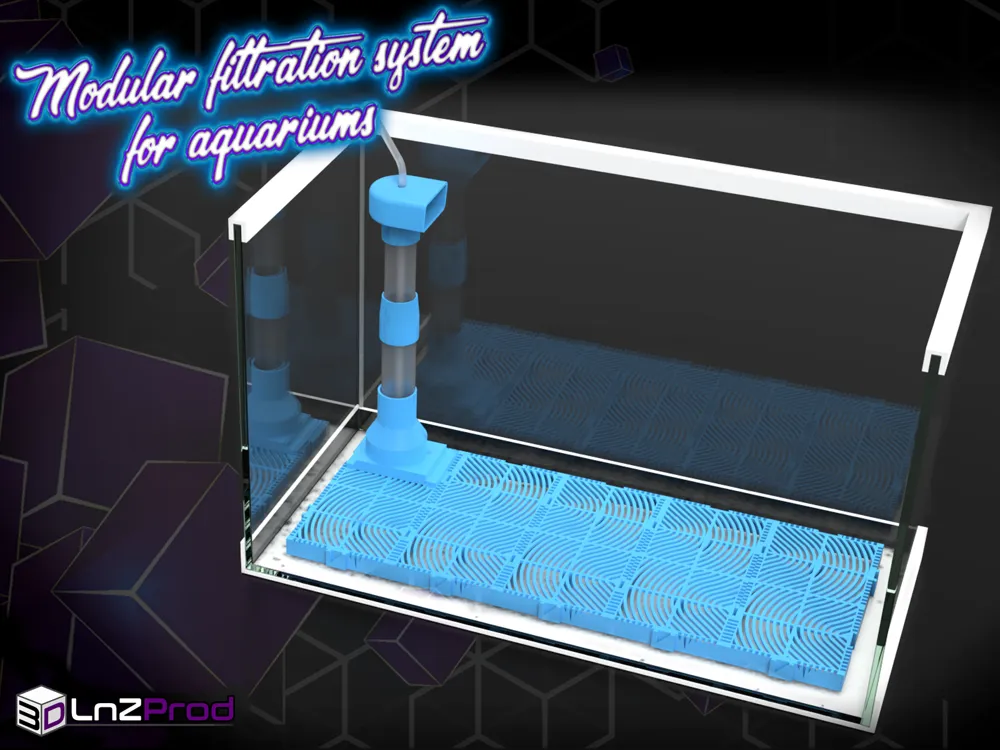

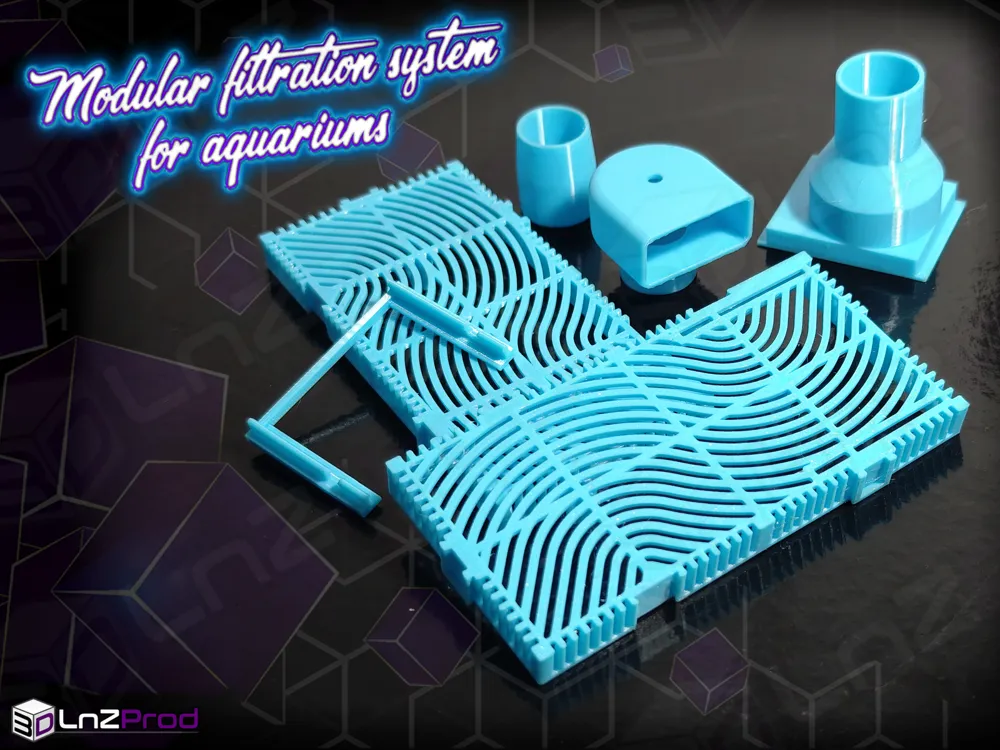

Print the number of plates you need for your aquarium, it should not be tight against the glass, then insert the "Tower anchor" part into the holes for the plates called "Mounting plate with holes for tower", to assemble the tower measure the height you want to give it and keep in mind that the bottom tube is 22.5mm and the top one is 20mm, use the adapter to connect them and finally mount the diffuser onto the tube. Insert the rubber tube for the air pump with its air stone leaving it as low as possible
It is an easy and clean assembly, without the need for glues or excessive force
Cover all the plates with 3-5mm stones, they should not be visible for proper operation and to prevent smaller stones from penetrating the lower current zone of the system
Add the stones that will be visible, preferably 3mm or larger in diameter, covering the previous layer
Finally decorate the aquarium to your liking before filling it and enjoy a clean and stable aquarium!
