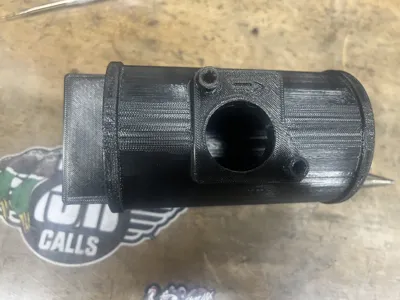

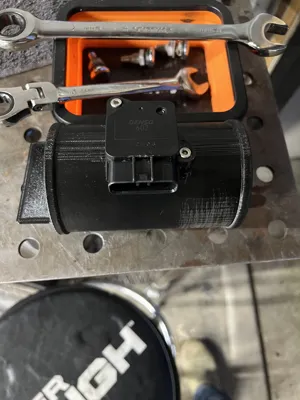

5VZFE (3.4L TOYOTA) MAF SENSOR HOUSING

THIS IS FOR THE TOYOTA OWNERS OUT THERE WITH THE LATER STYLE (2000-2004 DROP IN STYLE) MAF SENSOR ON THE 3.4L TOYOTAS. IF YOUVE EVER CRACKED AN AIR BOX AND DONT WANT TO PAY FOR A NEW ONE, OR WANT TO RUN AN AFTERMARKET AIR INTAKE, OR IF YOU STARTED A 3.4L SWAP AND YOU DIDNT HAPPEN TO GRAB THE AIR INTAKE FROM THE DONOR RIG, THEN YOU WILL NEED TO HAVE AN AIR STRAIGHTENER SIMILAR TO THE ONE ON THE FACTORY AIR BOXES. IF YOU DO NOT YOUR FUEL TRIM LEVELS WILL NOT BE WITHIN THE FACTORY ACCEPTABLE RANGES OF +/- 5%.

I PRINTED THIS OUT AT 100% INFILL, AND USED ABS TO WITHSTAND THE TEMPERATURES INSIDE THE ENGINE BAY. IS 100% INFILL NECESSARY? PROBABLY NOT, BUT FOR A SENSOR THAT IS SUPER DELICATE I DIDNT WANT TO RISK ANY AIR LEAKS.

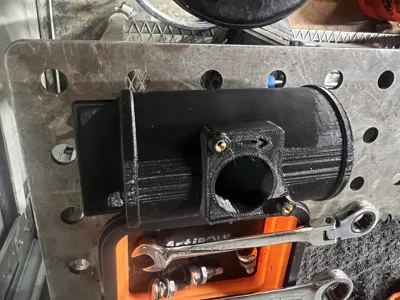

THE MOUNTING SCREW HOLES ARE FOR BRASS THREADED INSERTS. THE I.D. IS 5MM AND I USED (2) M4X1X6MM THREADED INSERTS AND HEAT SET THEM.
