Slide valve DN 110

Slide Gate Valve for HT DN110 Pipe Systems

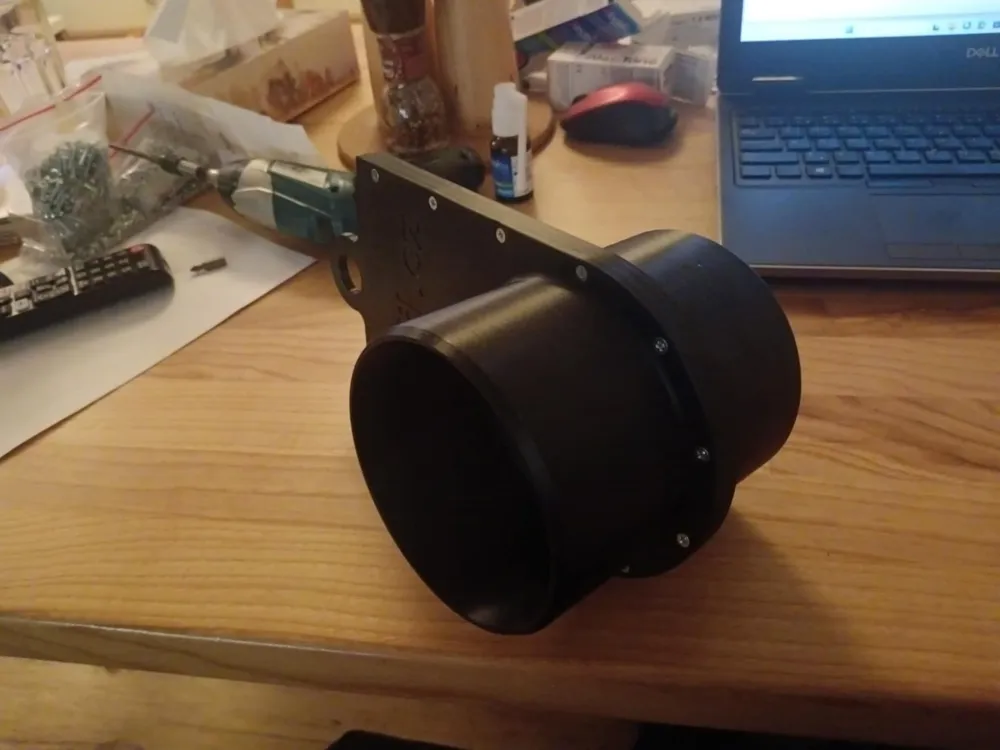

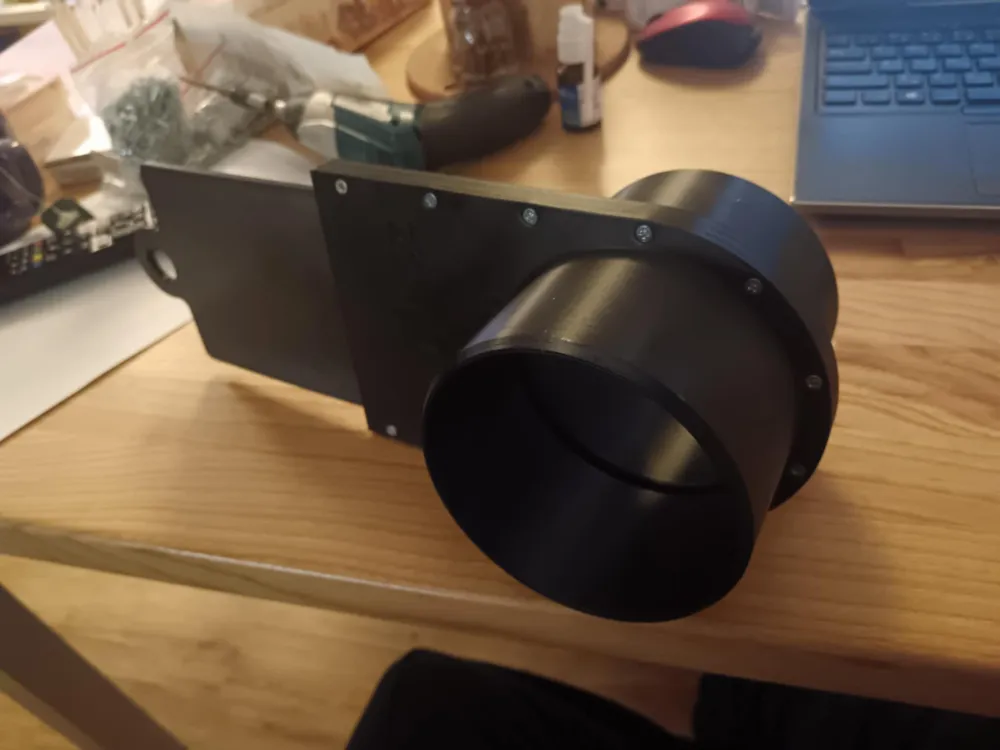

This slide gate valve is designed for standard HT DN110 wastewater piping systems and provides a reliable way to manually open or close the flow inside the pipe. It is ideal for workshop dust collection systems, temporary shut‑off points, drainage control, and any application where a simple, robust mechanical valve is needed.

Features

• Compatible with HT DN110 pipes
  Designed to fit common 110 mm HT (high‑temperature polypropylene) piping used in drainage, ventilation, and workshop installations.
• Smooth sliding mechanism
  The valve uses a low‑friction slide plate that moves easily while maintaining a tight seal when closed.
• Print‑friendly design
  All parts are optimized for 3D printing with standard FDM printers. No supports are required for the main body, and all components fit within the build volume of common printers.
• Reinforced structure
  The body features structural ribs to ensure long‑term durability and resistance against pipe pressure and handling.
• Hardware‑ready
  The design includes mounting points for standard screws or bolts (if needed), ensuring a secure hold and stable operation.

Recommended Materials

• PETG or ABS for better durability and temperature resistance
• PLA can be used for non‑pressurized or indoor applications

Assembly

1. Print all parts according to the recommended print settings.
2. Insert the sliding gate into the body and ensure it moves smoothly.
3. Add optional screws/bolts if your installation requires additional reinforcement.
4. Connect the valve between HT DN110 pipes or fittings.

Use Cases

• Dust collection systems
• Workshop piping control
• Ventilation flow regulation

Notes

This model is intended for gravity‑fed or low‑pressure systems. It is not suitable for high‑pressure plumbing.
