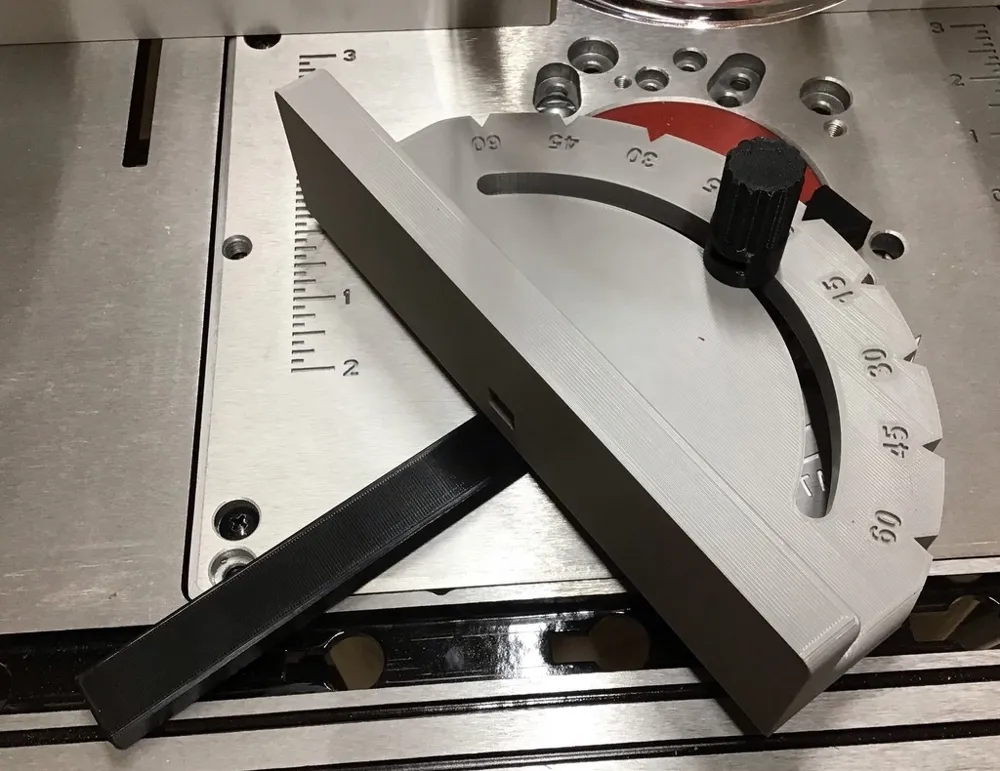

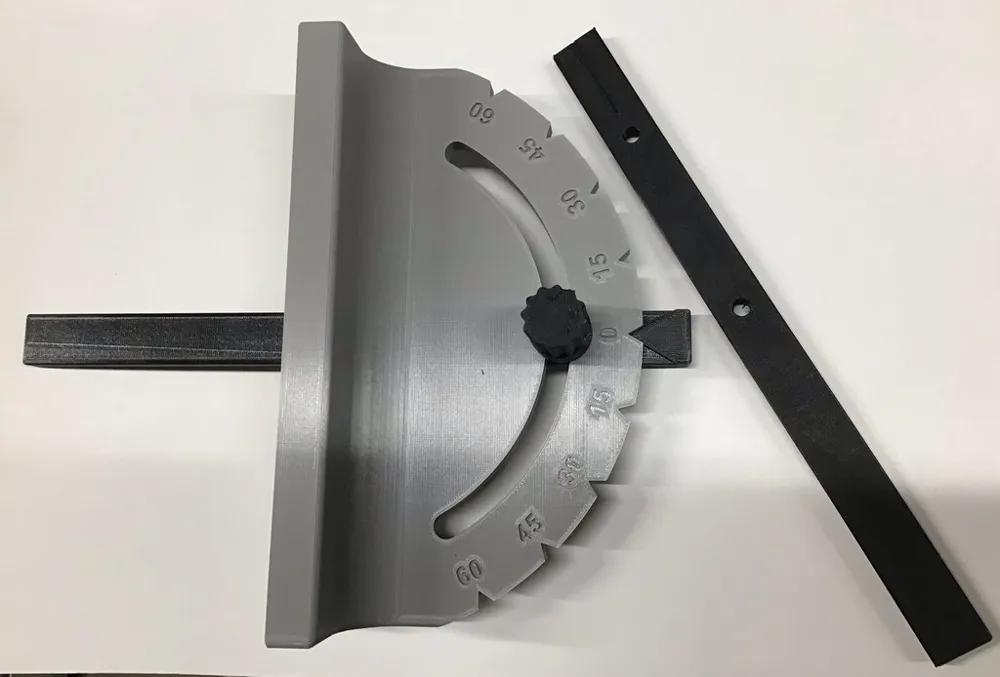

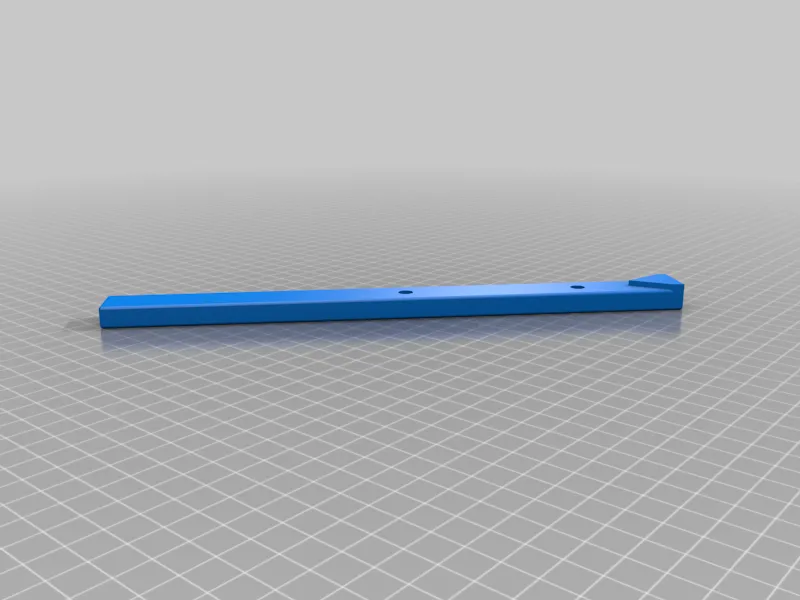

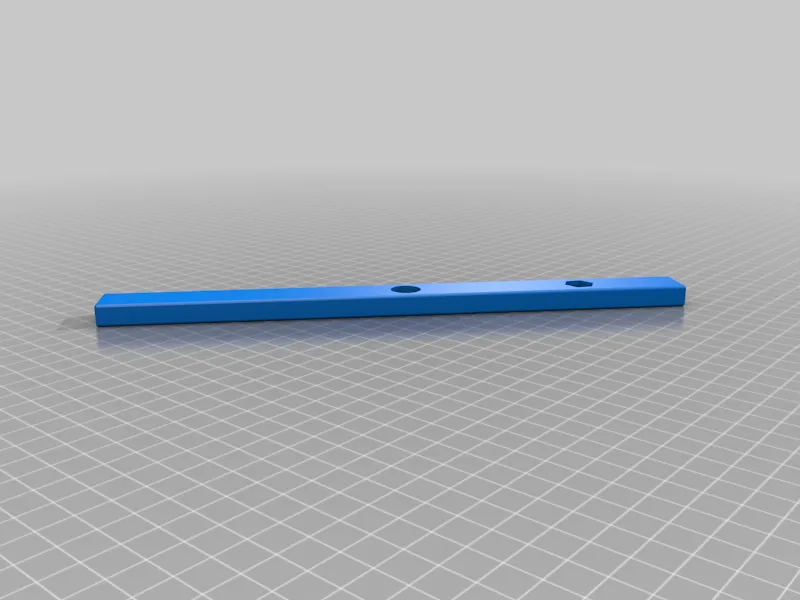

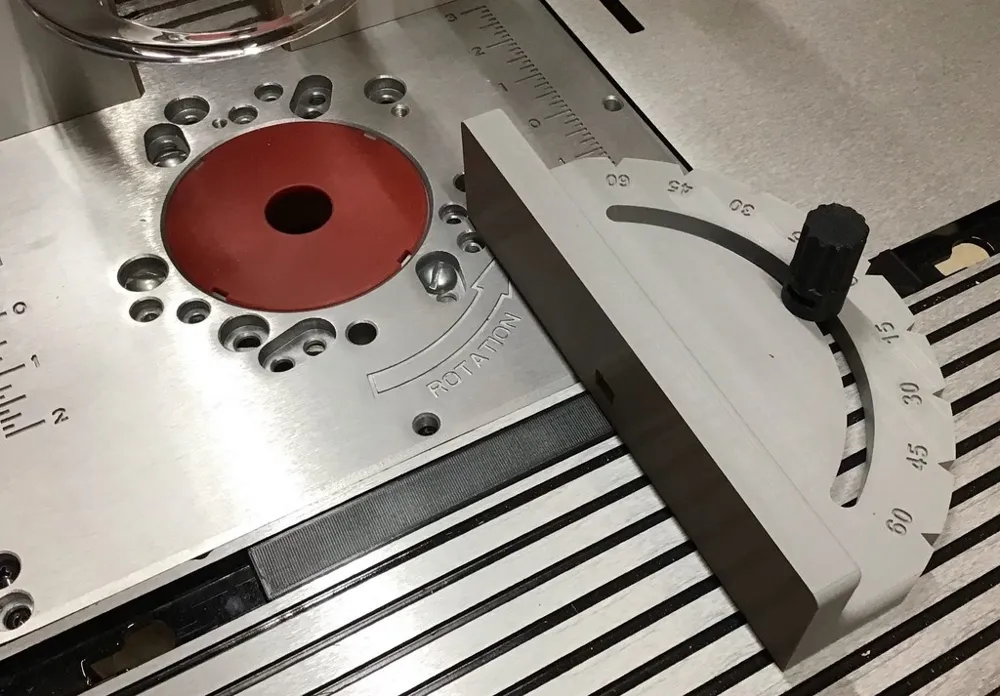

The Bosch RA1181 router table does not come with a miter gauge so this solves that problem. This design includes 2 sliders: one with a detent for 15 degree increments, and one with out a detent to allow for any angle to be set.

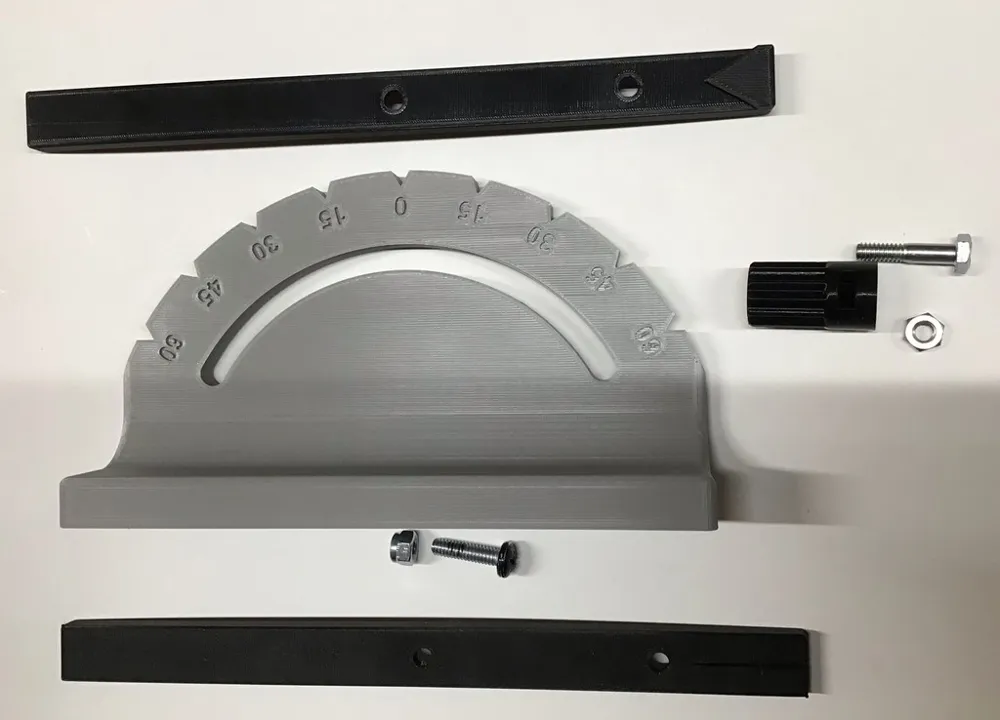

The main body and slide is attached with a 1" to 1.25" 1/4" round head bolt and a nylon insert locknut inserted into the slot on the back of the main body.

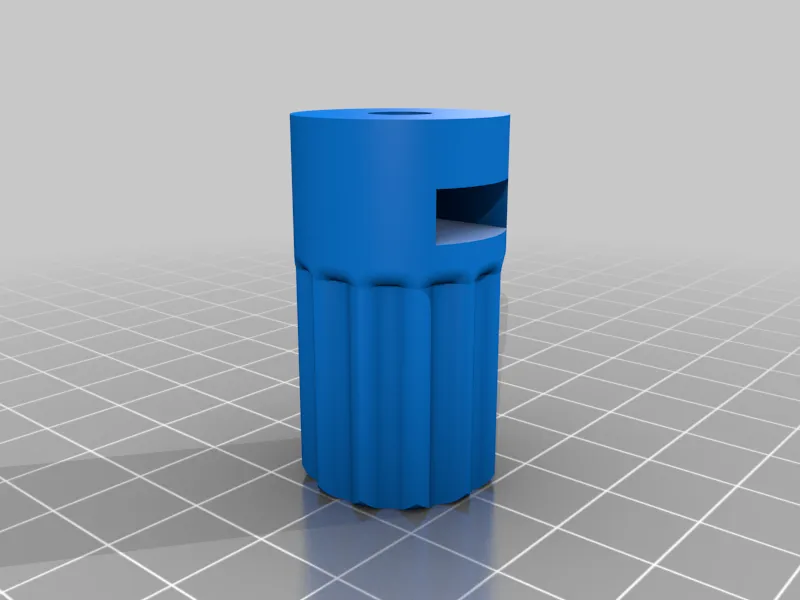

The slide to knob is attached using a 1" to 1.125" 1/4" hex head bolt and a nut inserted into the knob's slot.

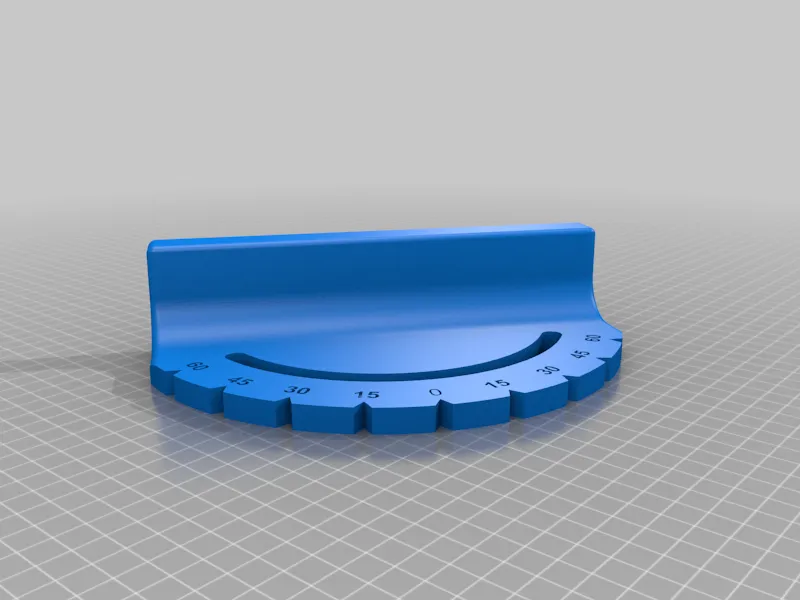

The main body and knob are generic so a miter gauge for many saws and router tables could be made by creating a resized slide to fit the tools slot.

Creality

No

0.2
