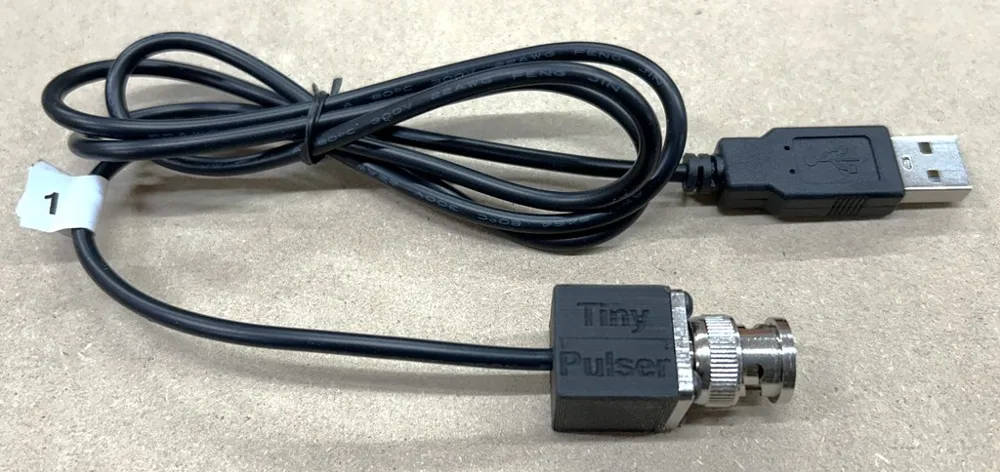

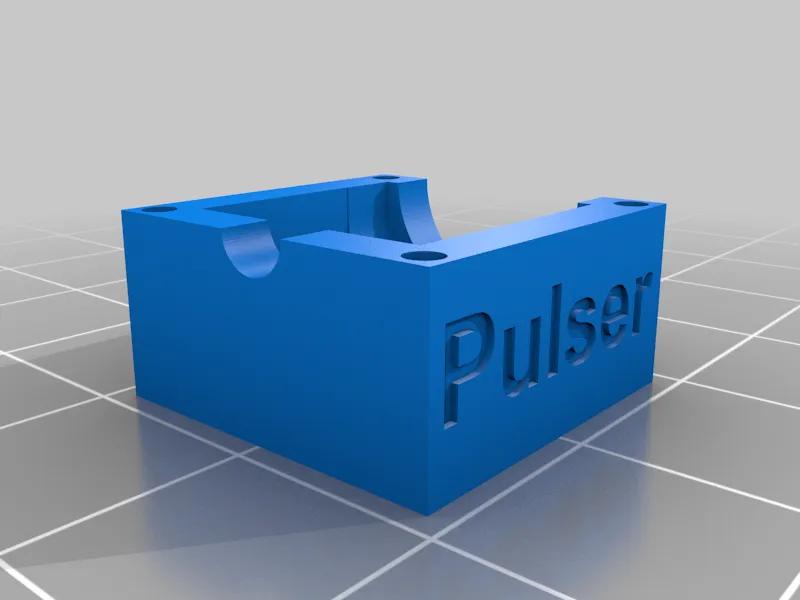

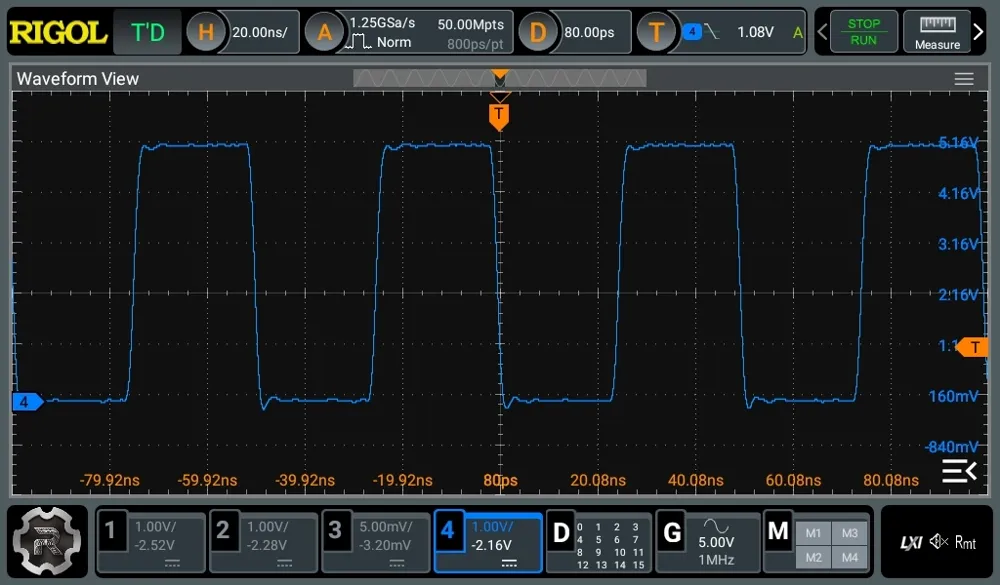

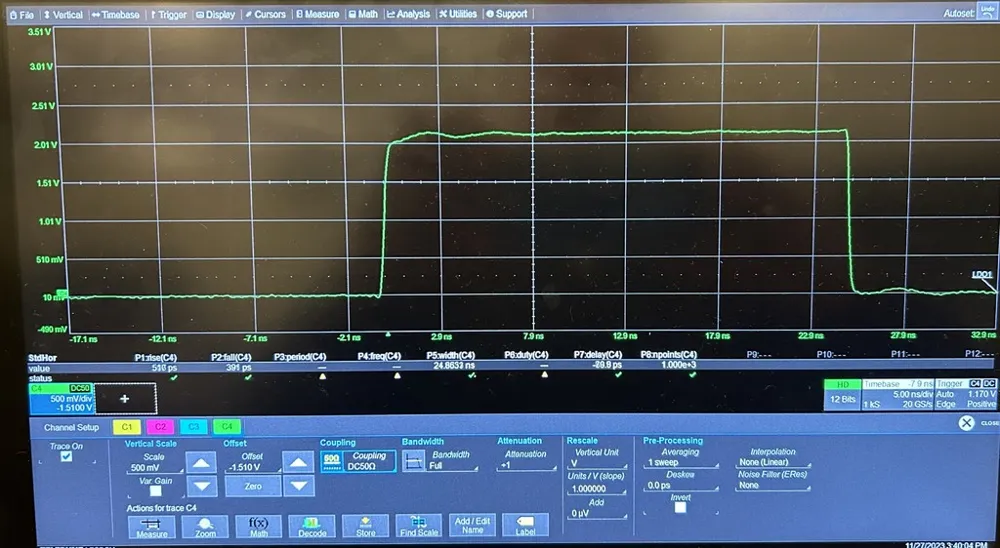

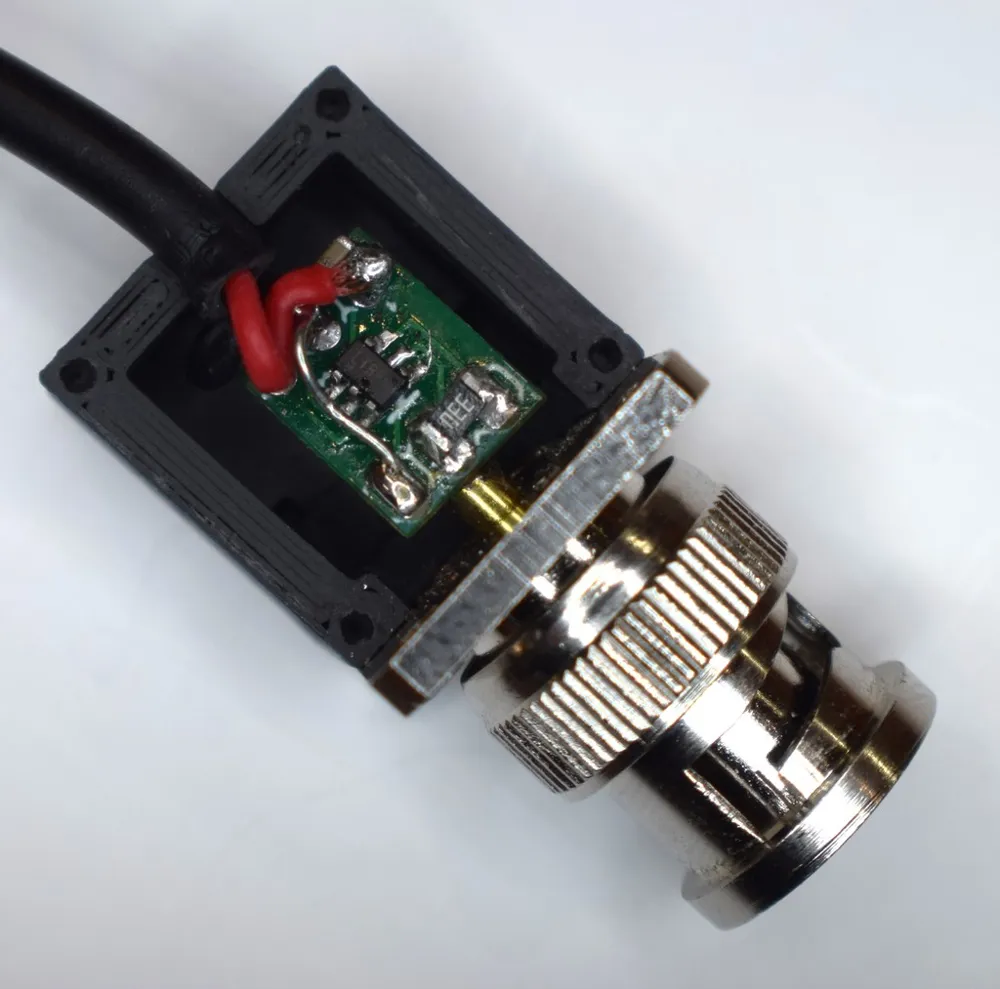

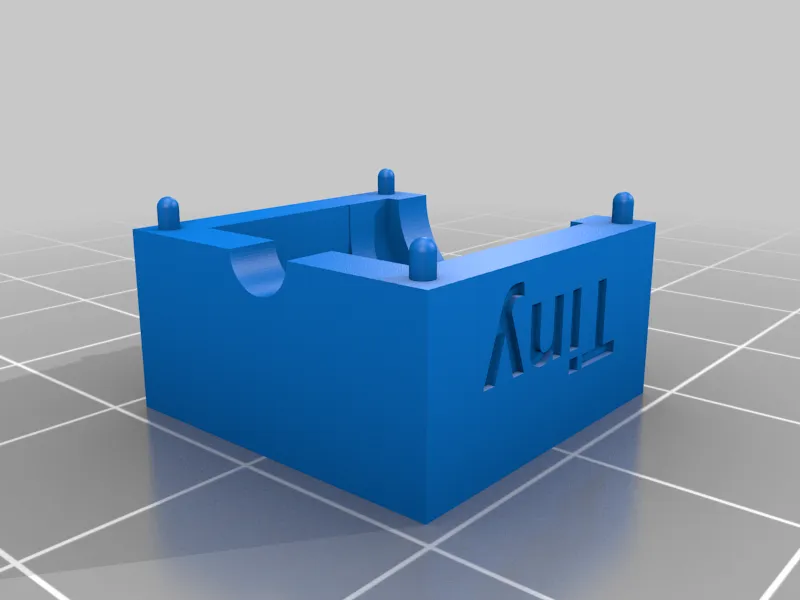

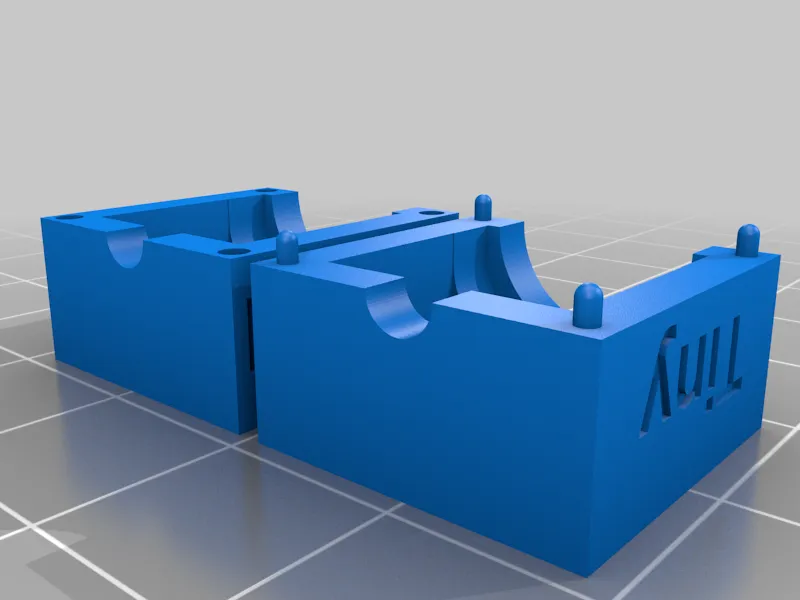

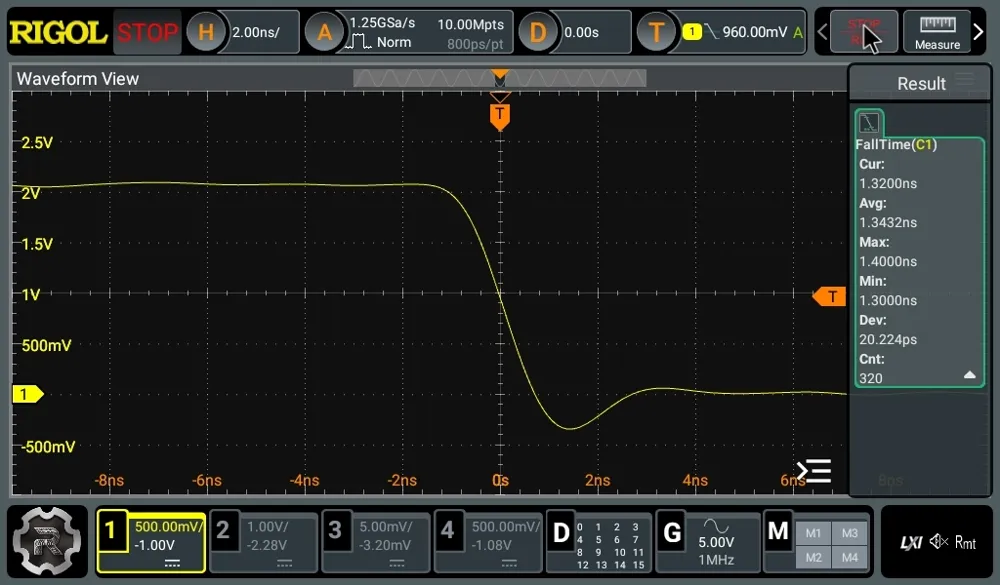

This is a complete design for a small usb powered device to generate a 20 MHz square wave with fast rise and fall times - in the 400 to 500 ps range. The design notes include the simple circuit with notes on assembly and bill-of-materials. Also included us the stl files for the small printable enclosure. The primary uses for this is to test rise/fall times on your oscilloscope or to run TDR on small cables. For more information see the EDN article featuring this device: https://www.edn.com/creating-a-very-fast-edge-rate-generator-for-testing-or-taking-the-pulse-of-your-scope/

Creality

No

0.12
