Clothes peg box with sliding lid
Clothes peg box with sliding lid
Designer
3 h
2 plates

Open in Bambu Studio
Boost
1
7
0
0
6
3
Released

Description

Why I made this:

My wife was tired of our previous peg basket that constantly fall off the drying rack.

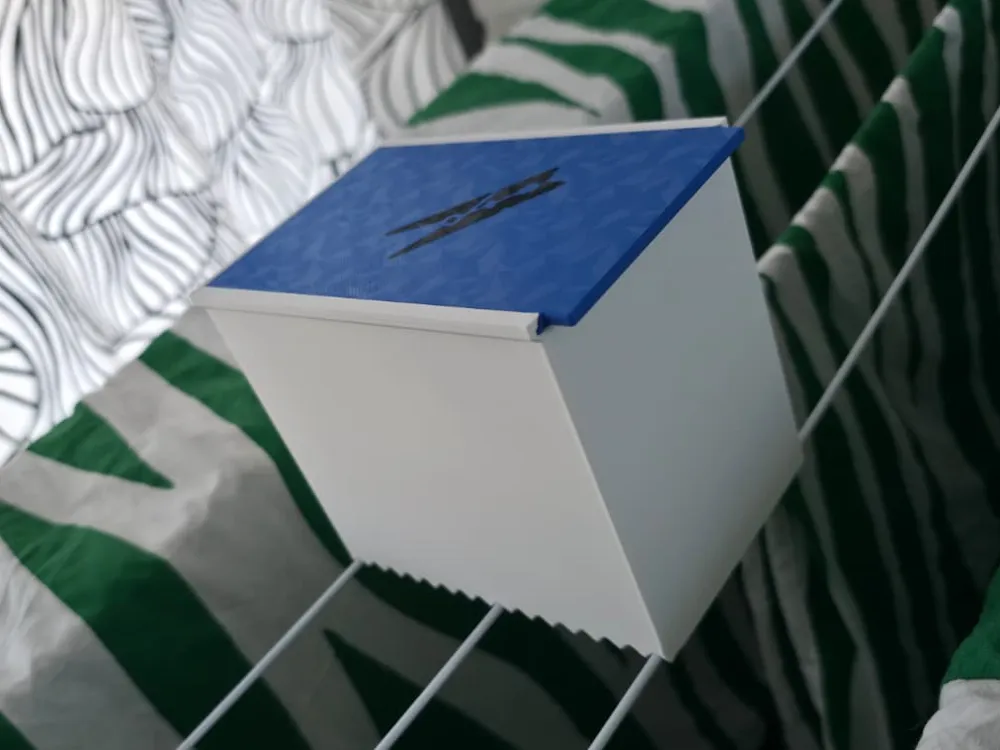

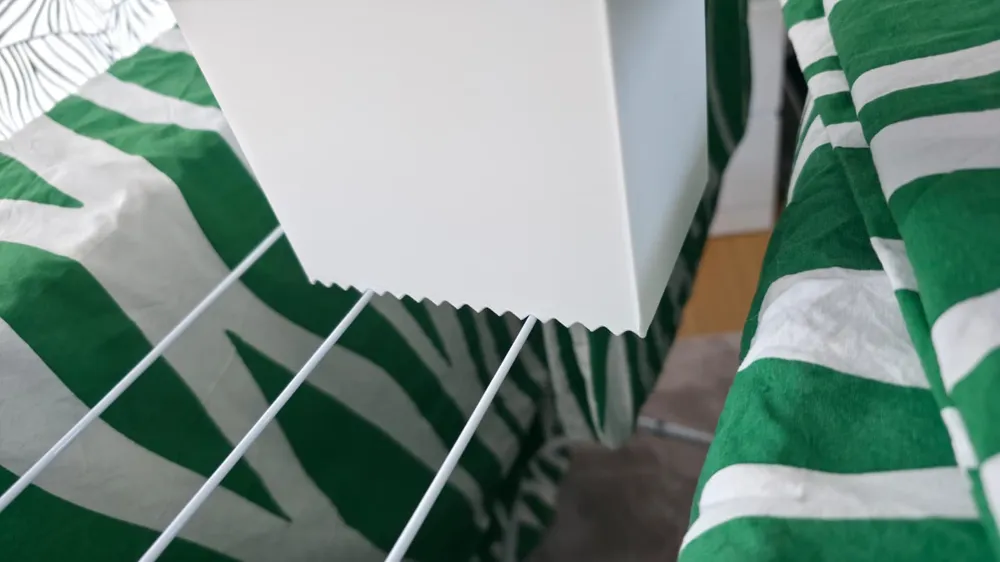

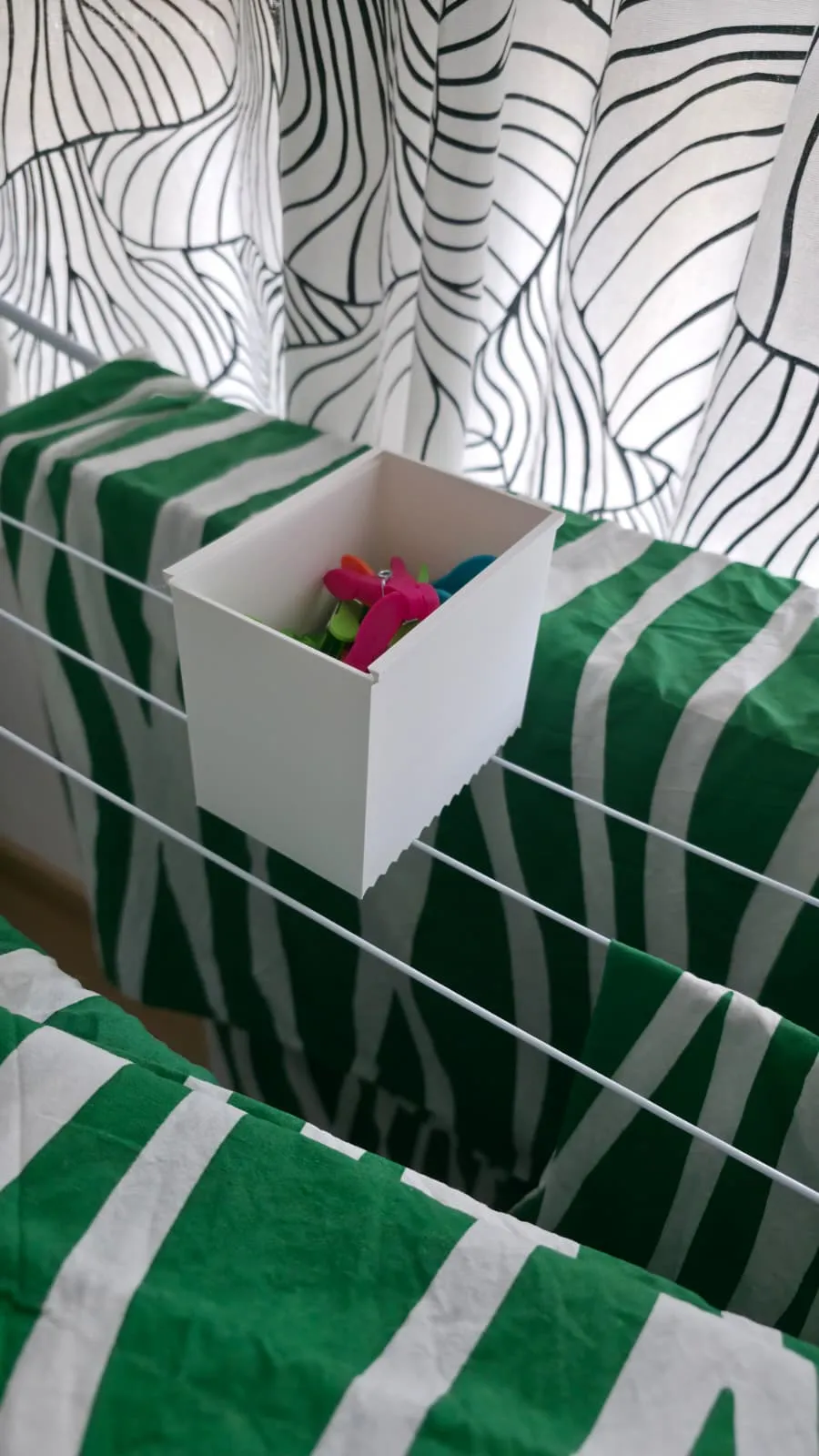

I designed this box to securely slide onto the drying rack rails. It’s sturdy, easy to open with one hand, and thanks to the “rail slots” it will fit any drying rack and stay on.



Print Settings:

Material: PLA (works great, but if your rack is outside, consider PETG/ABS/ASA).

Layer Height: 0.24mm (tested and works perfectly, saves time).

Bed Adhesion: Make sure your bed is clean! The box does not have a large footprint, thanks to the bottom slots, so good adhesion is key. I used a standard Textured PEI Plate and it held perfectly.

Supports: None needed! The internal grooves are designed with 45° angles.

Models included:

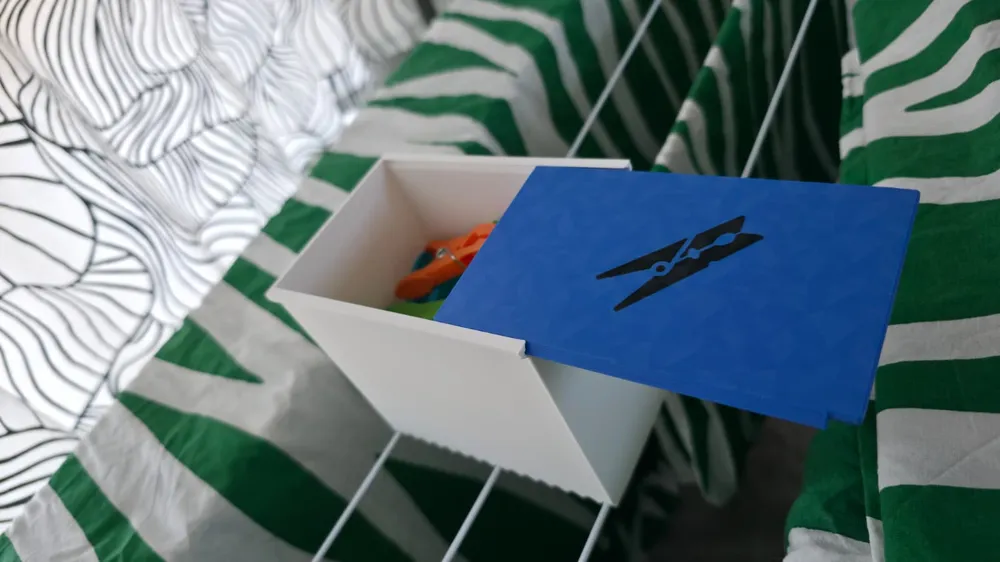

  • Box for pegs
  • Lid featuring a clean "Peg" logo (AMS needed)
  • Lid which is NON-AMS friendly will arrive soon

Scaling: You can scale the model if you need a bigger or smaller box, but always scale both the Box and the Lid by the exact same percentage at the same time to maintain the tolerances of the sliding mechanism.



Hope you find it useful, same as my wife, who finally starts to tolerate my 3D printer.
