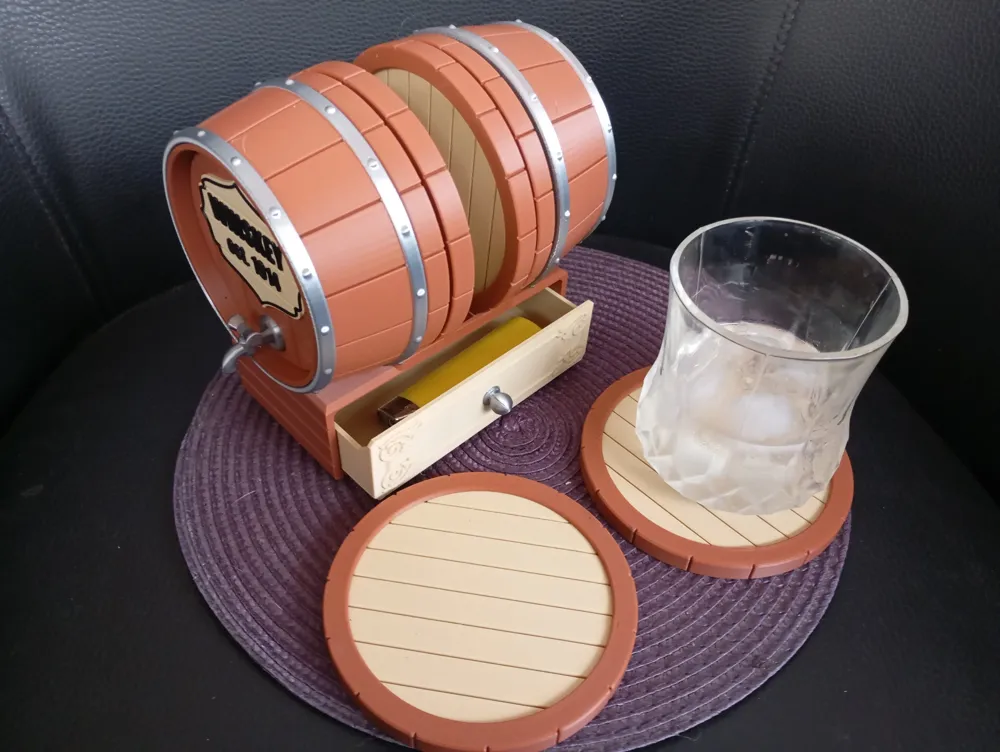

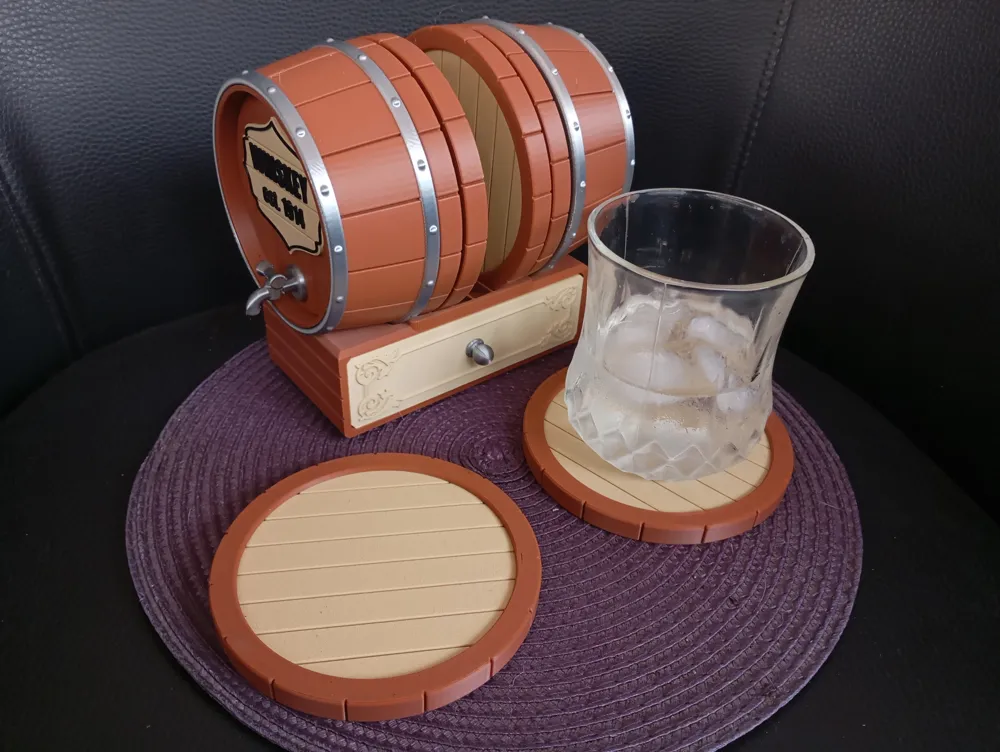

whiskey barrel coasters set with drawer storage

Thanks for reaching out!

Here we have a rule not to use a single Ai image. This means every image you see in posts or descriptions are real photos.

Another rule is not to upload designs that are not tested by us  first. So what you see is what you will print indeed.

Hope you like our work and maybe support us. Remember that you can support us for free just by like, follow, share and boost our work.

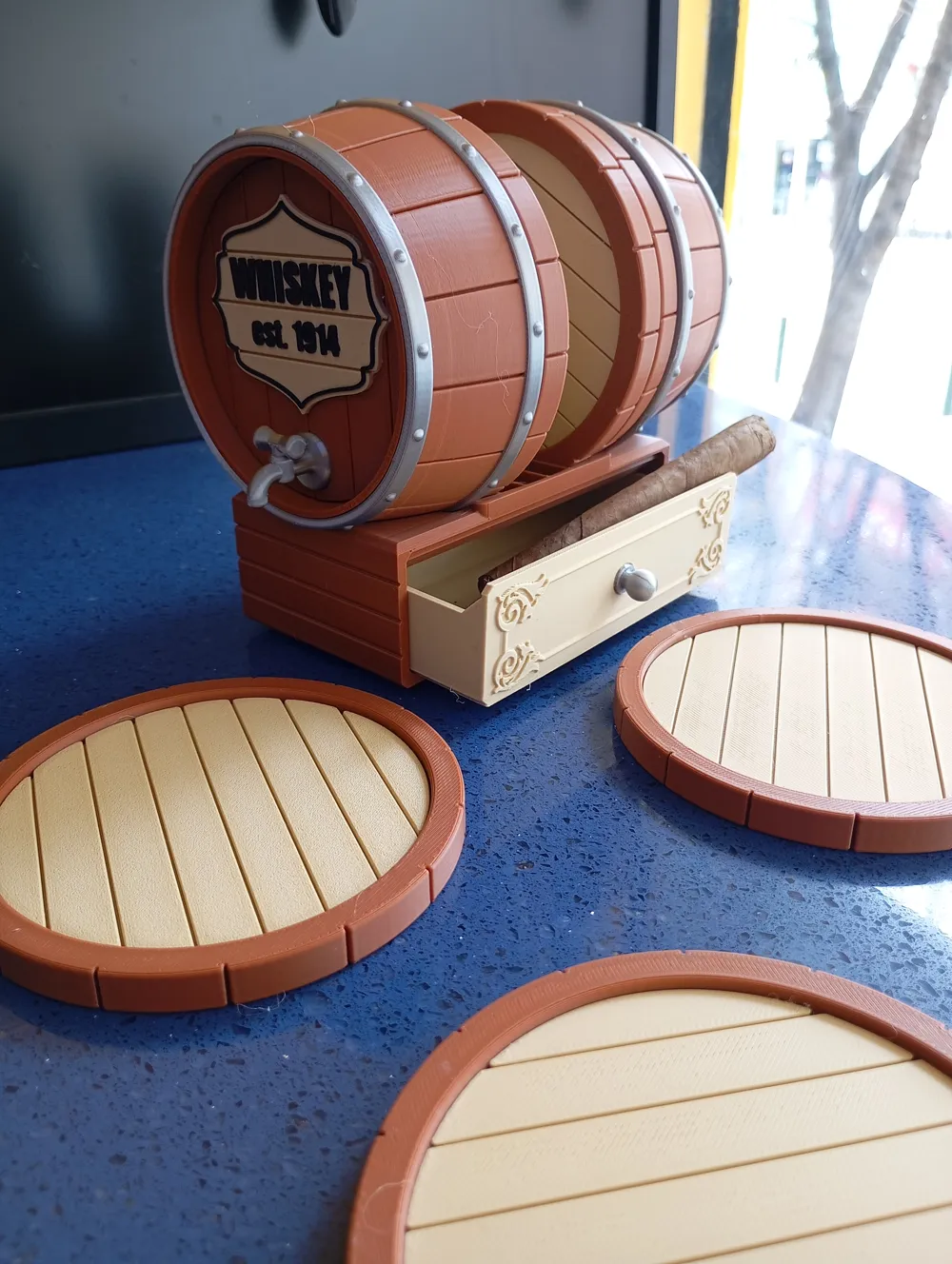

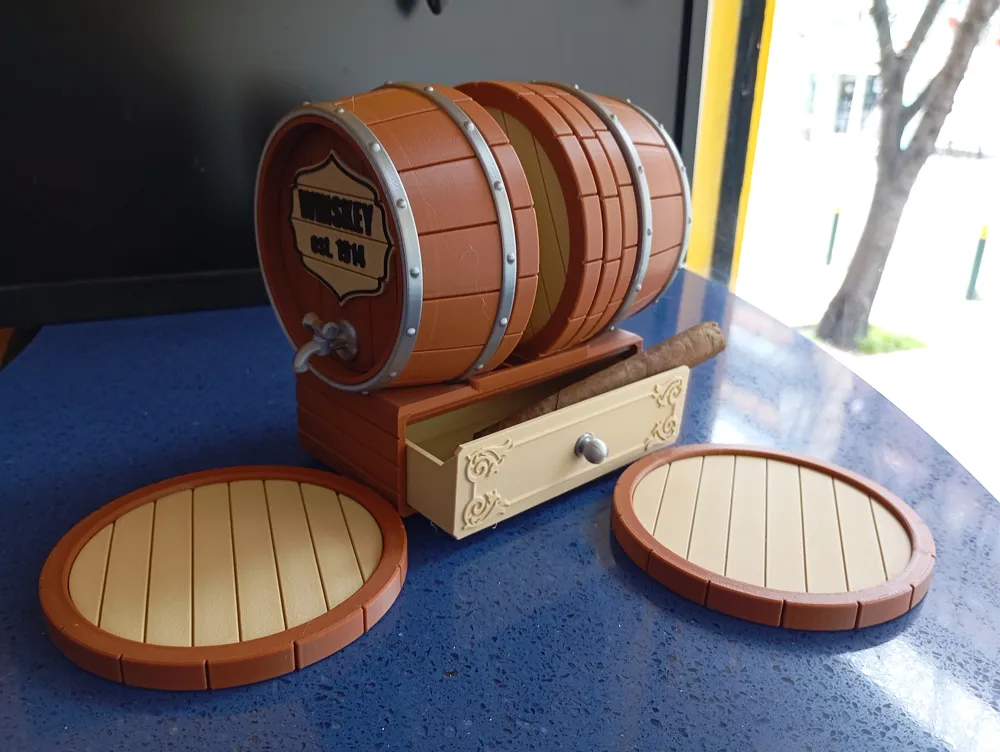

This came out better than we expected!

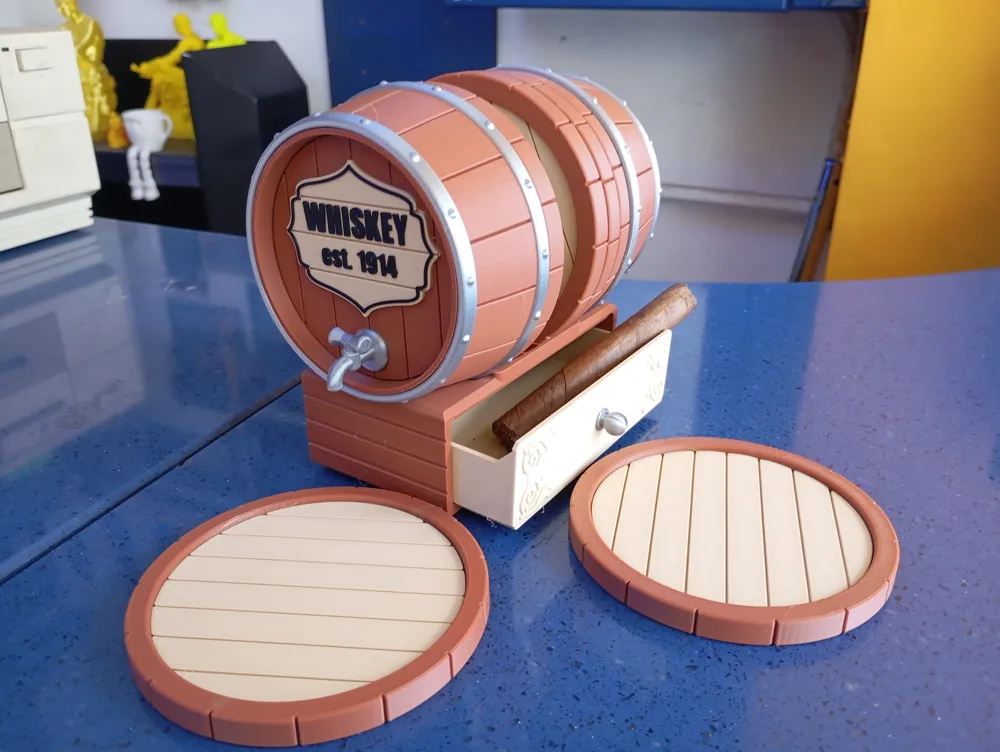

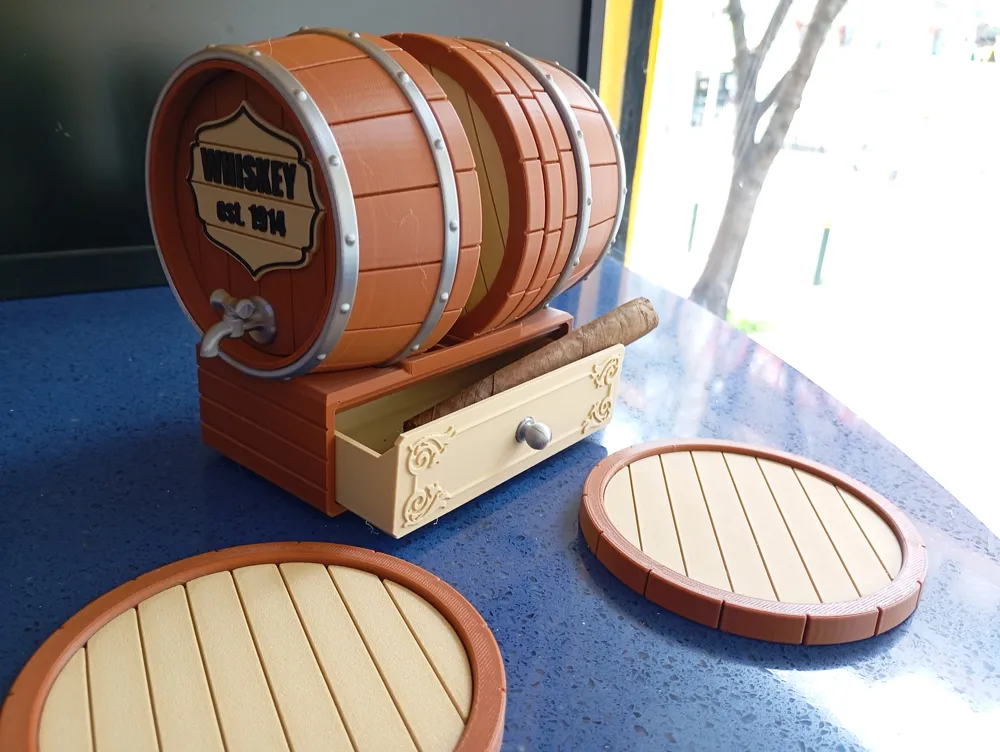

A clever way to store your coasters and some Livingroom table small items.

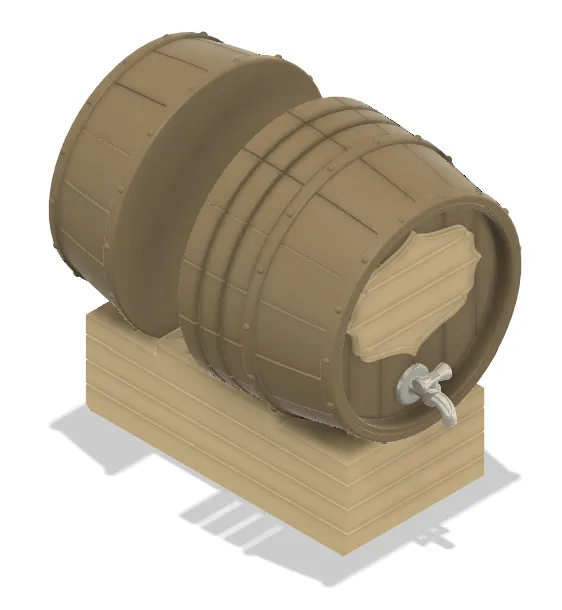

designed in fusion

About the model

• No ams required for this. Swapping the filaments for the metal rings and the text on the signs will do the job.
• Some gluing during assembly required.

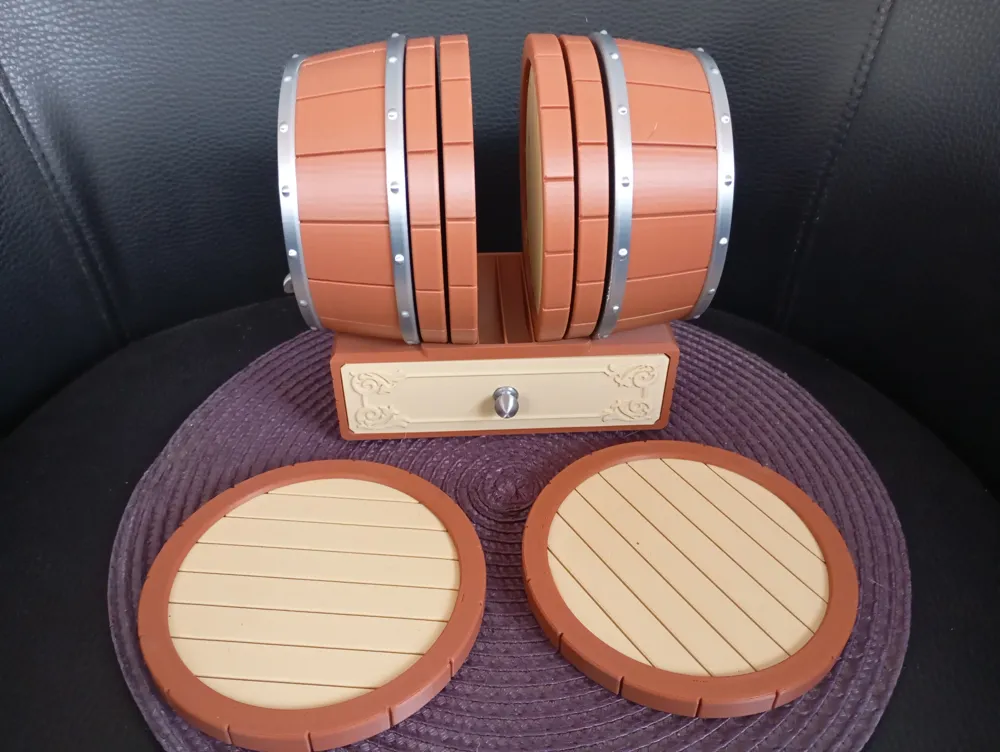

• 6 coasters in total. The diameter of them is almost 105mm.
• You can change the text inside bambu studio.

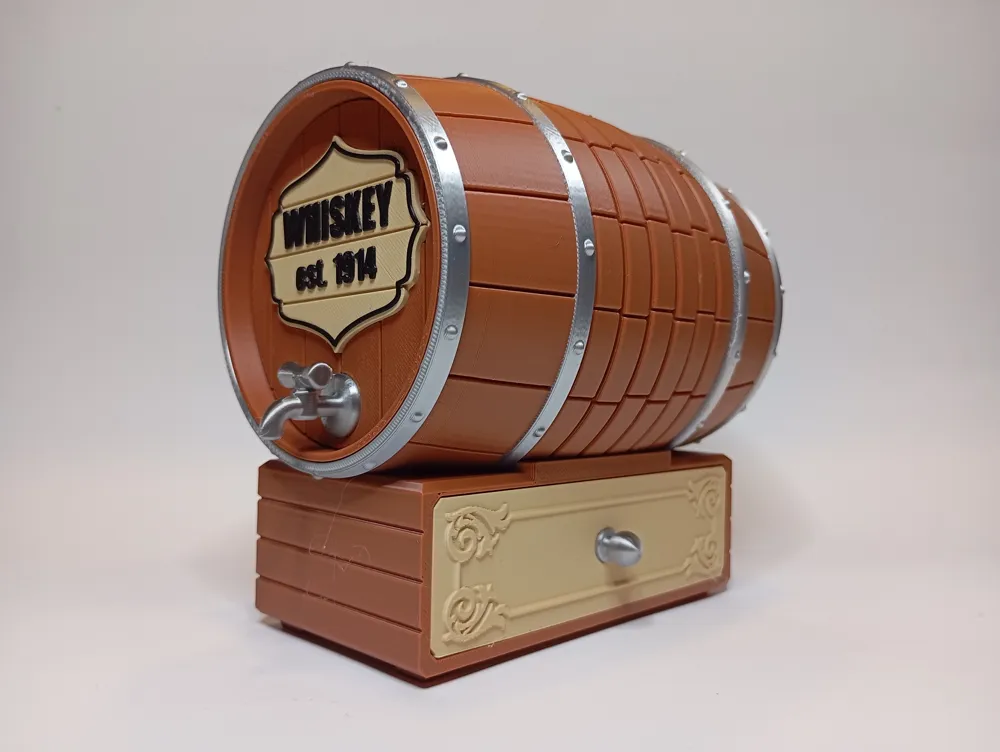

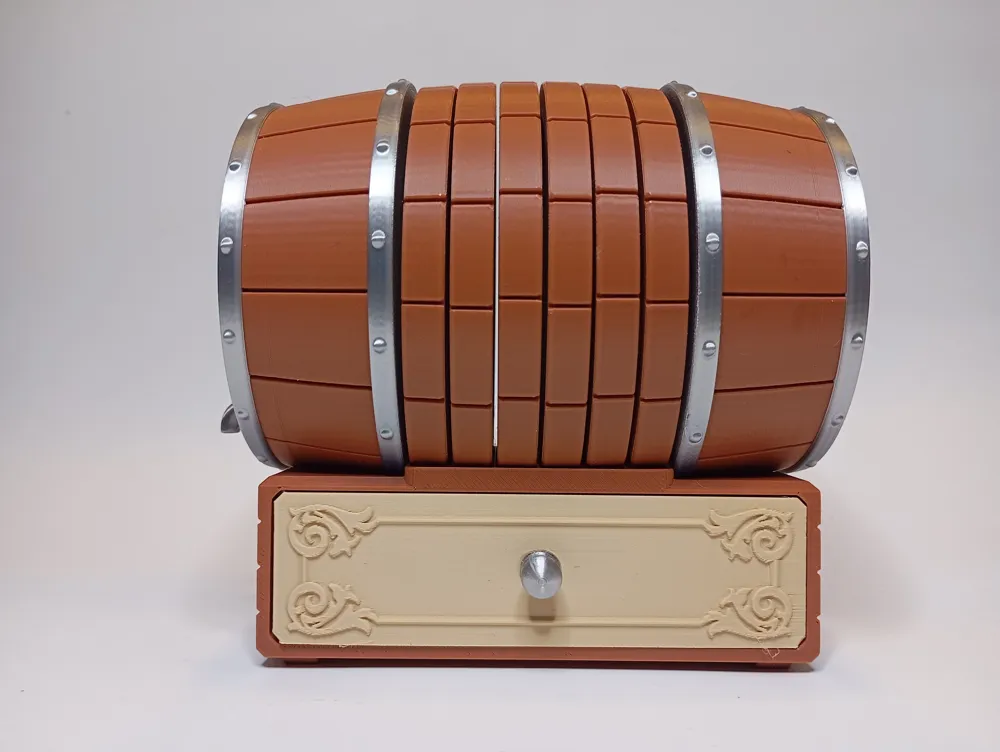

• The final design features a drawer with total dimensions : 117mm x 60mm x 30mm
• it is a beautiful decor for your table when not used.

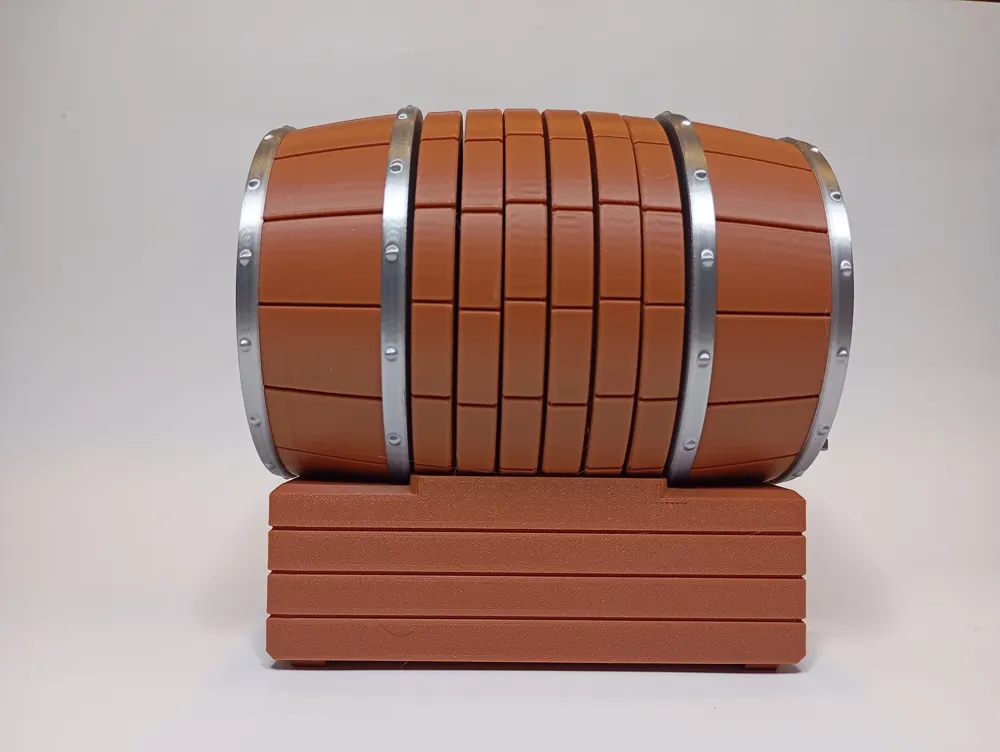

• The coasters have all the curves of the barrel so you have to place them in the correct place when not in used. This is a kind of puzzle game too! Dint want to just make them all the same and loose of the final shape of the barrel! i tried it and i didnt like it.

About the profiles

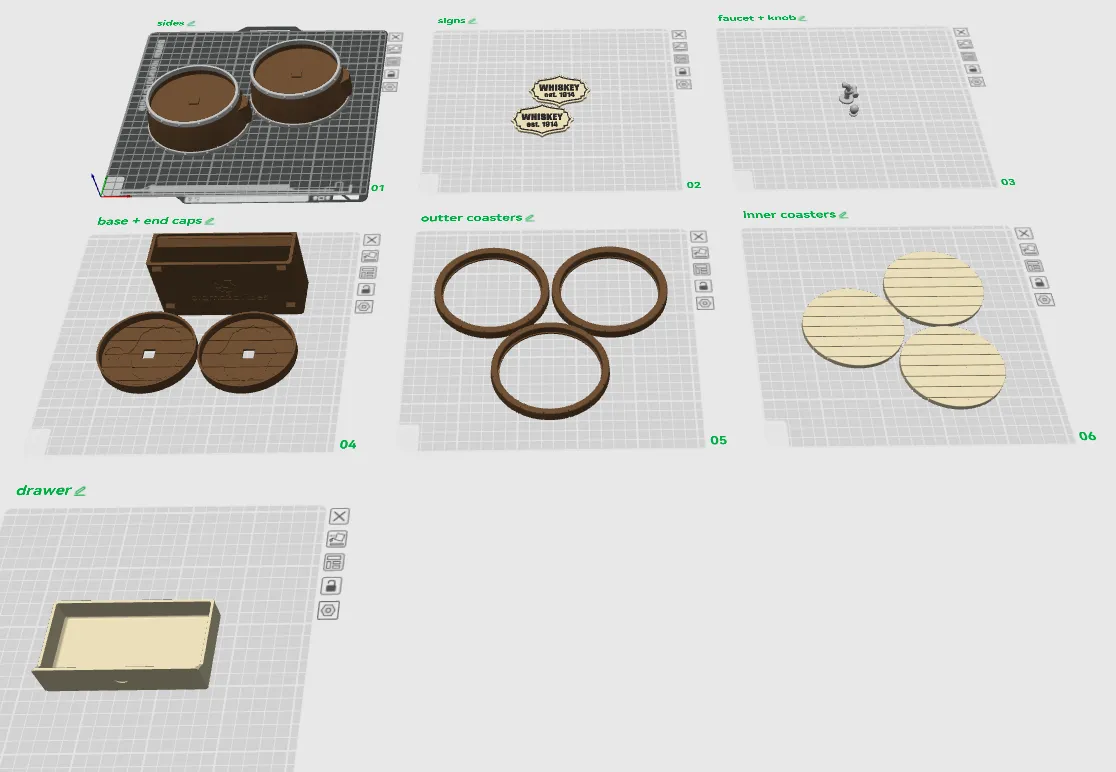

• I have included 2 profiles. one for the a1 mini and one for the rest big bed printers.

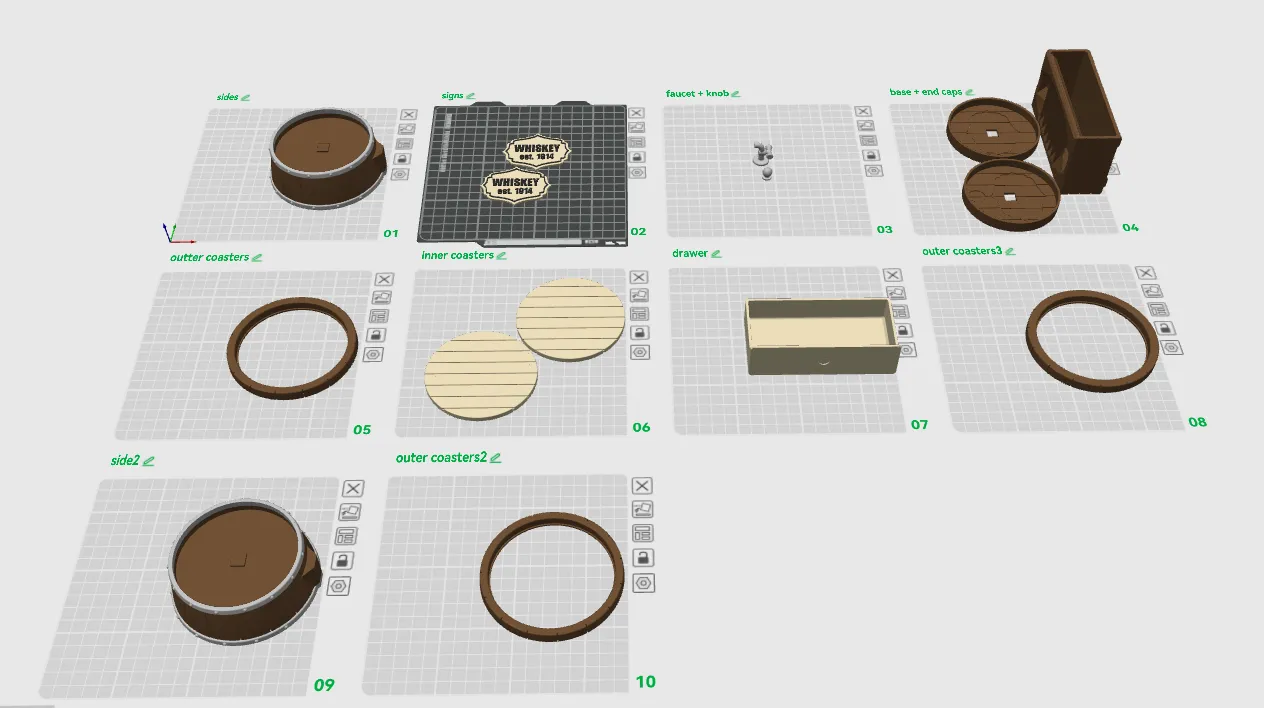

• 7 plates for the big bed printers and 10 for the a1mini.





• Outer coasters plates and inner coaster plates must be printed 2 times.

   In a1 mini inner coasters must be printed 3 times cause the bed holds 2 of them.

• Used 3 walls to make the model more robust.

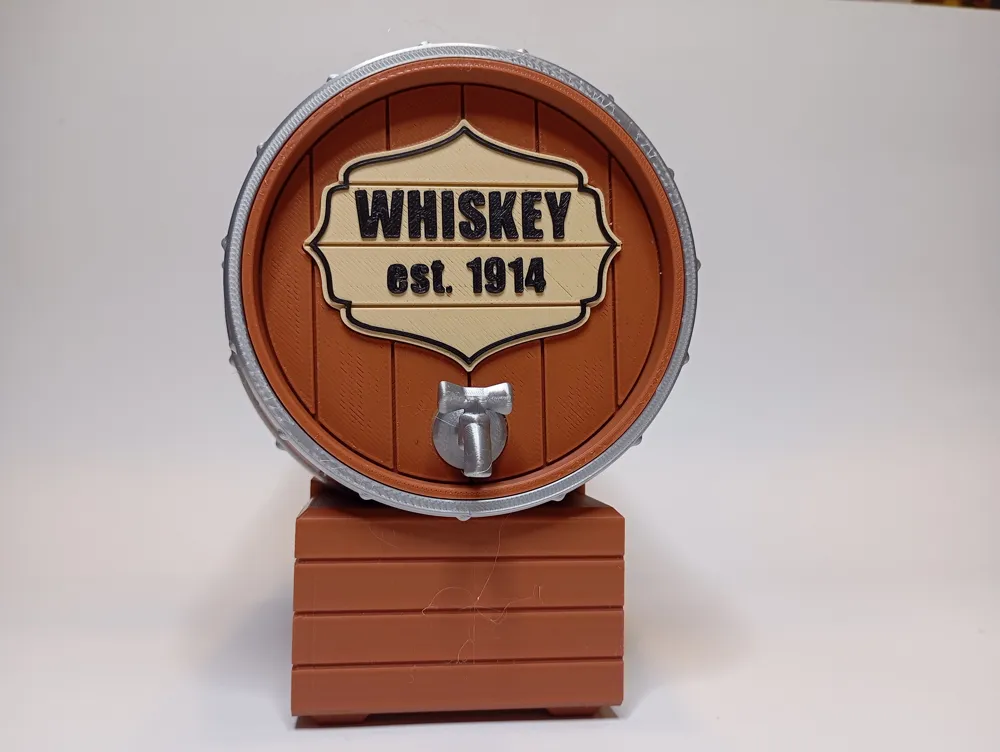

Changing the text on the signs

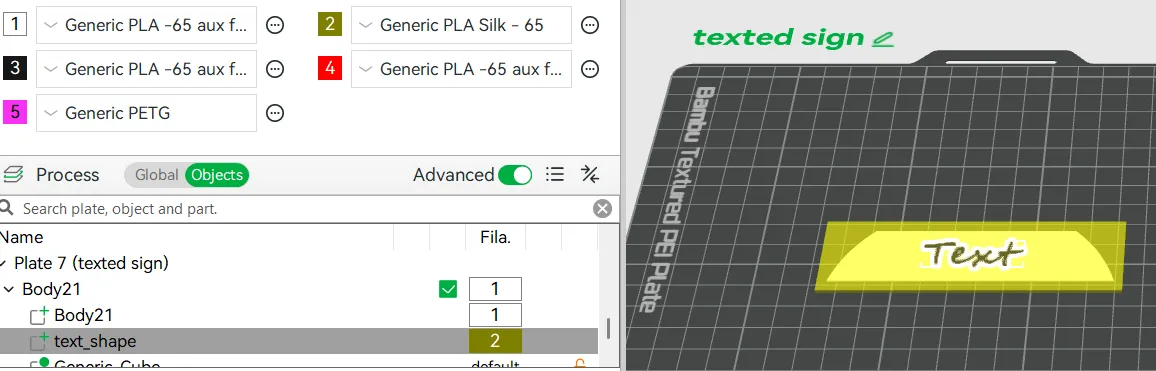

• choose the texted sign plate and click on text_shape.

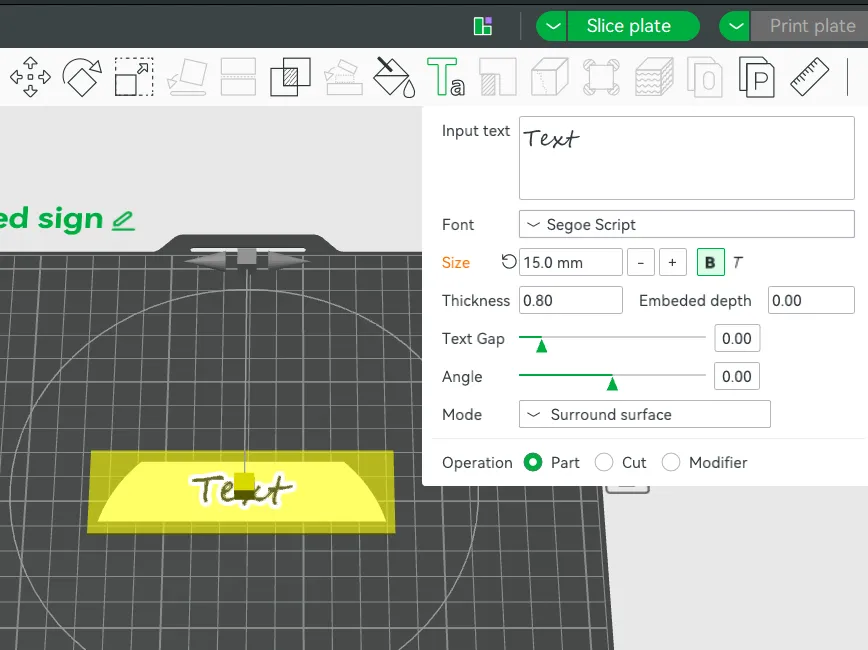

• then click on the text tool and change the text, size or font.

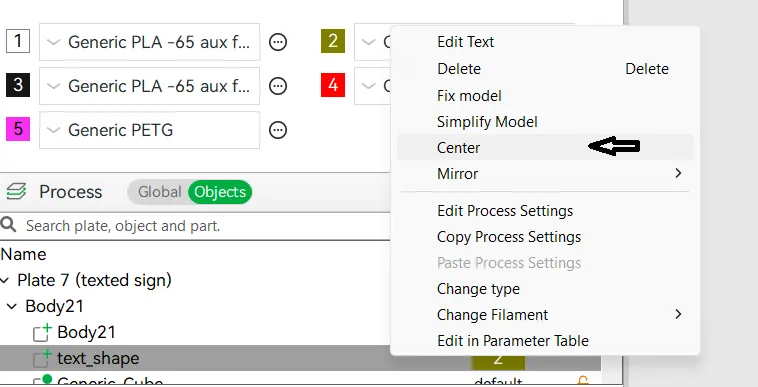

• finally center the text to the sign plate by right clicking on the text_shape or moving it where you like.

• note that you can change the color by right click on the text_shape and then change filament.

Assembly guide

watch the assembly video here:

• Glue the knob on the drawer. there is a relief for that.
• Glue the side caps on the barrel sides. There is a rectangle relief to help you with orientation.
• Glue the signs and the faucet on the barrel sides.
• Glue the barrel sides to the base left and right.
• Glue the inner coasters on the outer coasters.

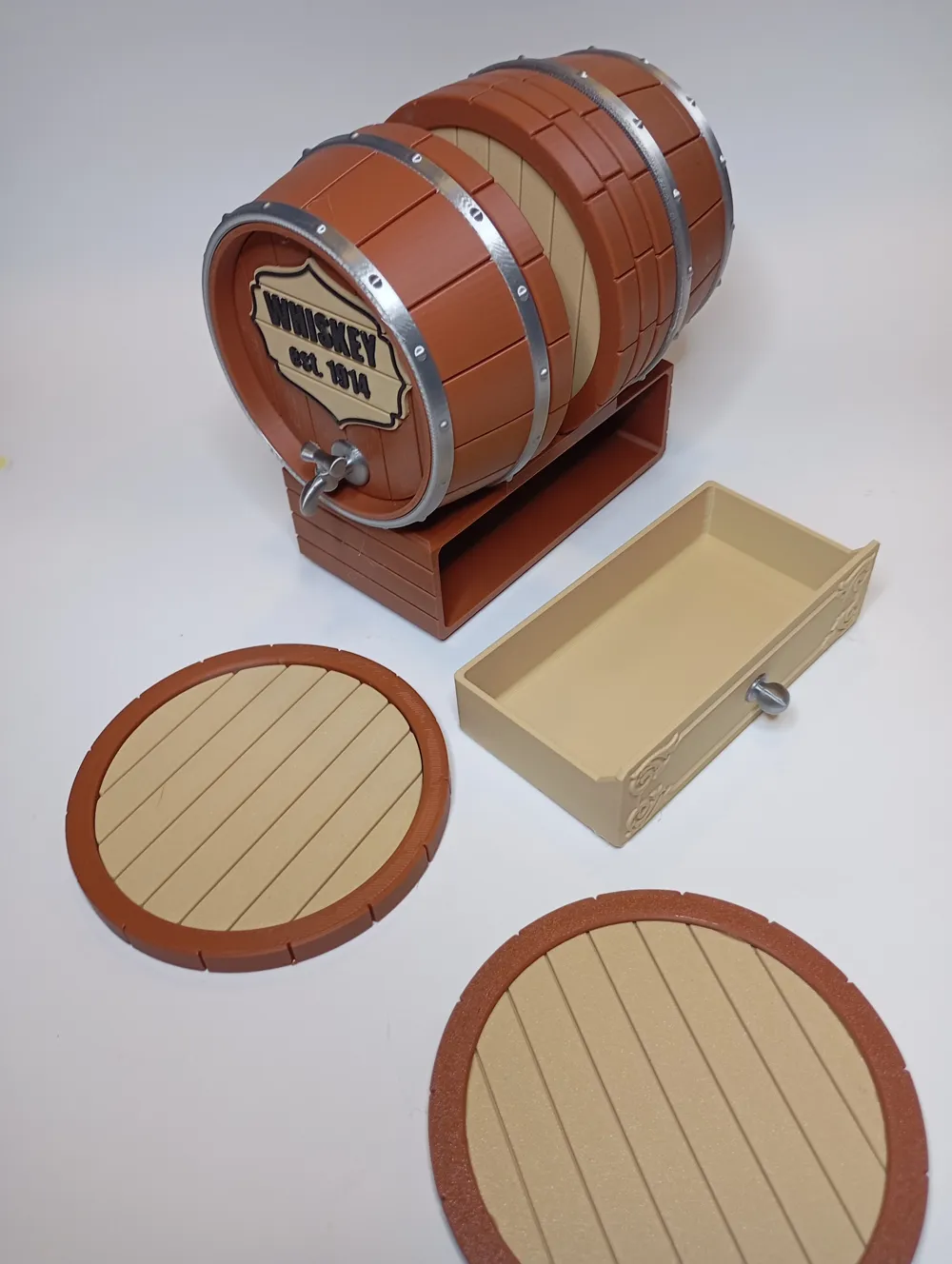

• Place the coasters and the drawer on the assembly unit.
• Ready to enjoy.

added in the drawers and boxes collection:

https://makerworld.com/en/collections/16782218-drawers-and-boxes

added in my home and office collection here:

https://makerworld.com/en/collections/7707089-home-and-office

Note that there is a watermark downside. this is the least i can do protect the design. i see a lot of online stores to sell some of my models and i cant keep in track. If you have already commercial license please ask me to send you the model without watermark if you u wish.

🙏 Please don't leave negative feedback if you don't doublecheck that you used your own well working filament profiles and be very sure that you build plate is well cleaned!

The designs we upload are well tested so you don't have to worry about them. we never upload a design without fully tested them first!
