Description
🔹 Description

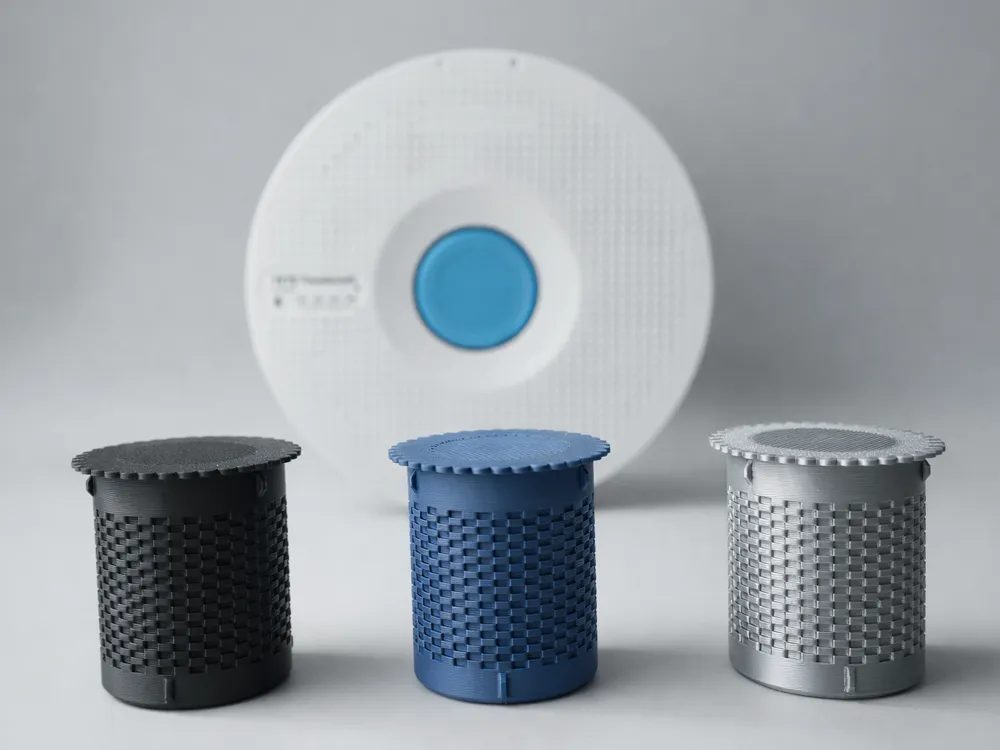

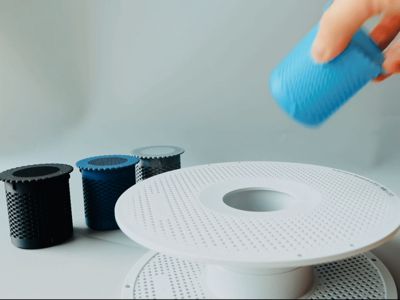

Half a year ago, I released a desiccant box designed for Bambu Lab spools, and it received a lot of positive feedback from users.
After carefully reviewing comments and real-world usage suggestions, I decided to redesign and optimize the model from the ground up.
All improvements focus on one clear goal:
——lighter weight, higher stability, and better real-world usability.
Boost Me (for free)
Please make sure the build plate is clean before printing. Do not touch it with oily hands — otherwise, misfortune may occur 😉
🔹 Easy to Print · Beginner Friendly
- Compatible with PLA / PETG / ABS / PAHT — perfect for using leftover filament

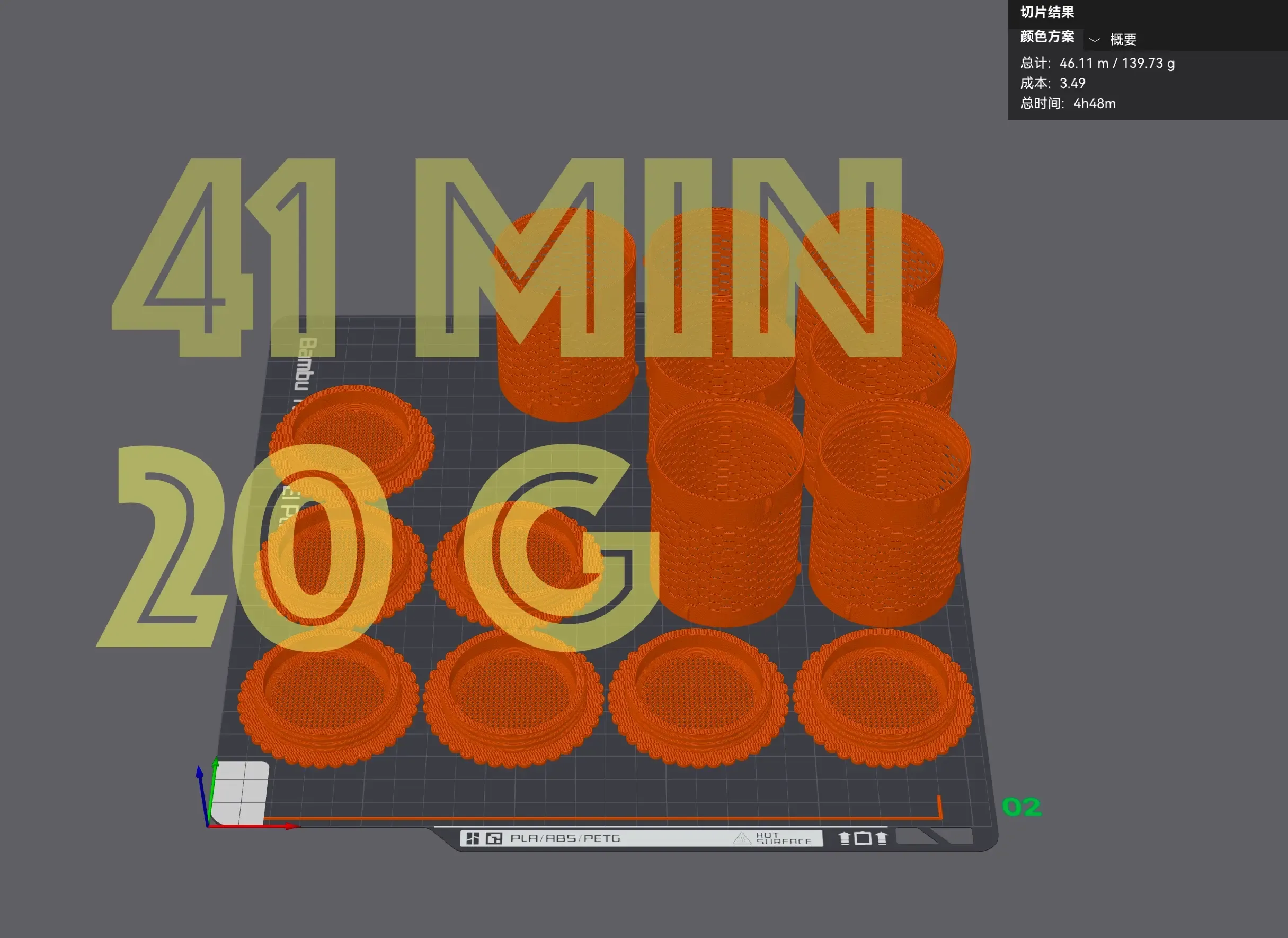

- Fast printing: as quick as ~41 minutes
- Low material usage: about 20 g per unit
- On a Bambu Lab P1S, up to 7 sets can be printed in one batch, averaging 41 minutes per set
🔹 User-Friendly Experience
- Extra-large opening — no need to print a funnel for filling desiccant

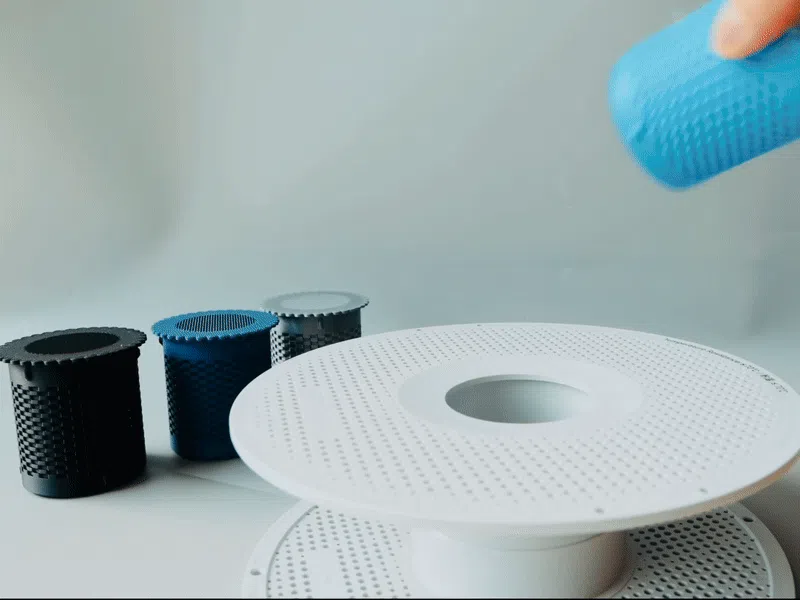

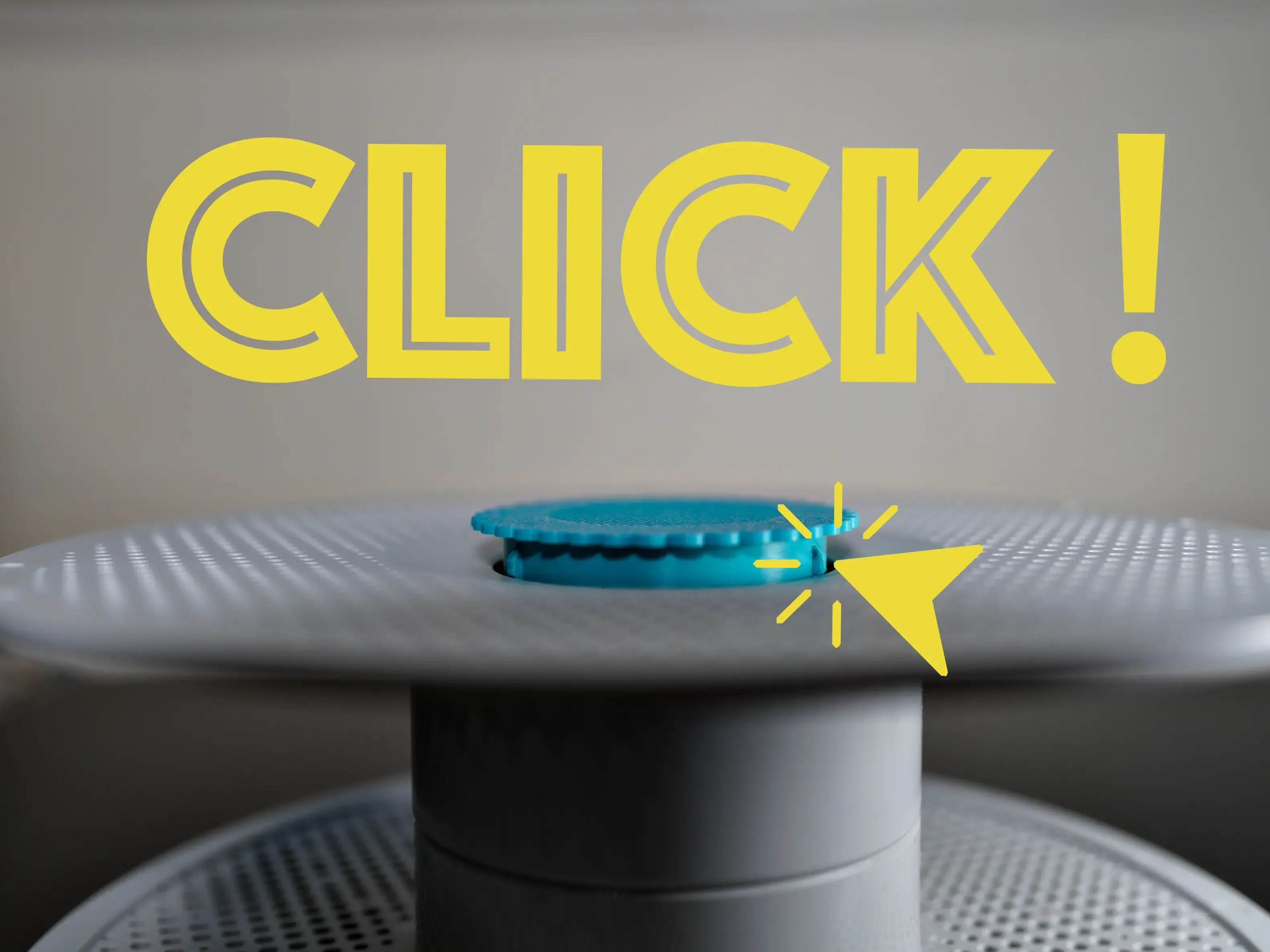

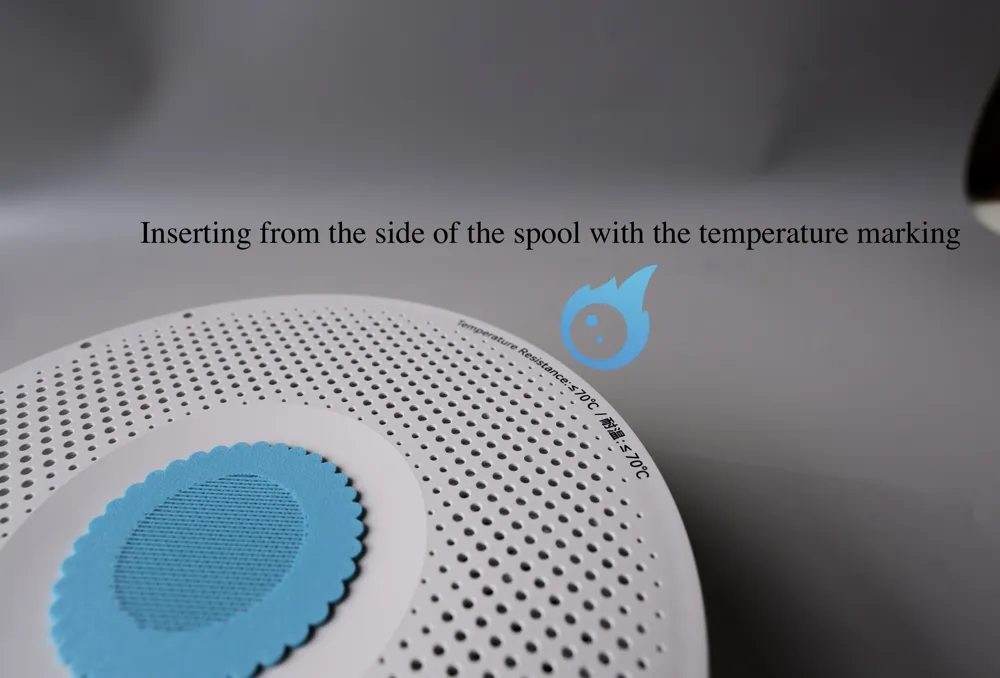

- Simply press into the spool to lock，No additional anti-drop parts required
🔹 More Scientific Structural Design

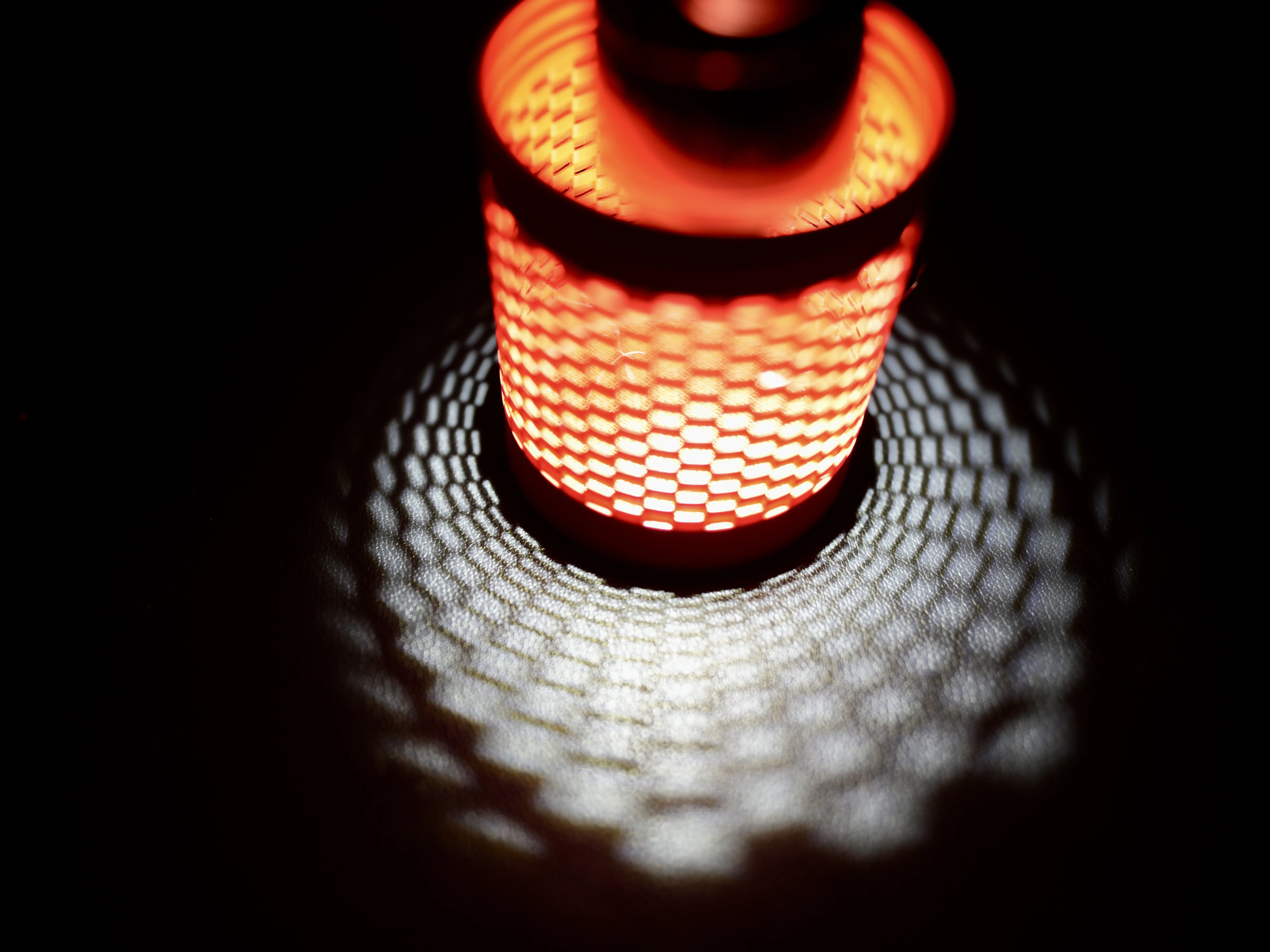

- Vertical ventilation holes

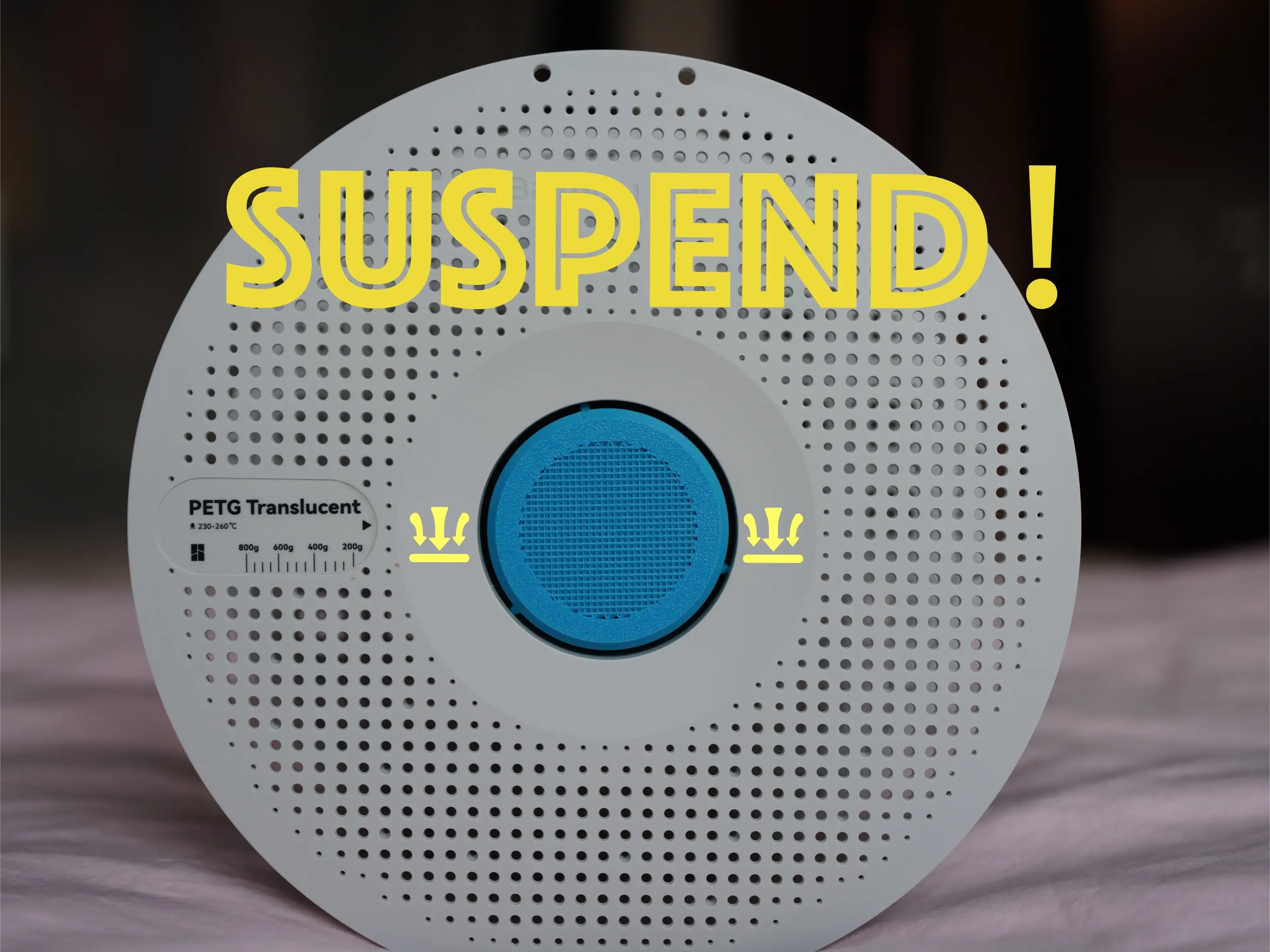

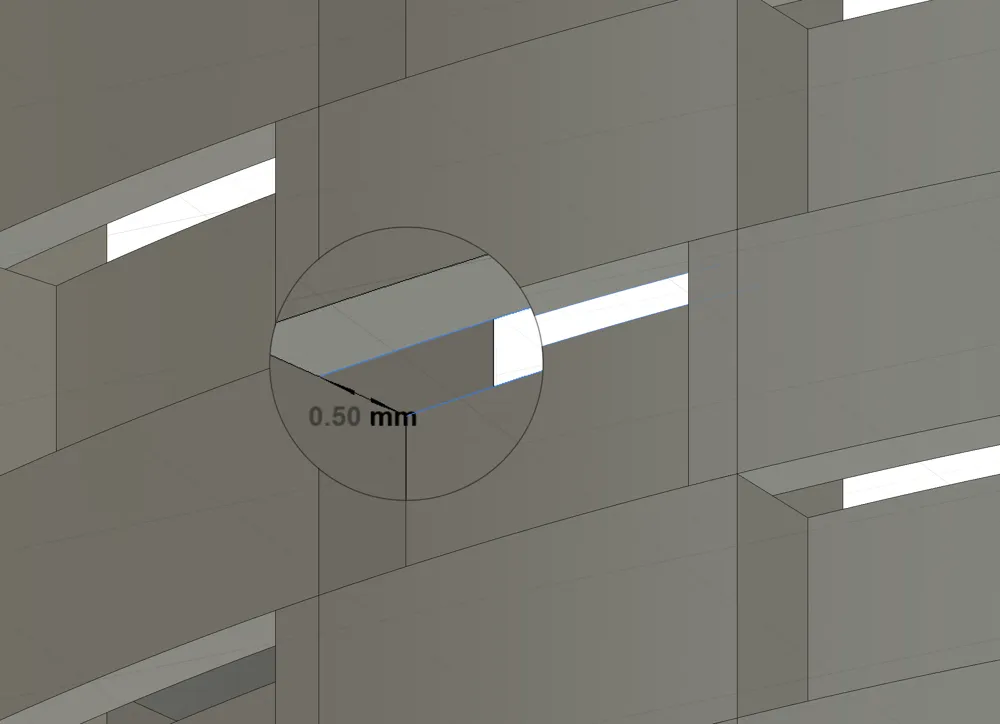

0.5 mm gaps combined with a large total ventilation area - Floating structure
The desiccant box does not tightly contact the spool wall, improving air circulation - Upgraded locking mechanism

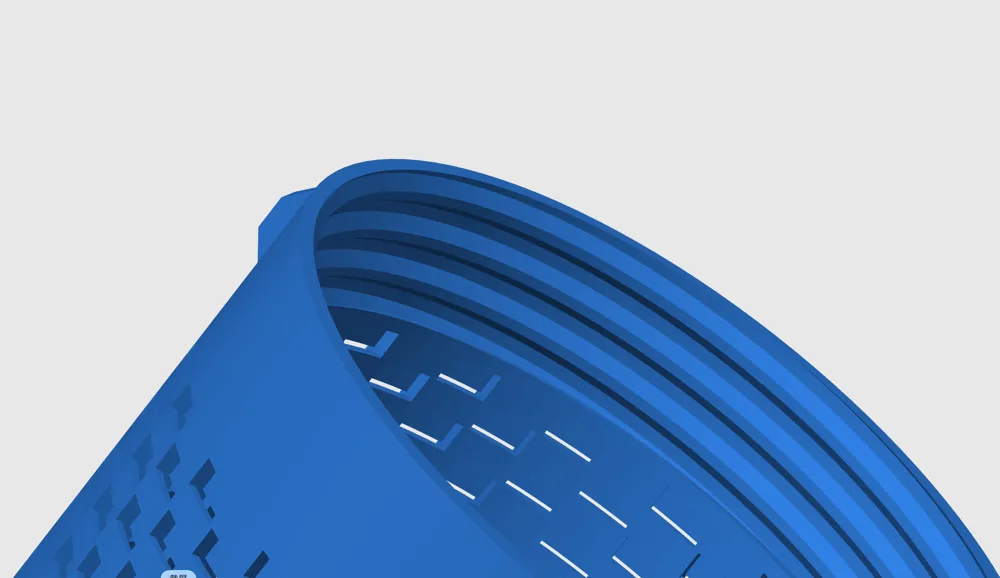

Completely prevents accidental detachment without extra components - Trapezoidal threads
Optimized for 3D printing with precise tolerances and smooth screwing action - Maximum hole size: 0.5 mm

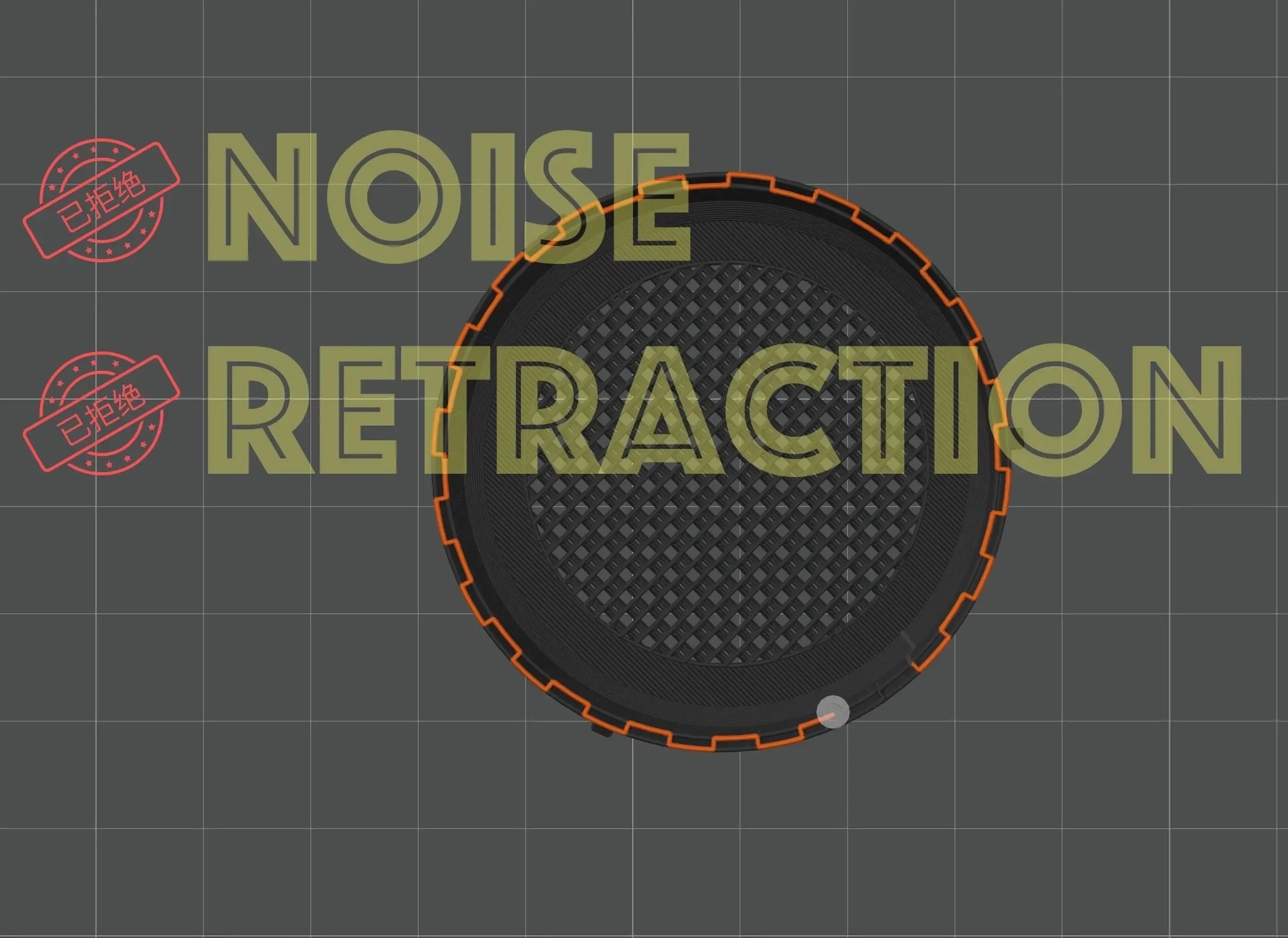

Effectively prevents leakage of small or broken desiccant particles - Optimized print path
No frequent retractions, lower noise, and no limitation to vase-mode single prints
0.5 mm gaps combined with a large total ventilation area
The desiccant box does not tightly contact the spool wall, improving air circulation
Completely prevents accidental detachment without extra components
No frequent retractions, lower noise, and no limitation to vase-mode single prints
