Laser Cup Level – Adjustable Tumbler Engraving Jig

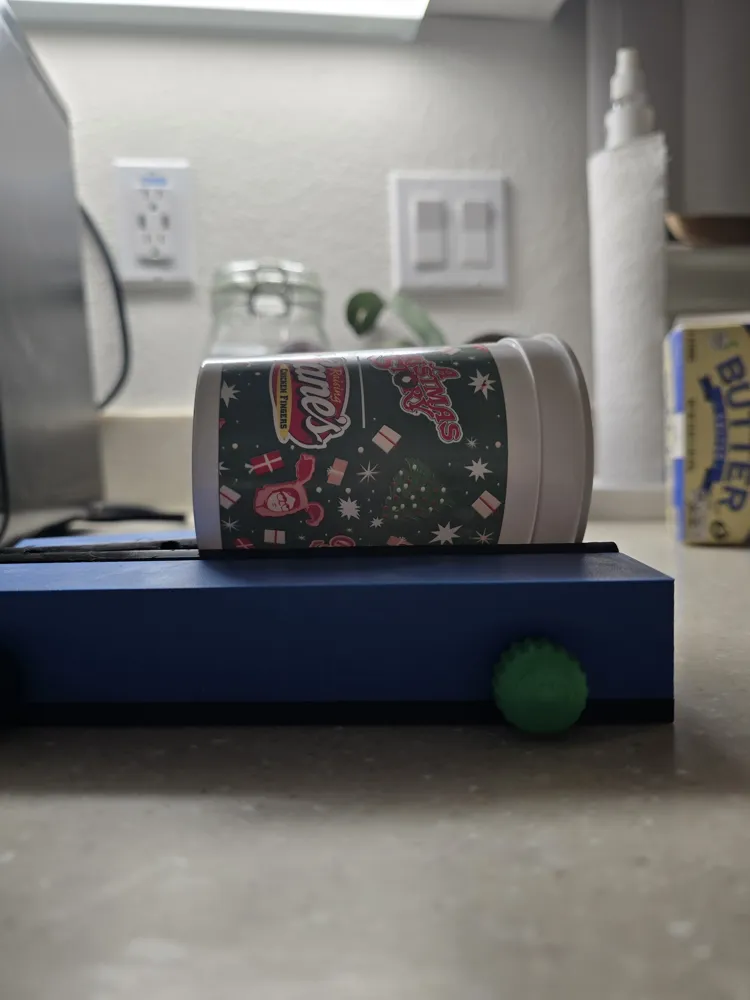

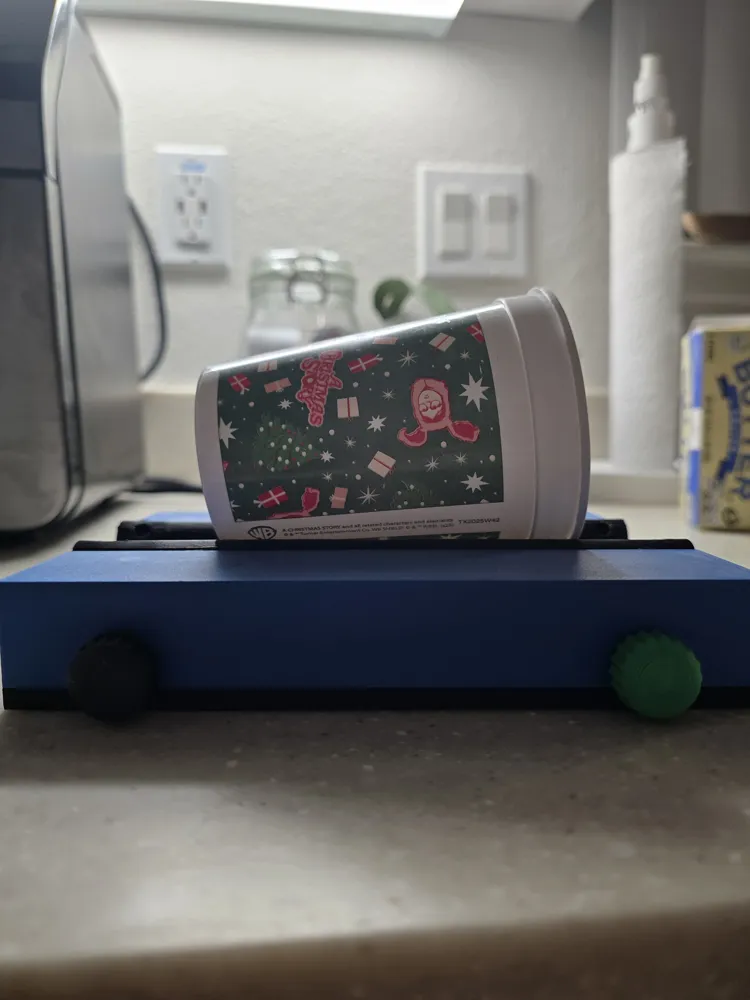

This adjustable laser cup level is a 3D-printed workshop jig designed to quickly and accurately level cups, tumblers, and mugs for laser engraving without a rotary attachment.

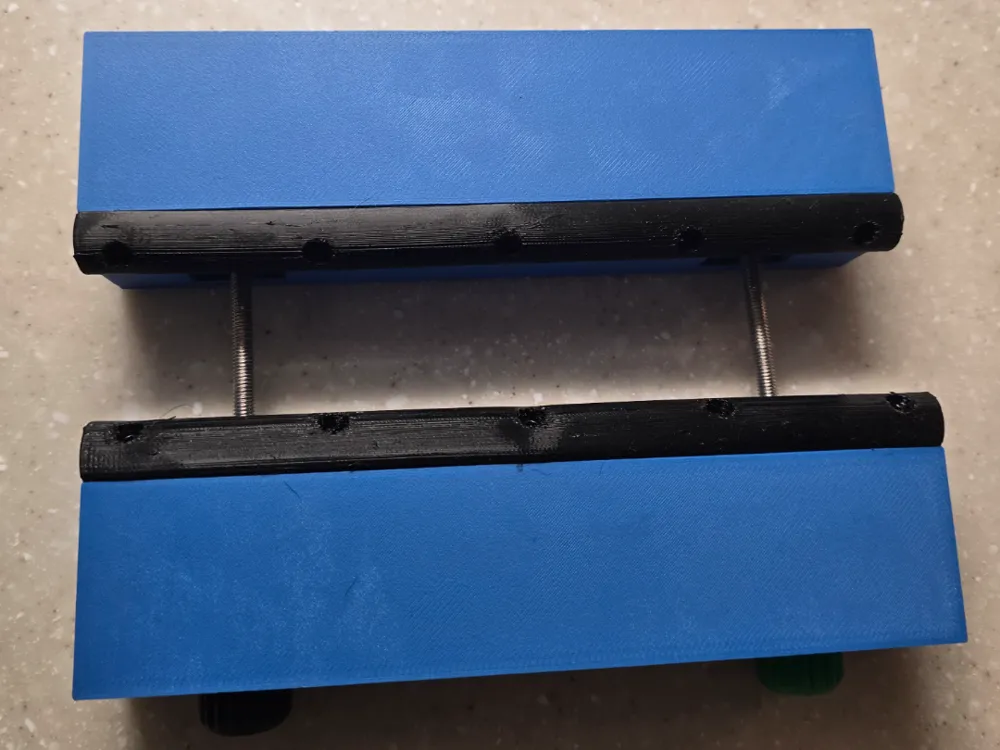

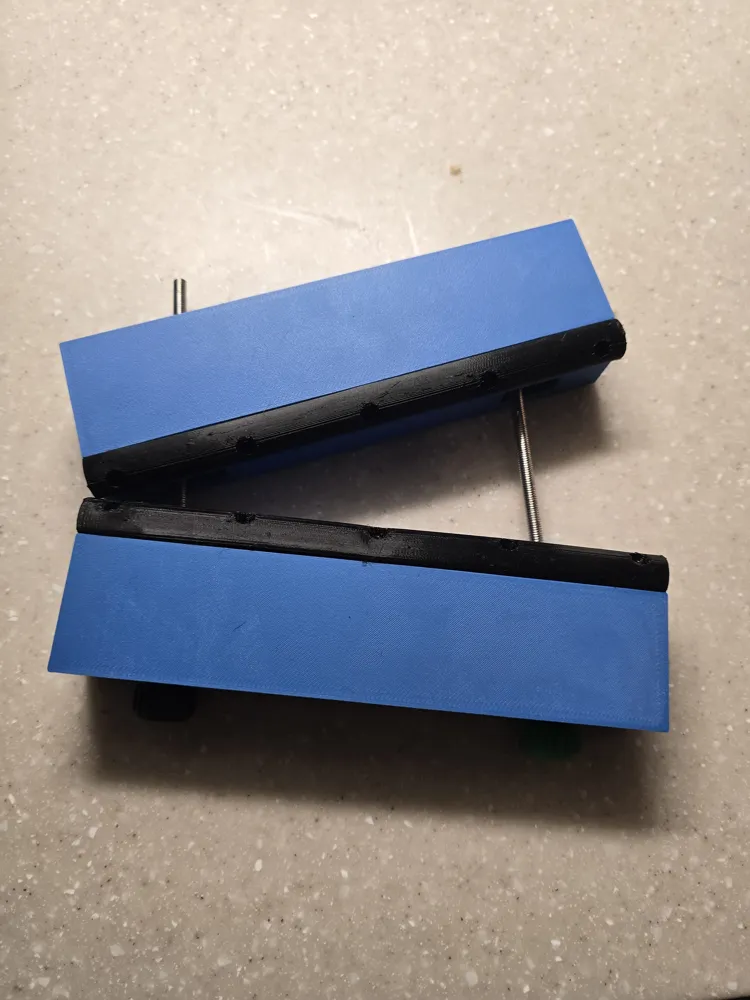

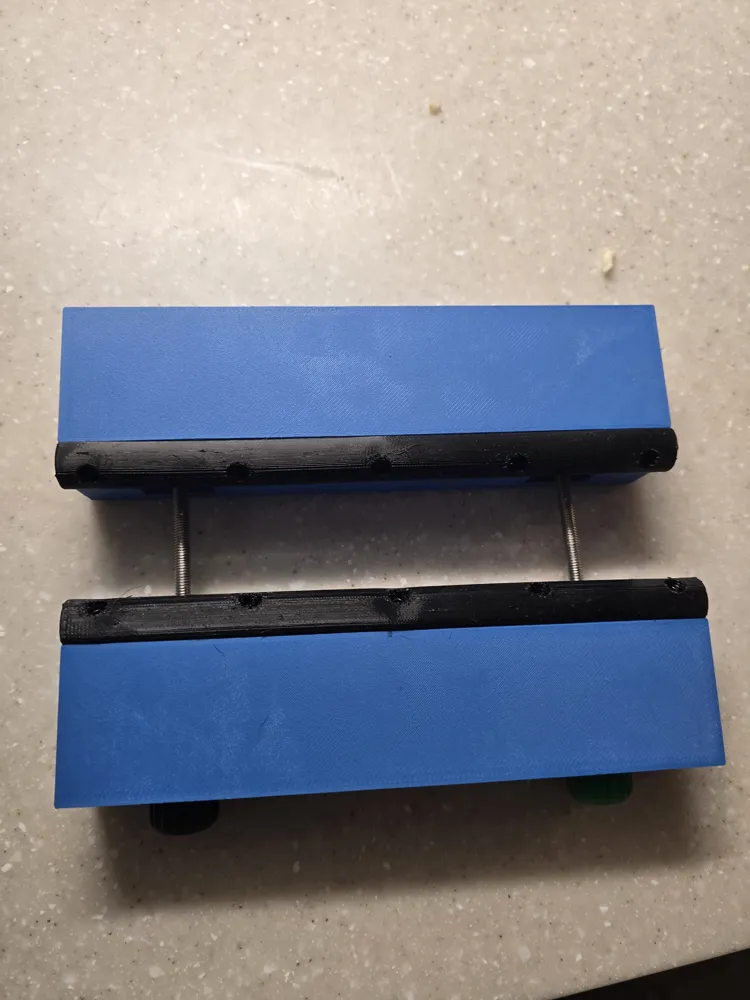

The angled cradle supports cylindrical drinkware while allowing fine adjustment using the side knobs, making it easy to align your engraving surface level with the laser beam. Ideal for production work and small engraving shops.
🔧 Features
- Adjustable leveling system for precise alignment
- Works with tumblers, cups, mugs, and similar cylindrical items
- Rotary-free solution for laser engraving
- Simple, durable, and easy to print
- Great for repeatable, production-style setups
🧰 Hardware Required
This model uses standard, easy-to-source hardware:
- Threaded rods
- https://a.co/d/0i7KPIPK
- universal joint
- https://a.co/d/0fE2zdG6
- M3x8 button head screws\
- https://a.co/d/0954SYJc
🧰 Compatibility
- Diode lasers
- CO₂ lasers
- Fiber lasers
- Desktop and benchtop laser engravers
📦 Assembly
- Simple assembly using standard hardware
- Fully adjustable after assembly
⚠️ Disclaimer
This model is intended as a leveling and positioning aid only. Always confirm final alignment before engraving.
