Description

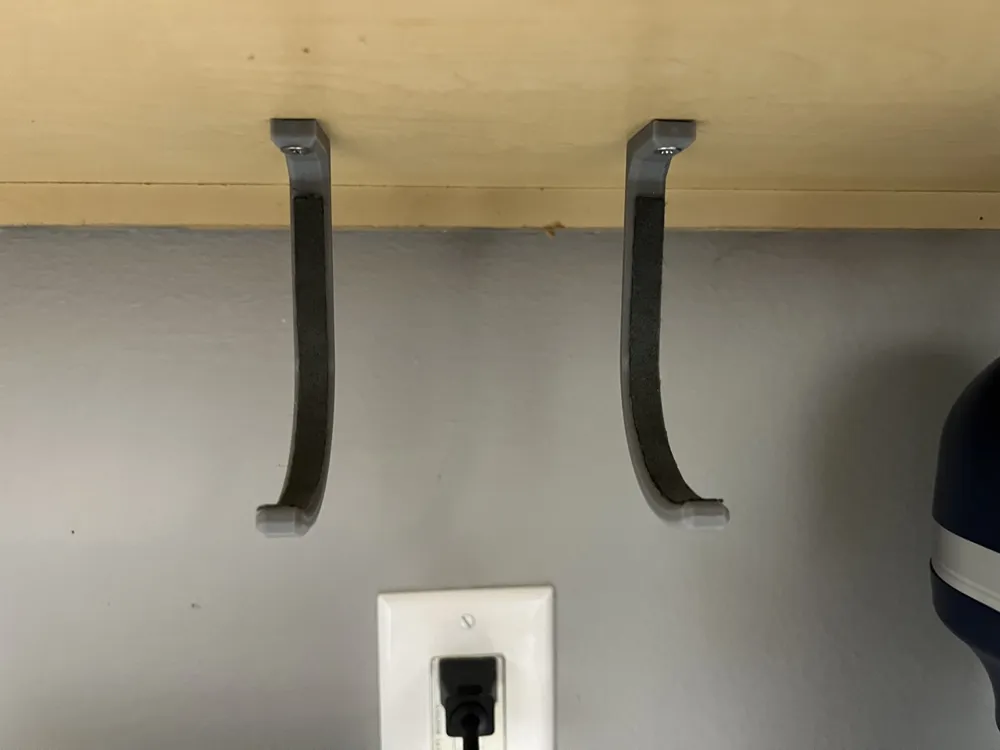

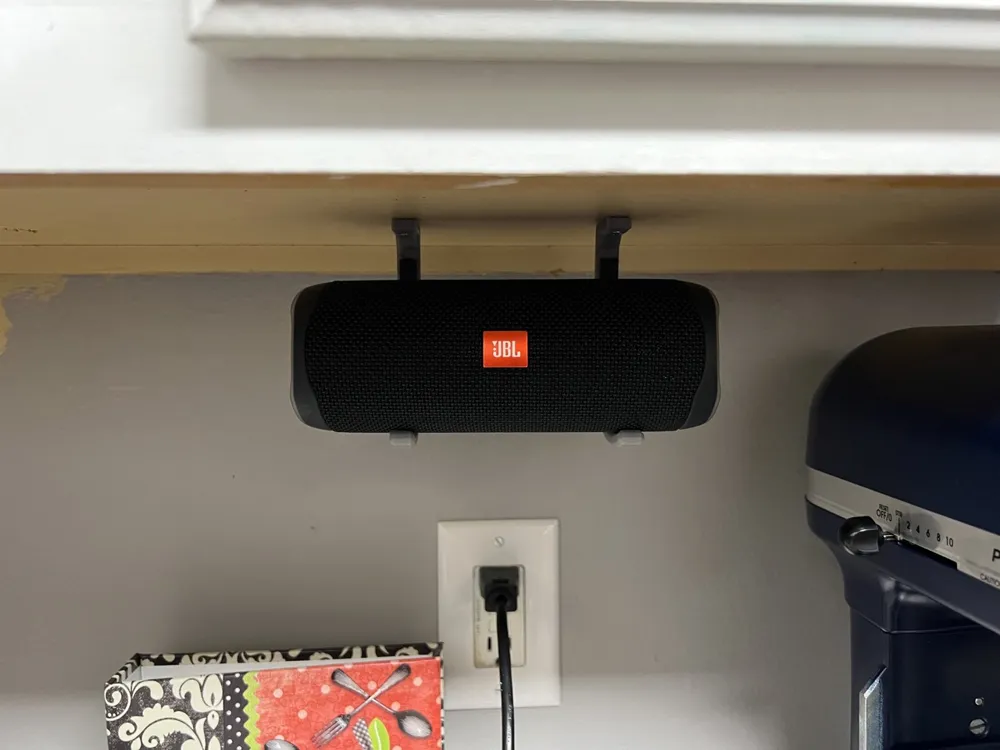

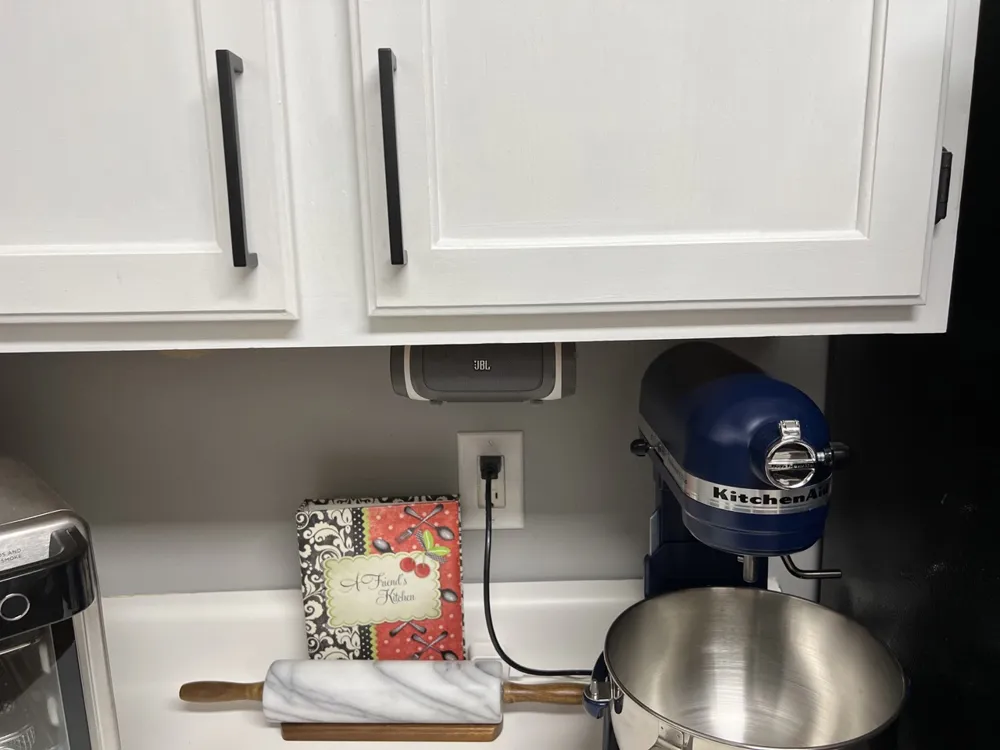

This one was a request from the wife. A quick and simple little way to mount your JBL Flip or other favorite, round, bluetooth-enabled portable speaker. It maintains easy access to ports and buttons on the back and is simple to take the speaker off of. We have it mounted in the kitchen to save some precious counter space. You might notice I covered mine in something - it is just some adhesive-backed suede I got a roll of from amazon. It makes the interfacing surfaces between the speakers and the PLA I printed this in get along a little nicer in my mind, but it will certainly work fine without it.

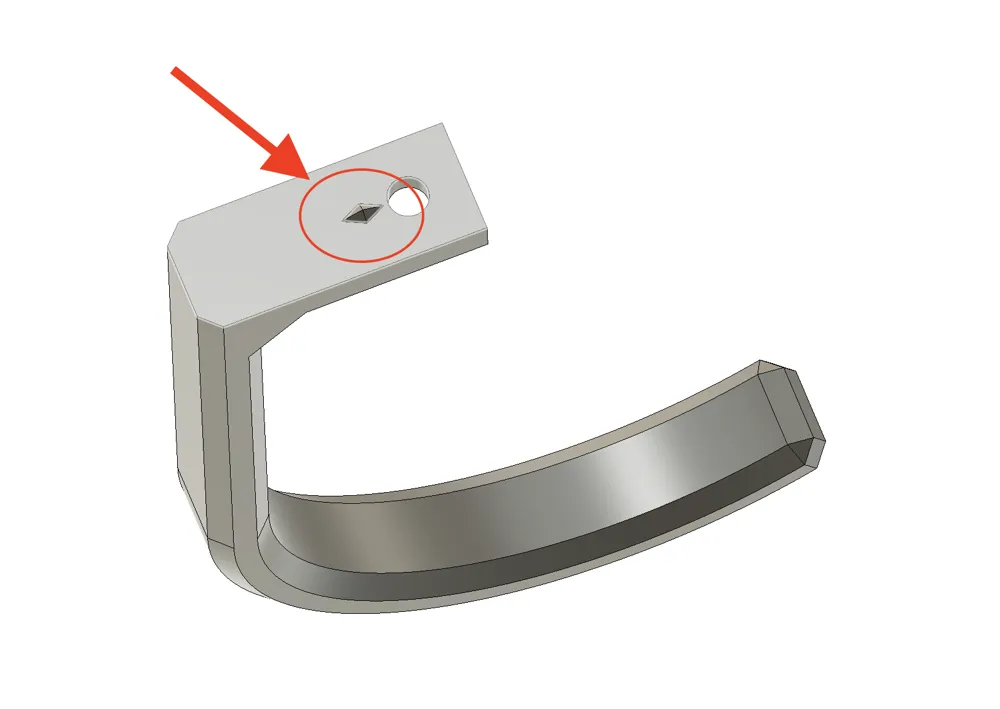

The hole for the screw to go through in this model is 5.4mm, but the parametric Fusion 360 design files are included for easy remixing to fit your needs.

If you hang some up, post your make so I can see!

Comment & Rating (42)

@Mettbroetchen

Print Profile

0.2mm layer, 2 walls, 15% infill, 80mm

good quality, unfortunately too small for JBL Charge5. add 50%size in your slicer and it will work. Thanks anyway !

@user_2637399224

Boosted

scale it up.

(Edited)

@Lily.kins

Boosted

Replying to @user_2637399224 :

" add 50%size in your slicer and it will work." ..yeah thats what they did..

(Edited)

@YungDaan

Print Profile

0.16mm layer, 2 walls, 15% infill

printed it 120% scale and fits a jbl charge 4 perfect!

@Penfold

Print Profile

0.16mm layer, 2 walls, 15% infill

We printed it for our jbl in the garage and it turned out perfect. Simple but definitely useful!

@ctmzae

Thanks for the file! I did modify it to fit size small command strips so it's a little easy to move around if wanted. 😅

@Bubz

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill, 80mm

mounted under a cabinet to keep outta the way but still easy to grab for charging!

@user_2549799928

Print Profile

0.16mm layer, 2 walls, 15% infill

@Artek3DPrint

Print Profile

0.16mm layer, 2 walls, 15% infill

@BoostedRabbit

Print Profile

0.2mm layer, 2 walls, 15% infill, 80mm

@Batchyyy

Print Profile

0.16mm layer, 2 walls, 15% infill

Good simple design - however screw mounting is close to impossible with a combi drill because of the design.

The profile uploader has replied

@wesyarber

Yeah, it was an unfortunate trade-off that I made to only need one screw per arm. If I shifted it out to the side, it would need a second screw per arm. If I designed it today, though, I think I would come up with a better solution, so it is hard to look back on old designs some times and see that 😂

@Batchyyy

Replying to @wesyarber :

Haha no hate here! the design is spot on! Just physics won’t allow it haha! I’ve half way got it hung up! just need to get the motivation to find a hand screwdriver and finish the job 😂

@user_2637399224

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill, 80mm

scaled it to fit my speaker. printed great. kudos on the minimalist approach!
