Mobile Satellite Dish Mount
Since the tripod is often too low or there are too many trees around, it is essential to find a clear high position.

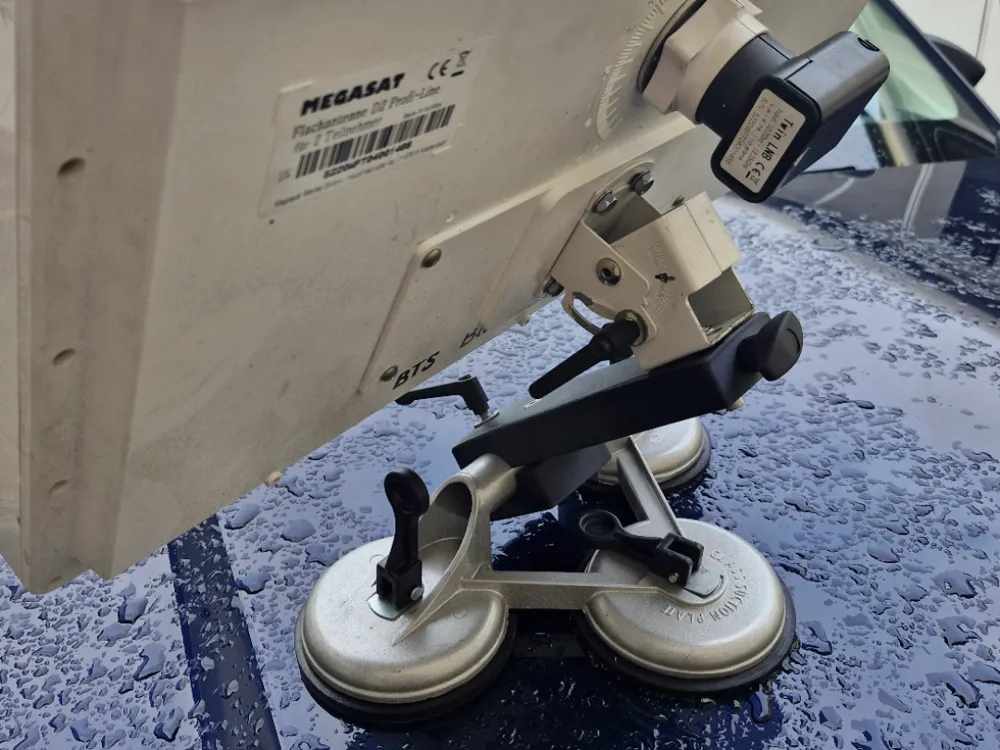

Theoretically, it can also be mounted vertically on the window (if you trust the suction cups). I simply place it on the

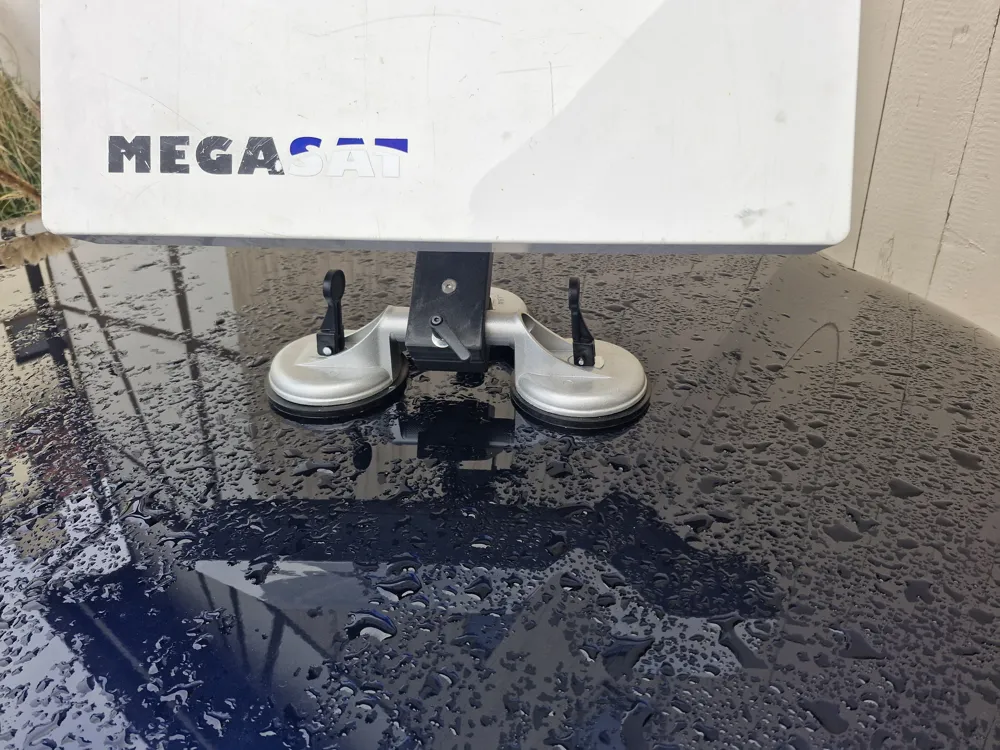

caravan roof.

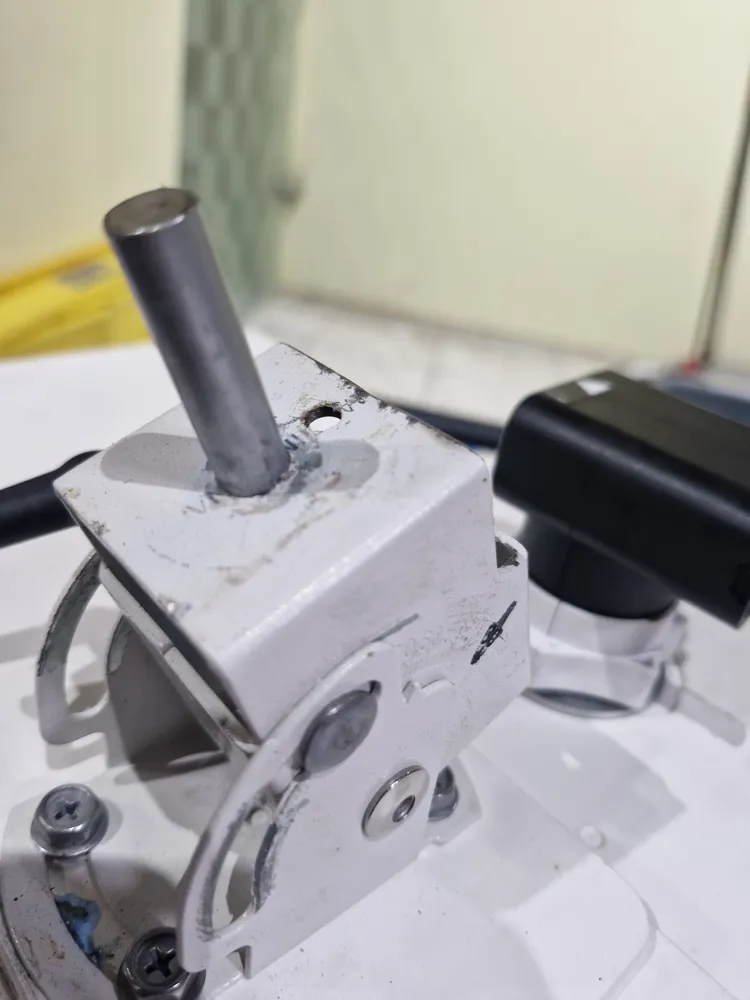

Screw cylinder pin (8.) with screw (7.) to the antenna mount.

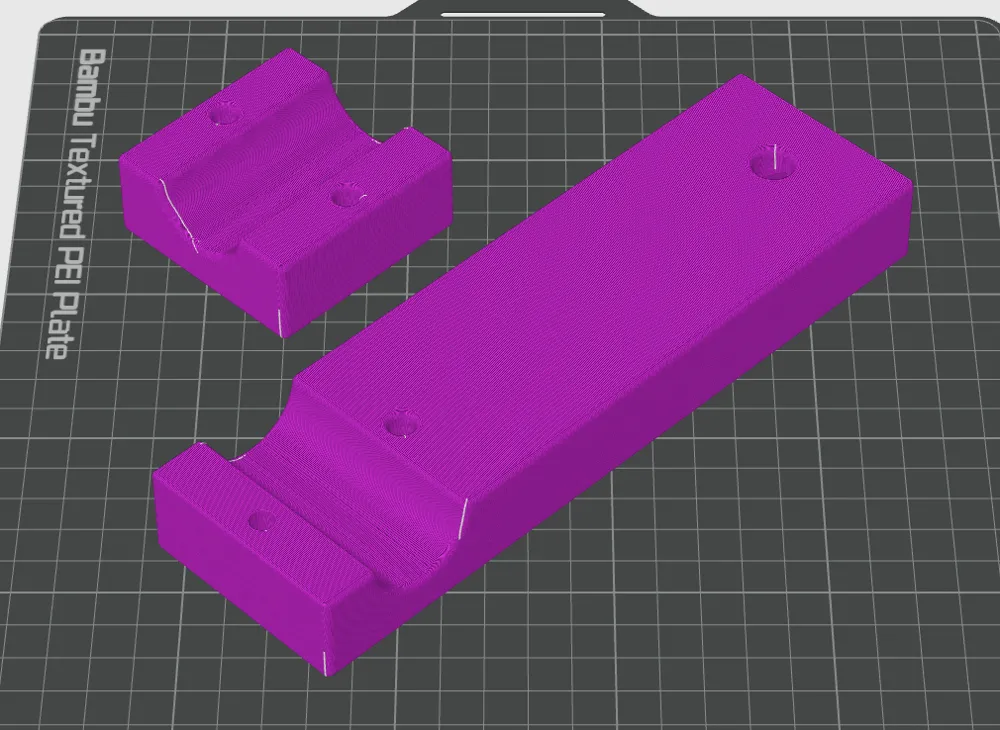

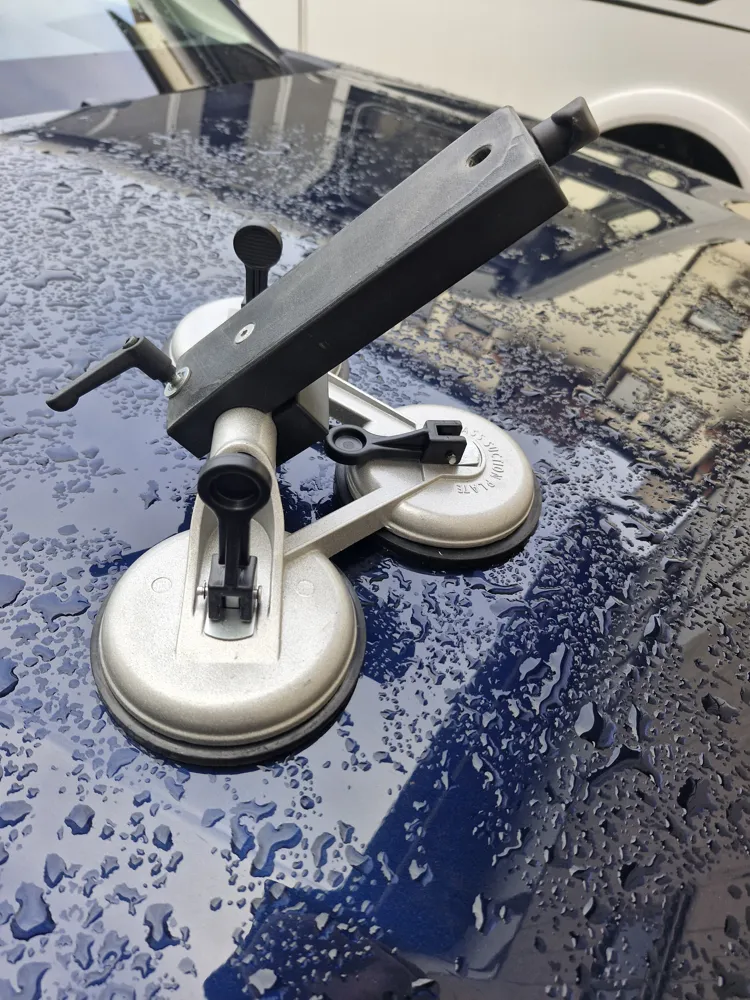

Screw printed parts with screws (3.4.5.&6.) to vacuum suction cup (see pictures).
Press the 2nd nut (5.) into the 10mm hole (15mm deep up to the internal 6-sided recess). Screw toggle screw (2.) from the side into the nut.
You need for this
1. Vacuum suction cups 2 pieces approx. 20 Euros
2. Thumb screw M6 x 25mm
3. Thumb screw M6 x 60mm
4. Countersunk screw M6 x 60mm
5. 2 x Nut M6
6. 1x Lock nut M6
7. Screw M6 x 20mm
8. Dowel pin with internal thread 10mm X 40mm or longer
