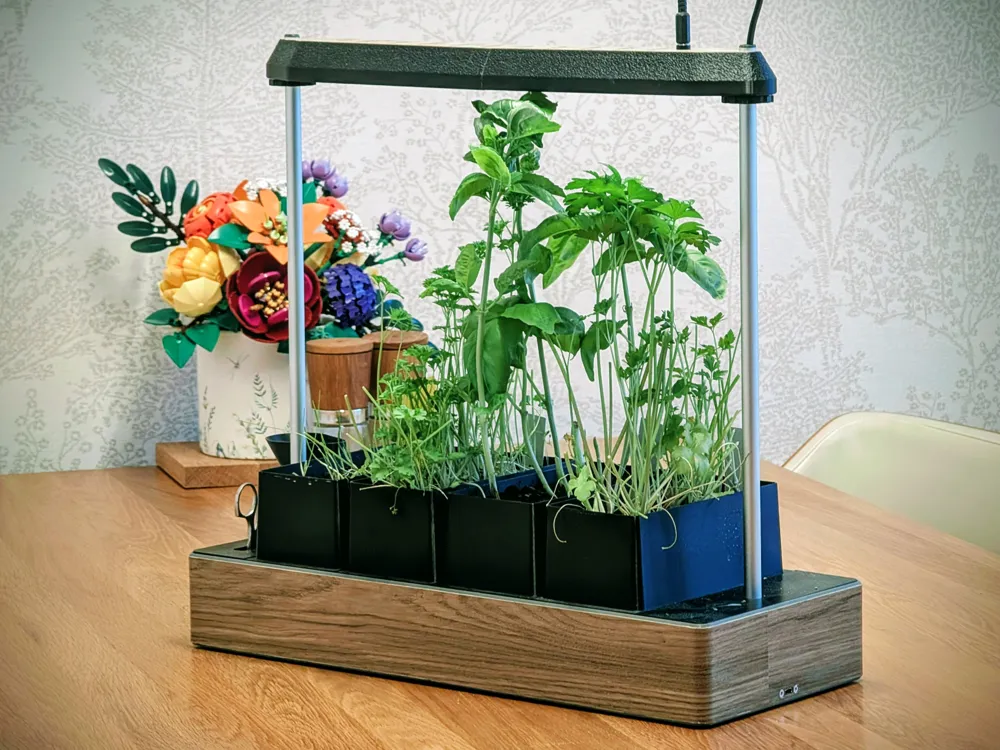

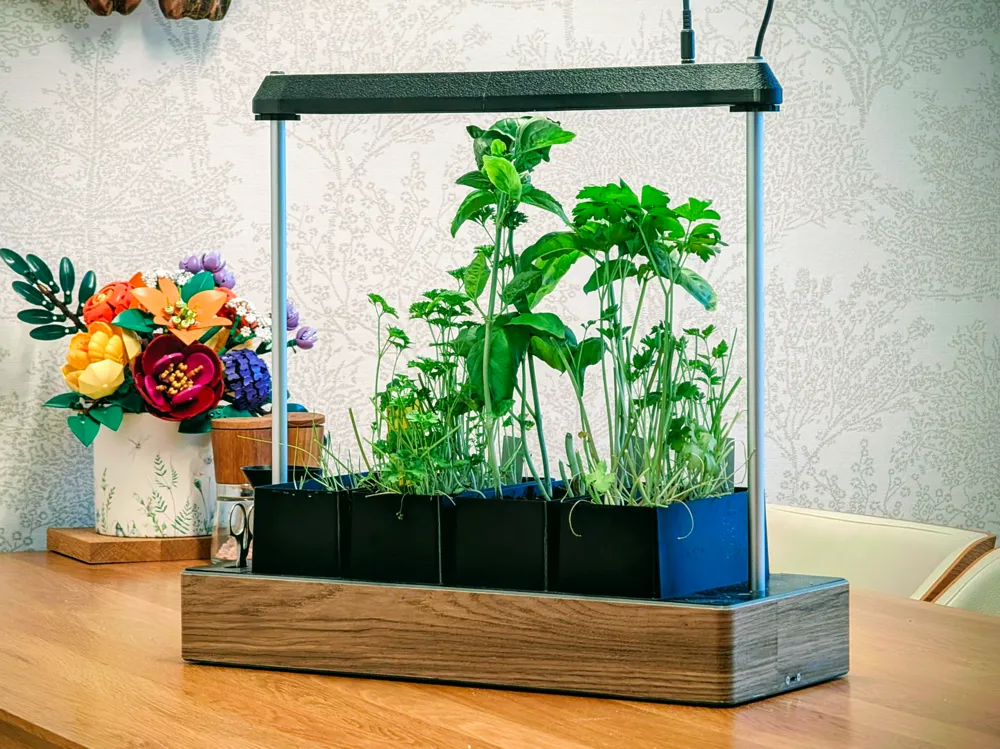

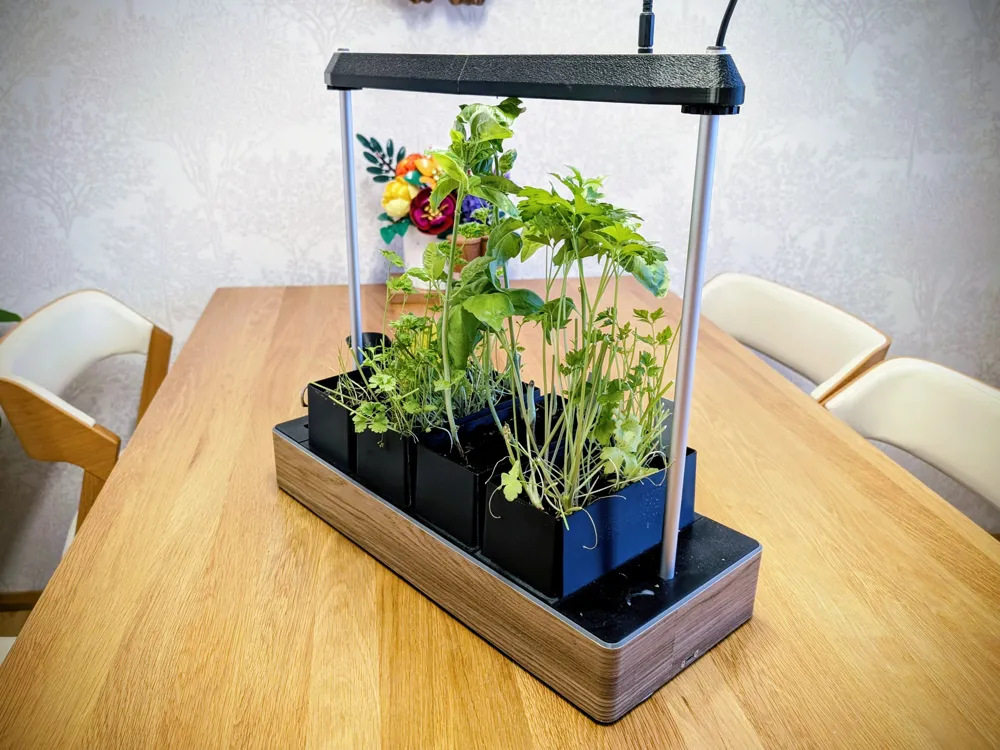

Modular Smart Self-Watering Planter with Grow Lights (USB-PD)
Transform your home gardening with this modular, automated planter. Designed specifically for herbs and plants during winter or in low-light environments. It combines high-capacity self-watering with powerful, height-adjustable LED lighting.
Key Features

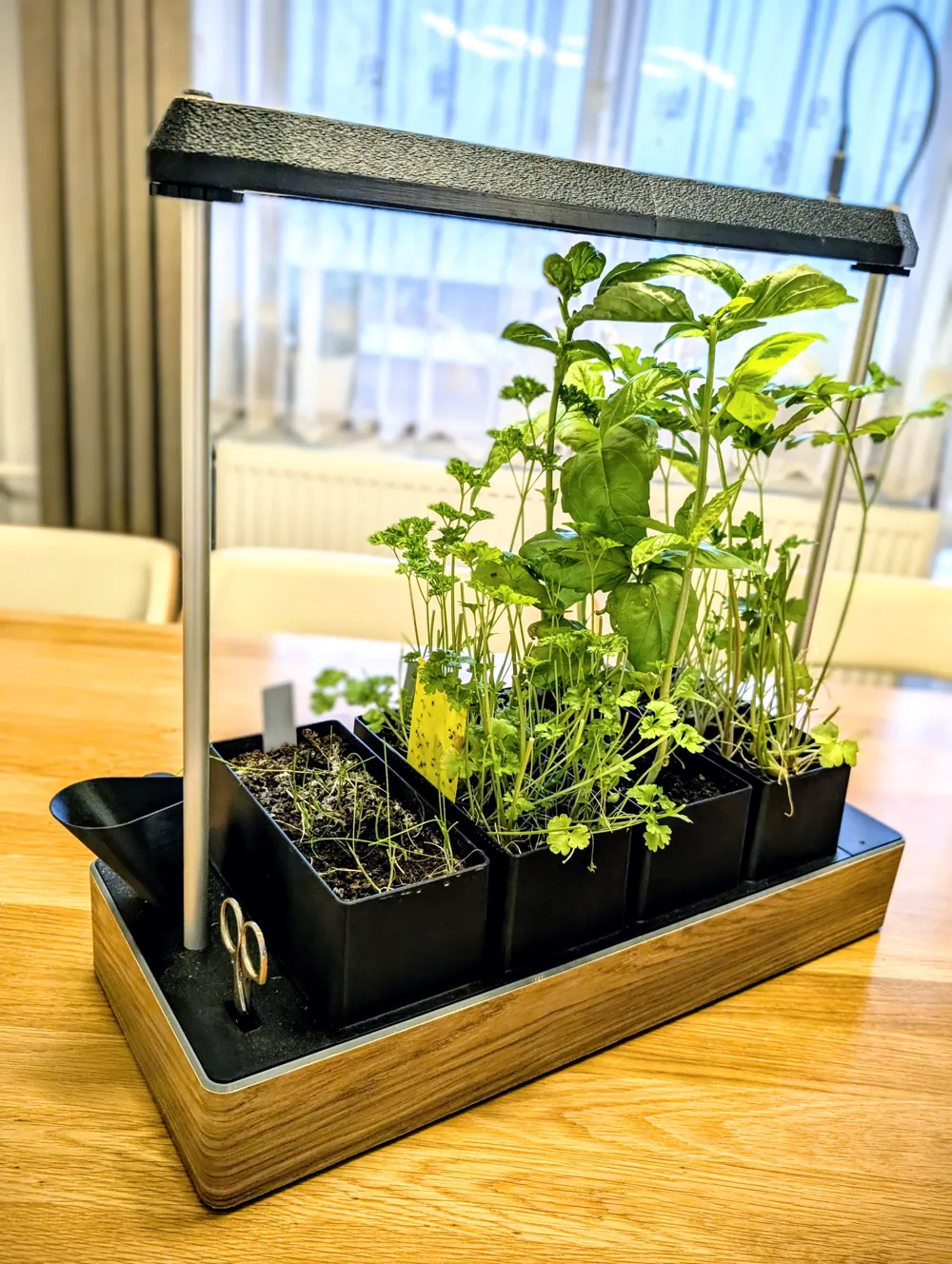

- Fully Modular: Switch between 8 small (S), 4 medium (M), or 2 large (L) pots. Mix and match to fit your needs!

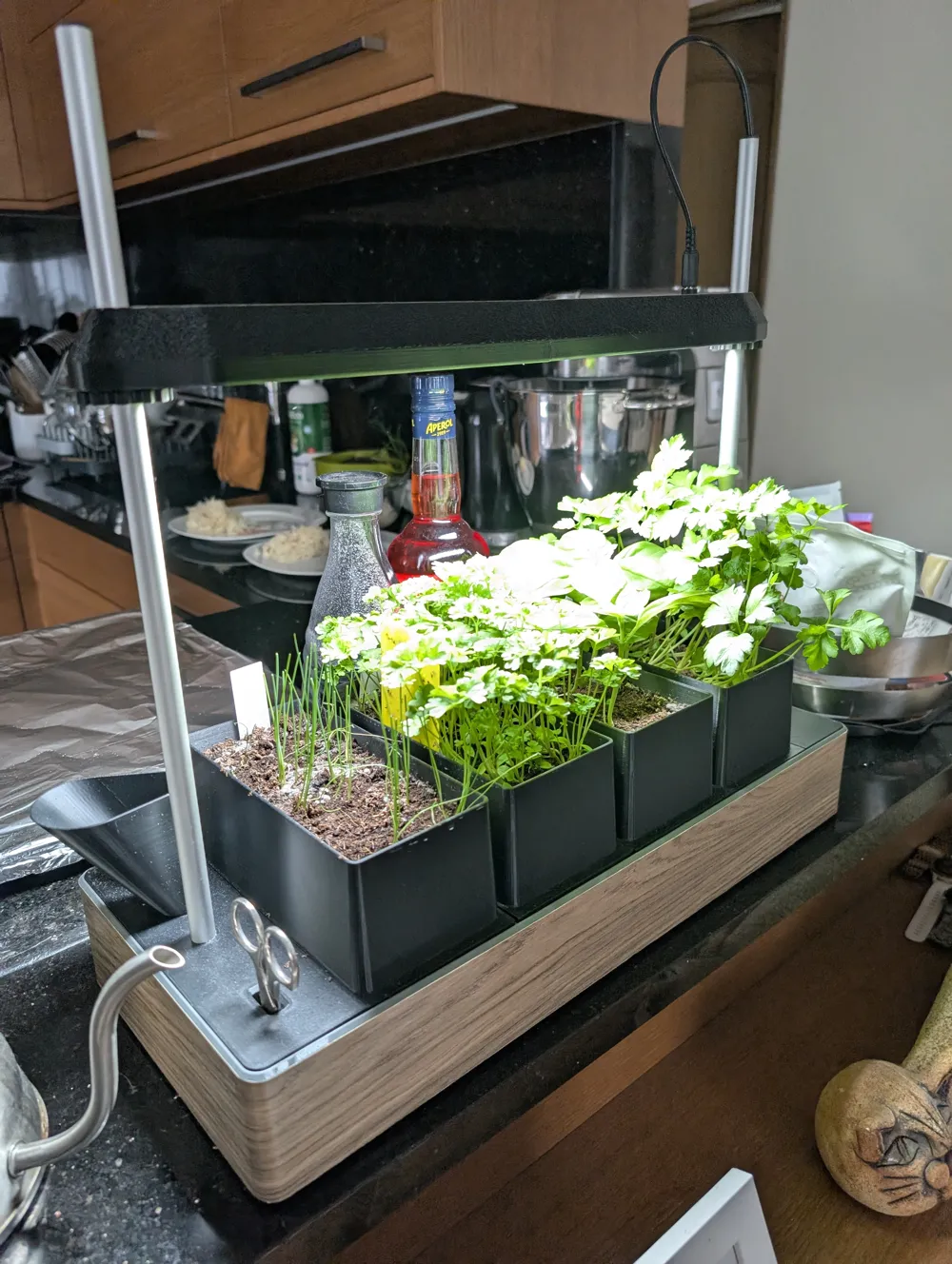

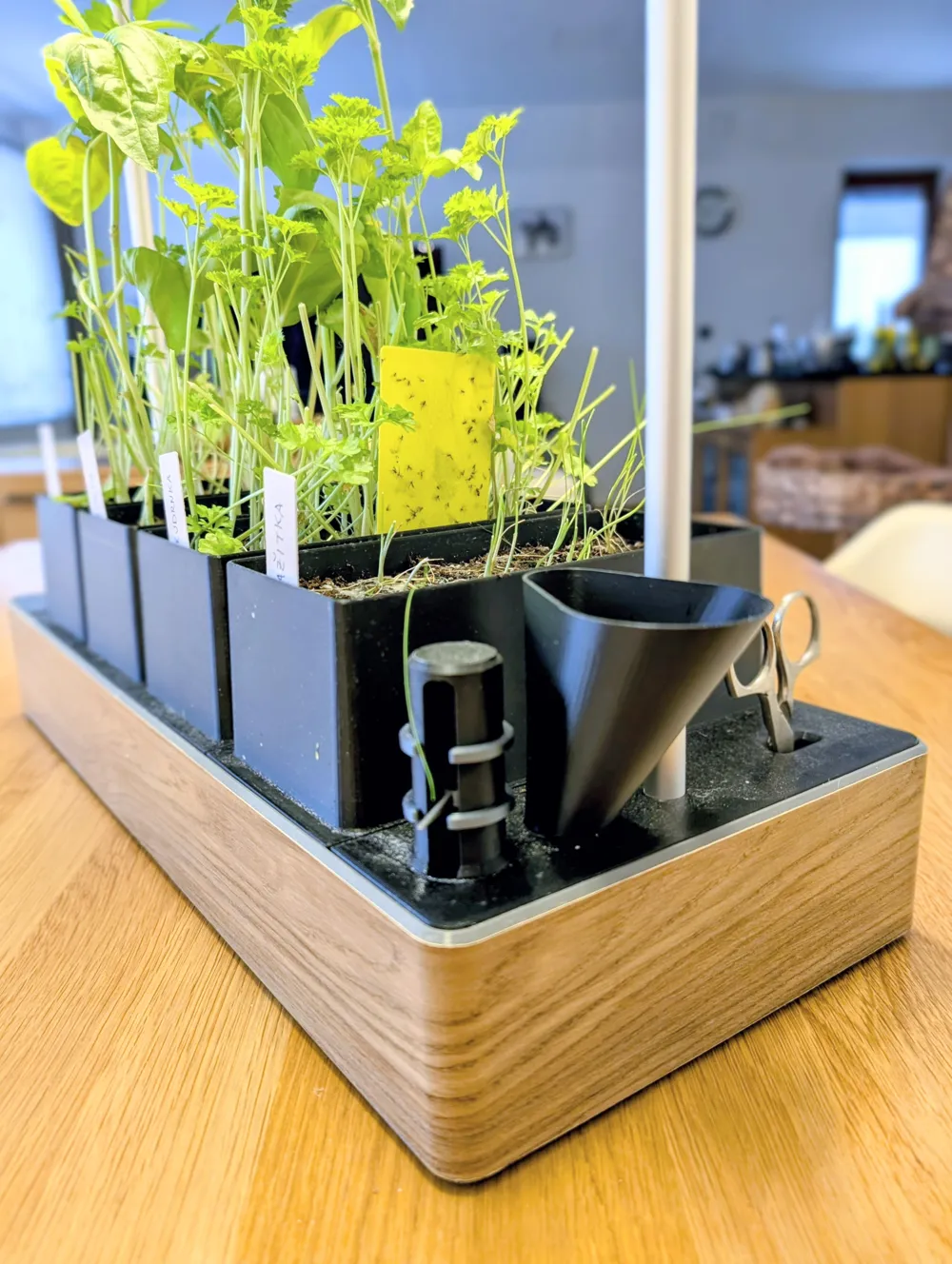

- 14-Day Self-Watering: 3-liter reservoir with a visible water level indicator. Perfect for vacations.

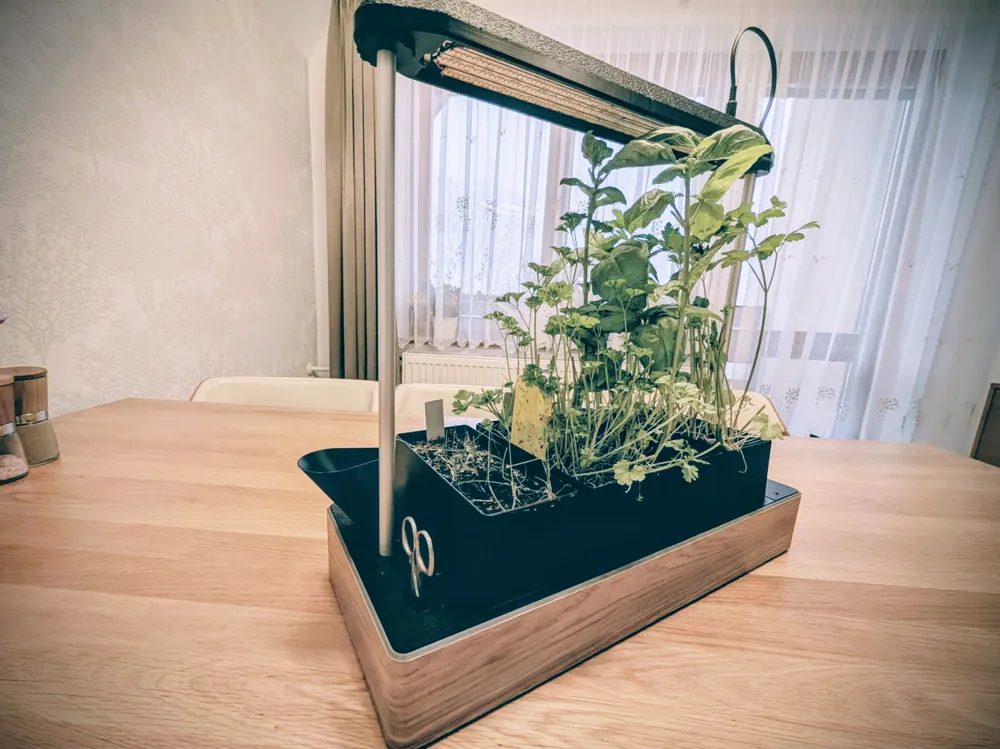

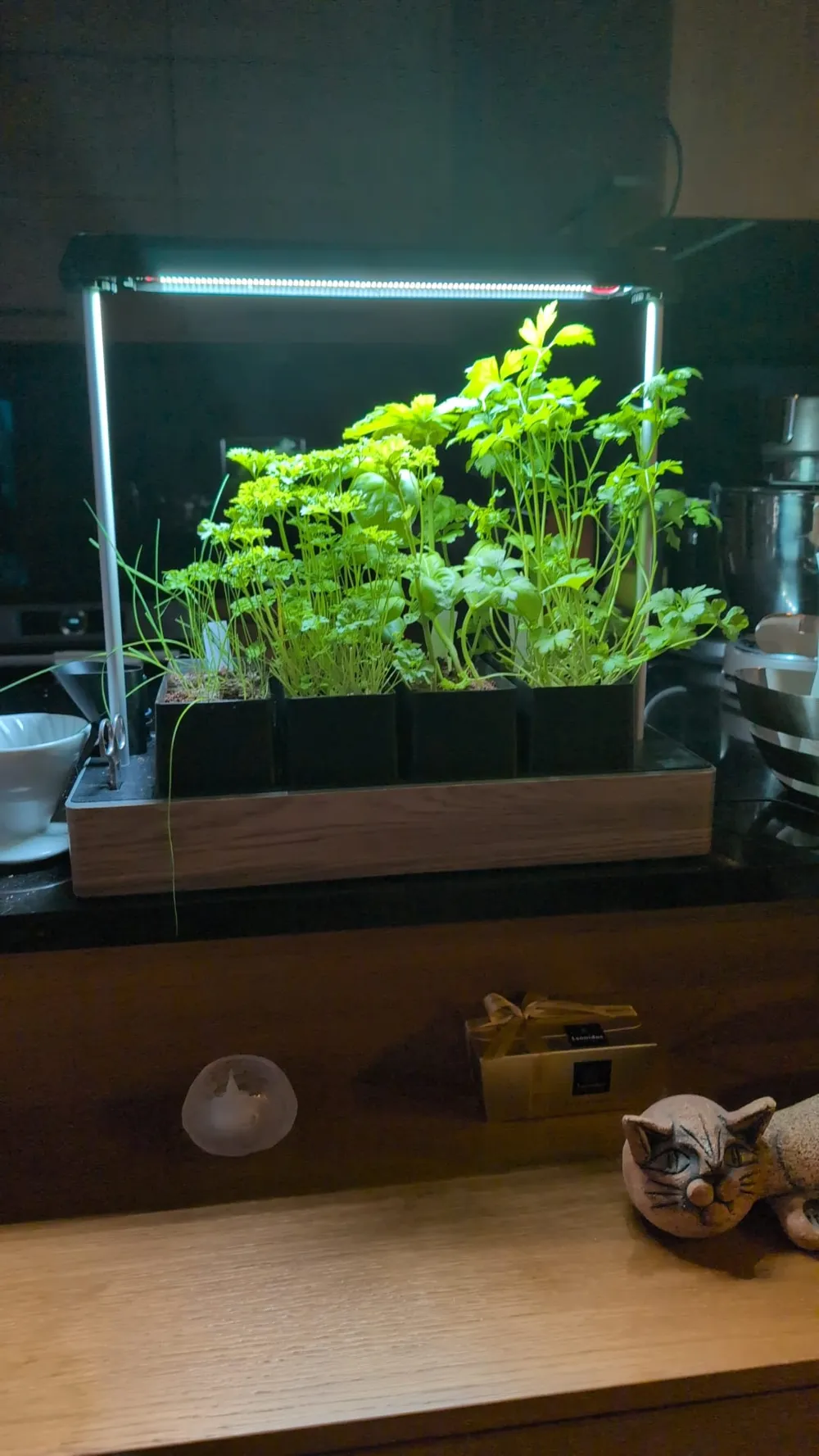

- Adjustable High-Power Light: Height-adjustable arm holding up to 25W of LED strips (Full Spectrum).
- Smart Automation: Integrated space for a WiFi LED driver (Tuya/Smart Home compatible).
- Modern Powering: Powered via USB-C PD (Requires 30W+, 20V capable adapter).
Print & Material Recommendations
- Water-contact parts: PETG (mandatory for water tightness).
- LED Housing & Electronics Box: ABS or ASA recommended (Aluminium plate reaches ~65°C). PETG is the bare minimum.
- Print Profiles: All plates are pre-configured in the provided project file.
Hardware & BOM
Note: A detailed Build Manual PDF is attached to the files!
- Non-printed parts: 2x 12mm Aluminium tubes (450mm), 1x Aluminium plate (2-3mm thick, custom cut).
- Electronics:
- High CRI LED Strip (24V)
- WiFi Tuya LED Driver
- USB-C Decoy Board (20V)
- Boost Converter XL6009
- Watering Wick
- Internal USB-C Cable
- Connectors/Plugs
- 2-wire Cable
- Some M3 screws, Small piece of foam polystyrene
